Layout (DEPRECATED)

DEPRECATION NOTICE: The gf180 package is deprecated and will be removed in a future version. Please use the gf180mcu package instead.

This notebook is kept for reference only and may contain outdated information.

Please visit the gf180mcu documentation for up-to-date notebooks.

Layout driven flow using gf180mcu (recommended)

You should import the PDK from gf180mcu and layout any of the standard cells

# Recommended approach using gf180mcu directly
import gf180mcu

# Create components using gf180mcu
c = gf180mcu.diode_dw2ps()
c.plot()

Legacy approach using gf180 (deprecated)

While still supported for backwards compatibility, this approach is deprecated and will show warnings:

# Legacy/deprecated approach (generates deprecation warning)
import gf180  # noqa

# This still works but is redirected to gf180mcu internally

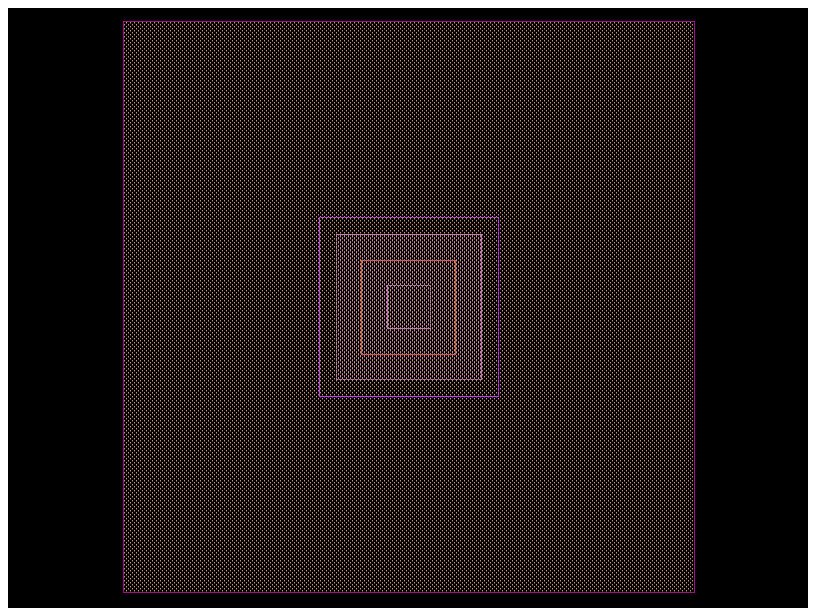

c = gf180.diode_dw2ps()
c.plot()

/tmp/ipykernel_2207/1591992778.py:2: DeprecationWarning: The gf180 package is deprecated and will be removed in a future version. Please use the gf180mcu package instead.
  import gf180  # noqa
