Layout driven flow#

You can import the PDK and layout any of the standard cells

import gf180mcu  # The new package name (previously gf180)
c = gf180mcu.diode_dw2ps()

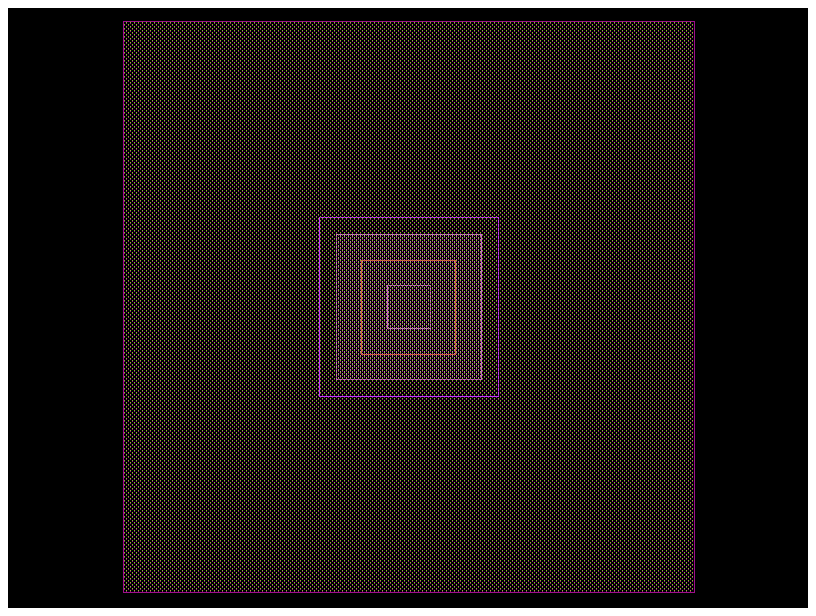

c.plot()
../_images/fdfdbeecff8857ca97dc81d1923d5f587e15e2f6b01c325b2018bad51bfb3a35.png
