Bundle Routing — Tutorial

route_bundle routes N start ports to N end ports, maintaining spacing and avoiding obstacles. This page covers parameters that are not shown in the Routing Overview or Optical Routing Deep Dive.

Topic	API
Automatic port sorting	`sort_ports=True`
Per-bundle separation	`separation=` (DBU / µm)
S-bend compact routing	`sbend_factory=`
Bounding-box strategy	`bbox_routing='minimal'` / `'full'`
Obstacle avoidance	`bboxes=[...]`, `collision_check_layers=`
Mismatch tolerance	`allow_width_mismatch`, `allow_type_mismatch`

Setup

from functools import partial

import kfactory as kf


class LAYER(kf.LayerInfos):
    WG: kf.kdb.LayerInfo = kf.kdb.LayerInfo(1, 0)
    WGCLAD: kf.kdb.LayerInfo = kf.kdb.LayerInfo(2, 0)
    METAL: kf.kdb.LayerInfo = kf.kdb.LayerInfo(20, 0)
    FLOORPLAN: kf.kdb.LayerInfo = kf.kdb.LayerInfo(10, 0)


L = LAYER()
kf.kcl.infos = L

WG_WIDTH = kf.kcl.to_dbu(0.5)  # 500 DBU
SEP = kf.kcl.to_dbu(2.0)  # 2 µm centre-to-centre extra separation

wg_enc = kf.kcl.get_enclosure(
    kf.LayerEnclosure(name="WGSTD_BND", sections=[(L.WGCLAD, 0, 2_000)])
)

bend90 = kf.factories.euler.bend_euler_factory(kcl=kf.kcl)(
    width=0.5, radius=10, layer=L.WG, enclosure=wg_enc, angle=90
)
straight_factory = partial(
    kf.factories.straight.straight_dbu_factory(kcl=kf.kcl),
    layer=L.WG,
    enclosure=wg_enc,
)
bend_radius = kf.routing.optical.get_radius(bend90)

wl = kf.kcl.find_layer(L.WG)

1 · Port sorting — `sort_ports=True`

By default route_bundle pairs start_ports[i] with end_ports[i]. If the two lists are in opposite spatial orders (e.g., start ports run bottom-to-top while end ports run top-to-bottom), routes will cross each other.

Setting sort_ports=True re-orders both lists by position so that the port closest to the bottom on the start side connects to the port closest to the bottom on the end side — eliminating crossings.

# Start ports are ordered top-to-bottom; end ports are ordered bottom-to-top.
# Without sort_ports the routes would cross.


@kf.cell
def bundle_sorted() -> kf.KCell:
    c = kf.KCell()

    start_ports = [
        c.create_port(
            name=f"in{i}",
            trans=kf.kdb.Trans(2, False, -60_000, (2 - i) * 10_000),  # reversed Y
            width=WG_WIDTH,
            layer=wl,
            port_type="optical",
        )
        for i in range(3)
    ]
    end_ports = [
        c.create_port(
            name=f"out{i}",
            trans=kf.kdb.Trans(0, False, 60_000, i * 10_000),  # normal Y
            width=WG_WIDTH,
            layer=wl,
            port_type="optical",
        )
        for i in range(3)
    ]

    # Use a wider local separation matching the 10µm port pitch — the
    # global SEP=2µm would require the router to bend each route to
    # compress the bundle, which collides with adjacent route bends.
    kf.routing.optical.route_bundle(
        c,
        start_ports=start_ports,
        end_ports=end_ports,
        separation=kf.kcl.to_dbu(10),
        straight_factory=straight_factory,
        bend90_cell=bend90,
        sort_ports=True,  # ← automatically matches by Y position
    )
    return c

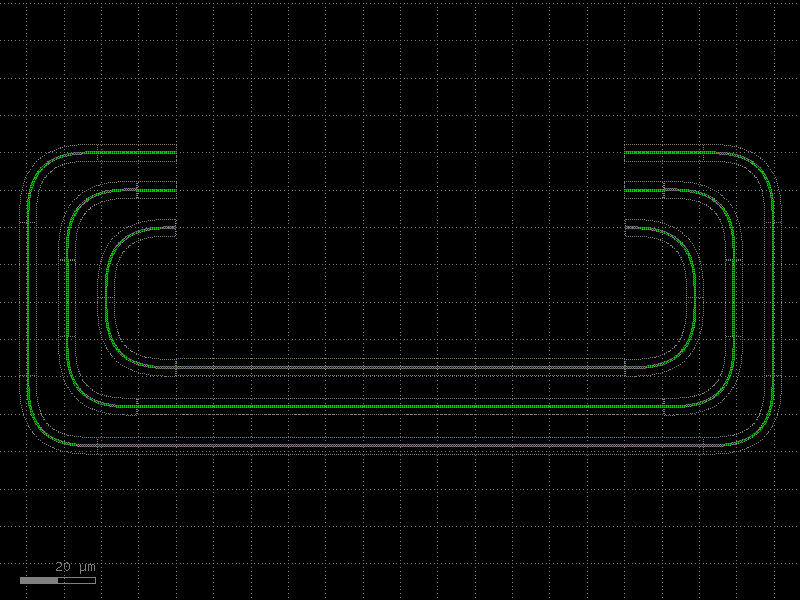

c_sorted = bundle_sorted()
c_sorted.plot()

Without sort_ports=True the same port lists would produce three crossing routes. Sorting resolves the crossing by pairing ports at the same relative position.

2 · Separation between routes

separation sets the minimum centre-to-centre distance between adjacent routes in the bundle. Increase it to open up more space between waveguides, for example near dense arrays where cladding layers would otherwise overlap.

@kf.cell
def bundle_wide_sep() -> kf.KCell:
    c = kf.KCell()
    N = 4
    for i in range(N):
        c.create_port(
            name=f"in{i}",
            trans=kf.kdb.Trans(2, False, -60_000, i * 4_000),
            width=WG_WIDTH,
            layer=wl,
            port_type="optical",
        )
        c.create_port(
            name=f"out{i}",
            trans=kf.kdb.Trans(0, False, 60_000, i * 4_000),
            width=WG_WIDTH,
            layer=wl,
            port_type="optical",
        )

    kf.routing.optical.route_bundle(
        c,
        start_ports=list(c.ports.filter(port_type="optical", regex="^in")),
        end_ports=list(c.ports.filter(port_type="optical", regex="^out")),
        separation=kf.kcl.to_dbu(5.0),  # 5 µm — wider than the default 2 µm
        straight_factory=straight_factory,
        bend90_cell=bend90,
    )
    return c


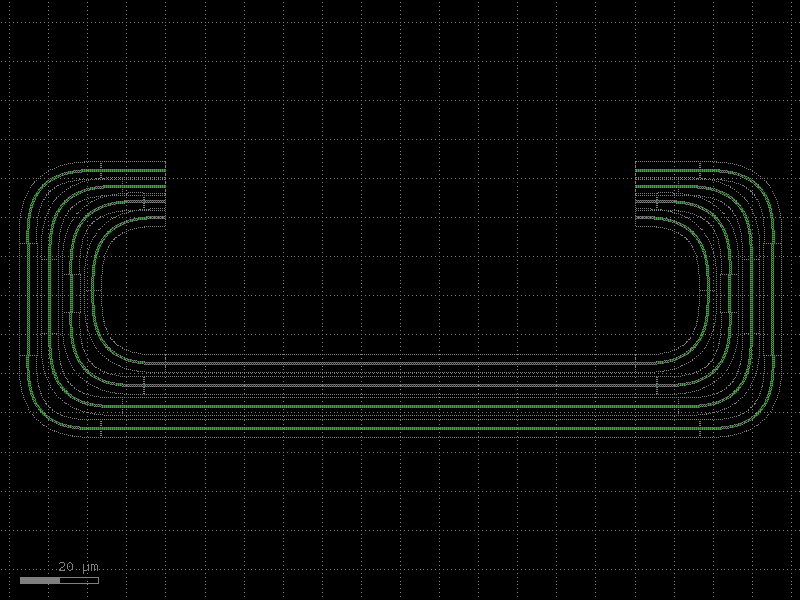

bundle_wide_sep().plot()

3 · S-bend factory for compact fan-in / fan-out

When start and end ports face each other (e.g. East-facing starts and West-facing ends) but their y-coordinates do not line up, a normal 90°-bend router has to insert two right-angle bends per route — producing a large vertical detour. Passing an sbend_factory lets the router substitute a compact Euler S-bend for the y mismatch instead.

The router calls the factory with (c, offset, length, width) and expects back an InstanceGroup exposing ports o1 (left) and o2 (right). The example below wraps kf.cells.euler.bend_s_euler to match that protocol and pads with a short straight if the requested length exceeds the S-bend's own footprint.

from typing import Any


def sbend_factory(
    c: kf.ProtoTKCell[Any],
    offset: int,
    length: int,
    width: int,
) -> kf.InstanceGroup:
    """SBendFactoryDBU wrapper around `bend_s_euler` + an optional straight."""
    ig = kf.InstanceGroup()

    sbend = c << kf.cells.euler.bend_s_euler(
        offset=c.kcl.to_um(offset),
        width=c.kcl.to_um(width),
        radius=10,
        layer=L.WG,
        enclosure=wg_enc,
    )
    ig.add(sbend)
    ig.add_port(name="o1", port=sbend.ports["o1"])

    pad = length - sbend.ibbox().width()
    if pad < 0:
        raise ValueError(
            f"sbend_factory: requested length={length} dbu is shorter than"
            f" the S-bend footprint ({sbend.ibbox().width()} dbu) for"
            f" offset={offset} dbu — no room for the S-bend."
        )
    if pad > 0:
        wg = c << straight_factory(width=width, length=pad)
        ig.add(wg)
        wg.connect("o1", sbend.ports["o2"])
        ig.add_port(name="o2", port=wg.ports["o2"])
    else:
        ig.add_port(name="o2", port=sbend.ports["o2"])

    return ig


@kf.cell
def bundle_sbend() -> kf.KCell:
    """Three routes with mismatched y on each side — forces S-bends."""
    c = kf.KCell()
    # Start ports face East (angle=0) at x=0.
    # End ports face West (angle=2) at x=200 µm.
    # Start and end y-coordinates differ by a few µm, so each route needs an
    # S-bend to bridge the y mismatch — that is what `sbend_factory` provides.
    start_y_um = [0, 50, 100]
    end_y_um = [5, 60, 200]

    start_ports = [
        c.create_port(
            name=f"in{i}",
            trans=kf.kdb.Trans(0, False, 0, kf.kcl.to_dbu(y)),
            width=WG_WIDTH,
            layer=wl,
            port_type="optical",
        )
        for i, y in enumerate(start_y_um)
    ]
    end_ports = [
        c.create_port(
            name=f"out{i}",
            trans=kf.kdb.Trans(2, False, kf.kcl.to_dbu(200), kf.kcl.to_dbu(y)),
            width=WG_WIDTH,
            layer=wl,
            port_type="optical",
        )
        for i, y in enumerate(end_y_um)
    ]

    kf.routing.optical.route_bundle(
        c,
        start_ports=start_ports,
        end_ports=end_ports,
        separation=SEP,
        straight_factory=straight_factory,
        bend90_cell=bend90,
        sbend_factory=sbend_factory,  # ← enables S-bend optimisation
    )
    return c


bundle_sbend().plot()

4 · Bounding-box routing strategy — `bbox_routing`

When obstacle boxes (bboxes=) are present the router must decide how far around them to detour.

Value	Behaviour
`'minimal'` (default)	Each route takes the shortest path around the obstacle.
`'full'`	All routes share a single bounding path — the bundle stays intact as it detours.

'full' produces cleaner layouts when you want the bundle to remain grouped around obstacles; 'minimal' produces tighter total area when individual routes can fan around obstacles independently.

# Each route gets its own obstacle bbox.  An obstacle is treated as a
# keep-out region around the port(s) it contains: `route_smart` groups
# ports that fall *inside* the bbox and routes those routers as one bundle
# around it.  For that to engage, the bbox must extend past the port
# column on both sides by at least `bend_radius`:
# `xmin < ports.xmin - bend_radius` and `xmax > ports.xmax + bend_radius`.
#
# The y range of each bbox is kept narrower than the port pitch so each
# bbox only contains its own start and end port — adjacent routes' ports
# are excluded, demonstrating that `route_smart` can handle per-route
# obstacles independently.
N_BBOX = 4
PITCH_BBOX = 3_000
HALF_Y_BBOX = 1_000  # < PITCH/2 so the bbox excludes adjacent ports
blockers = [
    kf.kdb.Box(
        -80_000,
        i * PITCH_BBOX - HALF_Y_BBOX,
        80_000,
        i * PITCH_BBOX + HALF_Y_BBOX,
    )
    for i in range(N_BBOX)
]


@kf.cell
def bundle_bbox_minimal() -> kf.KCell:
    c = kf.KCell()
    for i in range(N_BBOX):
        c.create_port(
            name=f"in{i}",
            trans=kf.kdb.Trans(2, False, -60_000, i * PITCH_BBOX),
            width=WG_WIDTH,
            layer=wl,
            port_type="optical",
        )
        c.create_port(
            name=f"out{i}",
            trans=kf.kdb.Trans(0, False, 60_000, i * PITCH_BBOX),
            width=WG_WIDTH,
            layer=wl,
            port_type="optical",
        )

    # Draw each obstacle on the floorplan layer so they are visible alongside
    # the routed waveguides.
    for blocker in blockers:
        c.shapes(kf.kcl.find_layer(L.FLOORPLAN)).insert(blocker)

    kf.routing.optical.route_bundle(
        c,
        start_ports=list(c.ports.filter(port_type="optical", regex="^in")),
        end_ports=list(c.ports.filter(port_type="optical", regex="^out")),
        separation=SEP,
        straight_factory=straight_factory,
        bend90_cell=bend90,
        bboxes=blockers,
        bbox_routing="minimal",
    )
    return c


@kf.cell
def bundle_bbox_full() -> kf.KCell:
    c = kf.KCell()
    for i in range(N_BBOX):
        c.create_port(
            name=f"in{i}",
            trans=kf.kdb.Trans(2, False, -60_000, i * PITCH_BBOX),
            width=WG_WIDTH,
            layer=wl,
            port_type="optical",
        )
        c.create_port(
            name=f"out{i}",
            trans=kf.kdb.Trans(0, False, 60_000, i * PITCH_BBOX),
            width=WG_WIDTH,
            layer=wl,
            port_type="optical",
        )

    for blocker in blockers:
        c.shapes(kf.kcl.find_layer(L.FLOORPLAN)).insert(blocker)

    kf.routing.optical.route_bundle(
        c,
        start_ports=list(c.ports.filter(port_type="optical", regex="^in")),
        end_ports=list(c.ports.filter(port_type="optical", regex="^out")),
        separation=SEP,
        straight_factory=straight_factory,
        bend90_cell=bend90,
        bboxes=blockers,
        bbox_routing="full",
    )
    return c

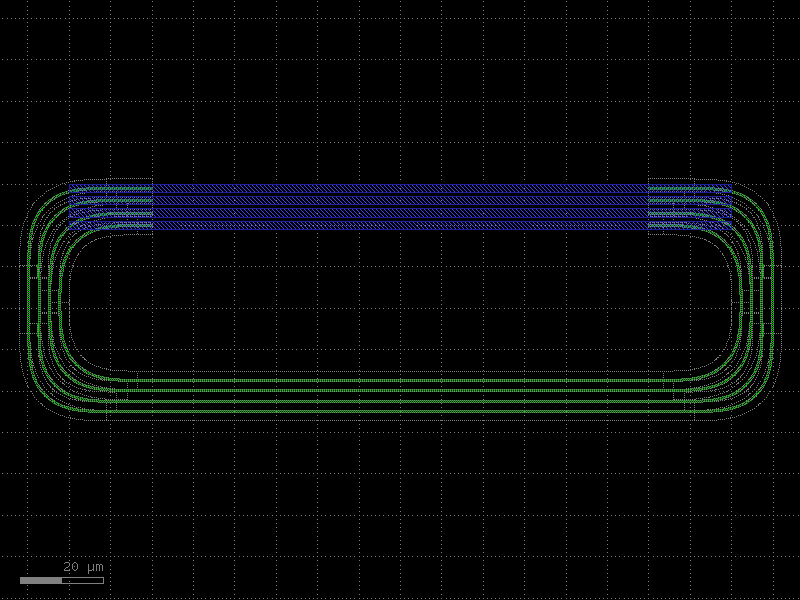

bundle_bbox_minimal().plot()

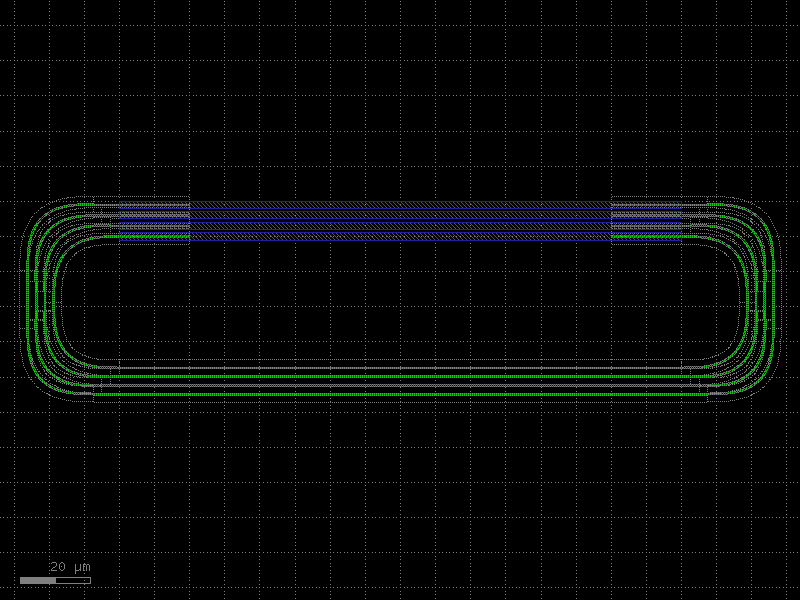

bundle_bbox_full().plot()

5 · Mismatch tolerance flags

route_bundle checks that paired ports share the same width, layer, and port type. Relax individual checks when connecting different structures:

Flag	Effect
`allow_width_mismatch=True`	Accept ports with different widths
`allow_layer_mismatch=True`	Accept ports on different layers
`allow_type_mismatch=True`	Accept ports with different `port_type` strings

These flags do not insert tapers — the route simply uses the width/layer of the first (start) port. Insert explicit taper_cell for mode-converting transitions.

@kf.cell
def bundle_type_mismatch() -> kf.KCell:
    """Connect 'optical' start ports to 'pin' end ports."""
    c = kf.KCell()
    N = 2

    start_ports = [
        c.create_port(
            name=f"wg{i}",
            # East-facing start ports — routes will head east toward the end ports
            trans=kf.kdb.Trans(0, False, -50_000, i * 10_000),
            width=WG_WIDTH,
            layer=wl,
            port_type="optical",
        )
        for i in range(N)
    ]
    # End ports face West so the bundle goes straight across.  They also carry
    # a different `port_type` to exercise `allow_type_mismatch=True`.
    end_ports = [
        c.create_port(
            name=f"pin{i}",
            trans=kf.kdb.Trans(2, False, 50_000, i * 10_000),
            width=WG_WIDTH,
            layer=wl,
            port_type="pin",
        )
        for i in range(N)
    ]

    kf.routing.optical.route_bundle(
        c,
        start_ports=start_ports,
        end_ports=end_ports,
        separation=SEP,
        straight_factory=straight_factory,
        bend90_cell=bend90,
        allow_type_mismatch=True,  # ← suppress port_type equality check
    )
    return c


bundle_type_mismatch().plot()

Parameter quick-reference

Parameter	Type	Default	Notes
`separation`	DBU / µm	—	Min centre-to-centre spacing
`sort_ports`	`bool`	`False`	Sort both lists by position before pairing
`sbend_factory`	factory or `None`	`None`	Use S-bends for compact lateral shifts
`bbox_routing`	`'minimal'` / `'full'`	`'minimal'`	How the bundle detours around `bboxes`
`bboxes`	`list[kdb.Box]`	`None`	Physical obstacles to route around
`collision_check_layers`	`list[LayerInfo]`	`None`	Layers checked for geometric overlap
`on_collision`	`'error'` / `'show_error'` / `None`	`'show_error'`	Action on collision
`allow_width_mismatch`	`bool`	`None`	Skip width equality check
`allow_layer_mismatch`	`bool`	`None`	Skip layer equality check
`allow_type_mismatch`	`bool`	`None`	Skip port_type equality check
`route_width`	DBU / `list[DBU]`	`None`	Override wire width per route
`starts` / `ends`	DBU / steps	`None`	Entry/exit stub lengths (see optical.py)
`waypoints`	`Trans` / `list[Point]`	`None`	Force routes through a point (see optical.py)
`path_length_matching_config`	`PathLengthConfig`	`None`	Equal-length routing (see optical.py)

Topic	Where
Single-route optical options: waypoints, loopbacks, stubs	Routing: Optical
Electrical bundle routing	Routing: Electrical
Equal path-length loops inside a bundle	Routing: Path Length
Manhattan backbone that bundle routing uses internally	Routing: Manhattan
Routing overview and sub-module map	Routing: Overview
Port sorting and orientation	Core Concepts: Ports
