Cells Si SOI 340nm¶

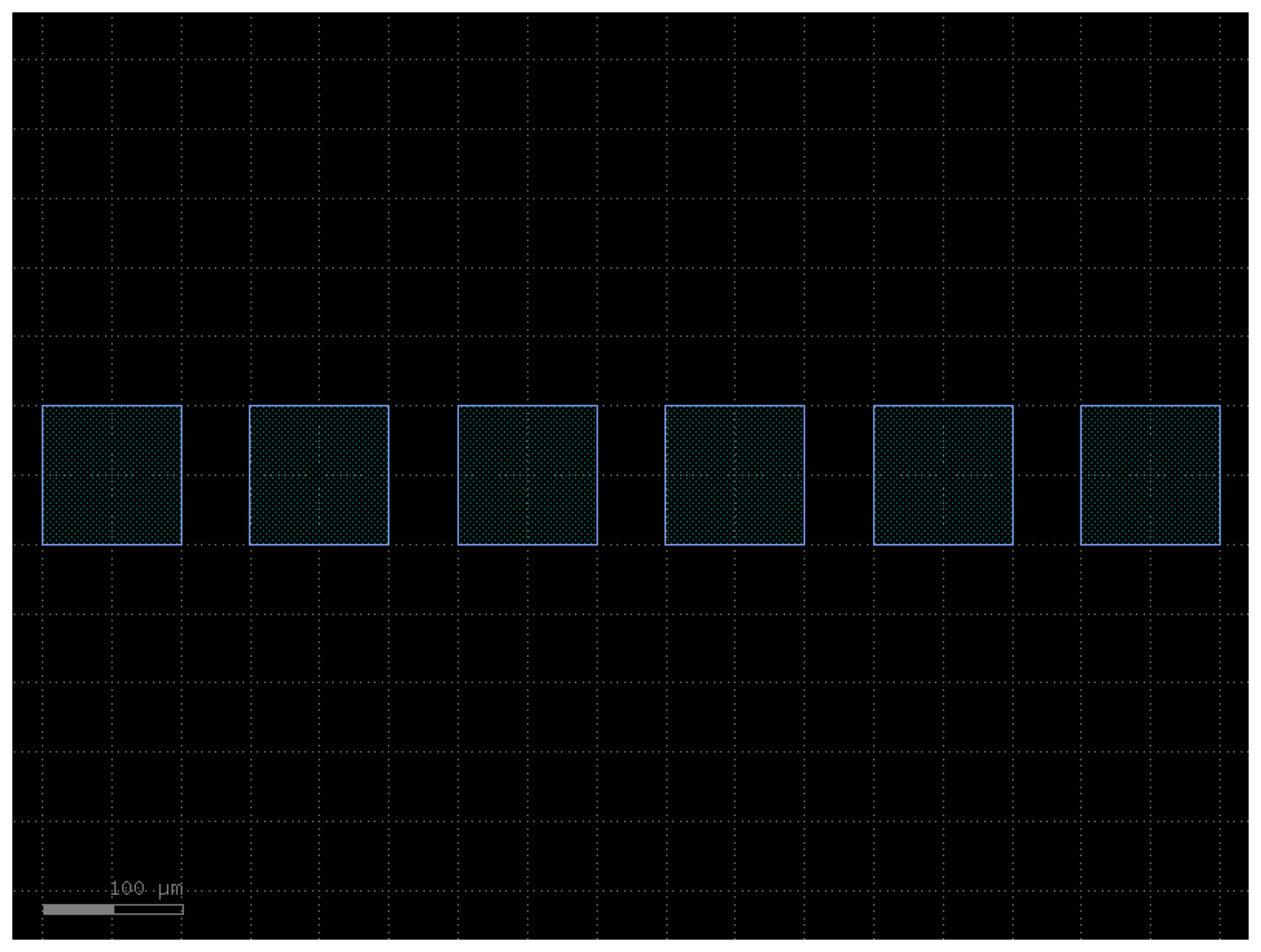

array¶
An array of components.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
component
|
the component of which to create an array |
'pad'
|
|
columns
|
int
|
the number of components to place in the x-direction |
6
|
rows
|
int
|
the number of components to place in the y-direction |
1
|
add_ports
|
bool
|
add ports to the component |
True
|
size
|
Optional x, y size. Overrides columns and rows. |
None
|
|
centered
|
bool
|
center the array around the origin. |
False
|
row_pitch
|
float
|
the pitch between rows. |
150
|
column_pitch
|
float
|
the pitch between columns. |
150
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.array(component='pad', columns=6, rows=1, add_ports=True, centered=False, column_pitch=150, row_pitch=150)
c.draw_ports()
c.plot()

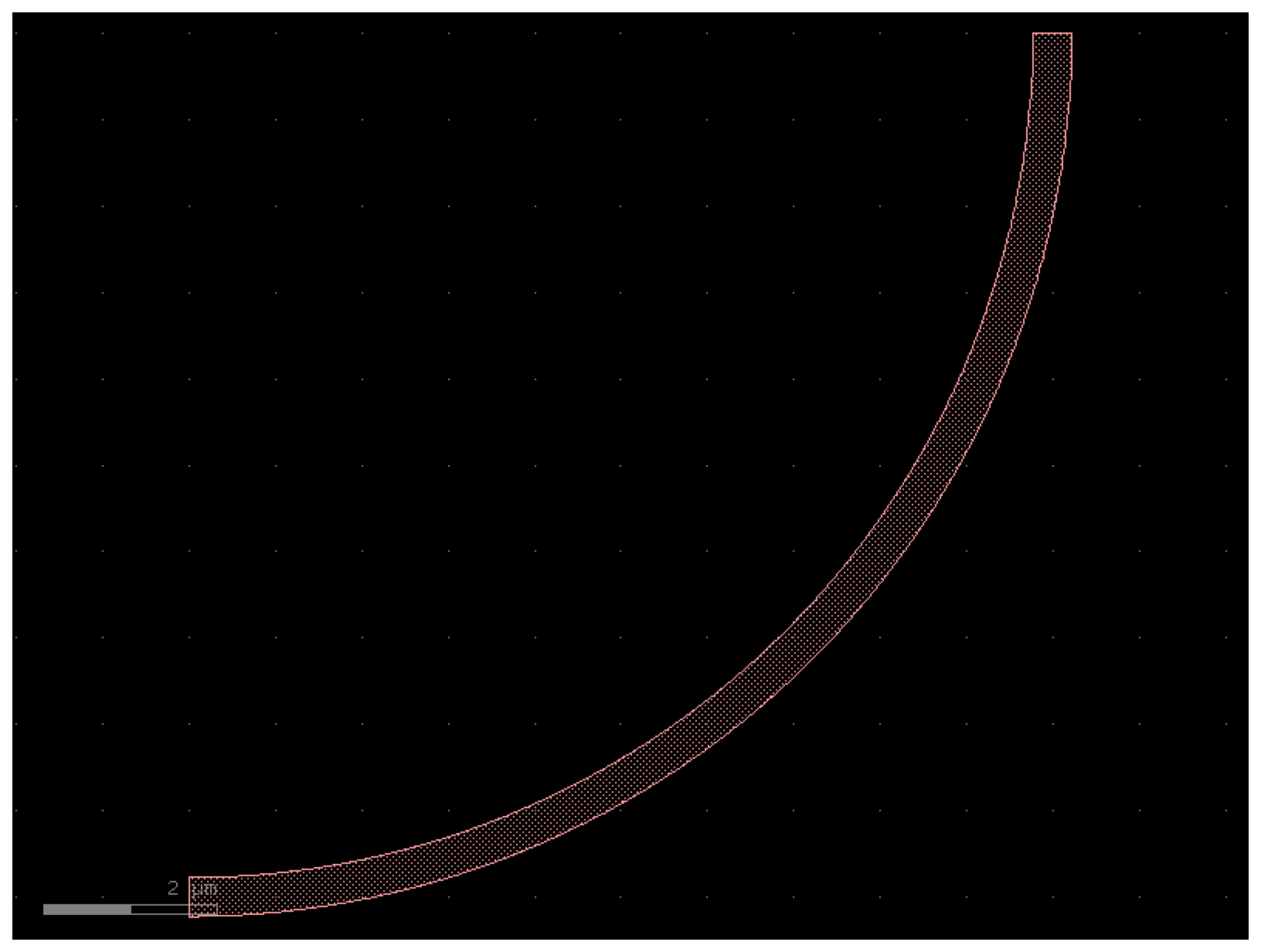

bend_circular¶
A circular bend, as the foundry 90 degree bends.
The SOI340nm strip bends (R = 10 um) and rib bend (R = 100 um) are
circular arcs, so this is the default bend for routing and the MZI. An
Euler bend (bend_euler) with the same effective radius curves more
tightly than the foundry radius.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
radius
|
float | None
|
the radius of the bend; defaults to the cross-section radius. |
None
|
angle
|
float
|
the angle of the bend (usually 90 degrees). |
90.0
|
width
|
float | None
|
the width of the waveguide forming the bend. |
None
|
cross_section
|
CrossSectionSpec
|
a cross section or its name or a function generating a cross section. |
'xs_sc340'
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.bend_circular(angle=90, cross_section='xs_sc340')
c.draw_ports()
c.plot()

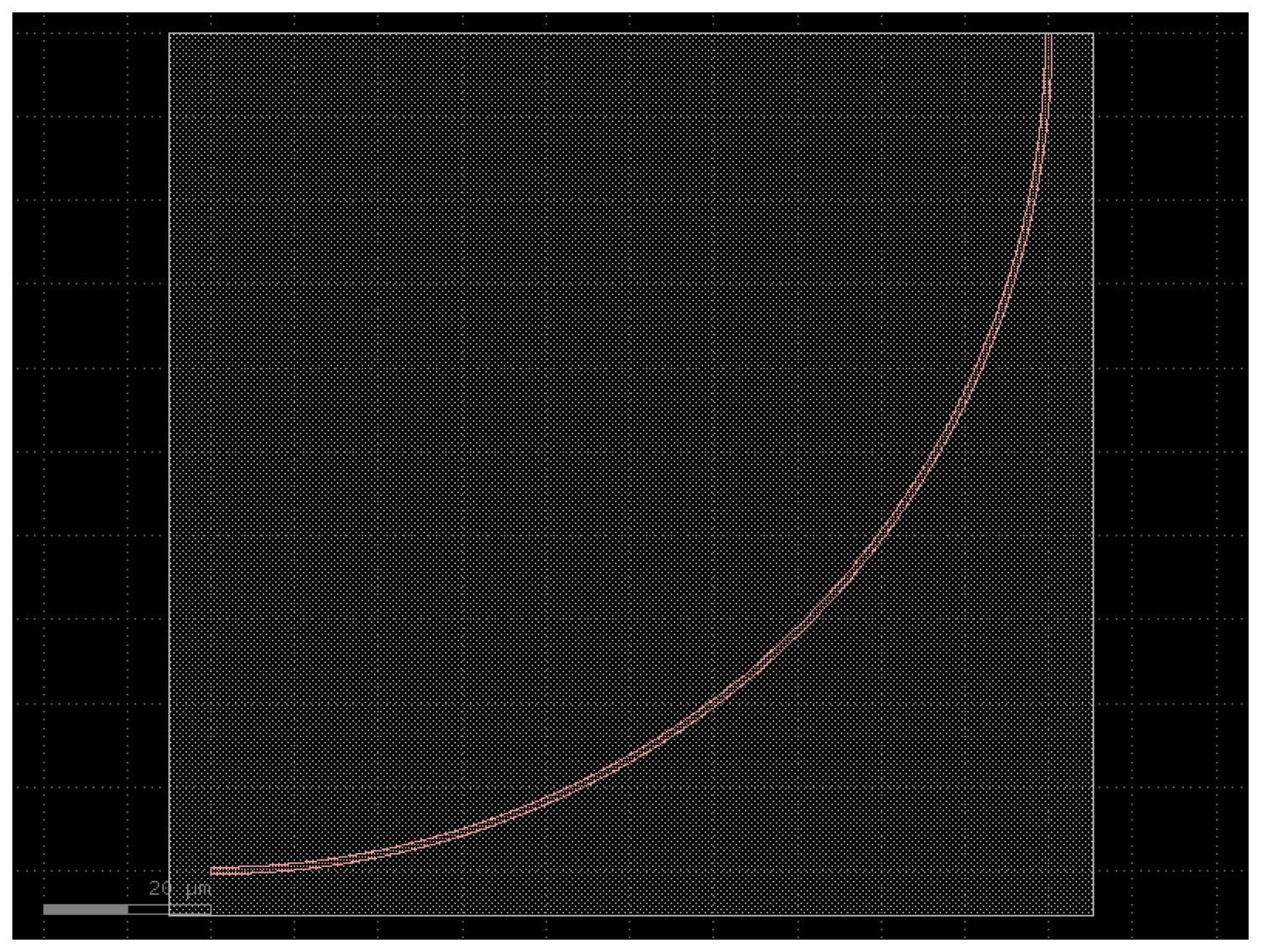

bend_circular_rc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.bend_circular_rc(angle=90, cross_section='xs_rc340')
c.draw_ports()
c.plot()
bend_circular_sc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.bend_circular_sc(angle=90, cross_section='xs_sc340')
c.draw_ports()
c.plot()

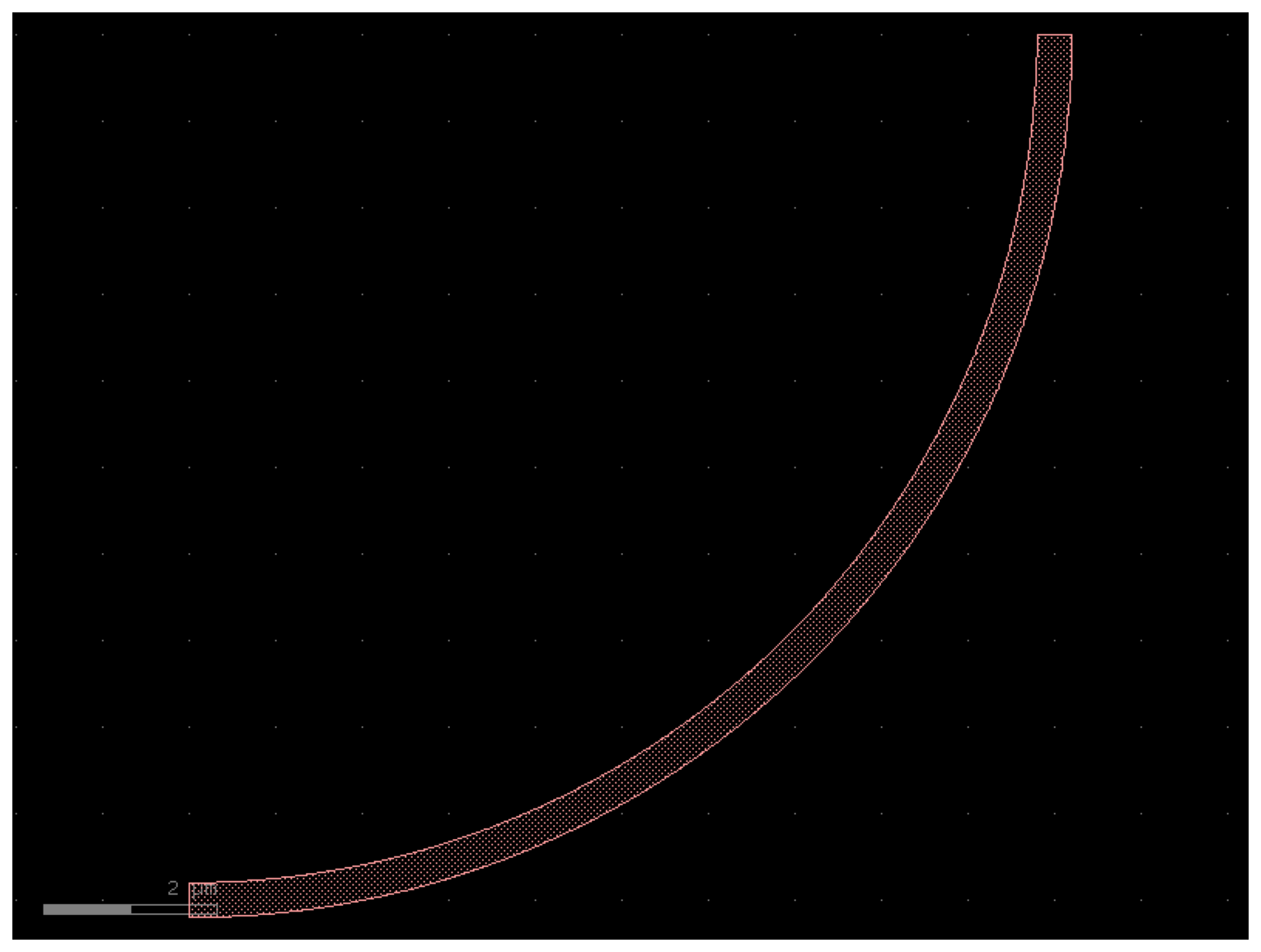

bend_circular_so¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.bend_circular_so(angle=90, cross_section='xs_so340')
c.draw_ports()
c.plot()

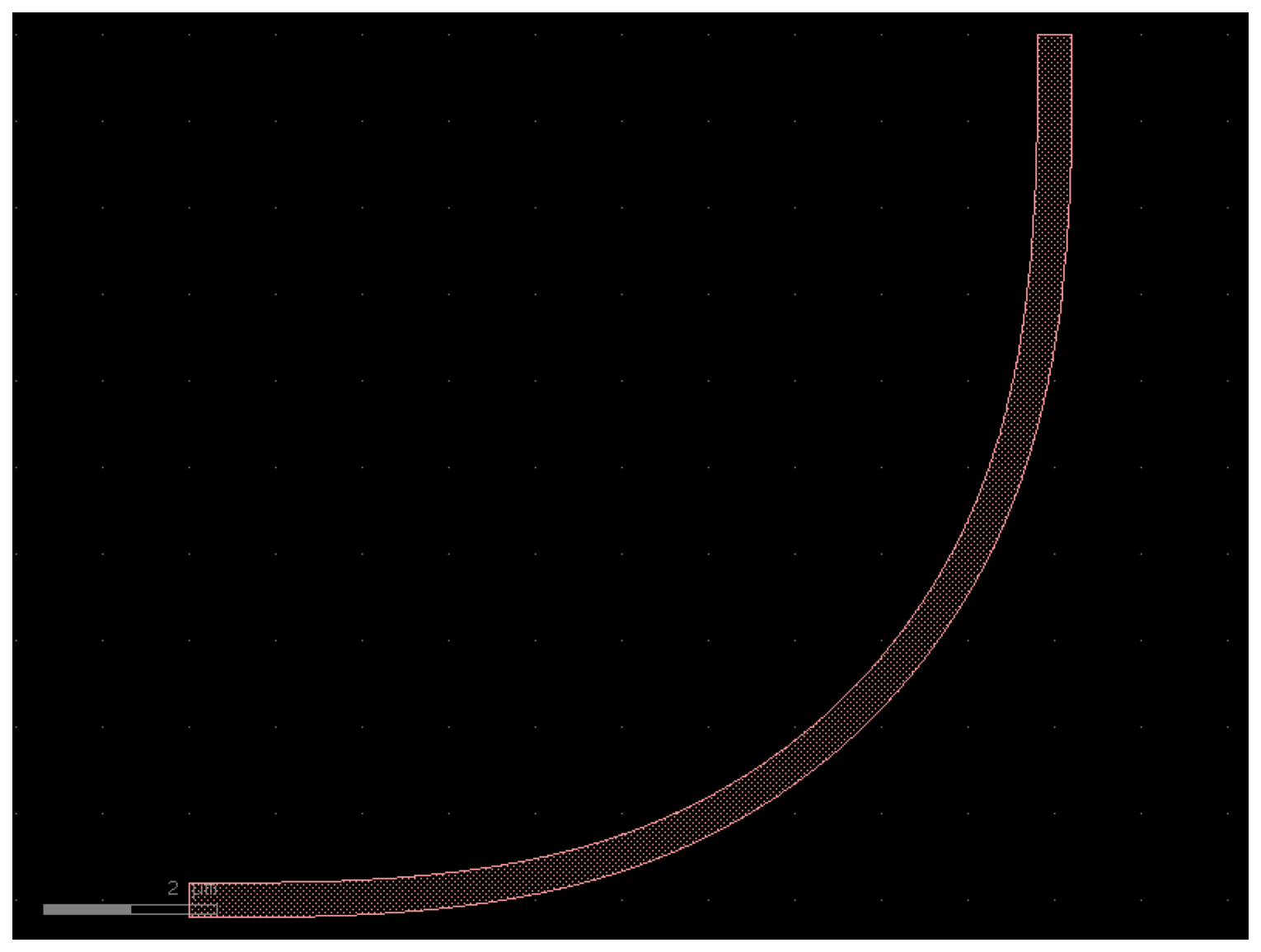

bend_euler¶
An euler bend.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
radius
|
float | None
|
the effective radius of the bend. |
None
|
angle
|
float
|
the angle of the bend (usually 90 degrees). |
90.0
|
p
|
float
|
the fraction of the bend that's represented by a polar bend. |
0.5
|
width
|
float | None
|
the width of the waveguide forming the bend. |
None
|
cross_section
|
CrossSectionSpec
|
a cross section or its name or a function generating a cross section. |
'xs_sc340'
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.bend_euler(angle=90, p=0.5, cross_section='xs_sc340')
c.draw_ports()
c.plot()

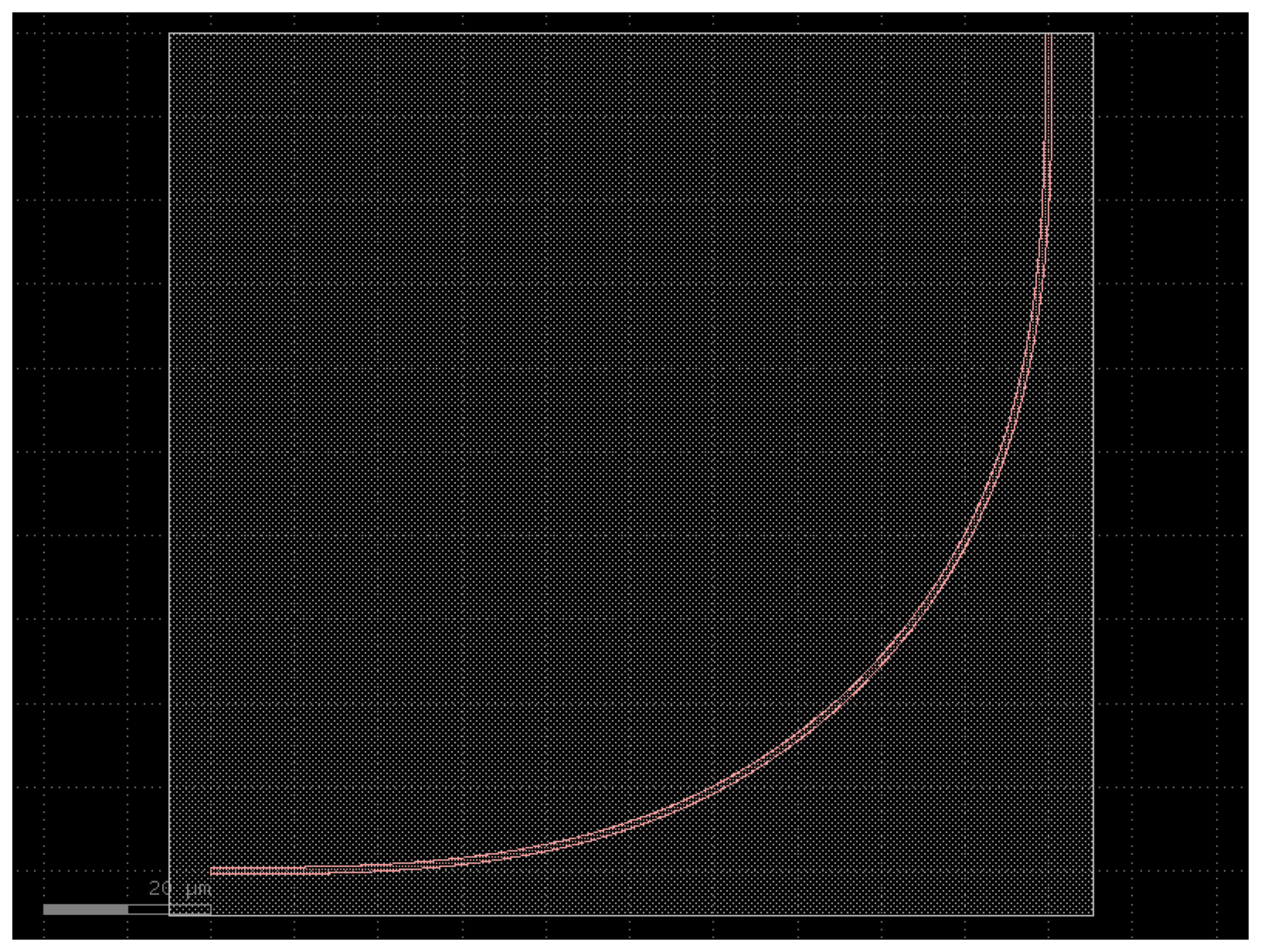

bend_euler_rc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.bend_euler_rc(angle=90, p=0.5, cross_section='xs_rc340')
c.draw_ports()
c.plot()

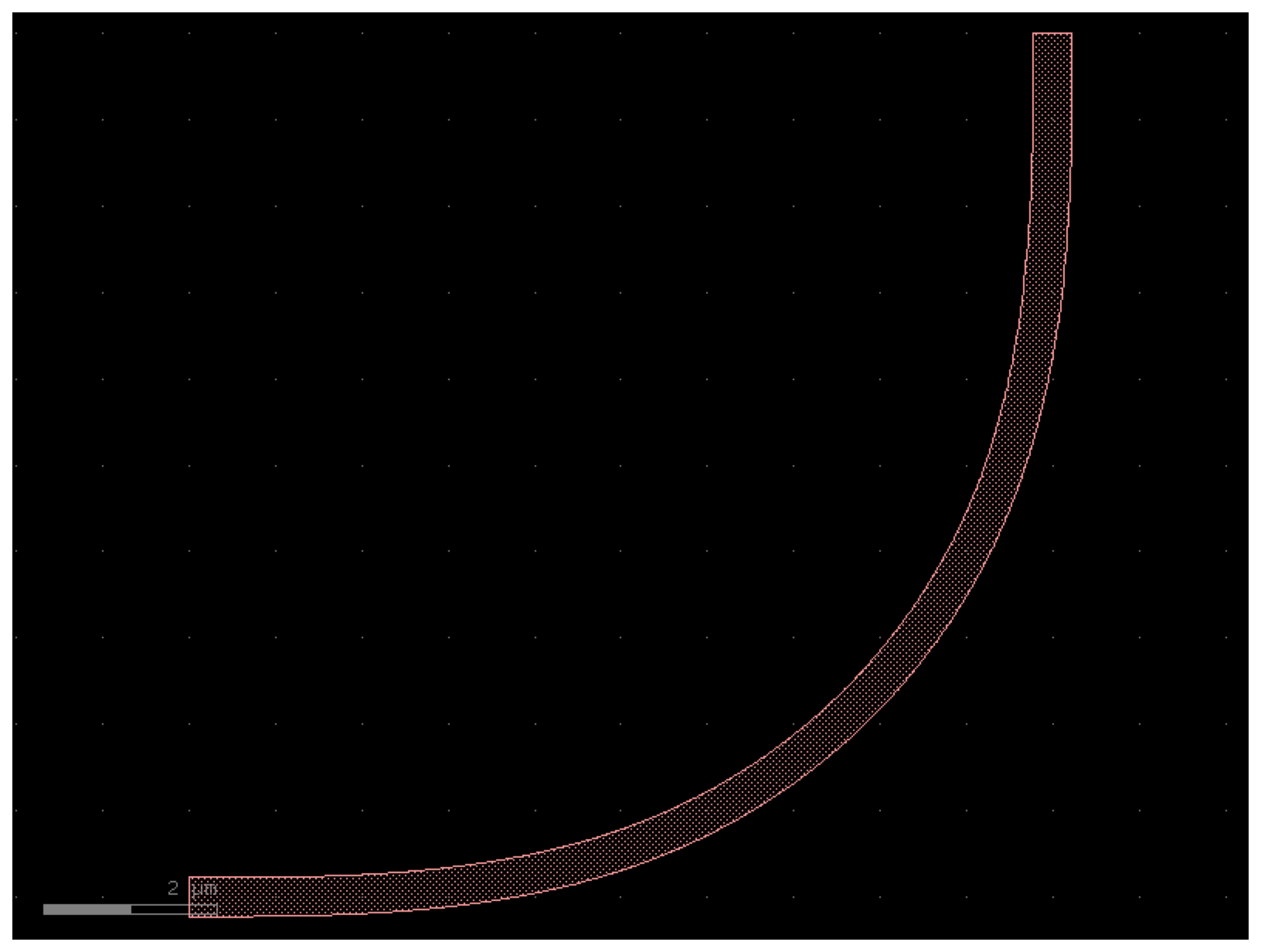

bend_euler_sc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.bend_euler_sc(angle=90, p=0.5, cross_section='xs_sc340')
c.draw_ports()
c.plot()
bend_euler_so¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.bend_euler_so(angle=90, p=0.5, cross_section='xs_so340')
c.draw_ports()
c.plot()

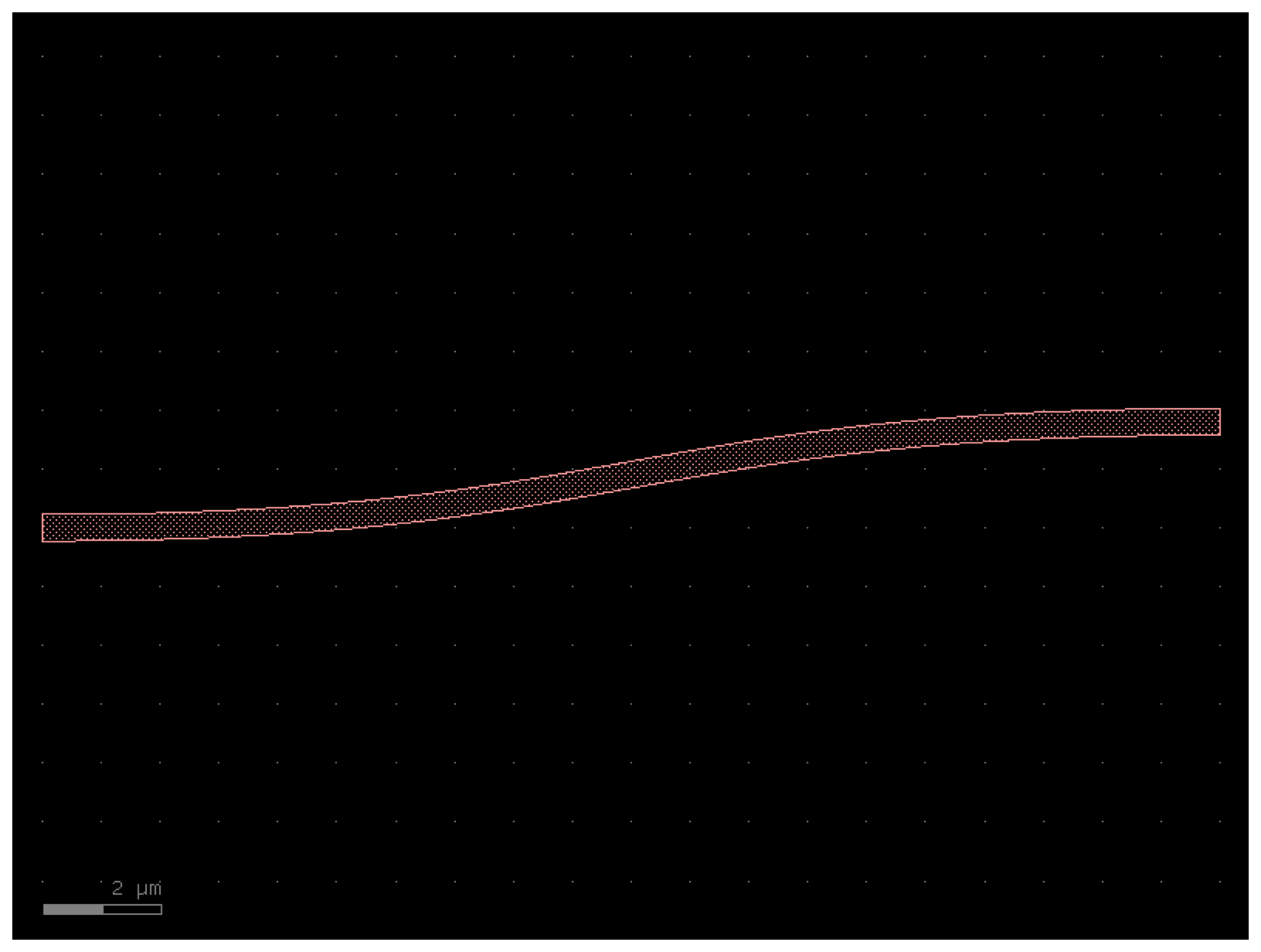

bend_s¶
An S-bend.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
size
|
tuple[float, float]
|
the width and height of the s-bend. |
(20.0, 1.8)
|
cross_section
|
CrossSectionSpec
|
a cross section or its name or a function generating a cross section. |
'xs_sc340'
|
allow_min_radius_violation
|
bool
|
if True, allows the s-bend to have a smaller radius than the minimum radius. |
True
|
width
|
float | None
|
waveguide width; defaults to the cross-section width. |
None
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.bend_s(size=(20, 1.8), cross_section='xs_sc340', allow_min_radius_violation=True)
c.draw_ports()
c.plot()

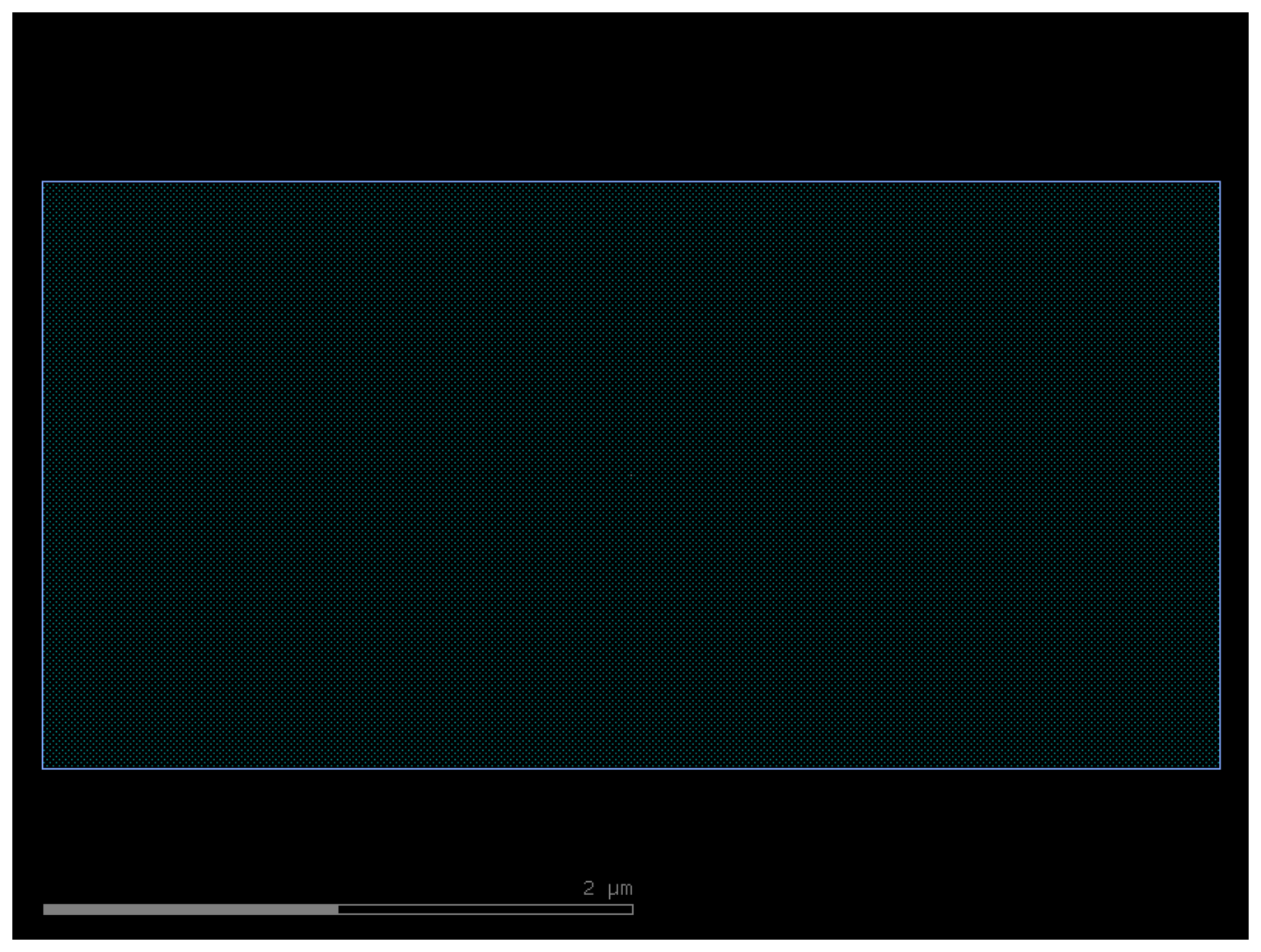

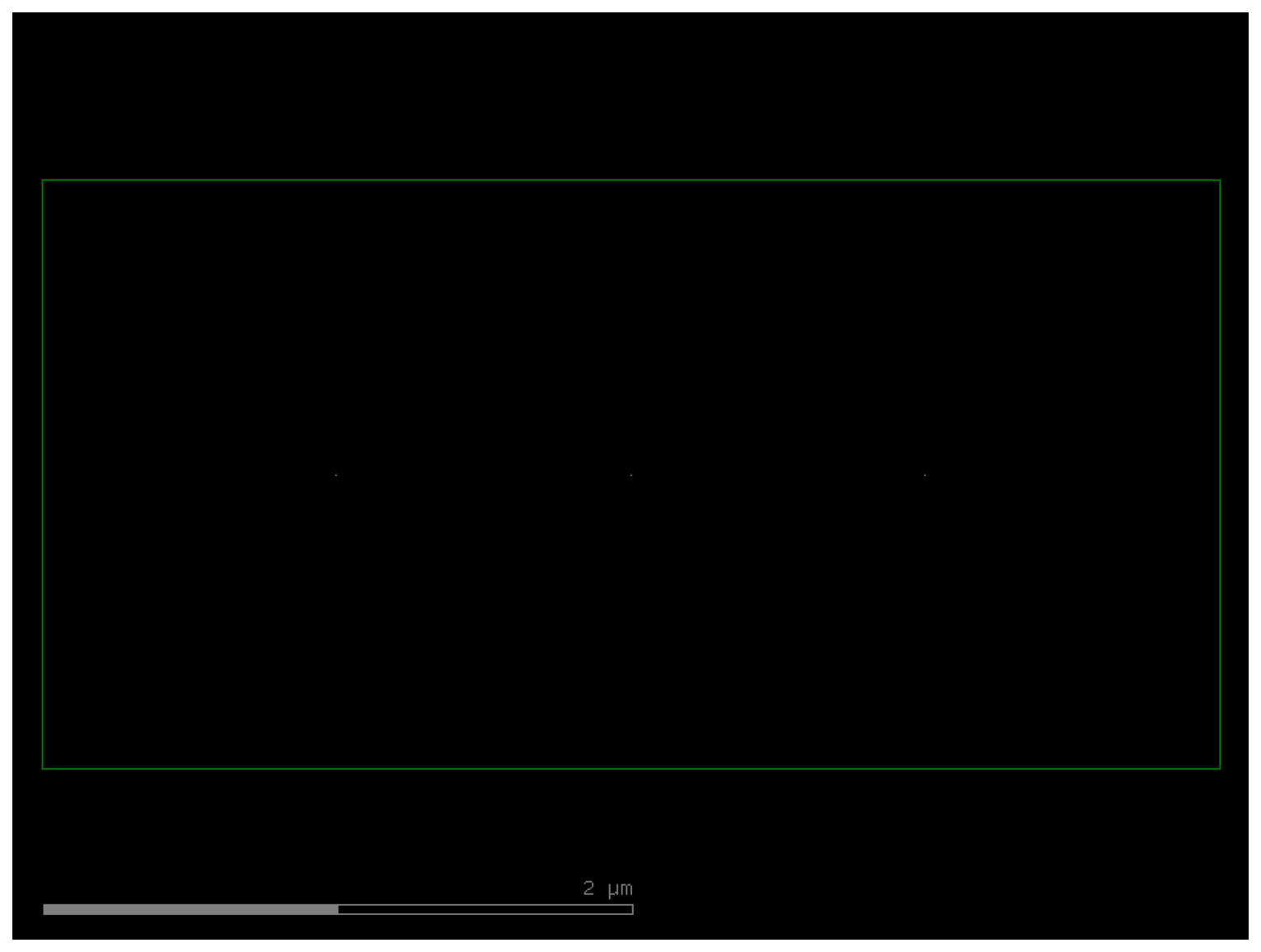

compass¶
Rectangle with ports on each edge (north, south, east, and west).
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
size
|
Size
|
rectangle size. |
(4.0, 2.0)
|
layer
|
LayerSpec
|
tuple (int, int). |
'PAD'
|
port_type
|
str | None
|
optical, electrical. |
'electrical'
|
port_inclusion
|
float
|
from edge. |
0.0
|
port_orientations
|
Ints | None
|
list of port_orientations to add. None does not add ports. |
(180, 90, 0, -90)
|
auto_rename_ports
|
bool
|
auto rename ports. |
True
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.compass(size=(4, 2), layer='PAD', port_type='electrical', port_inclusion=0, port_orientations=(180, 90, 0, -90), auto_rename_ports=True)
c.draw_ports()
c.plot()

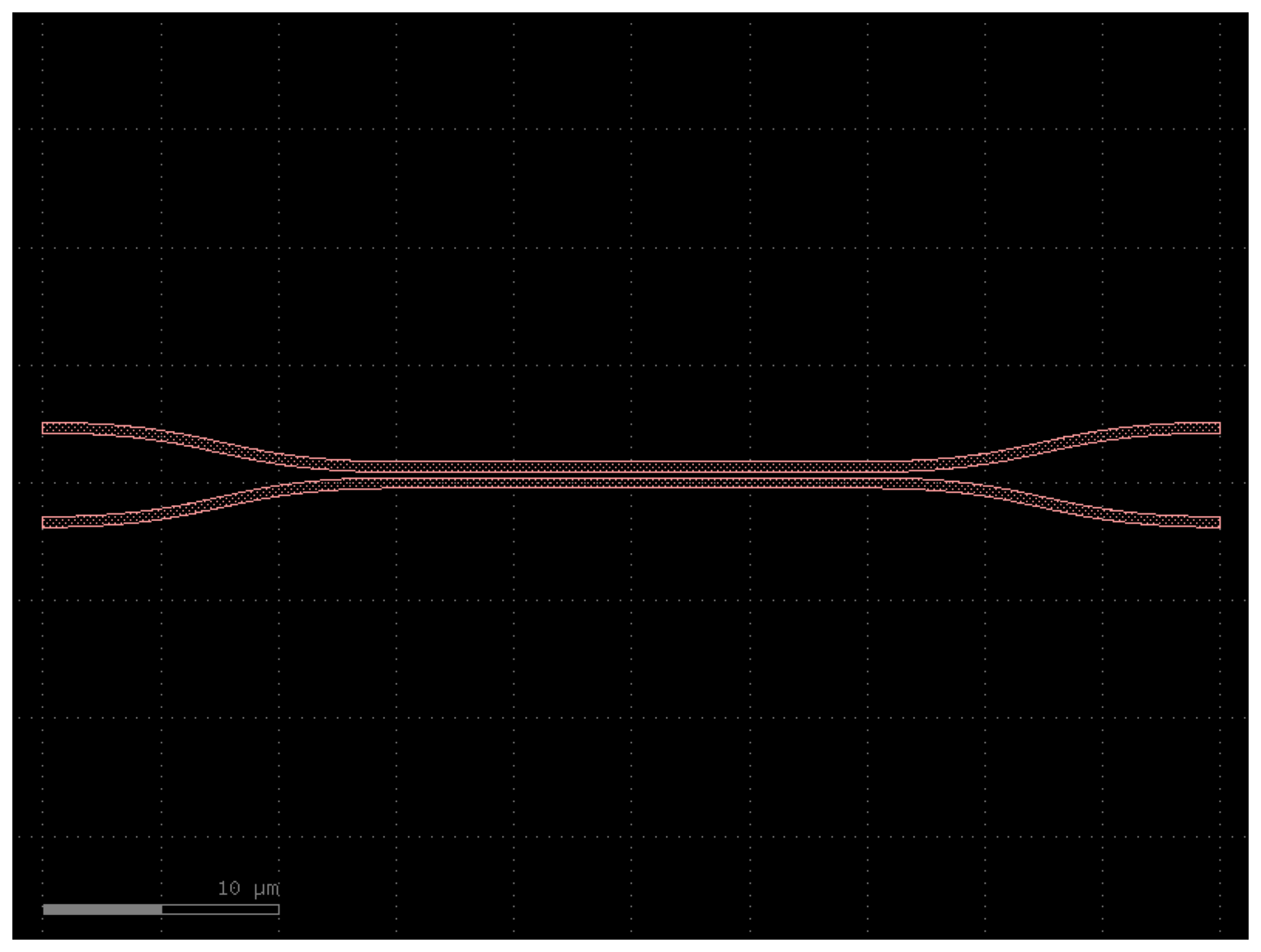

coupler¶
A coupler.
a coupler is a 2x2 splitter
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
gap
|
float
|
the gap between the waveguides forming the straight part of the coupler. |
0.236
|
length
|
float
|
the length of the coupler. |
20.0
|
dy
|
float
|
the height of the s-bend. |
4.0
|
dx
|
float
|
the length of the s-bend. |
15.0
|
cross_section
|
CrossSectionSpec
|
a cross section or its name or a function generating a cross section. |
'xs_sc340'
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.coupler(gap=0.236, length=20, dy=4, dx=15, cross_section='xs_sc340')
c.draw_ports()
c.plot()

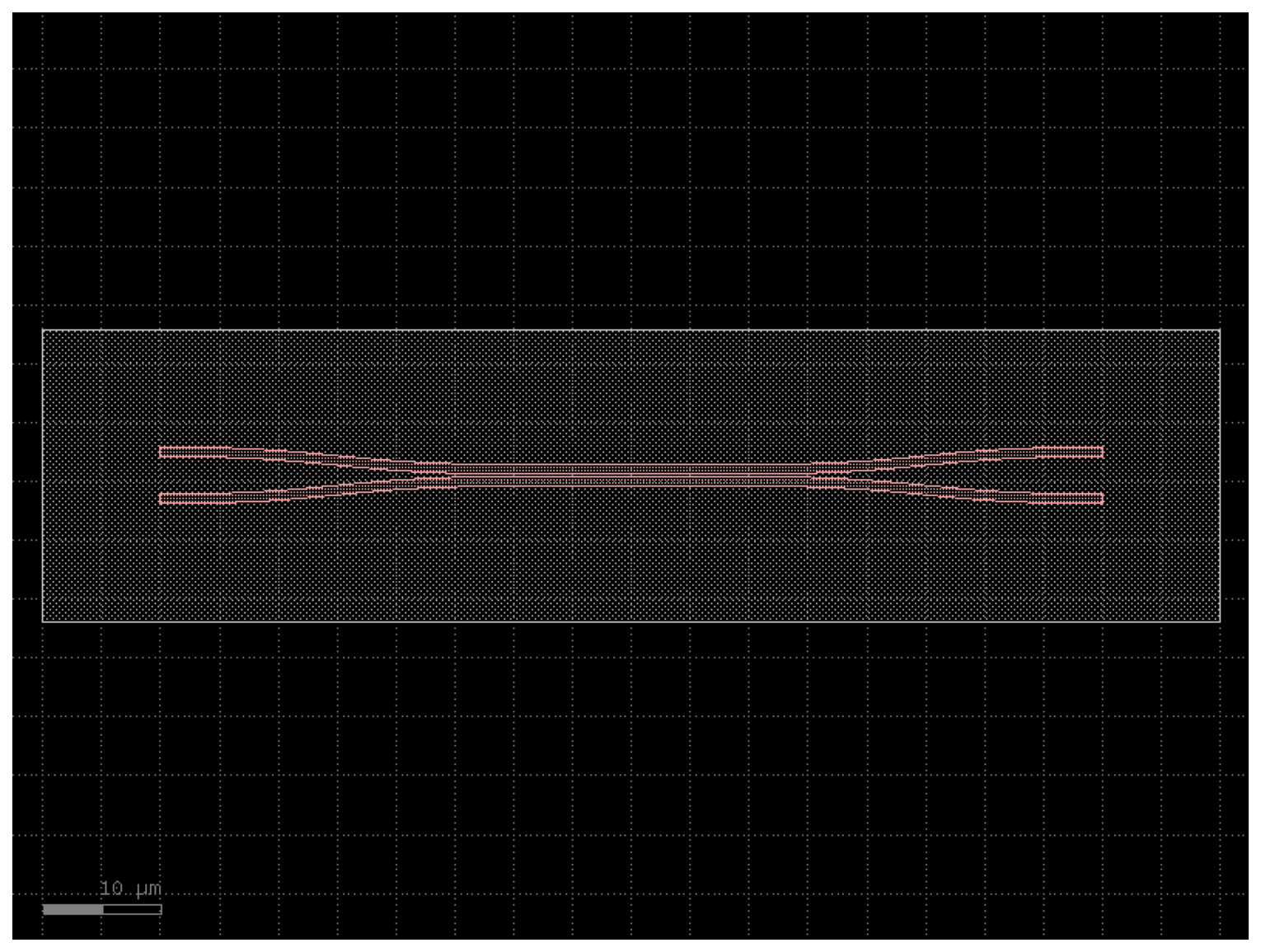

coupler_rc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.coupler_rc(gap=0.236, length=20, dy=4, dx=30, cross_section='xs_rc340')
c.draw_ports()
c.plot()
coupler_sc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.coupler_sc(gap=0.236, length=20, dy=4, dx=15, cross_section='xs_sc340')
c.draw_ports()
c.plot()
coupler_so¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.coupler_so(gap=0.236, length=20, dy=4, dx=15, cross_section='xs_so340')
c.draw_ports()
c.plot()

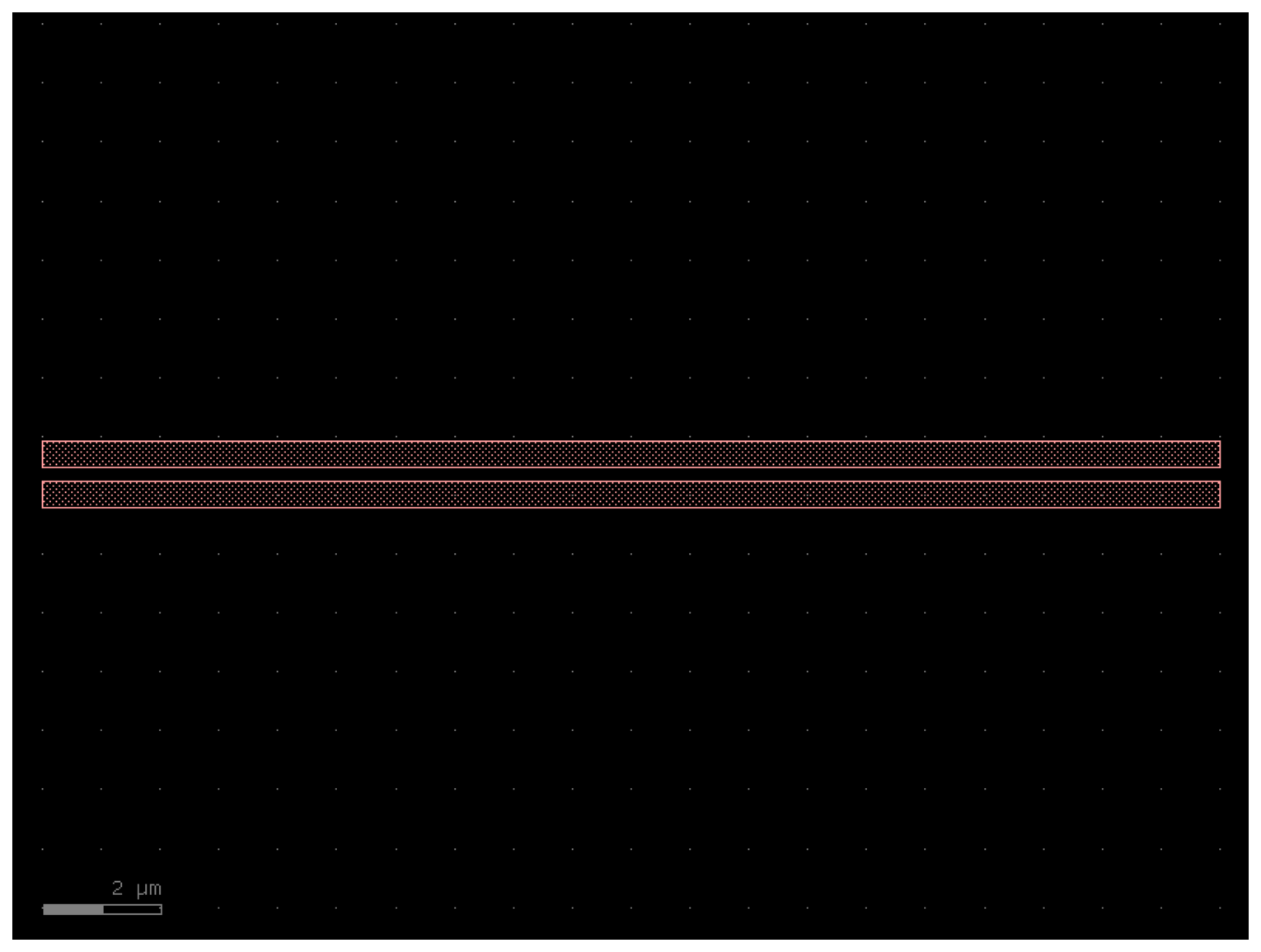

coupler_straight¶
The straight part of a coupler.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
length
|
float
|
the length of the straight part of the coupler. |
20.0
|
gap
|
float
|
the gap between the waveguides forming the straight part of the coupler. |
0.236
|
cross_section
|
CrossSectionSpec
|
a cross section or its name or a function generating a cross section. |
'xs_sc340'
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.coupler_straight(length=20, gap=0.236, cross_section='xs_sc340')
c.draw_ports()
c.plot()
die¶
A die template.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
cross_section
|
a cross section or its name or a function generating a cross section. |
'xs_sc340'
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.die(cross_section='xs_sc340')
c.draw_ports()
c.plot()

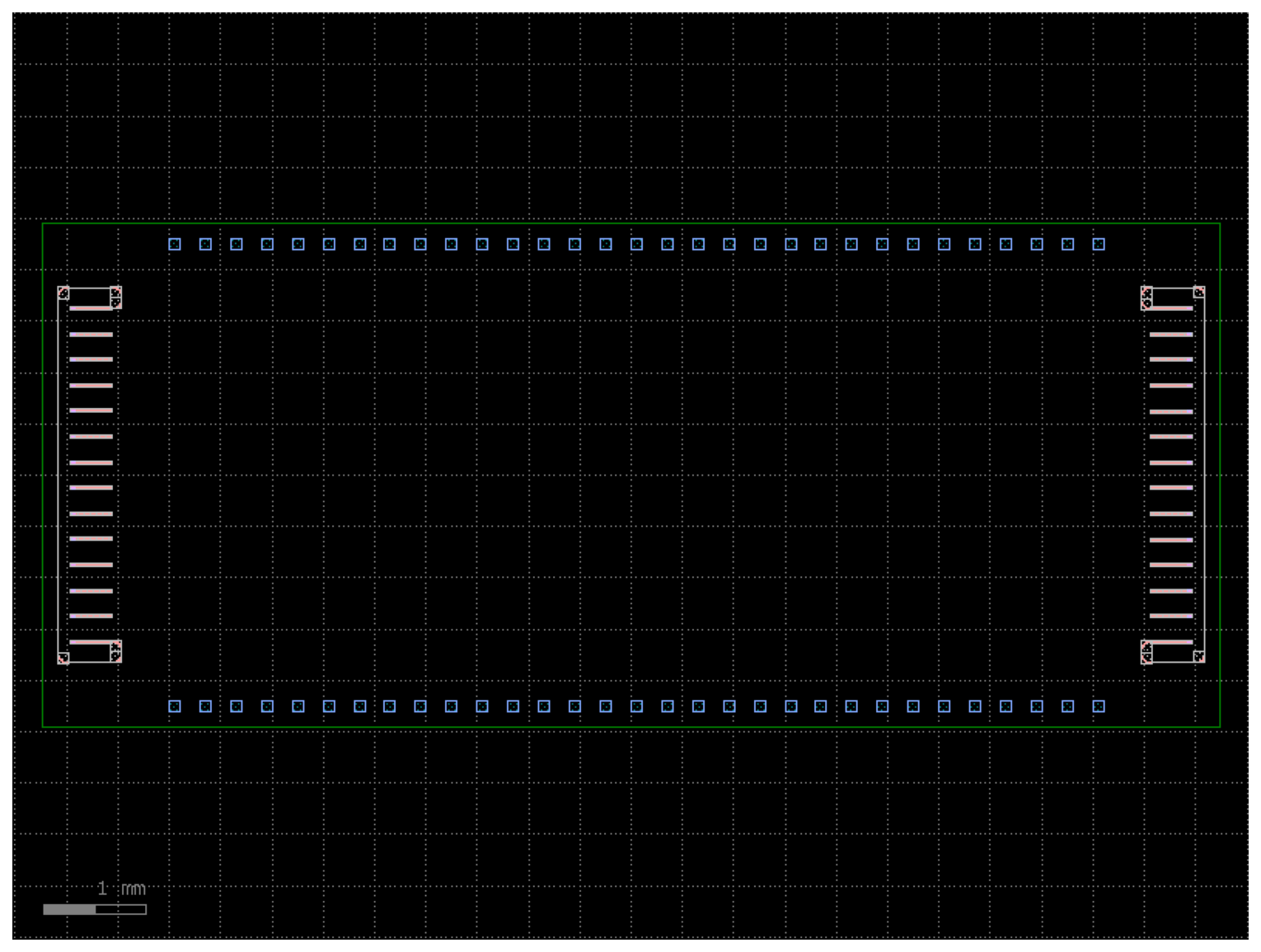

die_rc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.die_rc(cross_section='xs_rc340')
c.draw_ports()
c.plot()

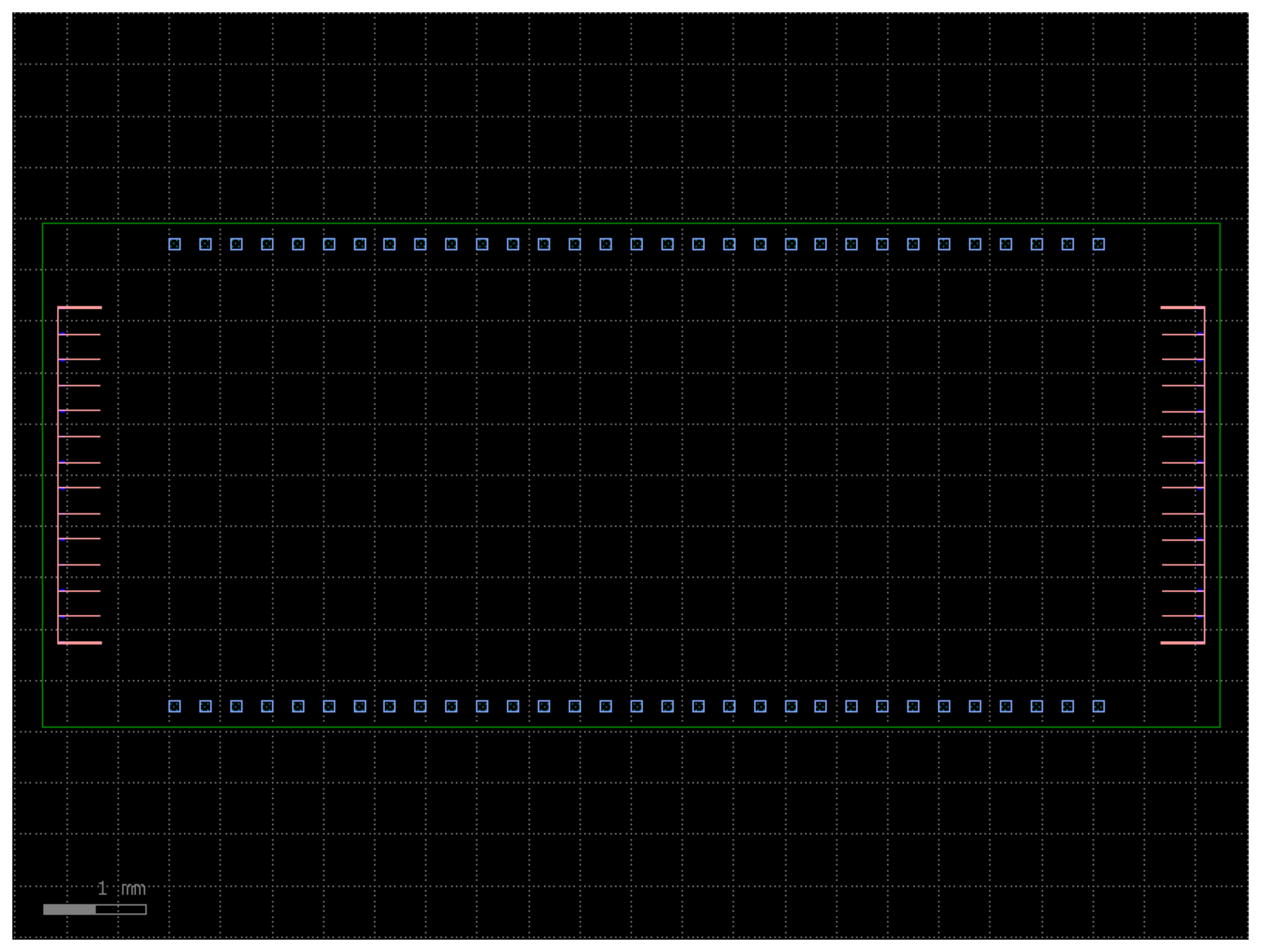

die_sc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.die_sc(cross_section='xs_sc340')
c.draw_ports()
c.plot()
die_so¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.die_so(cross_section='xs_so340')
c.draw_ports()
c.plot()

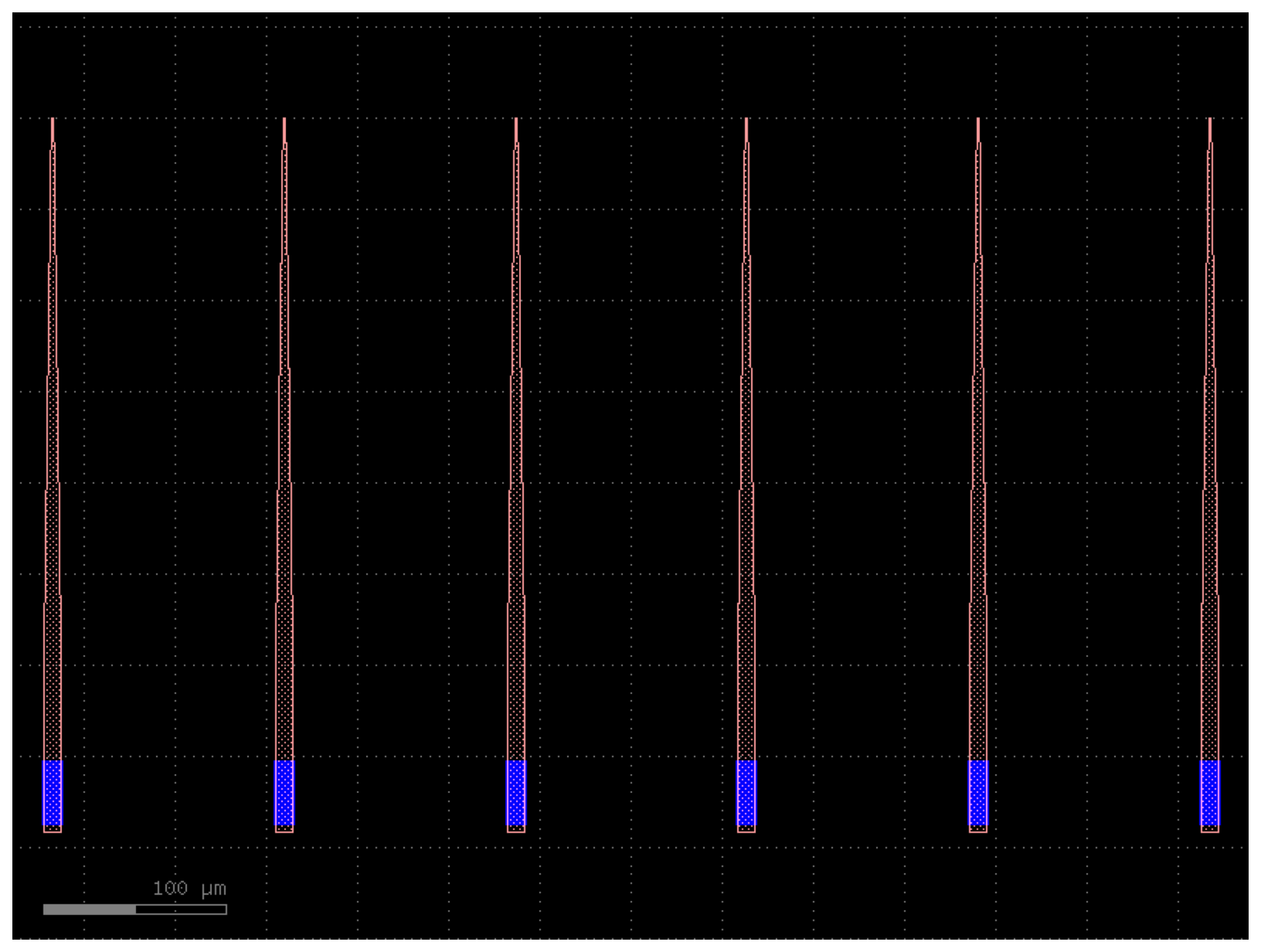

grating_coupler_array¶
An array of grating couplers.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
pitch
|
float
|
the pitch of the grating couplers |
127.0
|
n
|
int
|
the number of grating couplers |
6
|
centered
|
if True, centers the array around the origin. |
True
|
|
grating_coupler
|
the name of the grating coupler to use in the array. |
None
|
|
port_name
|
port name |
'o1'
|
|
with_loopback
|
if True, adds a loopback between edge GCs. Only works for rotation = 90 for now. |
False
|
|
rotation
|
rotation angle for each reference. |
-90
|
|
straight_to_grating_spacing
|
spacing between the last grating coupler and the loopback. |
10.0
|
|
cross_section
|
a cross section or its name or a function generating a cross section. |
'xs_sc340'
|
|
radius
|
float | None
|
optional radius for routing the loopback. |
None
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.grating_coupler_array(pitch=127, n=6, cross_section='xs_sc340', centered=True, port_name='o1', with_loopback=False, rotation=-90, straight_to_grating_spacing=10)
c.draw_ports()
c.plot()

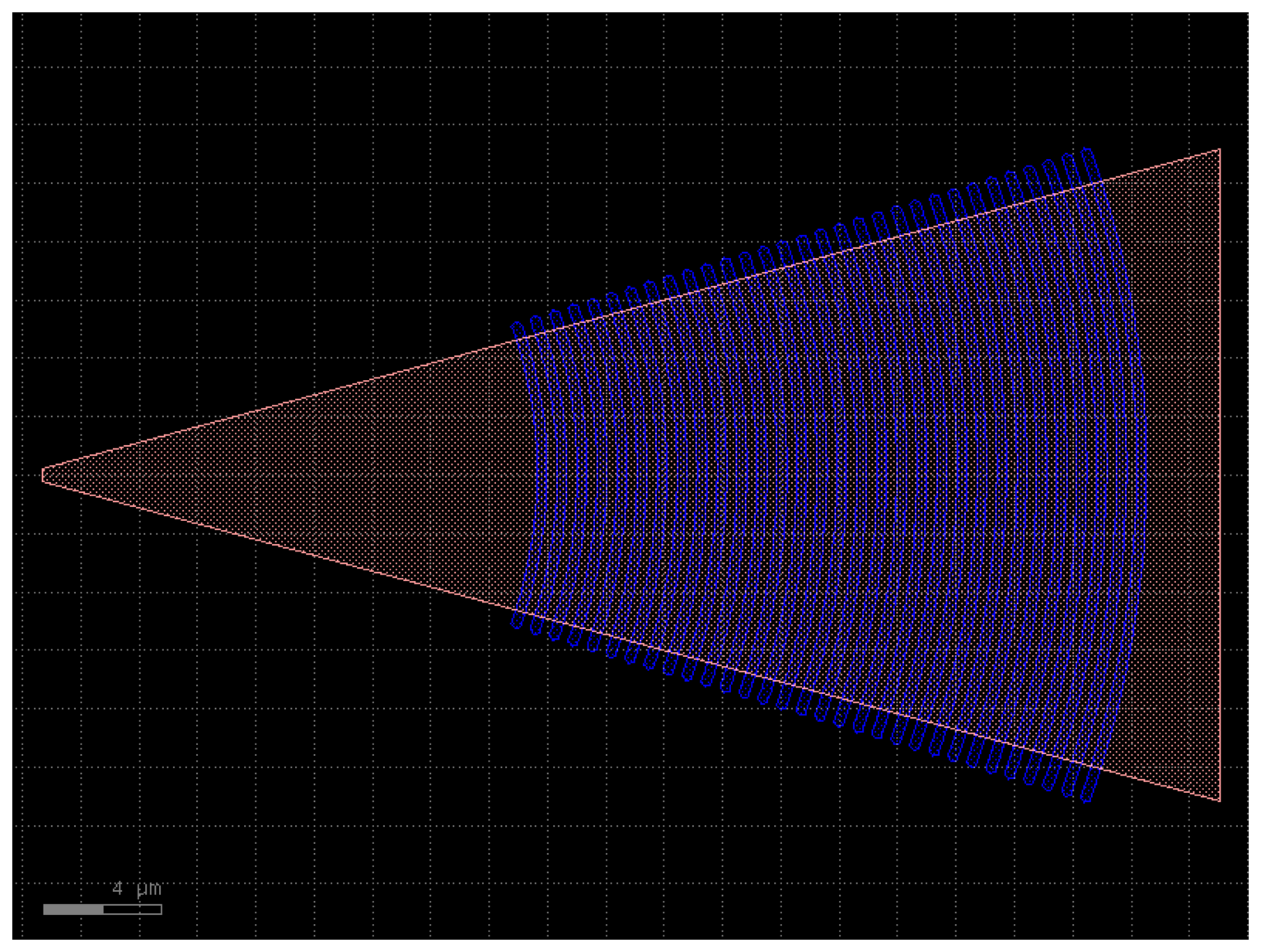

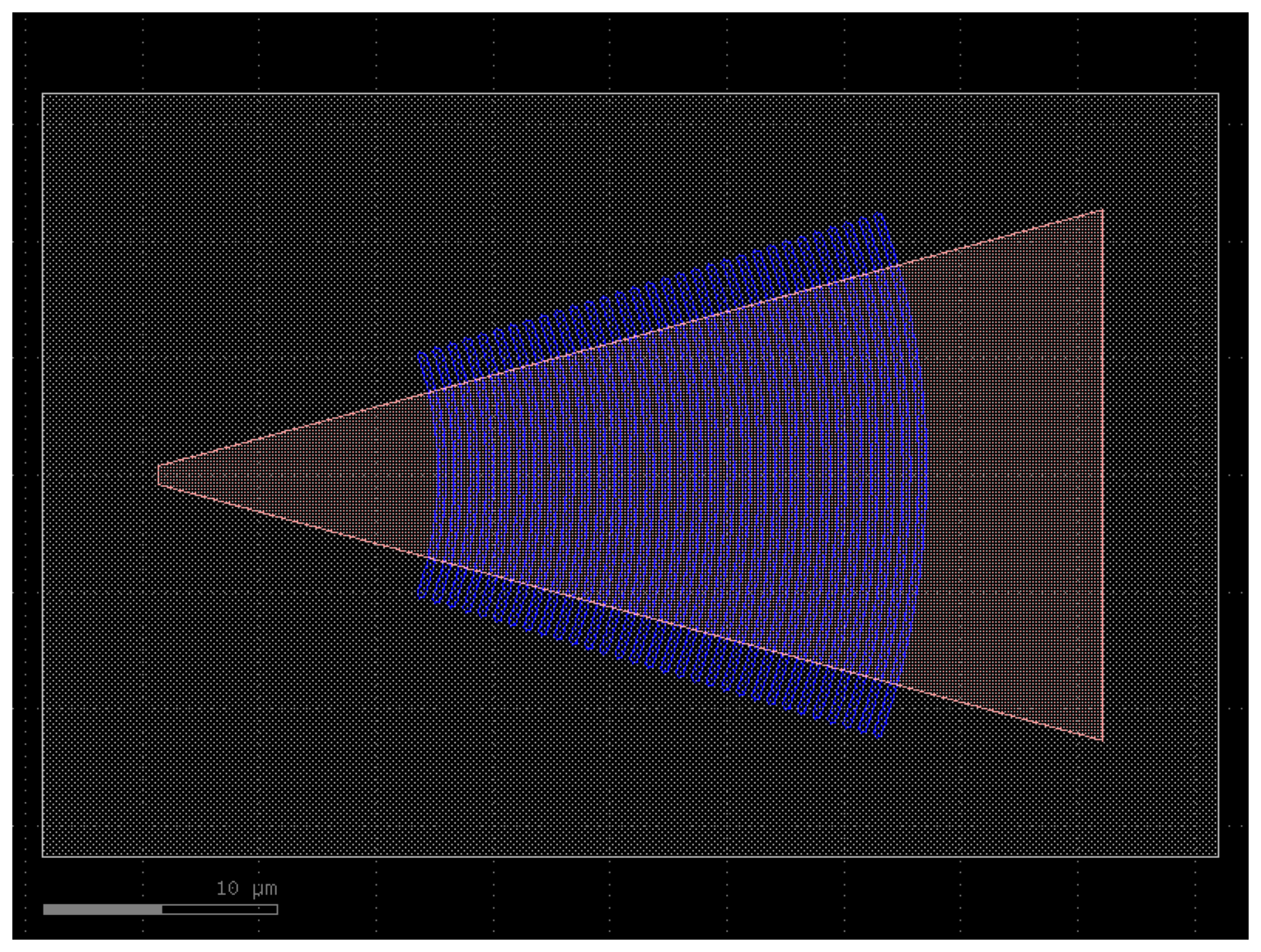

grating_coupler_elliptical¶
A grating coupler with curved but parallel teeth.
grating_line_width is the width of the unetched ridge between two
trenches (GDS 6). The CORNERSTONE SOI pre-DRC deck limits GDS 6 gaps narrower
than 350 nm to 20 um length, and the ridges here are longer arcs, so they are
350 nm wide (as for si220). The optics are not re-optimised for the wider
ridge: the period still follows wavelength with the same neff, so the
centre wavelength and coupling efficiency shift somewhat (most at O-band,
where the ridge fill factor rises from about 43% to 60%); simulate the
grating before relying on its passband.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
wavelength
|
float
|
the center wavelength for which the grating is designed. |
1.55
|
grating_line_width
|
float
|
width of the unetched ridge between trenches, in um. Keep it at 0.35 or more to pass the CORNERSTONE deck. |
0.35
|
cross_section
|
a cross section or its name or a function generating a cross section. |
'xs_sc340'
|
|
trenches_extra_angle
|
float
|
how far the trenches extend past the grating region,
in degrees. Each trench must reach 200 nm beyond GDS 3; at O-band the
9 deg default falls short for the first trenches, so |
9.0
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.grating_coupler_elliptical(wavelength=1.55, grating_line_width=0.35, cross_section='xs_sc340', trenches_extra_angle=9)
c.draw_ports()
c.plot()
grating_coupler_elliptical_rc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.grating_coupler_elliptical_rc(wavelength=1.55, grating_line_width=0.35, cross_section='xs_rc340', trenches_extra_angle=9)
c.draw_ports()
c.plot()
grating_coupler_elliptical_sc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.grating_coupler_elliptical_sc(wavelength=1.55, grating_line_width=0.35, cross_section='xs_sc340', trenches_extra_angle=9)
c.draw_ports()
c.plot()

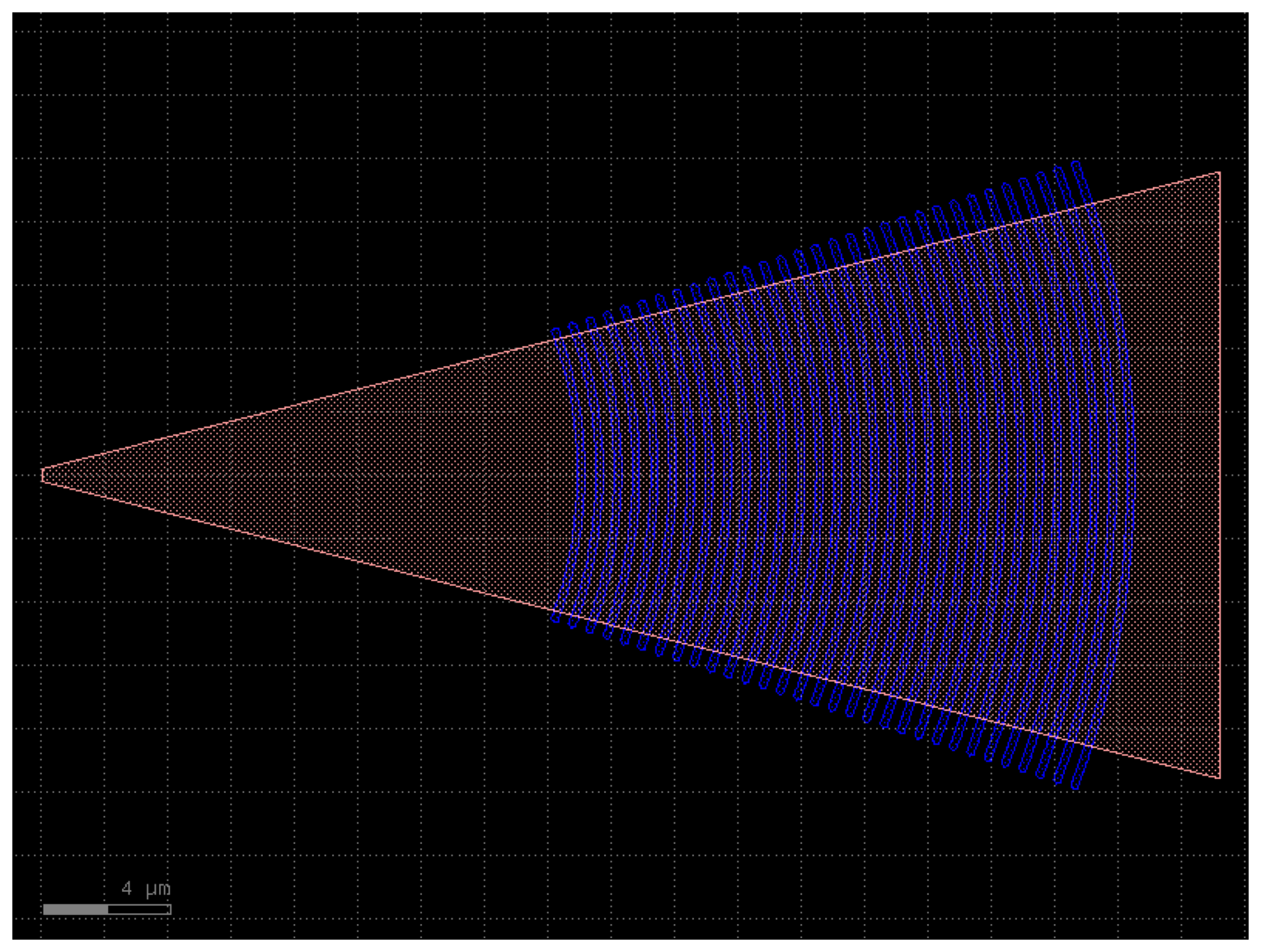

grating_coupler_elliptical_so¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.grating_coupler_elliptical_so(wavelength=1.31, grating_line_width=0.35, cross_section='xs_so340', trenches_extra_angle=11)
c.draw_ports()
c.plot()

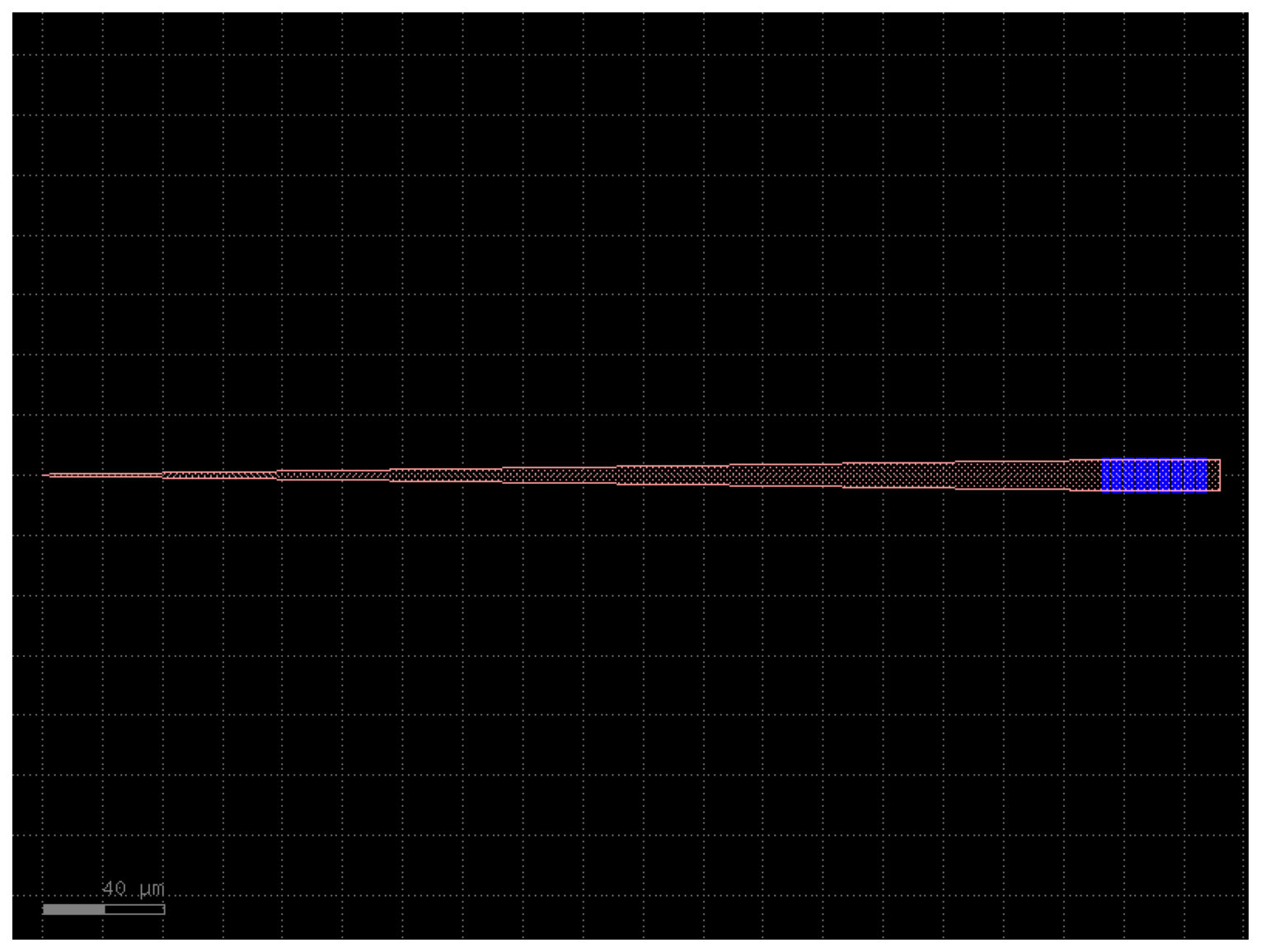

grating_coupler_rectangular¶
A grating coupler with straight and parallel teeth.
Defaults reproduce SOI340nm_1550nm_TE_STRIP_Grating_Coupler: a 350 um linear taper from the waveguide to a 10 um wide, 42 um long grating section with 60 teeth, each 0.325 um etched (GDS layer 6, 140 nm deep) at a 0.59 um period and 11 um tall, the first 2.697 um after the taper.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
period
|
float
|
the period of the grating. |
0.59
|
n_periods
|
int
|
the number of grating teeth. |
60
|
fill_factor
|
float
|
etched tooth width (GDS layer 6) as a fraction of the period. |
0.5508
|
length_taper
|
float
|
the length of the taper tapering up to the grating. |
350.0
|
width_grating
|
float
|
the width of the waveguide under the grating. |
10.0
|
length_grating
|
float
|
the length of the full-width waveguide after the taper. |
42.0
|
grating_offset
|
float
|
distance from the end of the taper to the first tooth. |
2.697
|
teeth_overhang
|
float
|
how far the teeth extend beyond each side of the waveguide. |
0.5
|
wavelength
|
float
|
the center wavelength for which the grating is designed. |
1.55
|
cross_section
|
CrossSectionSpec
|
a cross section or its name or a function generating a cross section. |
'xs_sc340'
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.grating_coupler_rectangular(period=0.59, n_periods=60, fill_factor=0.551, length_taper=350, width_grating=10, length_grating=42, grating_offset=2.697, teeth_overhang=0.5, wavelength=1.55, cross_section='xs_sc340')
c.draw_ports()
c.plot()

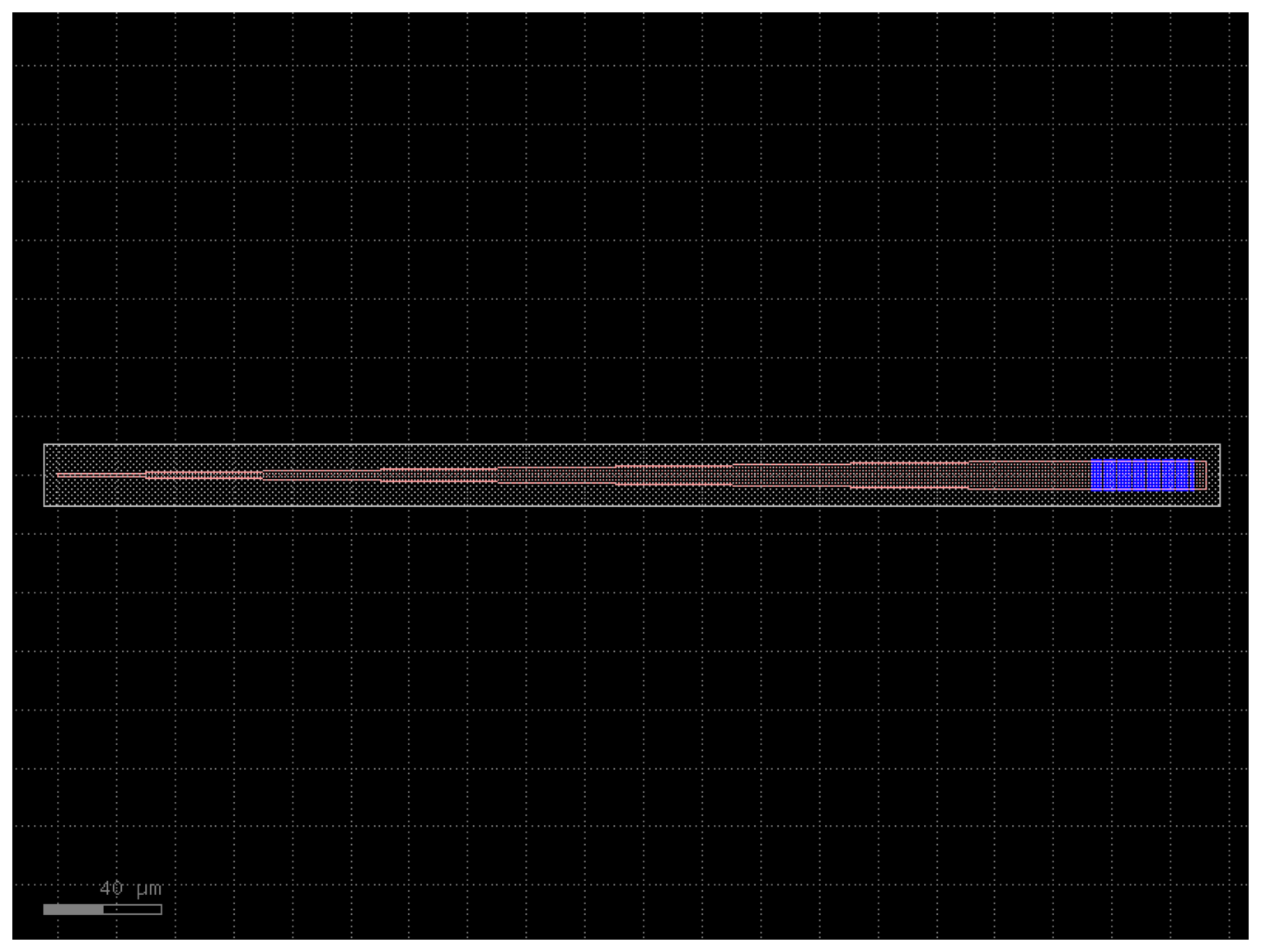

grating_coupler_rectangular_rc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.grating_coupler_rectangular_rc(period=0.59, n_periods=60, fill_factor=0.551, length_taper=350, width_grating=10, length_grating=42, grating_offset=2.697, teeth_overhang=0.5, wavelength=1.55, cross_section='xs_rc340')
c.draw_ports()
c.plot()
grating_coupler_rectangular_sc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.grating_coupler_rectangular_sc(period=0.59, n_periods=60, fill_factor=0.551, length_taper=350, width_grating=10, length_grating=42, grating_offset=2.697, teeth_overhang=0.5, wavelength=1.55, cross_section='xs_sc340')
c.draw_ports()
c.plot()

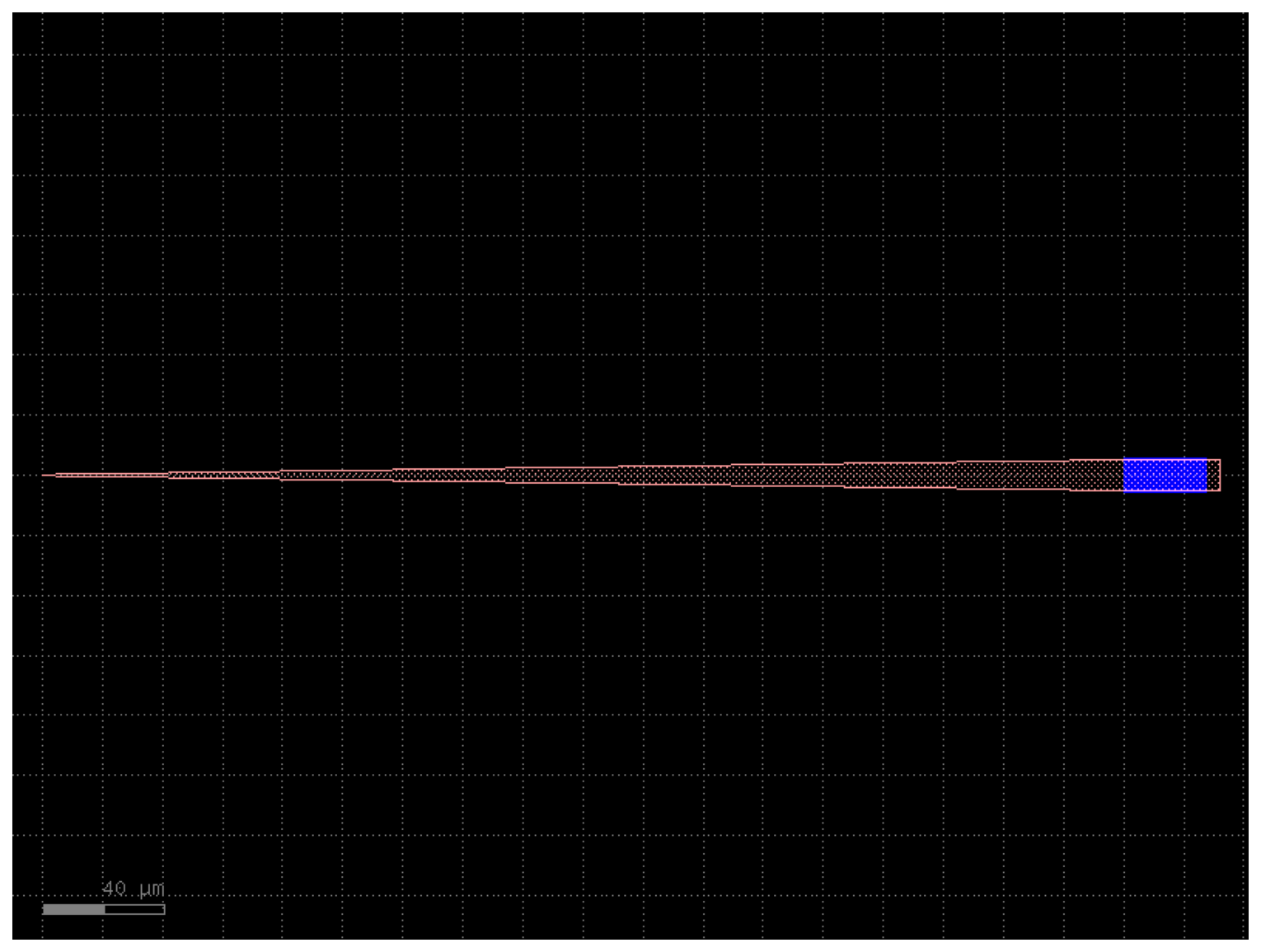

grating_coupler_rectangular_so¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.grating_coupler_rectangular_so(period=0.47, n_periods=60, fill_factor=0.468, length_taper=350, width_grating=10, length_grating=42, grating_offset=9.83, teeth_overhang=0.5, wavelength=1.31, cross_section='xs_so340')
c.draw_ports()
c.plot()
mmi1x2¶

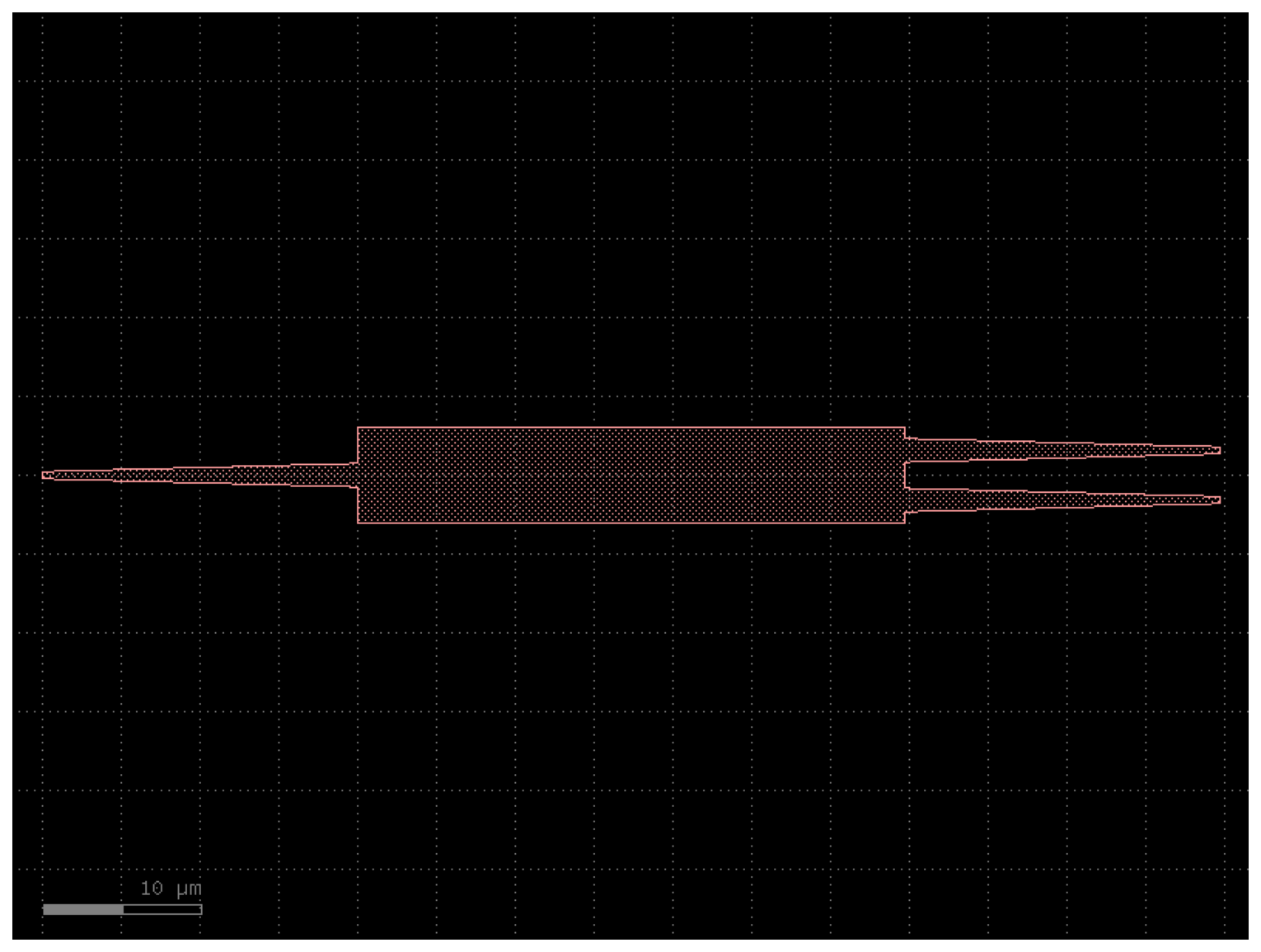

An mmi1x2.
An mmi1x2 is a splitter that splits a single input to two outputs
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
width
|
float | None
|
the width of the waveguides connecting at the mmi ports. |
None
|
width_taper
|
the width at the base of the mmi body. |
1.5
|
|
length_taper
|
the length of the tapers going towards the mmi body. |
20.0
|
|
length_mmi
|
float
|
the length of the mmi body. |
34.7
|
width_mmi
|
the width of the mmi body. |
6.0
|
|
gap_mmi
|
float
|
the gap between the tapers at the mmi body. |
1.65
|
cross_section
|
CrossSectionSpec
|
a cross section or its name or a function generating a cross section. |
'xs_sc340'
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.mmi1x2(width_taper=1.5, length_taper=20, length_mmi=34.7, width_mmi=6, gap_mmi=1.65, cross_section='xs_sc340')
c.draw_ports()
c.plot()

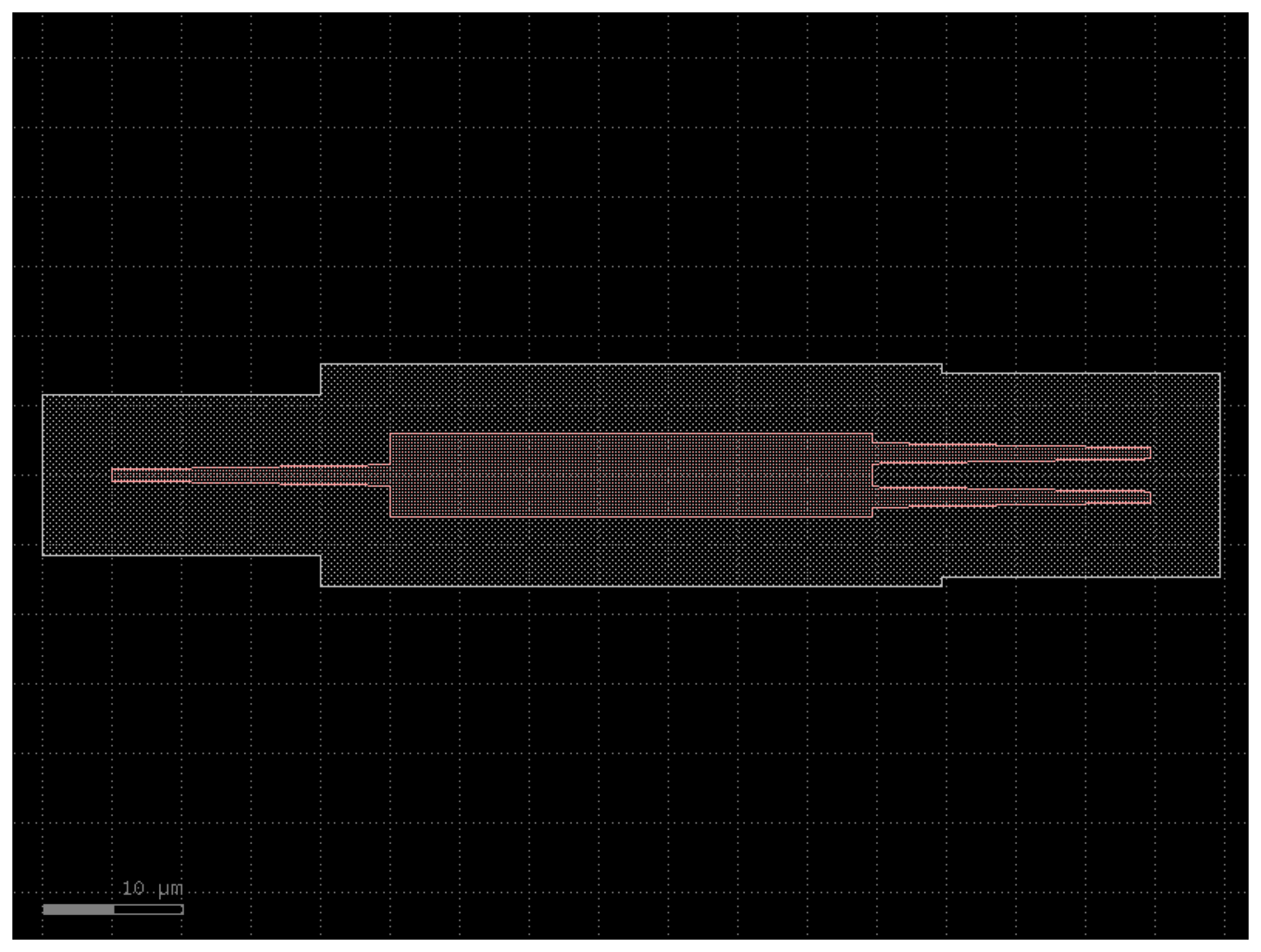

mmi1x2_rc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.mmi1x2_rc(width_taper=1.5, length_taper=20, length_mmi=34.7, width_mmi=6, gap_mmi=1.65, cross_section='xs_rc340')
c.draw_ports()
c.plot()
mmi1x2_sc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.mmi1x2_sc(width_taper=1.5, length_taper=20, length_mmi=34.7, width_mmi=6, gap_mmi=1.65, cross_section='xs_sc340')
c.draw_ports()
c.plot()

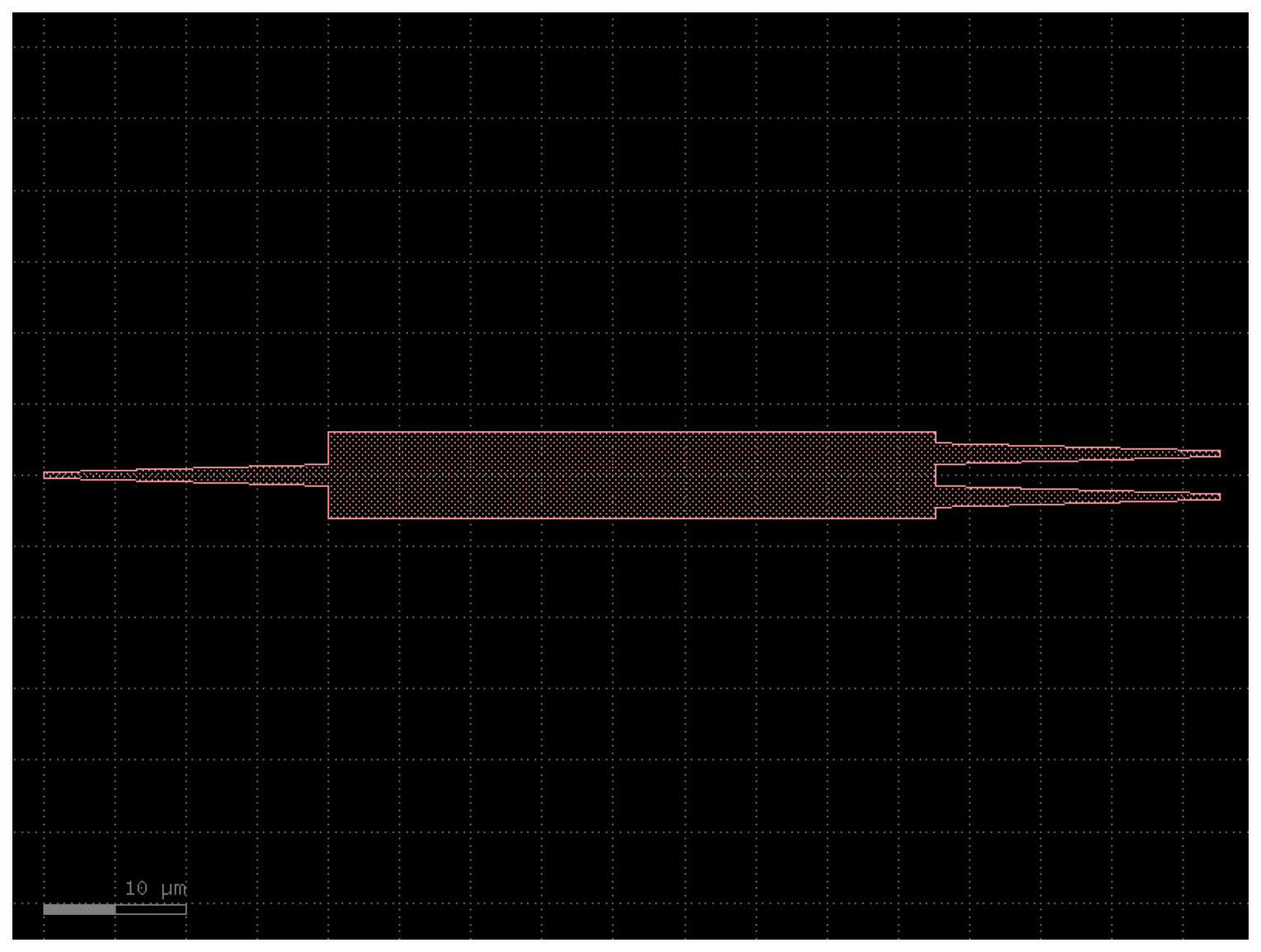

mmi1x2_so¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.mmi1x2_so(width_taper=1.5, length_taper=20, length_mmi=42.6, width_mmi=6, gap_mmi=1.51, cross_section='xs_so340')
c.draw_ports()
c.plot()
mmi2x2¶
An mmi2x2.
An mmi2x2 is a 2x2 splitter
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
width
|
float | None
|
the width of the waveguides connecting at the mmi ports. |
None
|
width_taper
|
float
|
the width at the base of the mmi body. |
1.5
|
length_taper
|
float
|
the length of the tapers going towards the mmi body. |
20.0
|
length_mmi
|
float
|
the length of the mmi body. |
46.5
|
width_mmi
|
float
|
the width of the mmi body. |
6.0
|
gap_mmi
|
float
|
the gap between the tapers at the mmi body. |
0.53
|
cross_section
|
CrossSectionSpec
|
a cross section or its name or a function generating a cross section. |
'xs_sc340'
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.mmi2x2(width_taper=1.5, length_taper=20, length_mmi=46.5, width_mmi=6, gap_mmi=0.53, cross_section='xs_sc340')
c.draw_ports()
c.plot()

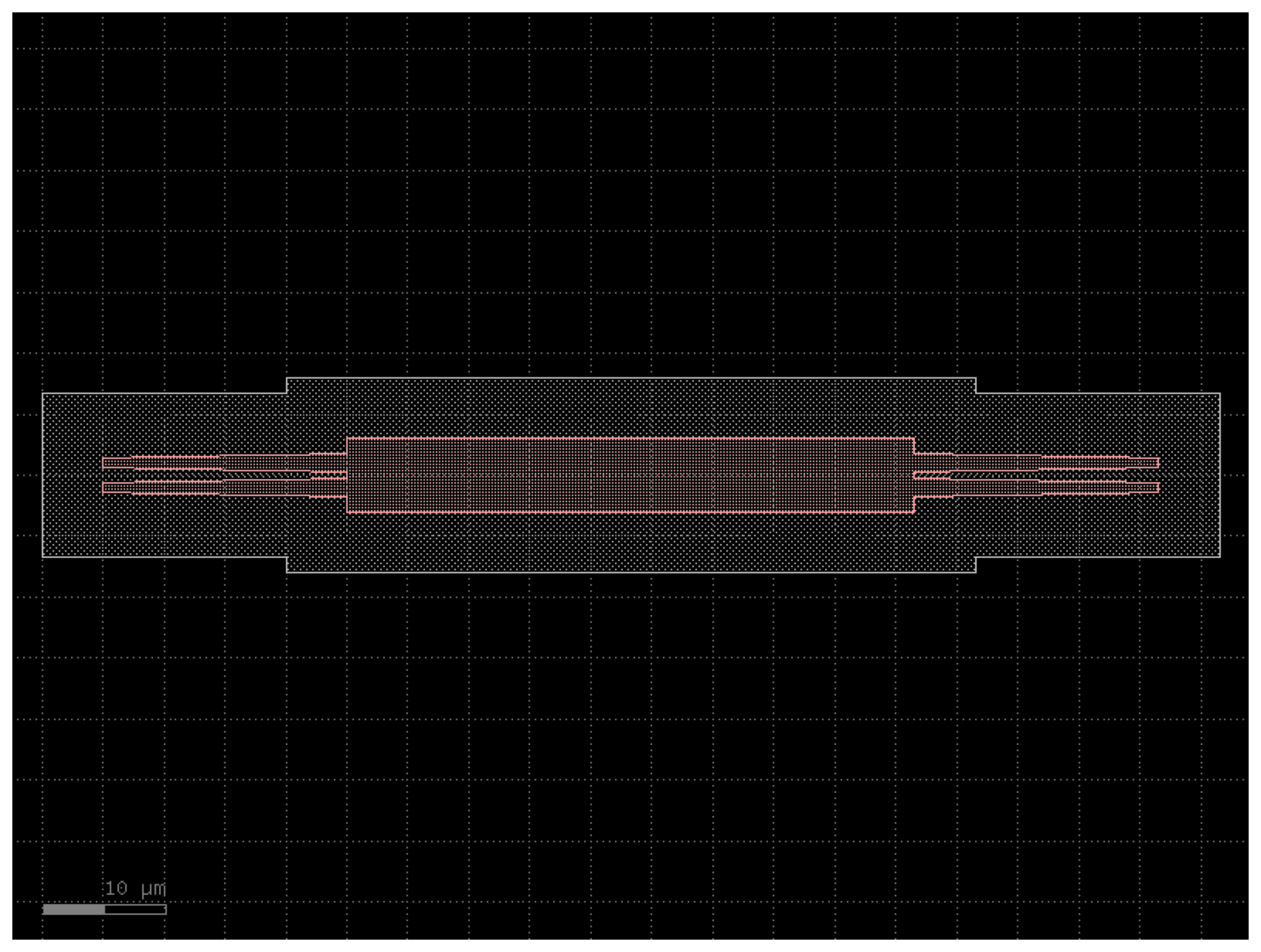

mmi2x2_rc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.mmi2x2_rc(width_taper=1.5, length_taper=20, length_mmi=46.5, width_mmi=6, gap_mmi=0.53, cross_section='xs_rc340')
c.draw_ports()
c.plot()

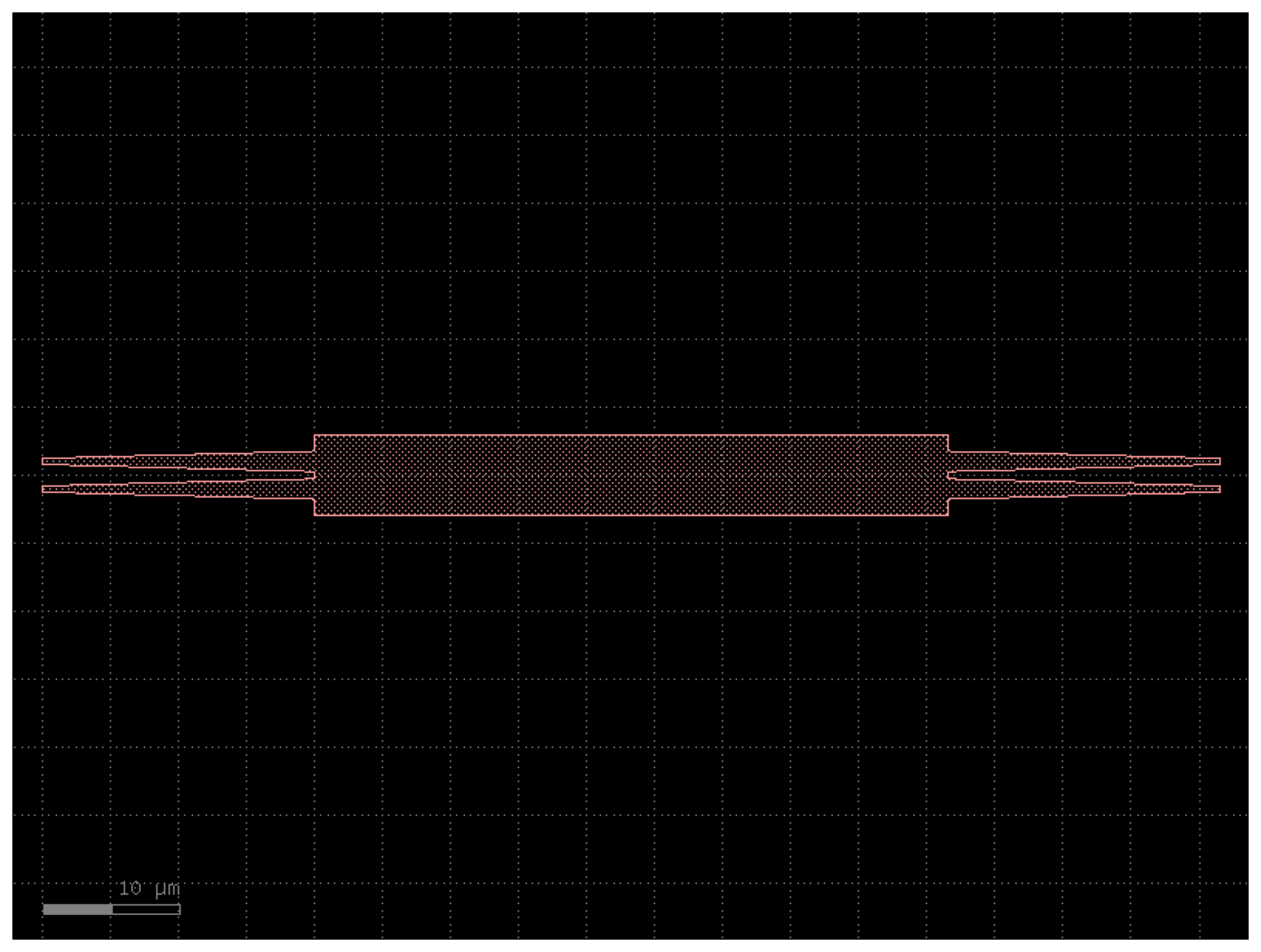

mmi2x2_sc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.mmi2x2_sc(width_taper=1.5, length_taper=20, length_mmi=46.5, width_mmi=6, gap_mmi=0.53, cross_section='xs_sc340')
c.draw_ports()
c.plot()

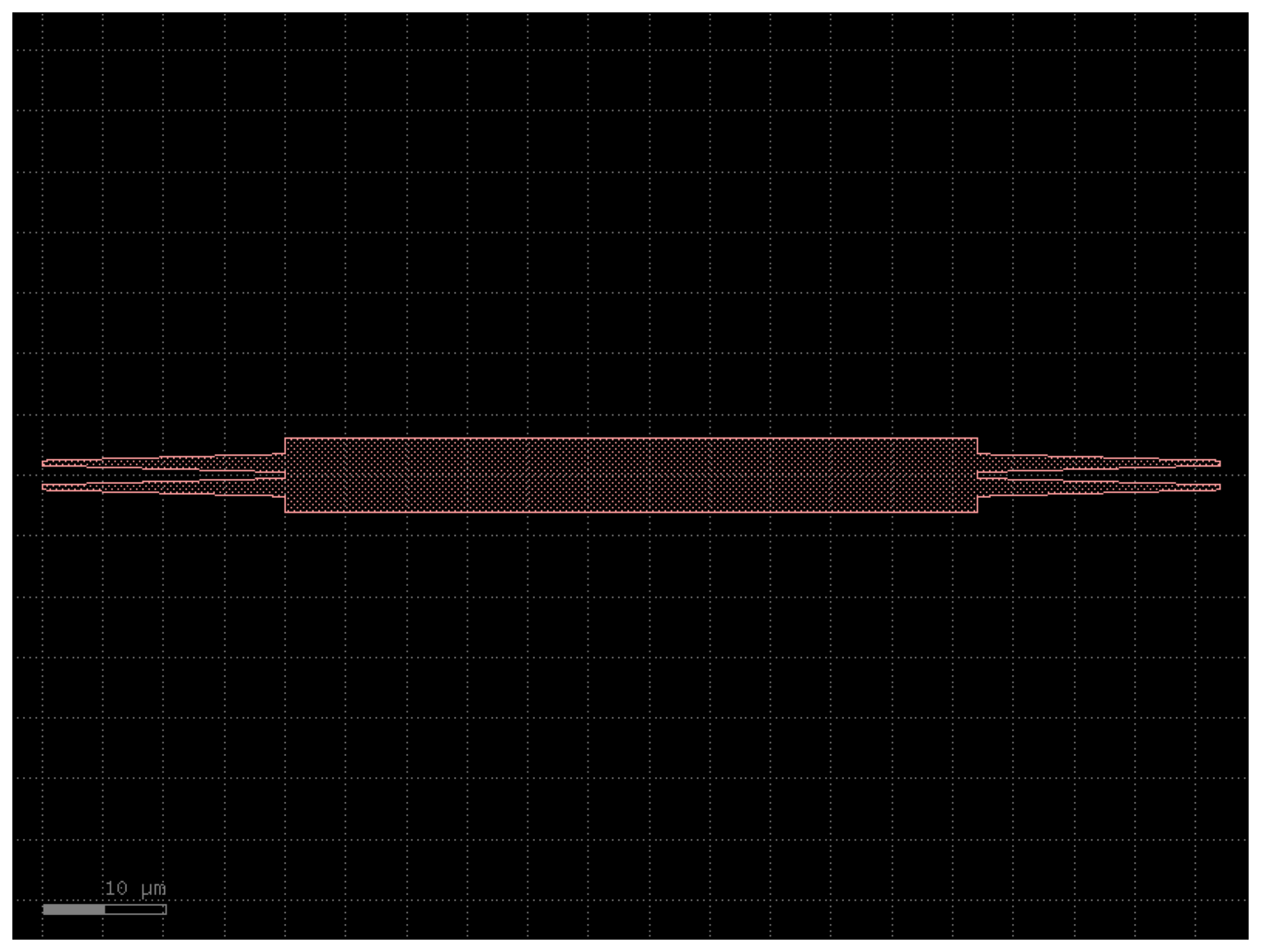

mmi2x2_so¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.mmi2x2_so(width_taper=1.5, length_taper=20, length_mmi=57, width_mmi=6, gap_mmi=0.5, cross_section='xs_so340')
c.draw_ports()
c.plot()

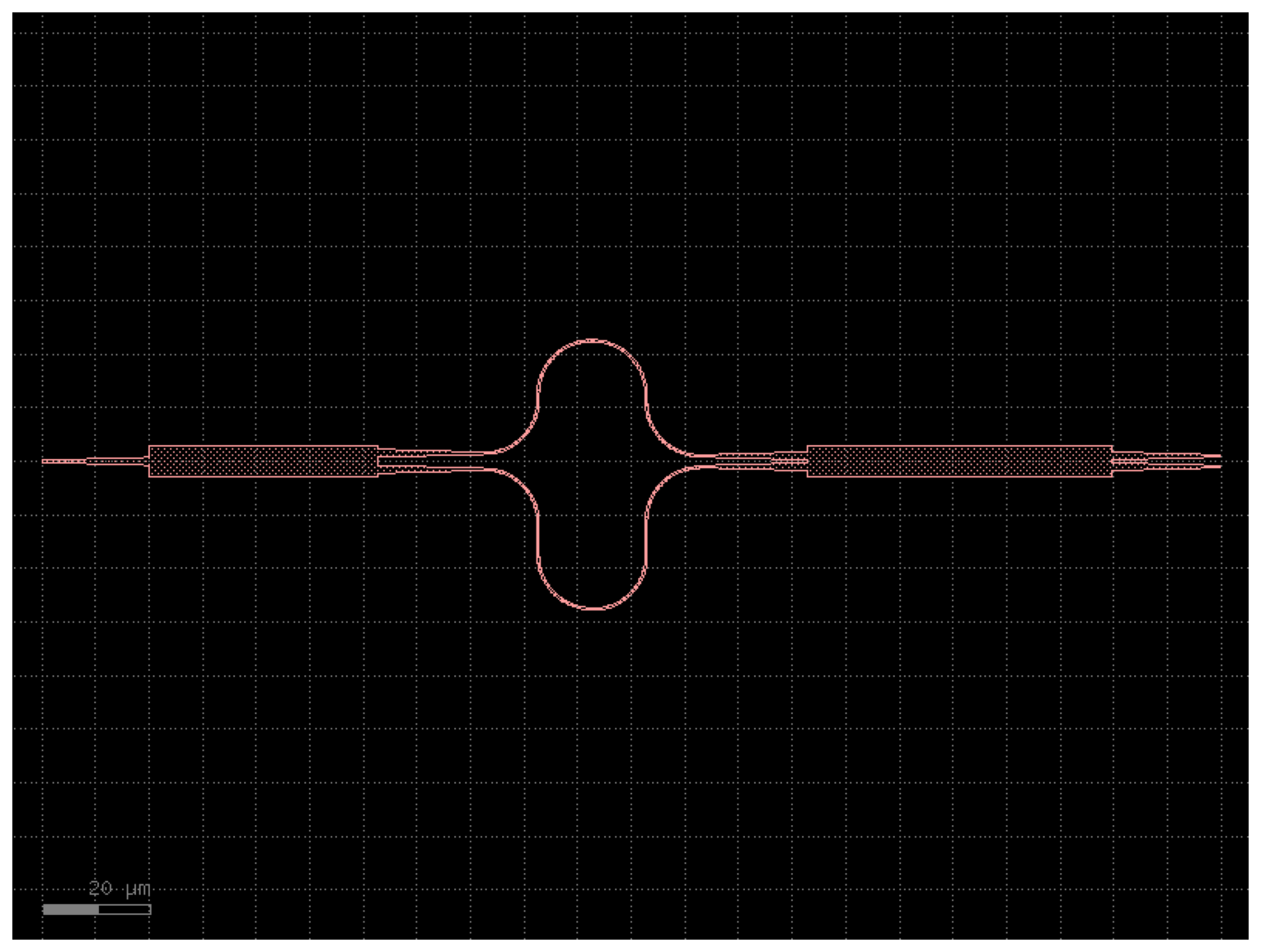

mzi¶

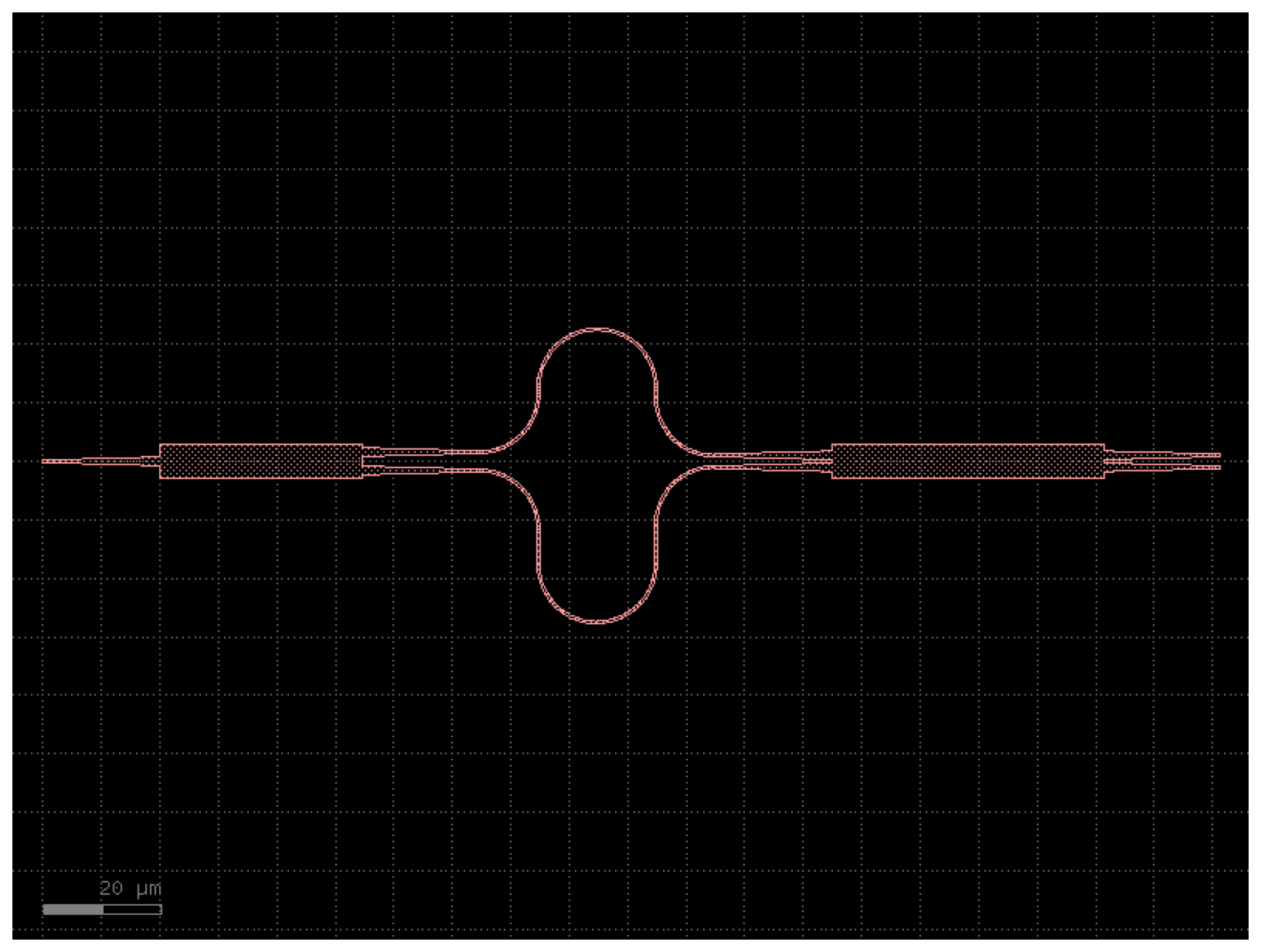

A Mach-Zehnder Interferometer.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
delta_length
|
float
|
the difference in length between the upper and lower arms of the mzi. |
10.0
|
bend
|
the name of the default bend of the mzi. |
'bend_circular_sc'
|
|
straight
|
the name of the default straight of the mzi. |
'straight_sc'
|
|
splitter
|
the name of the default splitter of the mzi. |
'mmi1x2_sc'
|
|
combiner
|
the name of the default combiner of the mzi. |
'mmi2x2_sc'
|
|
cross_section
|
CrossSectionSpec
|
a cross section or its name or a function generating a cross section. |
'xs_sc340'
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.mzi(delta_length=10, bend='bend_circular_sc', straight='straight_sc', splitter='mmi1x2_sc', combiner='mmi2x2_sc', cross_section='xs_sc340')
c.draw_ports()
c.plot()
mzi_rc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()

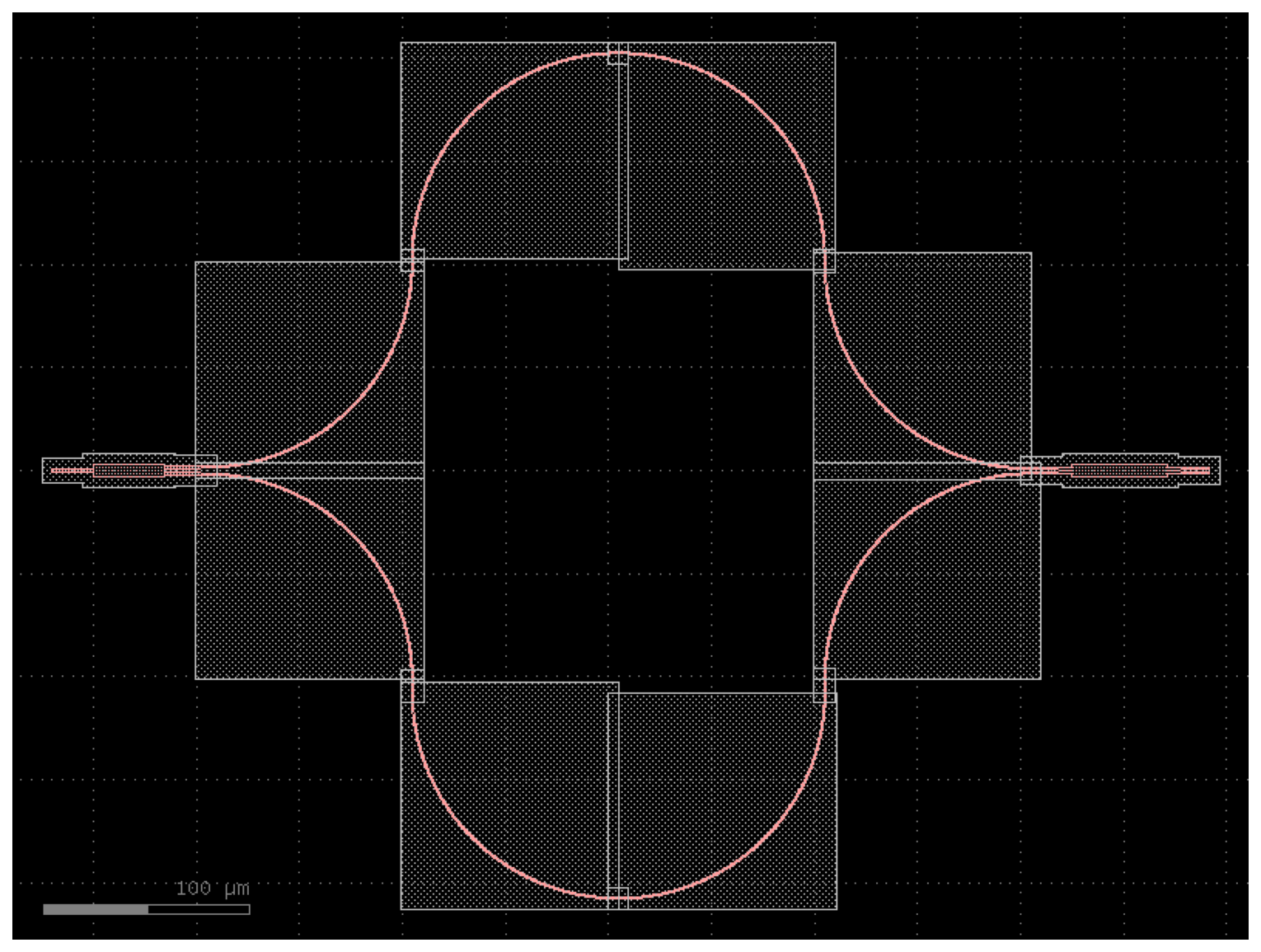

c = cells.mzi_rc(delta_length=10, bend='bend_circular_rc', straight='straight_rc', splitter='mmi1x2_rc', combiner='mmi2x2_rc', cross_section='xs_rc340')
c.draw_ports()
c.plot()
mzi_sc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.mzi_sc(delta_length=10, bend='bend_circular_sc', straight='straight_sc', splitter='mmi1x2_sc', combiner='mmi2x2_sc', cross_section='xs_sc340')
c.draw_ports()
c.plot()
mzi_so¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.mzi_so(delta_length=10, bend='bend_circular_so', straight='straight_so', splitter='mmi1x2_so', combiner='mmi2x2_so', cross_section='xs_so340')
c.draw_ports()
c.plot()
pad¶

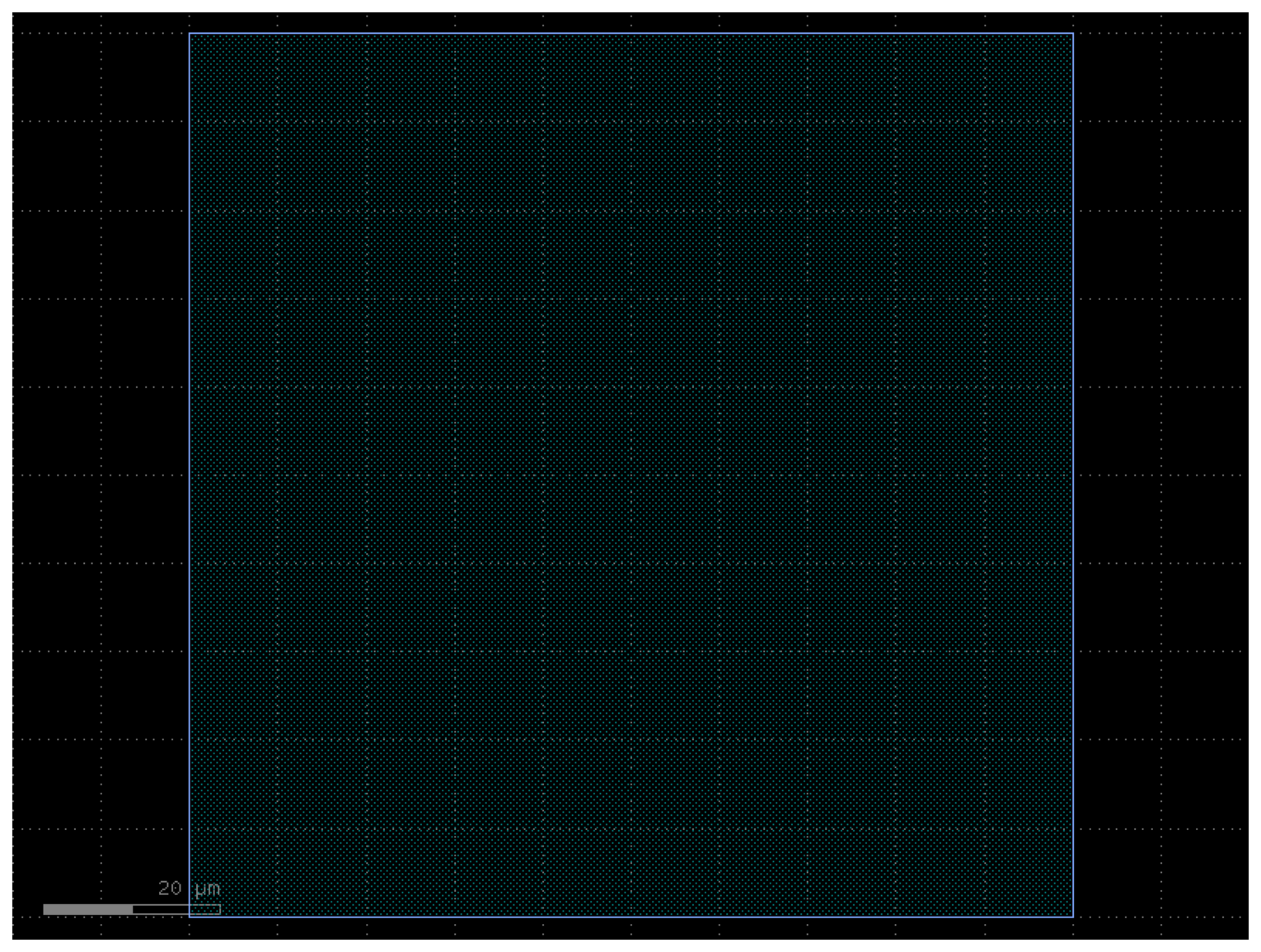

An electrical pad.
:noindex:
rectangle¶
A rectangle.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
layer
|
LAYER.FLOORPLAN. |
FLOORPLAN
|
|
**kwargs
|
additional arguments. |
{}
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.rectangle(layer='FLOORPLAN')
c.draw_ports()
c.plot()
straight¶
A straight waveguide.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
length
|
float
|
the length of the waveguide. |
10.0
|
cross_section
|
CrossSectionSpec
|
a cross section or its name or a function generating a cross section. |
'xs_sc340'
|
kwargs
|
additional arguments to pass to the straight function. |
{}
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.straight(length=10, cross_section='xs_sc340')
c.draw_ports()
c.plot()

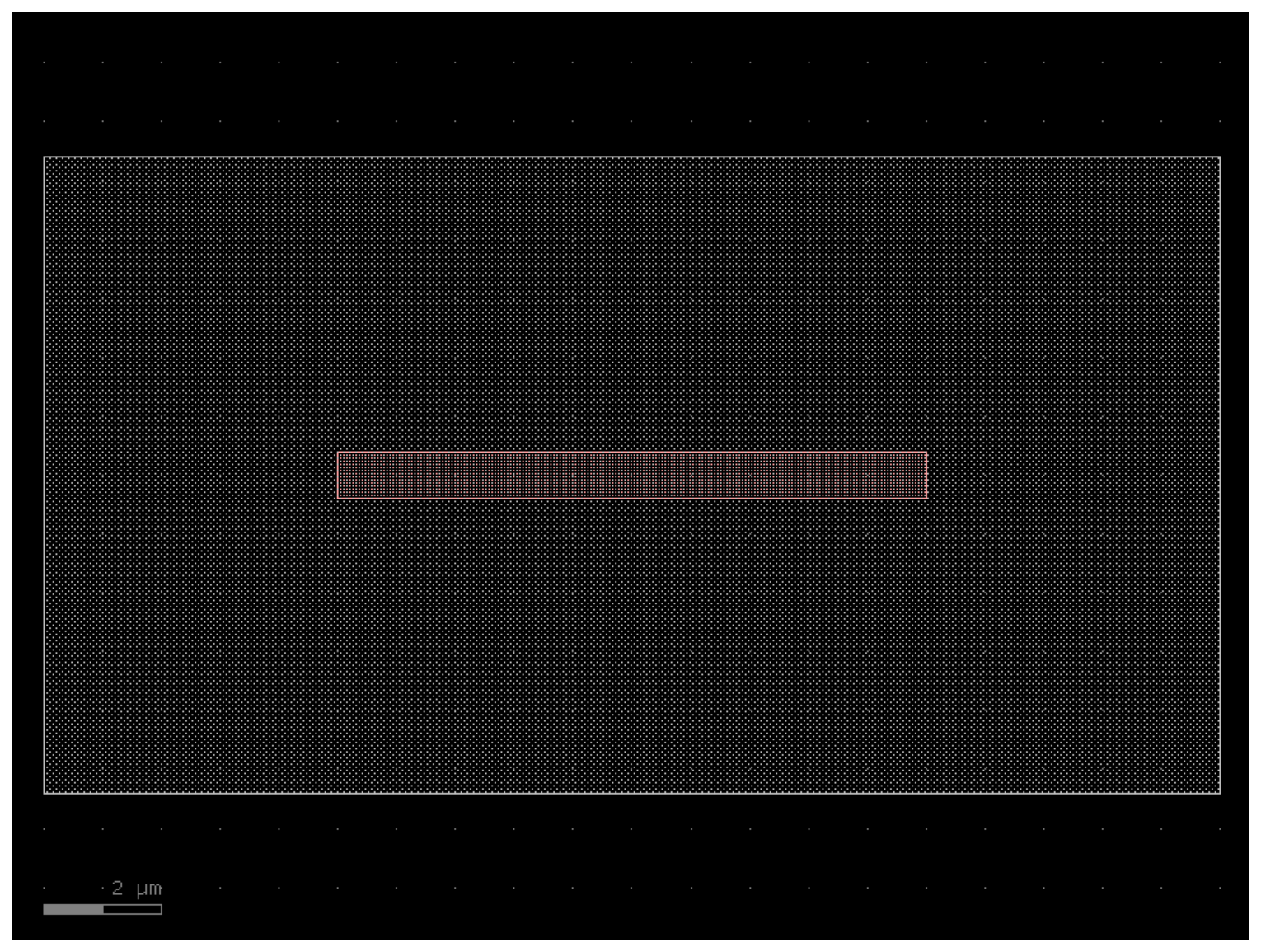

straight_rc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.straight_rc(length=10, cross_section='xs_rc340')
c.draw_ports()
c.plot()
straight_sc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.straight_sc(length=10, cross_section='xs_sc340')
c.draw_ports()
c.plot()
straight_so¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.straight_so(length=10, cross_section='xs_so340')
c.draw_ports()
c.plot()
taper¶
A taper.
A taper is a transition between two waveguide widths
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
length
|
float
|
the length of the taper. |
10.0
|
width1
|
float | None
|
the input width of the taper (defaults to the cross-section width). |
None
|
width2
|
float | None
|
the output width of the taper (if not given, use port). |
None
|
port
|
Port | None
|
the port (with certain width) to taper towards (if not given, use width2). |
None
|
cross_section
|
CrossSectionSpec
|
a cross section or its name or a function generating a cross section. |
'xs_sc340'
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.taper(length=10, cross_section='xs_sc340')
c.draw_ports()
c.plot()
taper_rc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.taper_rc(length=10, width1=0.8, cross_section='xs_rc340')
c.draw_ports()
c.plot()

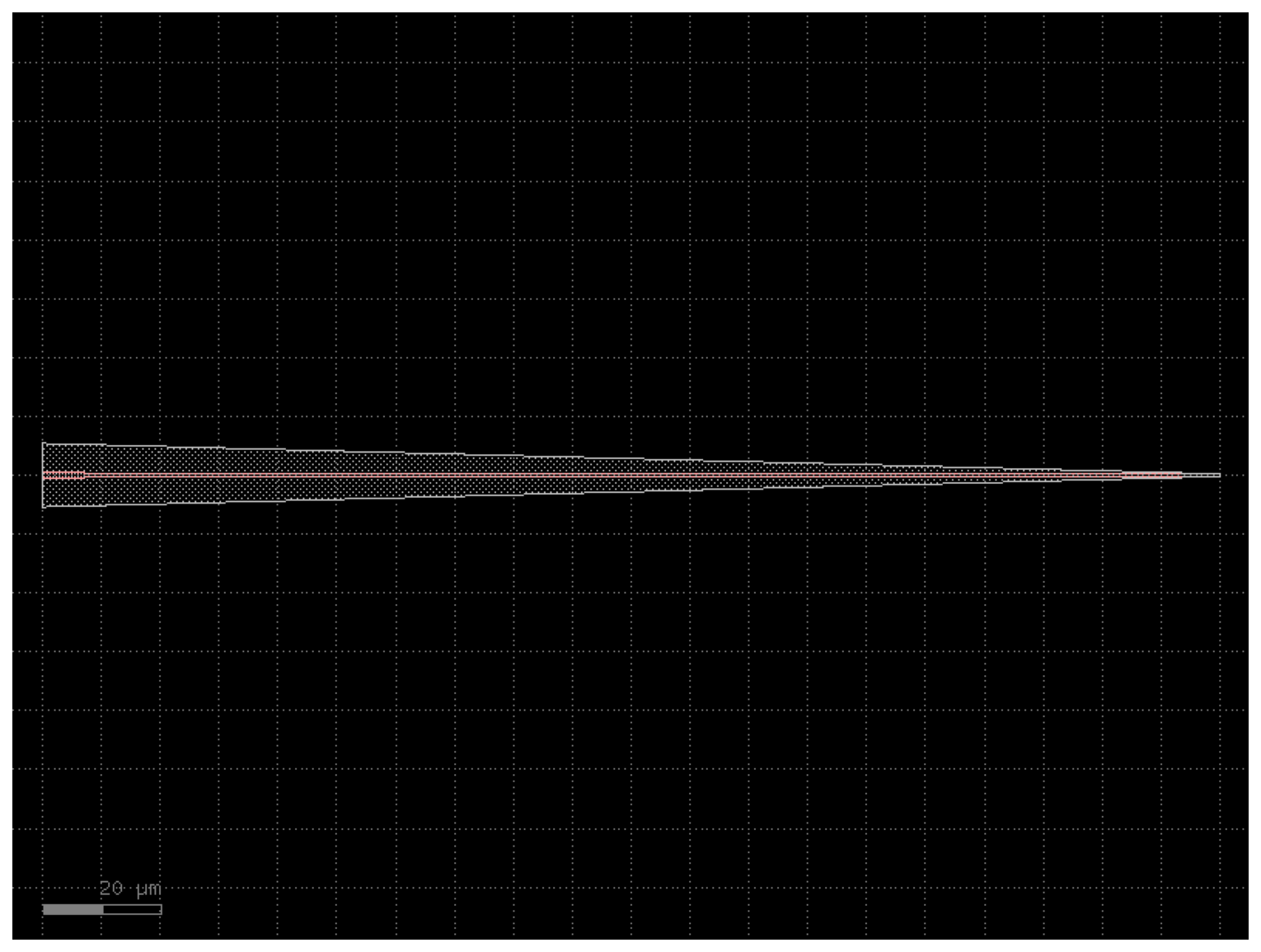

taper_rib_to_strip¶
A rib (o1) to strip (o2) transition.
Matches SOI340nm_1550nm_TE_RIB_to_STRIP: over 200 um the waveguide (GDS layer 3) tapers linearly from 0.8 to 0.45 um and the rib protect slab (GDS layer 5) from 10.8 um down to the 0.45 um strip.
Place it explicitly between xs_rc340 and xs_sc340 waveguides. It is not an automatic layer transition: both cross-sections are drawn on WG, and gdsfactory selects auto-tapers by port layer, which cannot tell a rib port from a strip port.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
length
|
float
|
the length of the transition. |
200.0
|
width_rib
|
float
|
the rib waveguide width at o1. |
width_rc
|
width_strip
|
float
|
the strip waveguide width at o2. |
width_sc
|
width_slab
|
float
|
the slab (rib protect) width at o1. |
width_rc + 2 * width_slab
|
cross_section_rib
|
CrossSectionSpec
|
the cross section of o1. |
'xs_rc340'
|
cross_section_strip
|
CrossSectionSpec
|
the cross section of o2. |
'xs_sc340'
|
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.taper_rib_to_strip(length=200, width_rib=0.8, width_strip=0.45, width_slab=10.8, cross_section_rib='xs_rc340', cross_section_strip='xs_sc340')
c.draw_ports()
c.plot()
taper_sc¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.taper_sc(length=10, width1=0.45, cross_section='xs_sc340')
c.draw_ports()
c.plot()

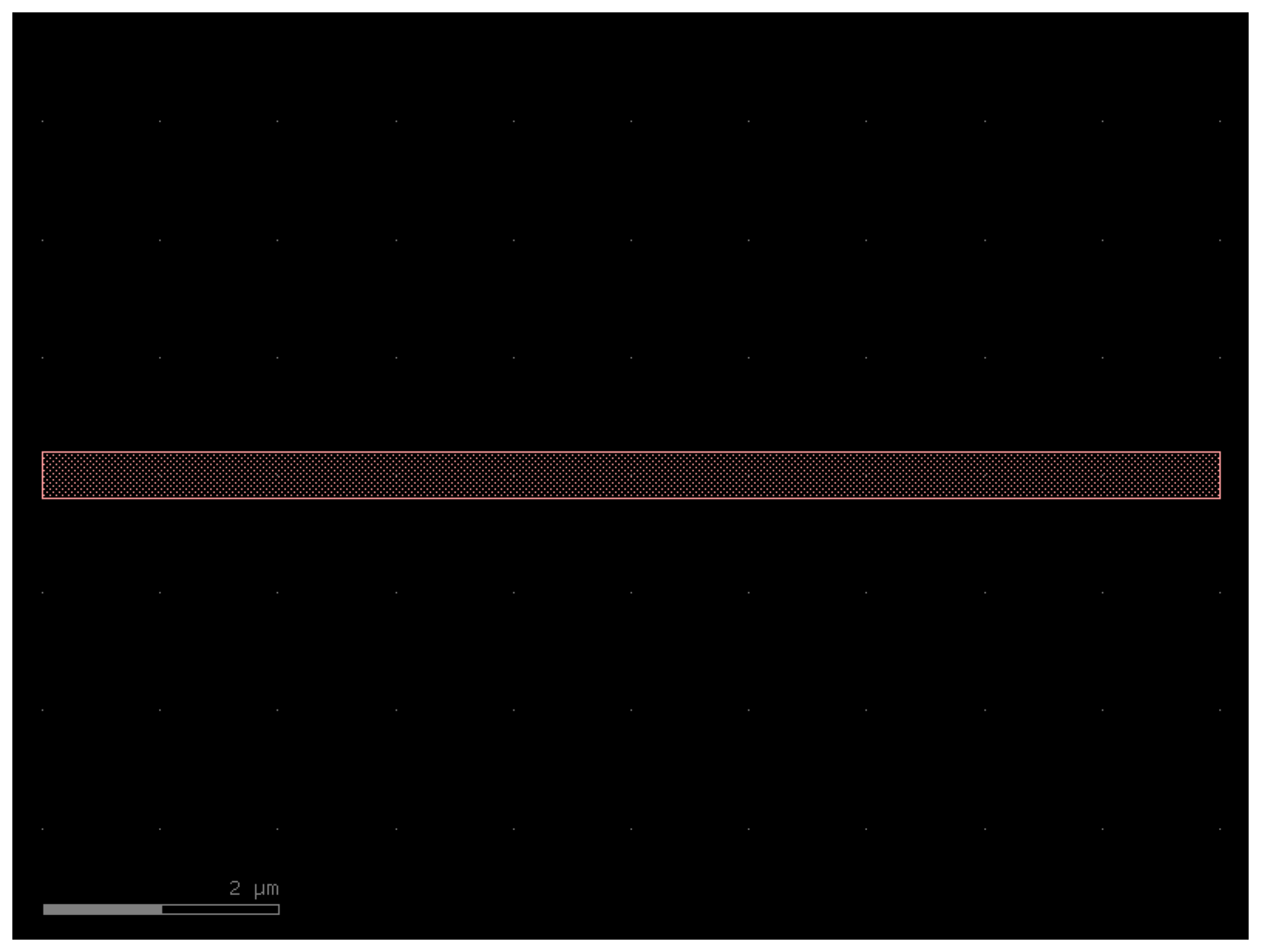

taper_so¶
:noindex:
from cspdk.si340 import cells, PDK
PDK.activate()
c = cells.taper_so(length=10, width1=0.4, cross_section='xs_so340')
c.draw_ports()
c.plot()

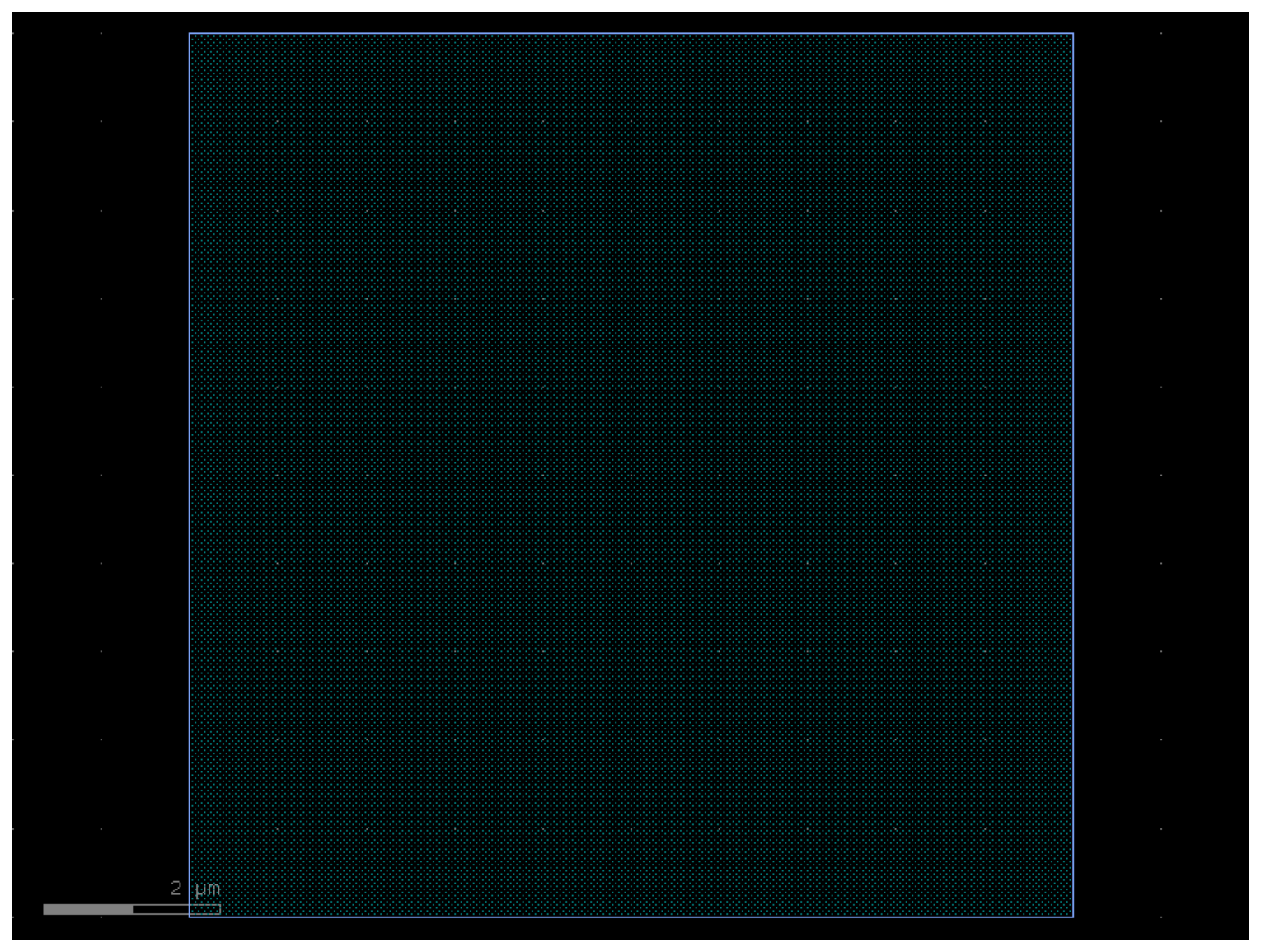

wire_corner¶
A wire corner.
A wire corner is a bend for electrical routes.
Parameters:
| Name | Type | Description | Default |
|---|---|---|---|
cross_section
|
"metal_routing". |
'metal_routing'
|
|
**kwargs
|
additional arguments. |
{}
|
:noindex:
