Cells SiN300¶

array¶

An array of components.

Parameters:

Name	Type	Description	Default
`component`		the component of which to create an array	`'pad'`
`columns`	`int`	the number of components to place in the x-direction	`6`
`rows`	`int`	the number of components to place in the y-direction	`1`
`add_ports`	`bool`	add ports to the component	`True`
`size`		Optional x, y size. Overrides columns and rows.	`None`
`centered`	`bool`	center the array around the origin.	`False`
`row_pitch`	`float`	the pitch between rows.	`150`
`column_pitch`	`float`	the pitch between columns.	`150`

:noindex:

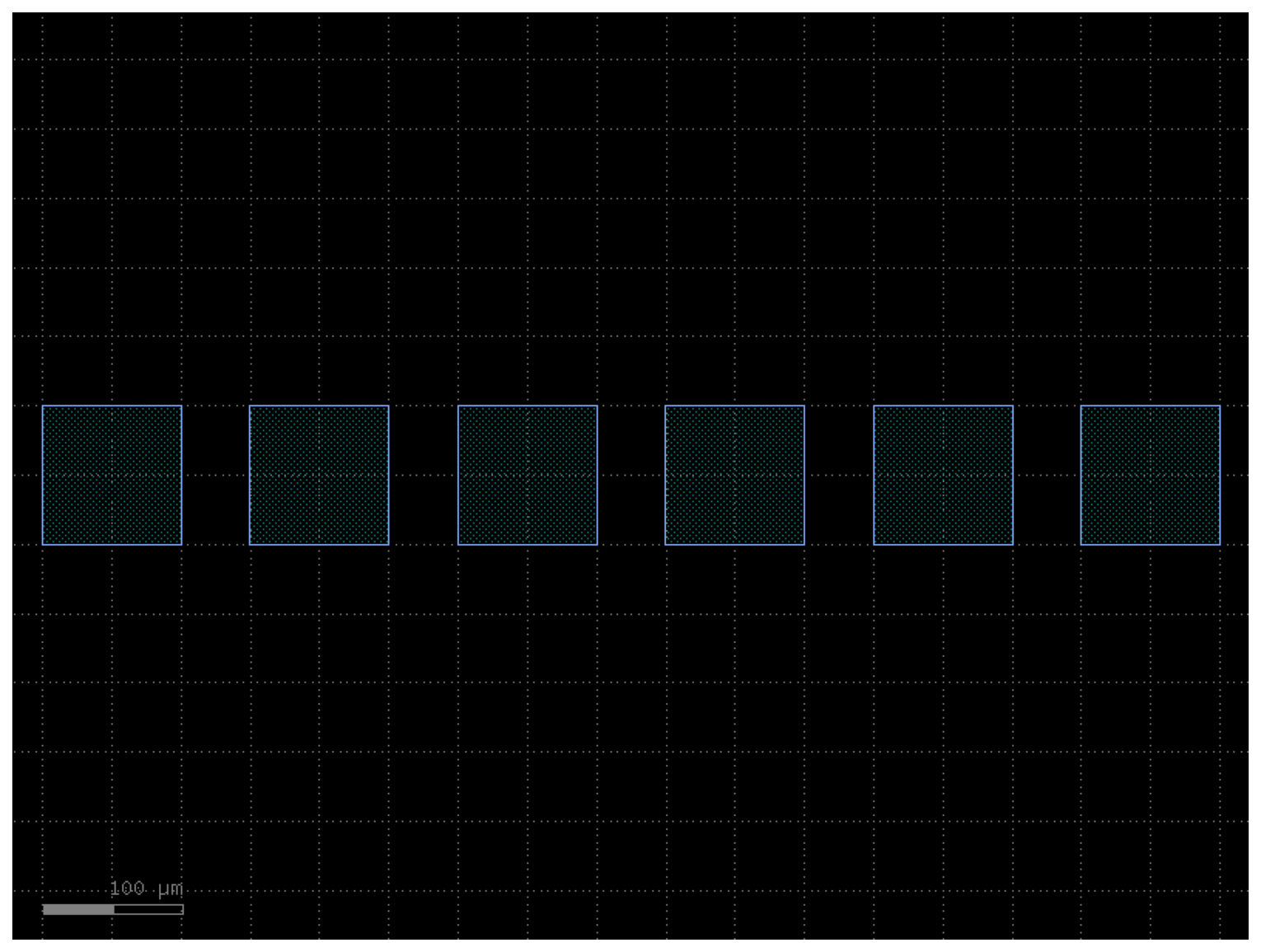

array

import cspdk

c = cspdk.sin300.cells.array(component='pad', columns=6, rows=1, add_ports=True, centered=False, column_pitch=150, row_pitch=150).copy()
c.draw_ports()
c.plot()

bend_euler¶

An euler bend.

Parameters:

Name	Type	Description	Default
`radius`	`float \| None`	the effective radius of the bend	`None`
`angle`	`float`	the angle of the bend (usually 90 degrees)	`90.0`
`p`	`float`	the fraction of the bend that's represented by a polar bend	`0.5`
`width`	`float \| None`	the width of the waveguide forming the bend	`None`
`cross_section`	`CrossSectionSpec`	a cross section or its name or a function generating a cross section.	`'xs_nc'`

:noindex:

bend_euler

import cspdk

c = cspdk.sin300.cells.bend_euler(angle=90, p=0.5, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

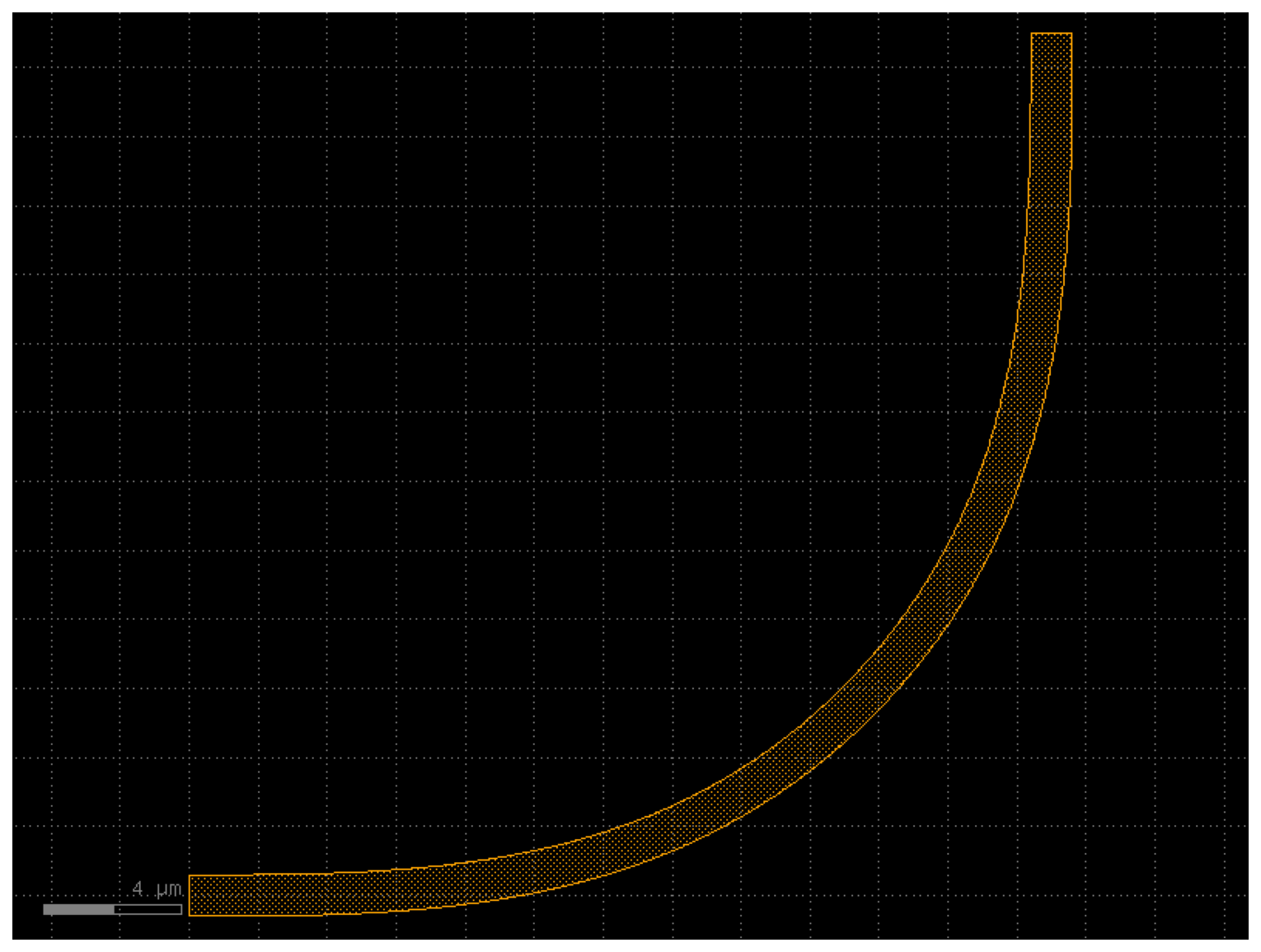

bend_euler_nc¶

:noindex:

bend_euler_nc

import cspdk

c = cspdk.sin300.cells.bend_euler_nc(angle=90, p=0.5, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

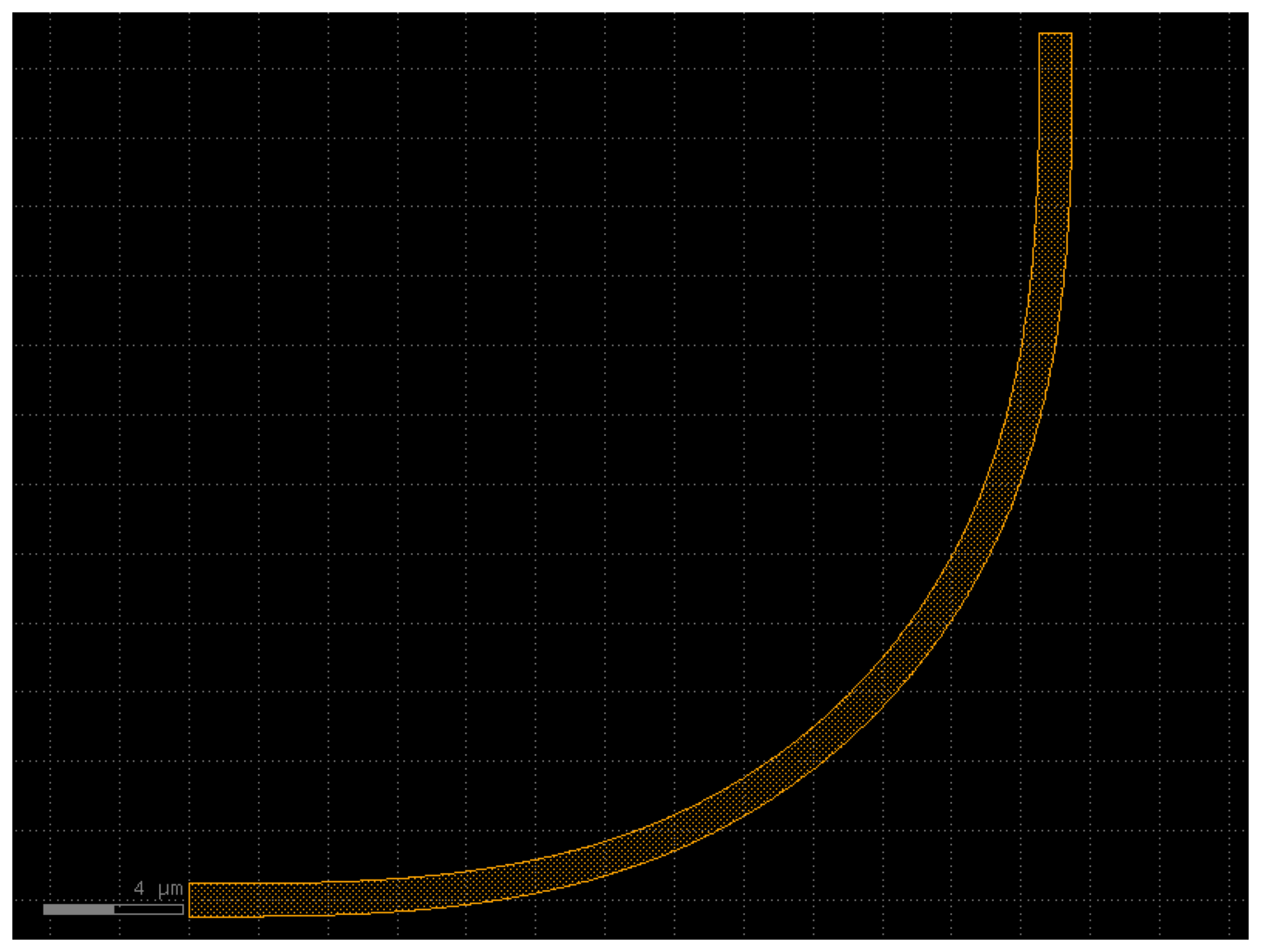

bend_euler_no¶

:noindex:

bend_euler_no

import cspdk

c = cspdk.sin300.cells.bend_euler_no(angle=90, p=0.5, cross_section='xs_no').copy()
c.draw_ports()
c.plot()

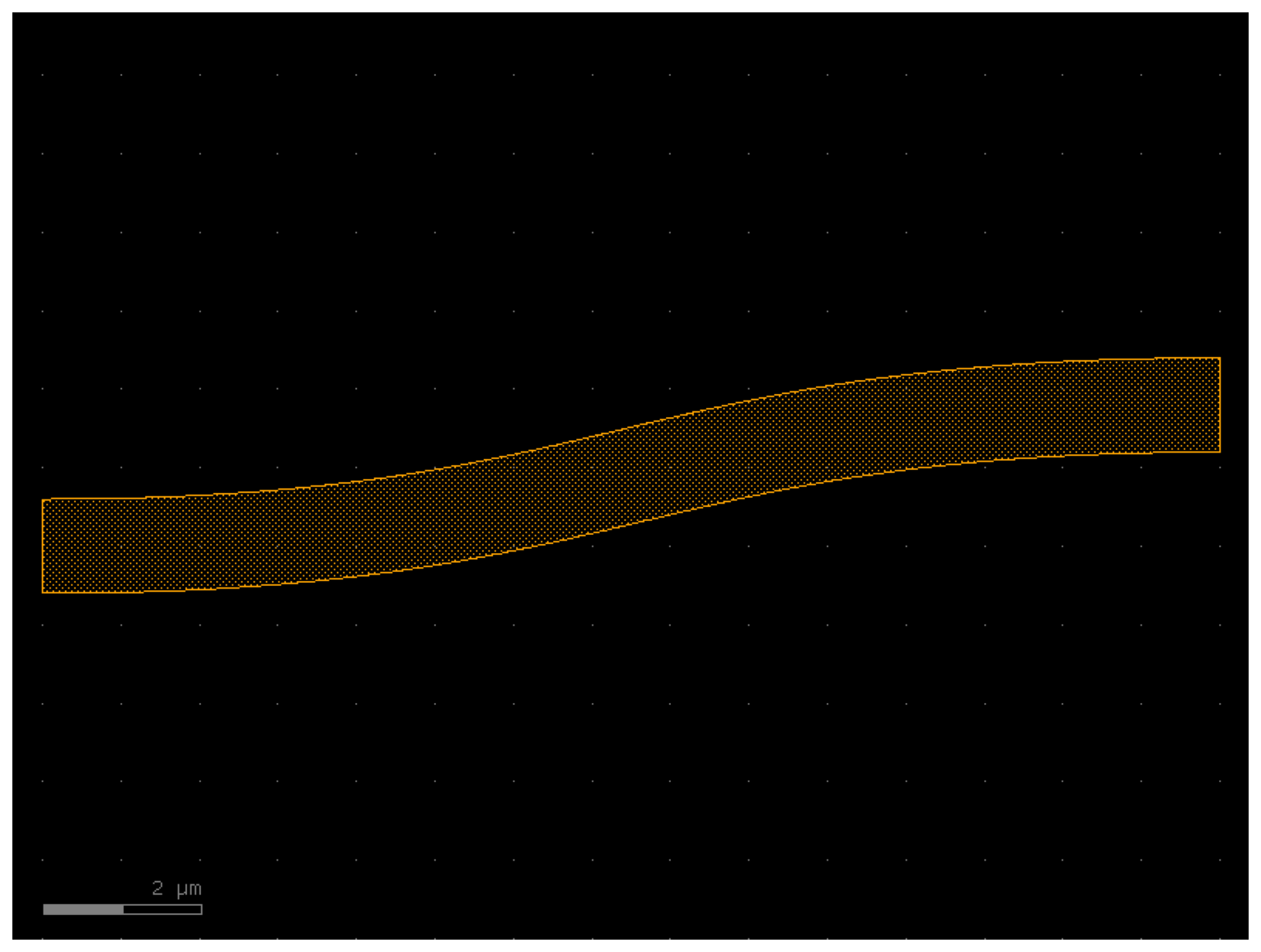

bend_s¶

An S-bend.

Parameters:

Name	Type	Description	Default
`size`	`tuple[float, float]`	the width and height of the s-bend	`(15.0, 1.8)`
`cross_section`	`CrossSectionSpec`	a cross section or its name or a function generating a cross section.	`'xs_nc'`
`allow_min_radius_violation`	`bool`	if True, allows the s-bend to have a smaller radius than the minimum radius.	`True`

:noindex:

bend_s

import cspdk

c = cspdk.sin300.cells.bend_s(size=(15, 1.8), cross_section='xs_nc', allow_min_radius_violation=True).copy()
c.draw_ports()
c.plot()

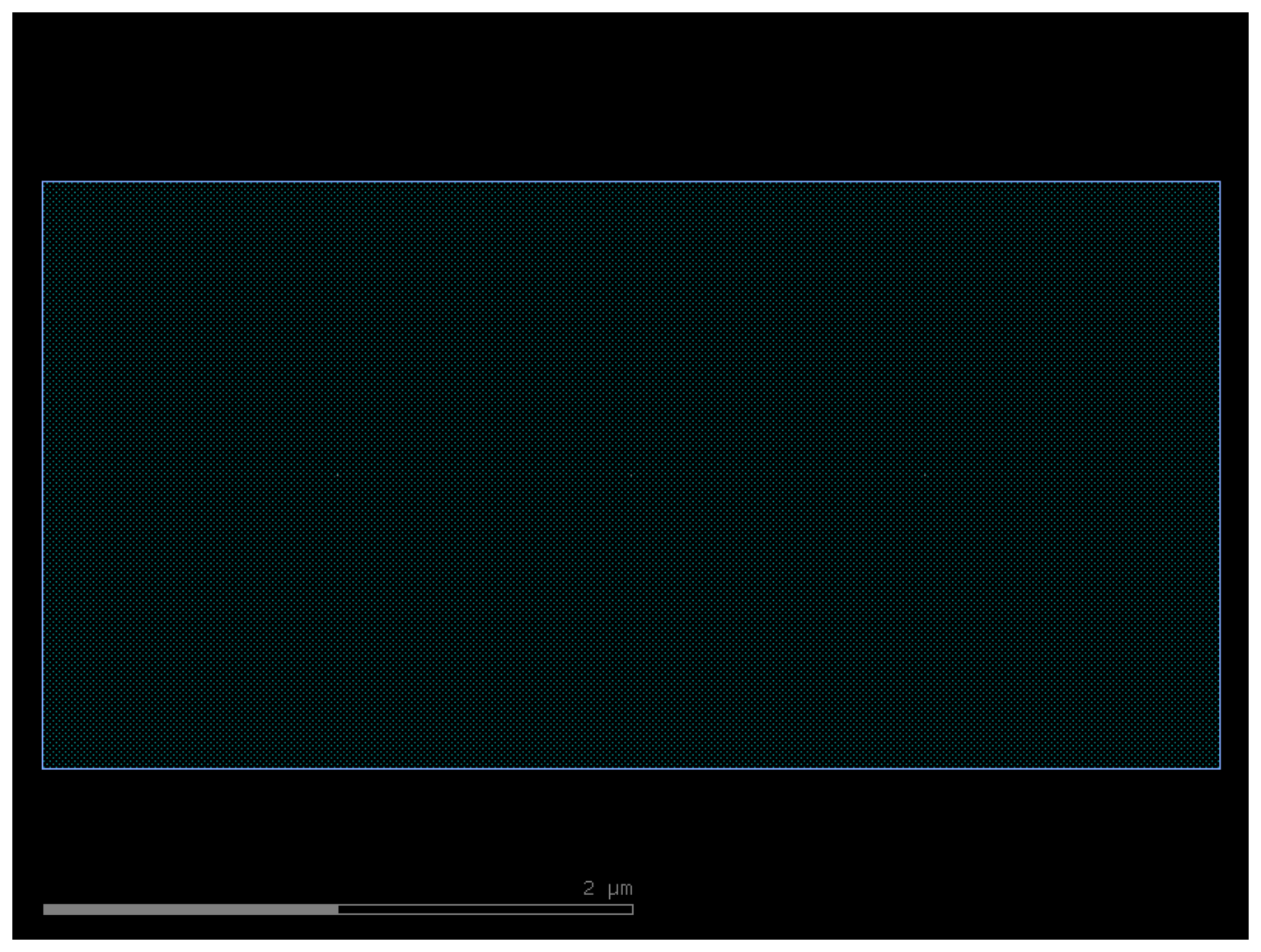

compass¶

Rectangle with ports on each edge (north, south, east, and west).

Parameters:

Name	Type	Description	Default
`size`	`Size`	rectangle size.	`(4.0, 2.0)`
`layer`	`LayerSpec`	tuple (int, int).	`'PAD'`
`port_type`	`str \| None`	optical, electrical.	`'electrical'`
`port_inclusion`	`float`	from edge.	`0.0`
`port_orientations`	`Ints \| None`	list of port_orientations to add. None does not add ports.	`(180, 90, 0, -90)`
`auto_rename_ports`	`bool`	auto rename ports.	`True`

:noindex:

compass

import cspdk

c = cspdk.sin300.cells.compass(size=(4, 2), layer='PAD', port_type='electrical', port_inclusion=0, port_orientations=(180, 90, 0, -90), auto_rename_ports=True).copy()
c.draw_ports()
c.plot()

coupler¶

A coupler.

a coupler is a 2x2 splitter

Parameters:

Name	Type	Description	Default
`gap`	`float`	the gap between the waveguides forming the straight part of the coupler	`0.236`
`length`	`float`	the length of the coupler	`20.0`
`dy`	`float`	the height of the s-bend	`4.0`
`dx`	`float`	the length of the s-bend	`20.0`
`cross_section`	`CrossSectionSpec`	a cross section or its name or a function generating a cross section.	`'xs_nc'`

:noindex:

coupler

import cspdk

c = cspdk.sin300.cells.coupler(gap=0.236, length=20, dy=4, dx=20, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

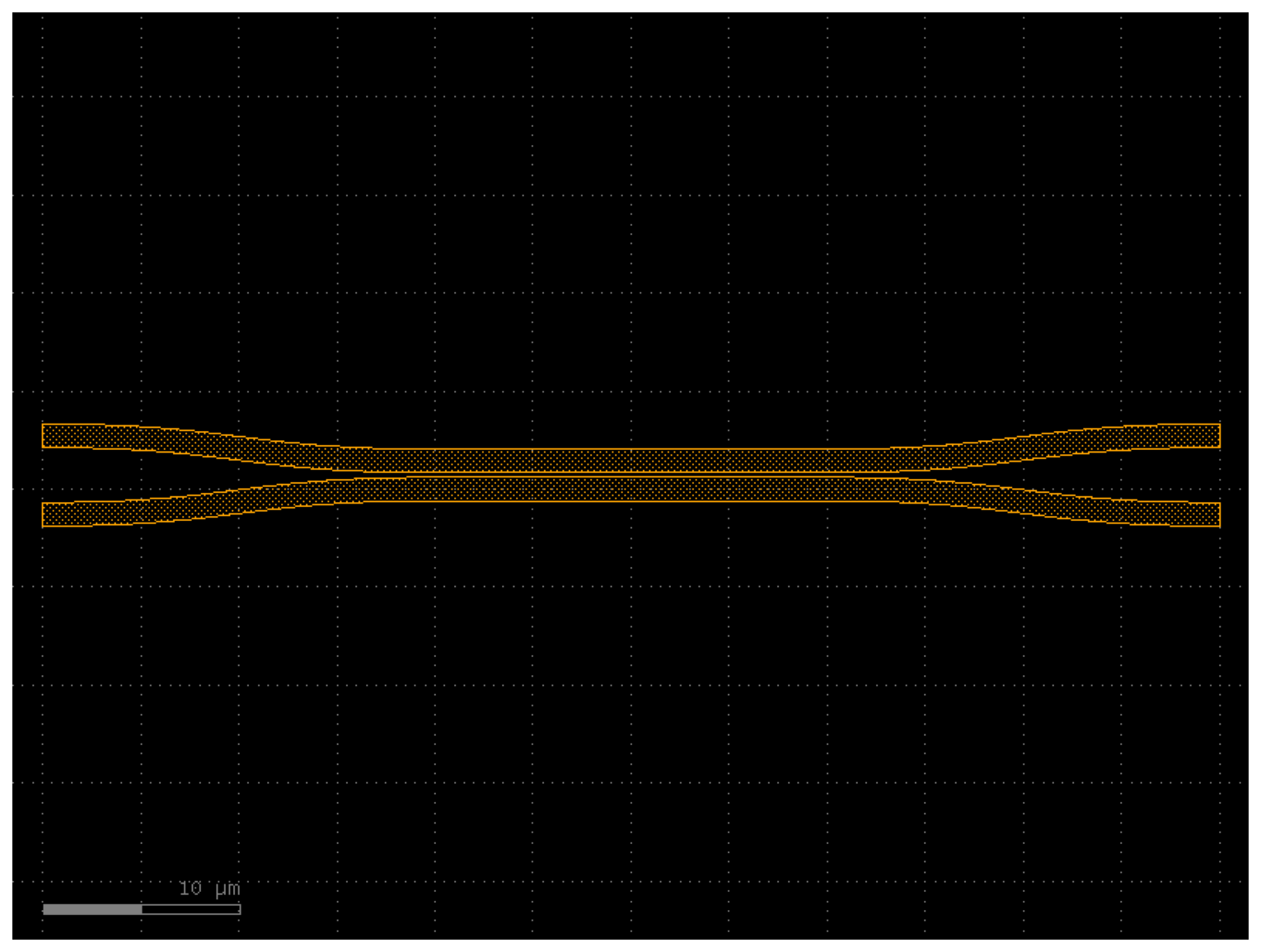

coupler_nc¶

:noindex:

coupler_nc

import cspdk

c = cspdk.sin300.cells.coupler_nc(gap=0.236, length=20, dy=4, dx=20, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

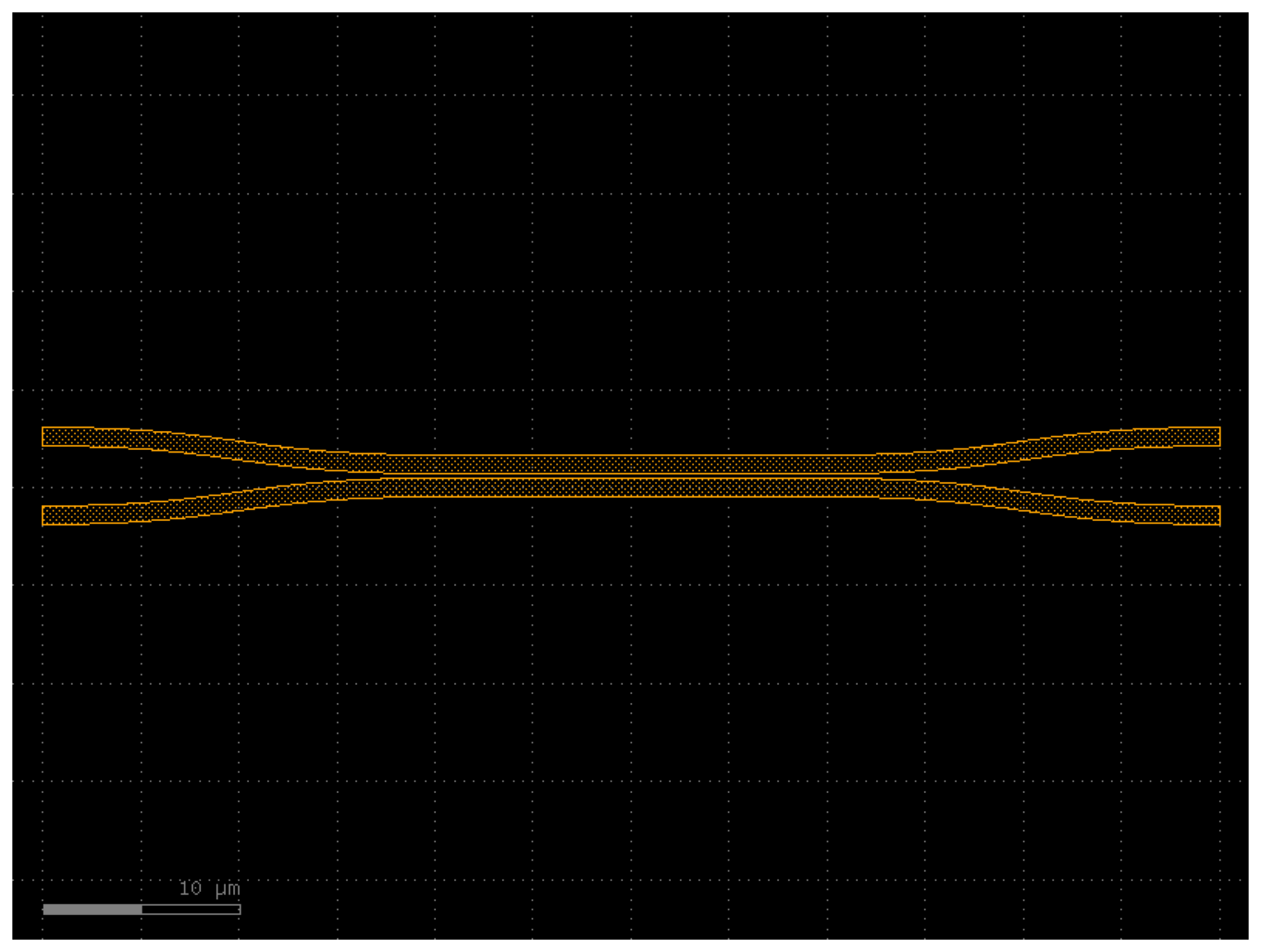

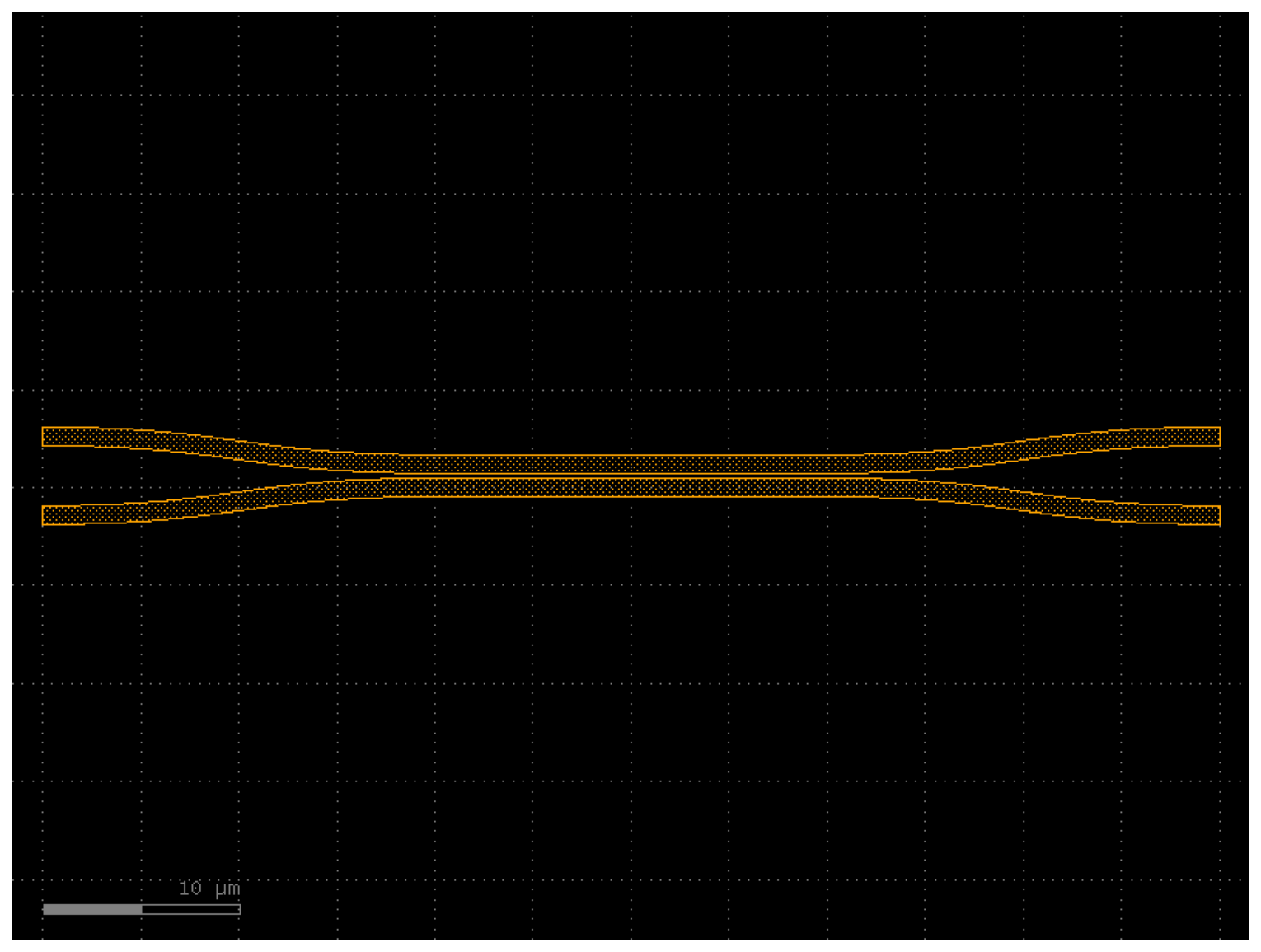

coupler_no¶

:noindex:

coupler_no

import cspdk

c = cspdk.sin300.cells.coupler_no(gap=0.236, length=20, dy=4, dx=20, cross_section='xs_no').copy()
c.draw_ports()
c.plot()

coupler_straight¶

The straight part of a coupler.

Parameters:

Name	Type	Description	Default
`length`	`float`	the length of the straight part of the coupler	`20.0`
`gap`	`float`	the gap between the waveguides forming the straight part of the coupler	`0.236`
`cross_section`	`CrossSectionSpec`	a cross section or its name or a function generating a cross section.	`'xs_nc'`

:noindex:

coupler_straight

import cspdk

c = cspdk.sin300.cells.coupler_straight(length=20, gap=0.236, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

die¶

A die template.

Parameters:

Name	Type	Description	Default
`cross_section`		a cross section or its name or a function generating a cross section.	`'xs_nc'`

:noindex:

die

import cspdk

c = cspdk.sin300.cells.die(cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

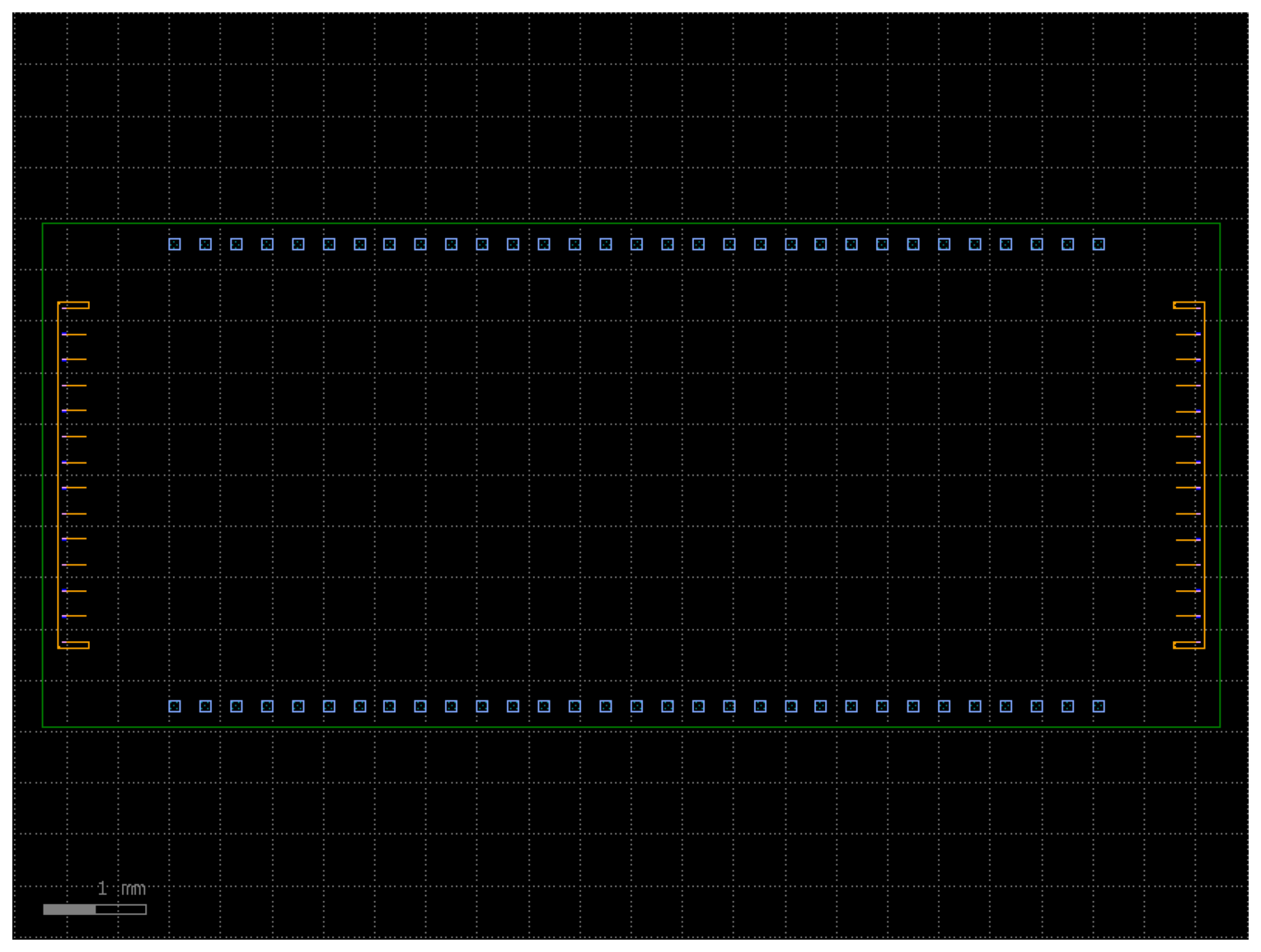

die_nc¶

:noindex:

die_nc

import cspdk

c = cspdk.sin300.cells.die_nc(cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

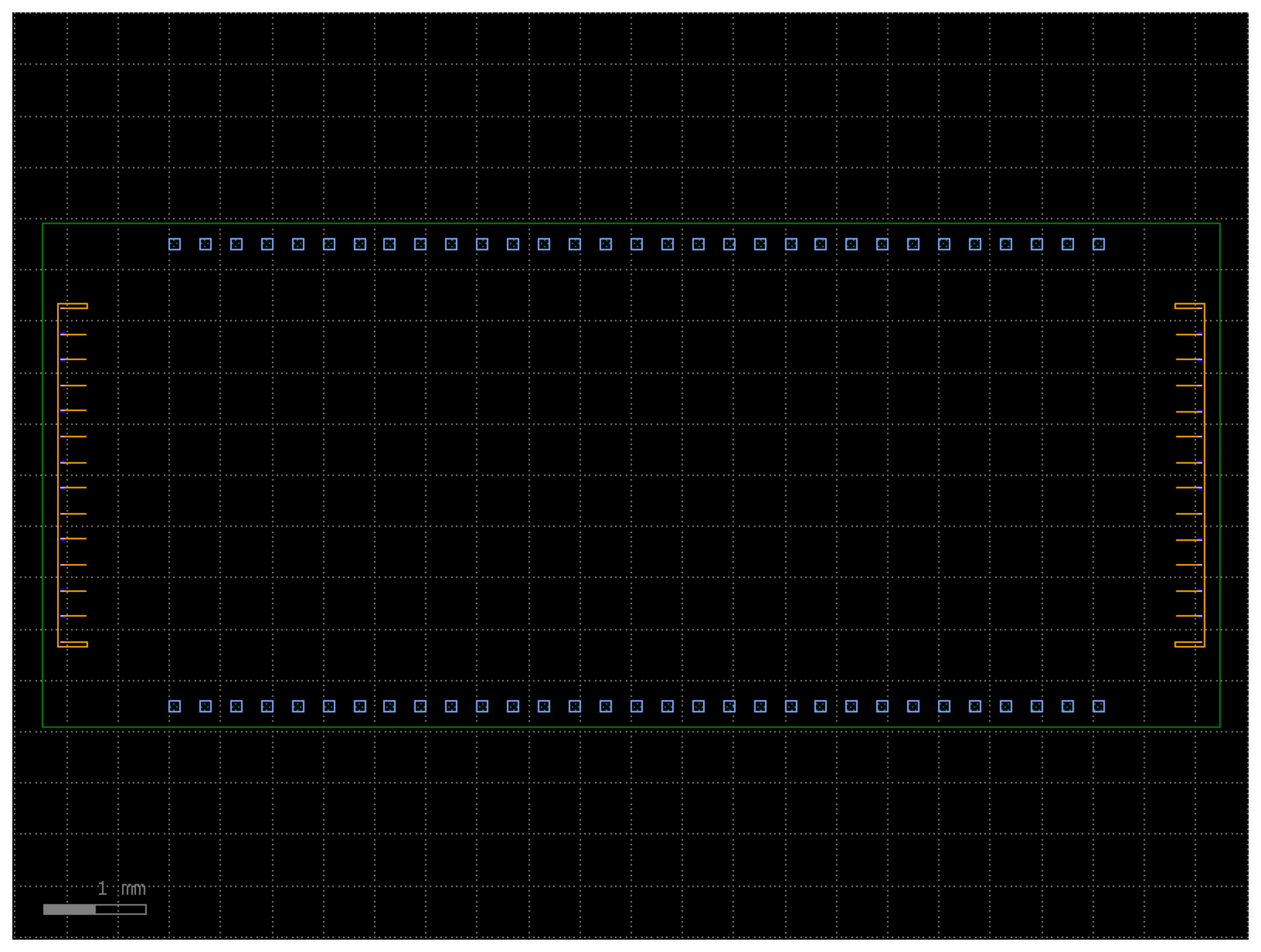

die_no¶

:noindex:

die_no

import cspdk

c = cspdk.sin300.cells.die_no(cross_section='xs_no').copy()
c.draw_ports()
c.plot()

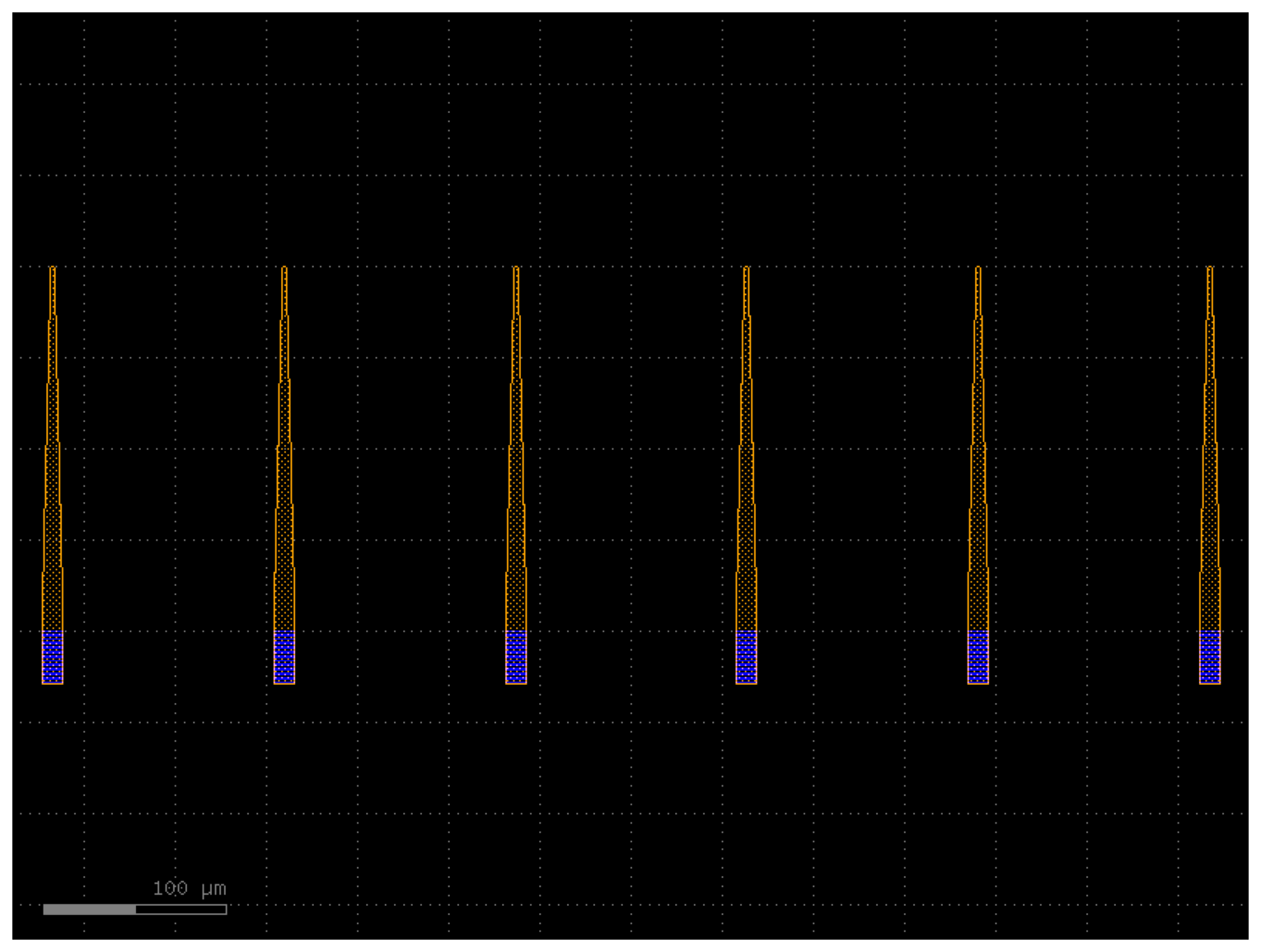

grating_coupler_array¶

An array of grating couplers.

Parameters:

Name	Type	Description	Default
`pitch`	`float`	the pitch of the grating couplers	`127.0`
`n`	`int`	the number of grating couplers	`6`
`centered`		if True, centers the array around the origin.	`True`
`grating_coupler`		the name of the grating coupler to use in the array.	`None`
`port_name`		port name	`'o1'`
`with_loopback`		if True, adds a loopback between edge GCs. Only works for rotation = 90 for now.	`False`
`rotation`		rotation angle for each reference.	`-90`
`straight_to_grating_spacing`		spacing between the last grating coupler and the loopback.	`10.0`
`cross_section`		a cross section or its name or a function generating a cross section.	`'xs_nc'`
`radius`	`float \| None`	the radius of the loopback.	`None`

:noindex:

grating_coupler_array

import cspdk

c = cspdk.sin300.cells.grating_coupler_array(pitch=127, n=6, cross_section='xs_nc', centered=True, port_name='o1', rotation=-90, straight_to_grating_spacing=10, with_loopback=False).copy()
c.draw_ports()
c.plot()

grating_coupler_elliptical¶

A grating coupler with curved but parallel teeth.

Parameters:

Name	Type	Description	Default
`wavelength`	`float`	the center wavelength for which the grating is designed	`1.55`
`grating_line_width`		the line width of the grating	`0.343`
`cross_section`		a cross section or its name or a function generating a cross section.	`'xs_nc'`

:noindex:

grating_coupler_elliptical

import cspdk

c = cspdk.sin300.cells.grating_coupler_elliptical(wavelength=1.55, grating_line_width=0.343, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

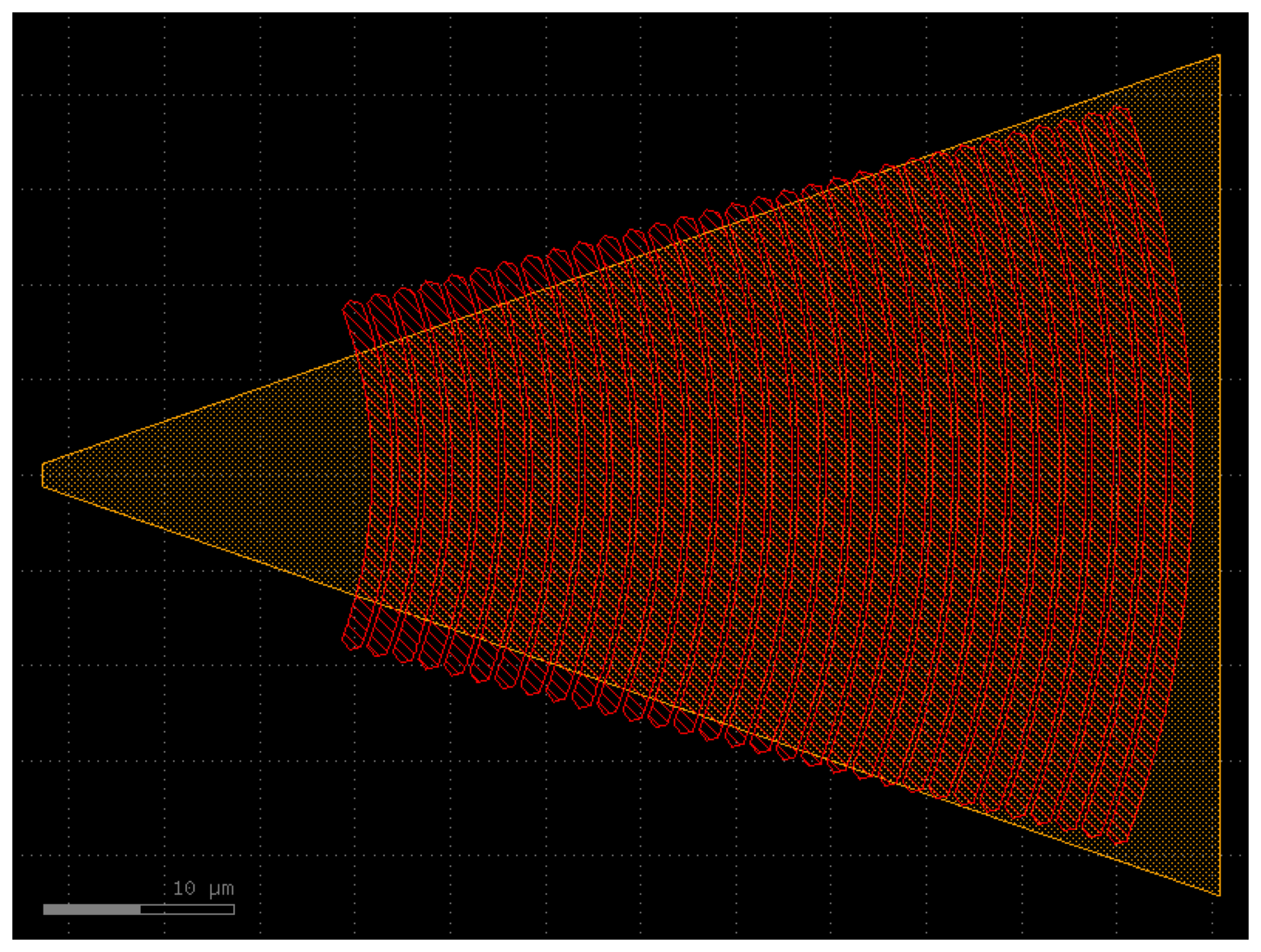

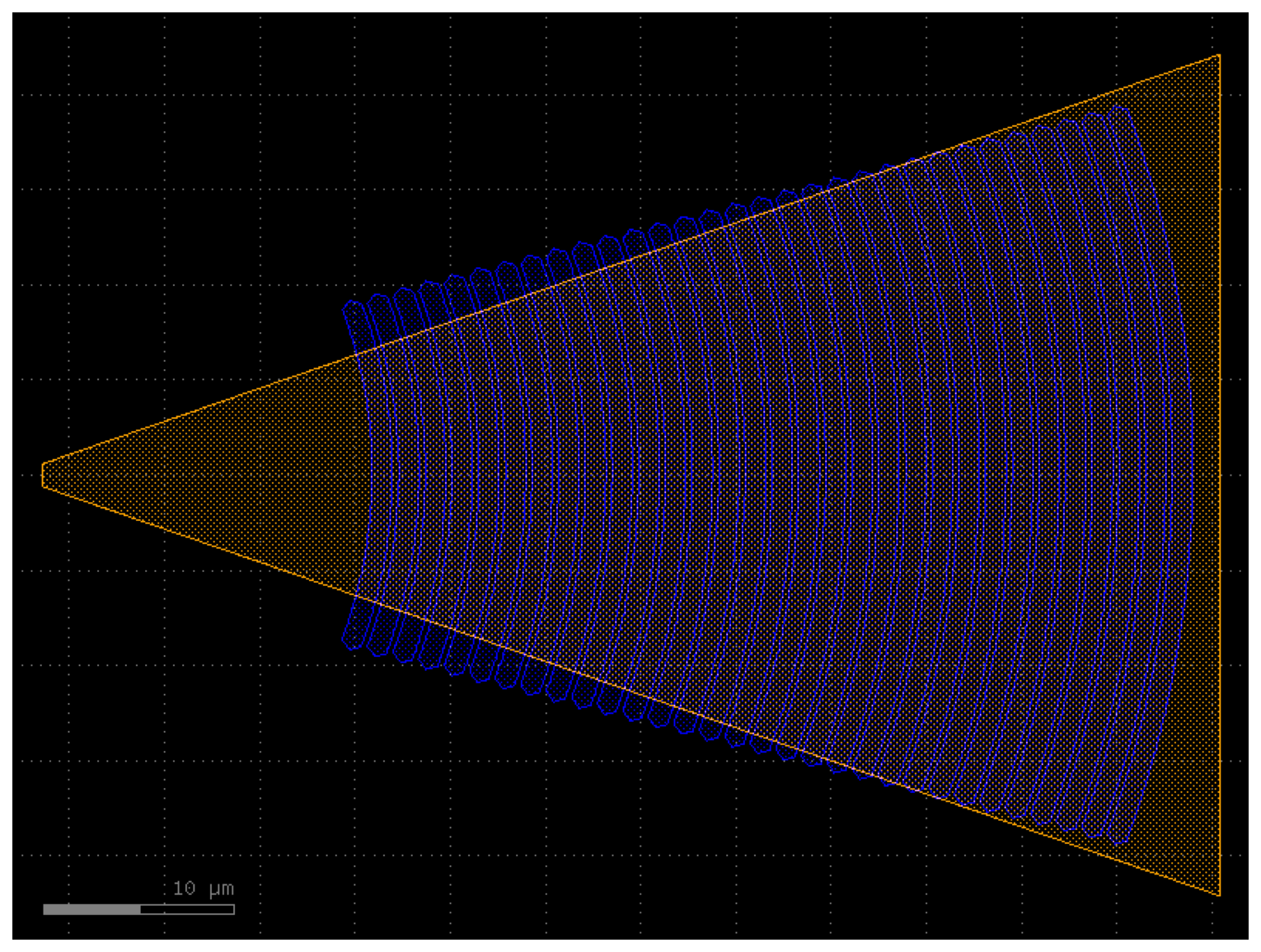

grating_coupler_elliptical_nc¶

:noindex:

grating_coupler_elliptical_nc

import cspdk

c = cspdk.sin300.cells.grating_coupler_elliptical_nc(wavelength=1.55, grating_line_width=0.33, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

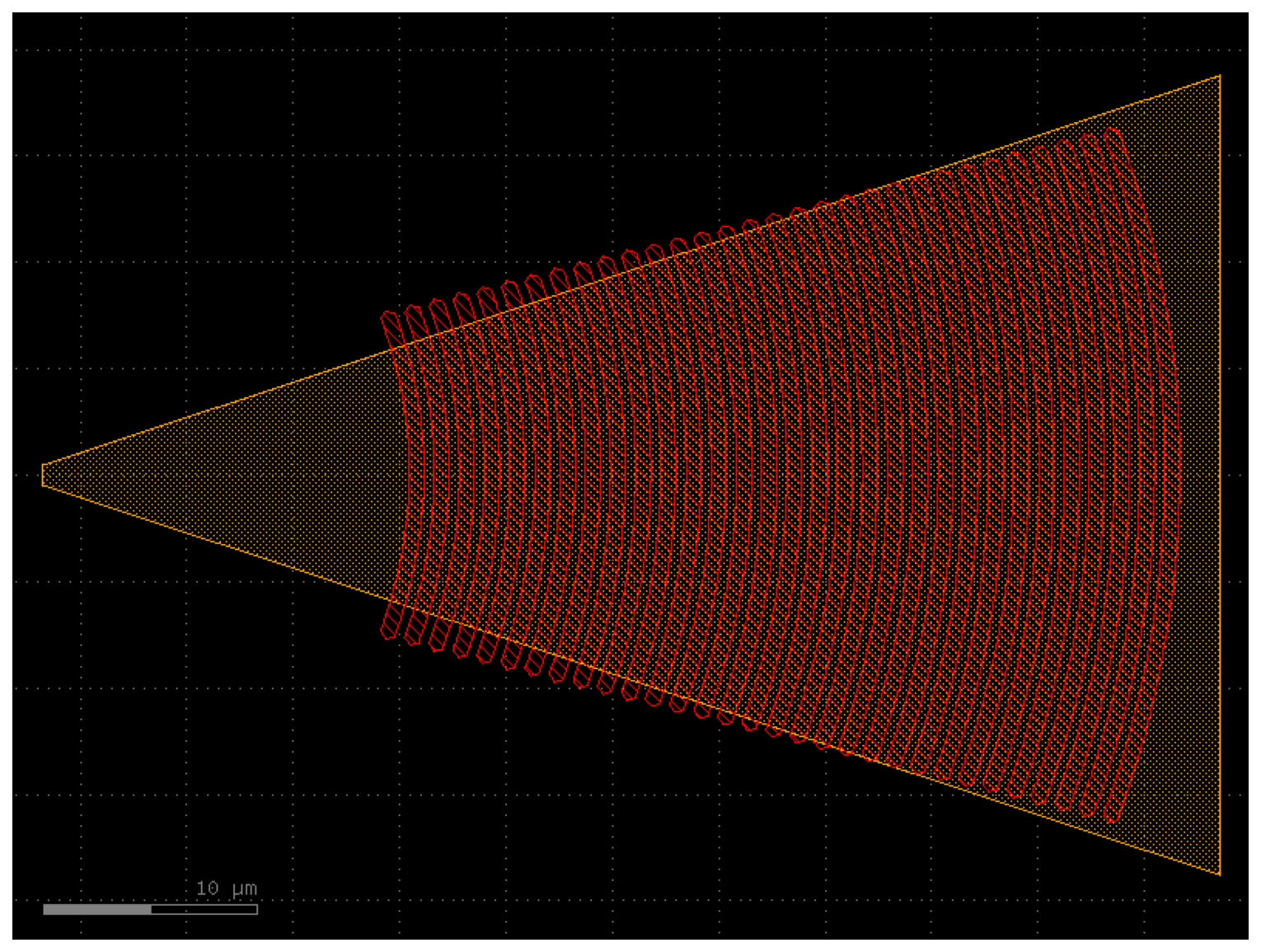

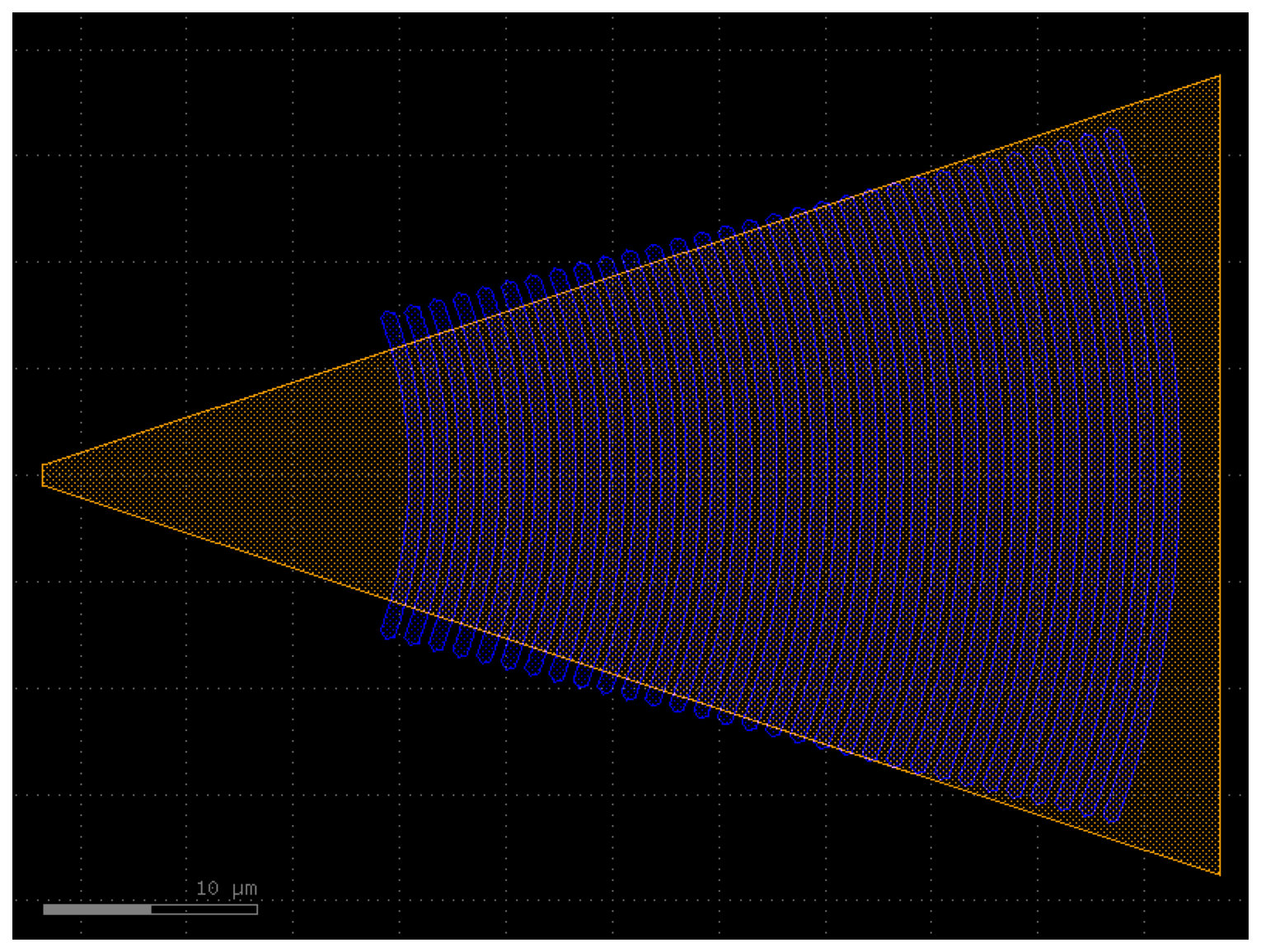

grating_coupler_elliptical_no¶

:noindex:

grating_coupler_elliptical_no

import cspdk

c = cspdk.sin300.cells.grating_coupler_elliptical_no(wavelength=1.31, grating_line_width=0.482, cross_section='xs_no').copy()
c.draw_ports()
c.plot()

grating_coupler_rectangular¶

A grating coupler with straight and parallel teeth.

Parameters:

Name	Type	Description	Default
`period`	`float`	the period of the grating	`0.66`
`n_periods`	`int`	the number of grating teeth	`30`
`length_taper`	`float`	the length of the taper tapering up to the grating	`200.0`
`wavelength`	`float`	the center wavelength for which the grating is designed	`1.55`
`cross_section`		a cross section or its name or a function generating a cross section.	`'xs_nc'`

:noindex:

grating_coupler_rectangular

import cspdk

c = cspdk.sin300.cells.grating_coupler_rectangular(period=0.66, n_periods=30, length_taper=200, wavelength=1.55, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

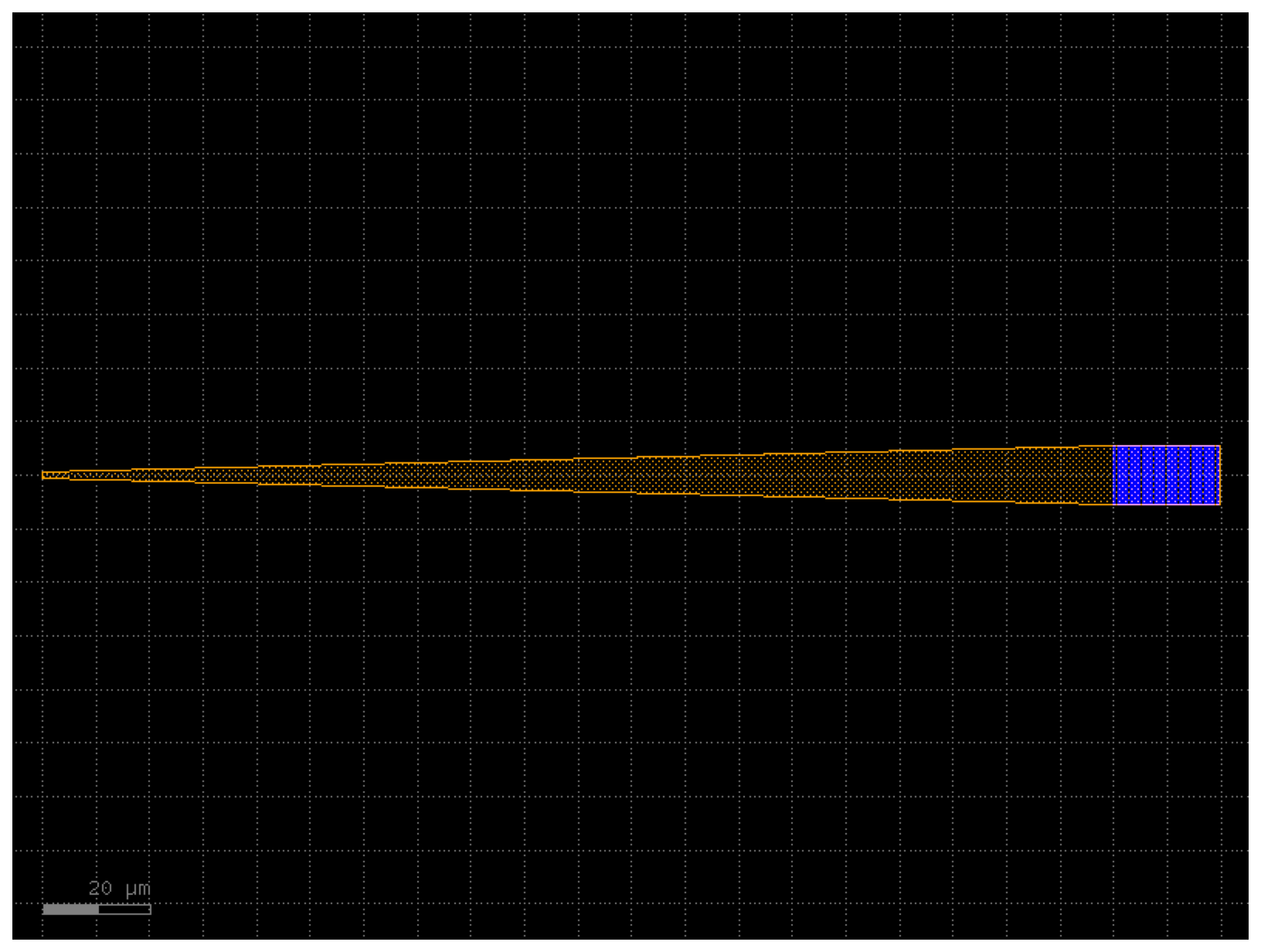

grating_coupler_rectangular_nc¶

:noindex:

grating_coupler_rectangular_nc

import cspdk

c = cspdk.sin300.cells.grating_coupler_rectangular_nc(period=0.66, n_periods=30, length_taper=200, wavelength=1.55, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

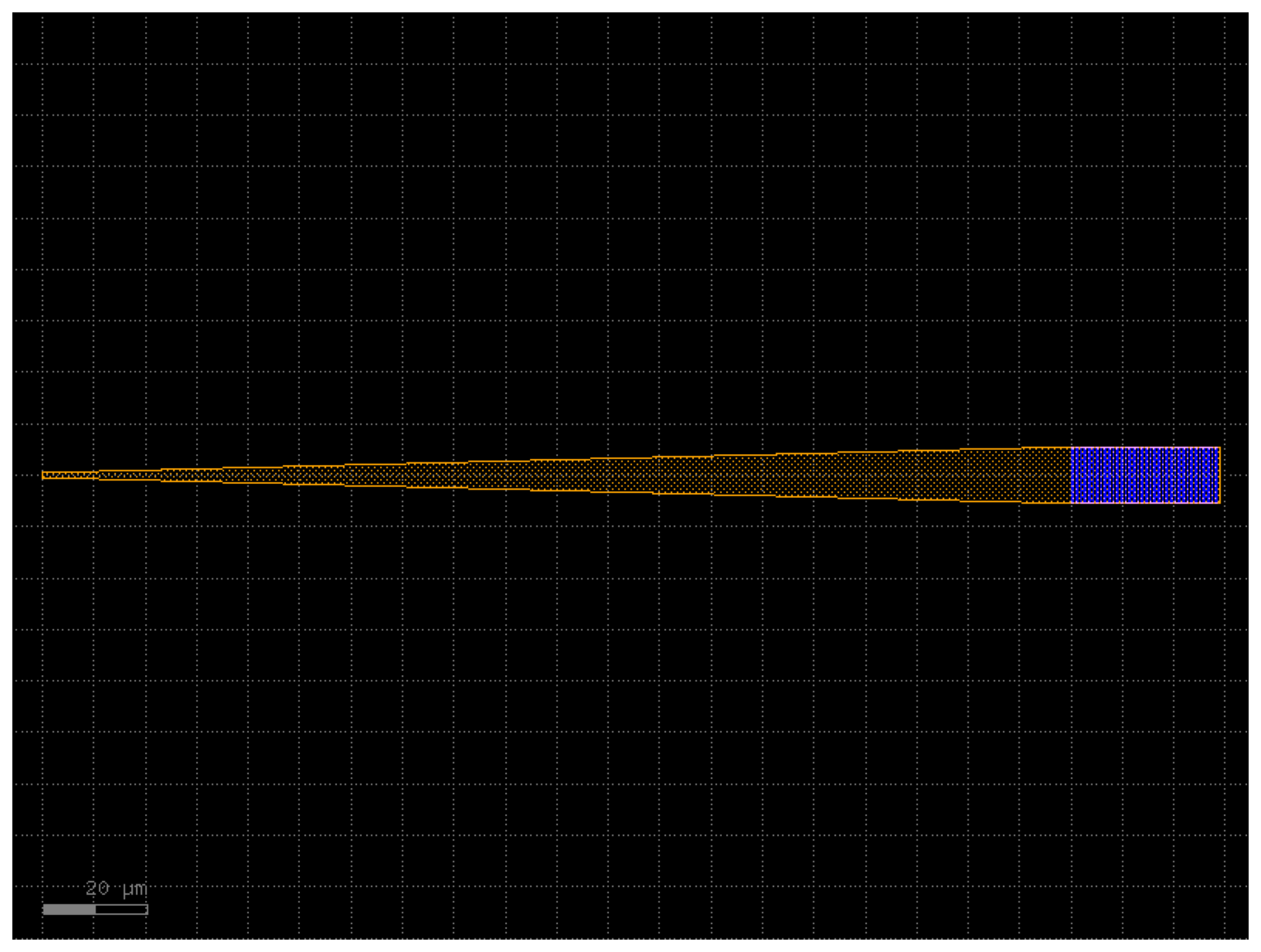

grating_coupler_rectangular_no¶

:noindex:

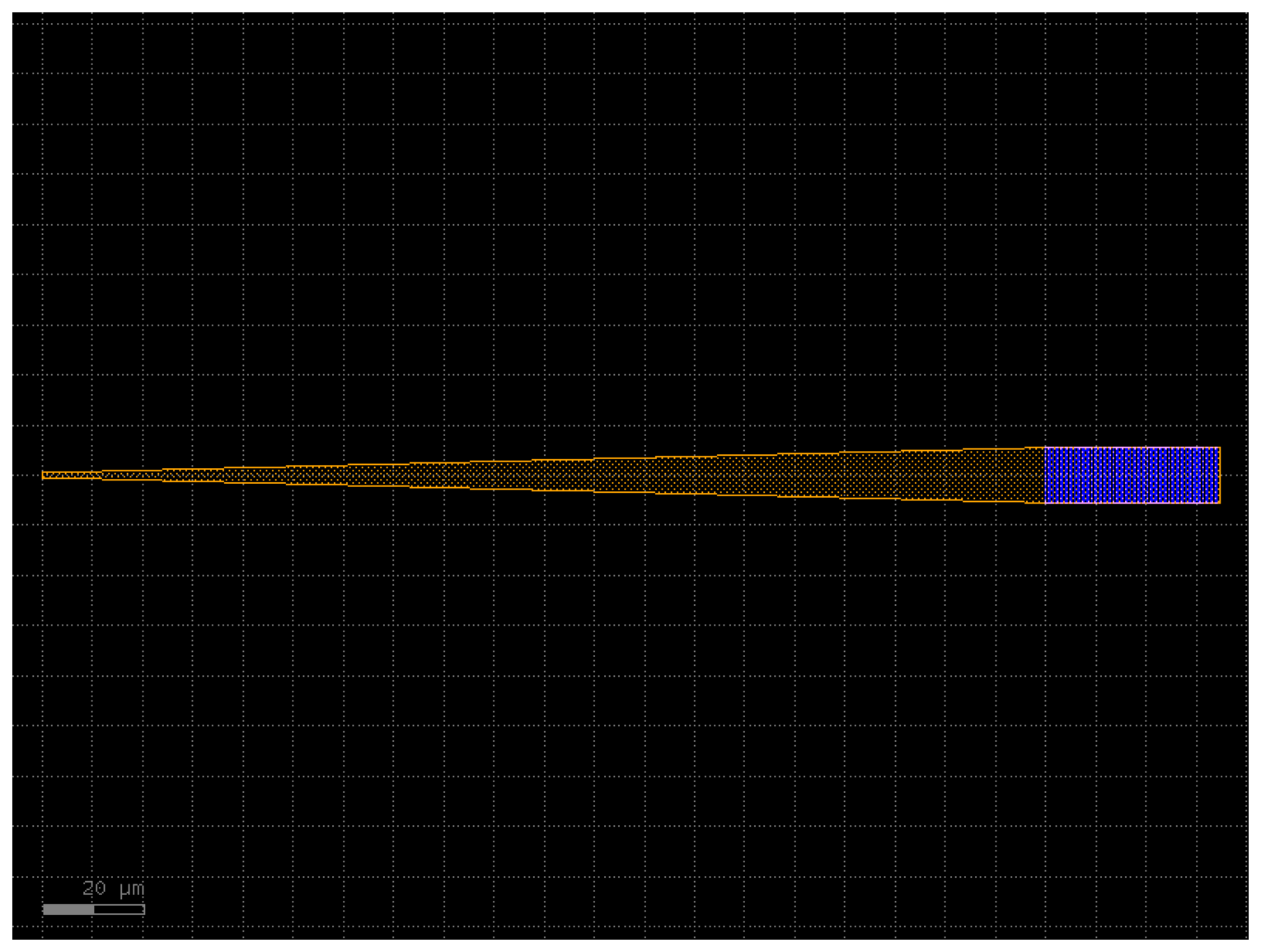

grating_coupler_rectangular_no

import cspdk

c = cspdk.sin300.cells.grating_coupler_rectangular_no(period=0.964, n_periods=30, length_taper=200, wavelength=1.31, cross_section='xs_no').copy()
c.draw_ports()
c.plot()

mmi1x2¶

An mmi1x2.

An mmi1x2 is a splitter that splits a single input to two outputs

Parameters:

Name	Type	Description	Default
`width`	`float \| None`	the width of the waveguides connecting at the mmi ports	`None`
`width_taper`	`float`	the width at the base of the mmi body	`5.5`
`length_taper`	`float`	the length of the tapers going towards the mmi body	`50.0`
`length_mmi`	`float`	the length of the mmi body	`64.7`
`width_mmi`	`float`	the width of the mmi body	`12.0`
`gap_mmi`	`float`	the gap between the tapers at the mmi body	`0.4`
`cross_section`	`CrossSectionSpec`	a cross section or its name or a function generating a cross section.	`'xs_nc'`

:noindex:

mmi1x2

import cspdk

c = cspdk.sin300.cells.mmi1x2(width_mmi=12, width_taper=5.5, length_taper=50, length_mmi=64.7, gap_mmi=0.4, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

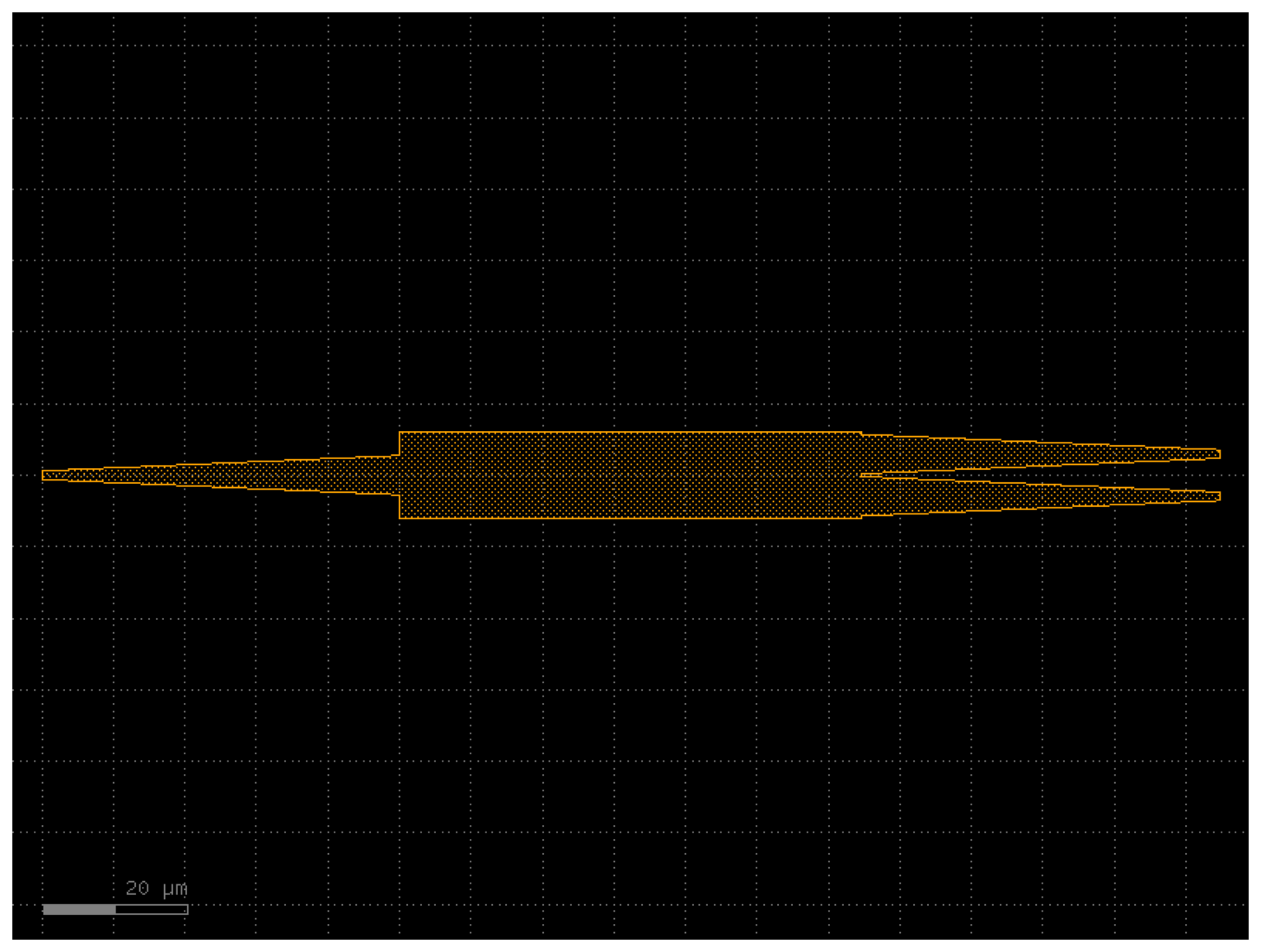

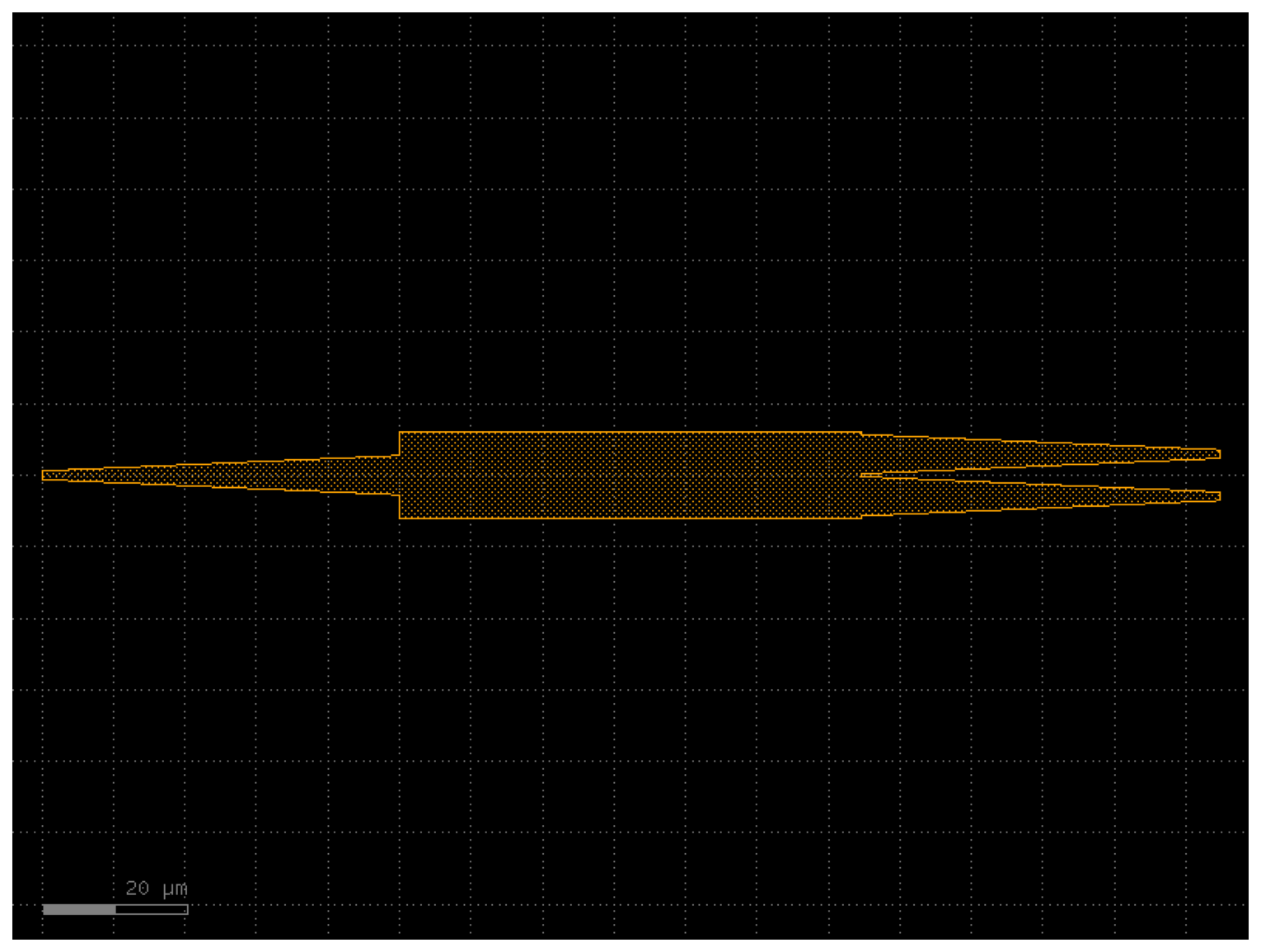

mmi1x2_nc¶

:noindex:

mmi1x2_nc

import cspdk

c = cspdk.sin300.cells.mmi1x2_nc(width_mmi=12, width_taper=5.5, length_taper=50, length_mmi=64.7, gap_mmi=0.4, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

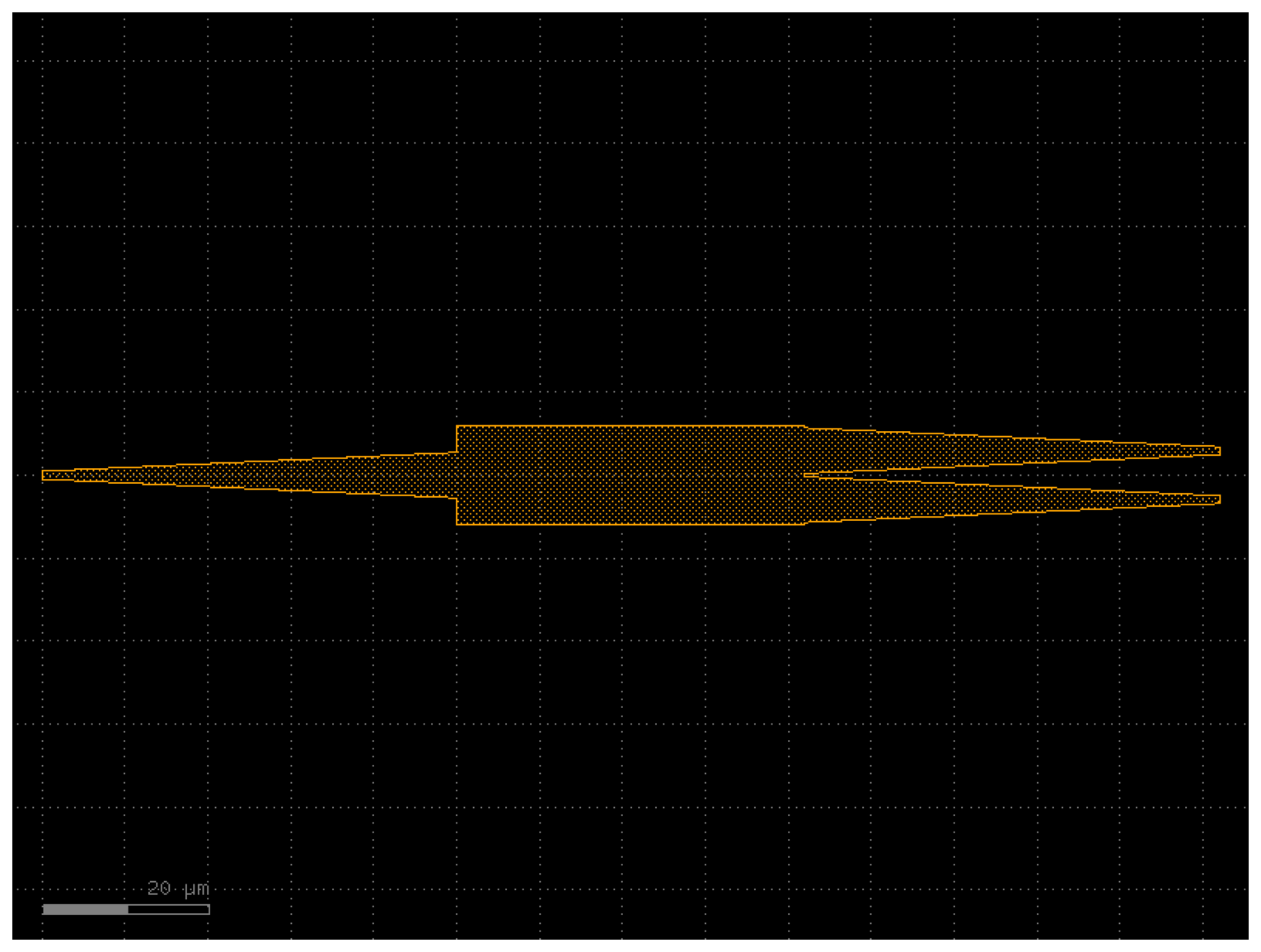

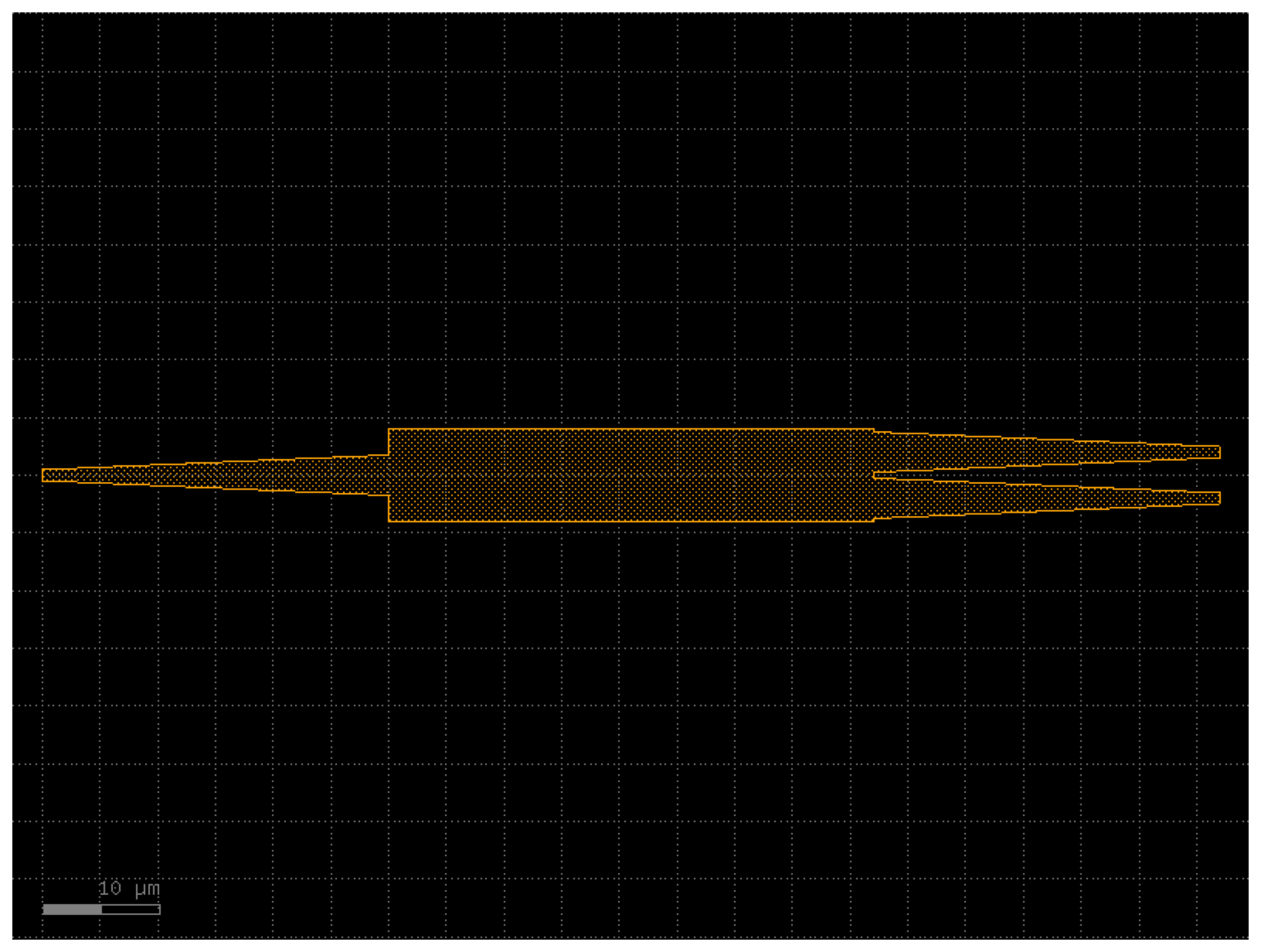

mmi1x2_no¶

:noindex:

mmi1x2_no

import cspdk

c = cspdk.sin300.cells.mmi1x2_no(width_mmi=12, width_taper=5.5, length_taper=50, length_mmi=42, gap_mmi=0.4, cross_section='xs_no').copy()
c.draw_ports()
c.plot()

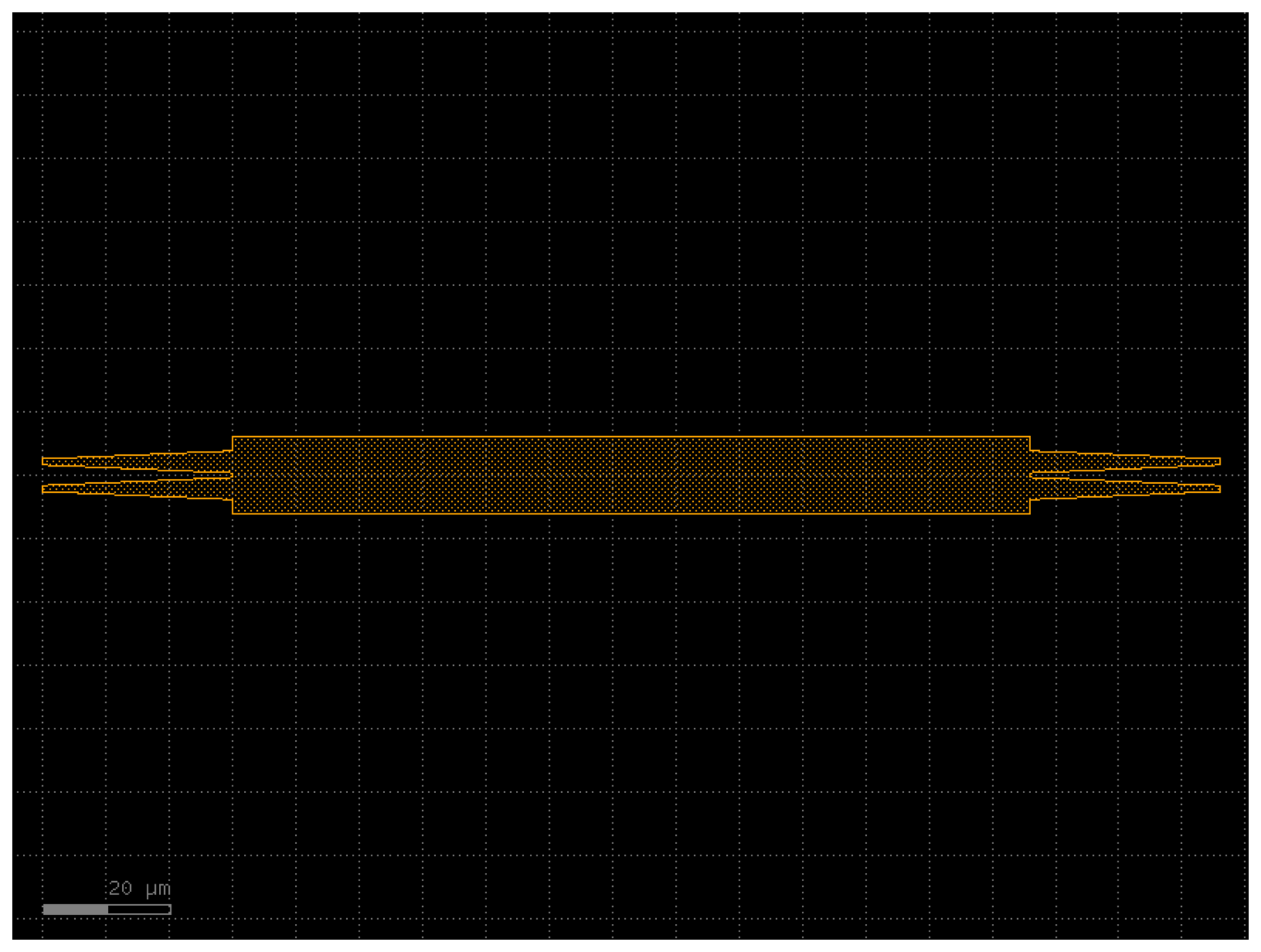

mmi2x2¶

An mmi2x2.

An mmi2x2 is a 2x2 splitter

Parameters:

Name	Type	Description	Default
`width`	`float \| None`	the width of the waveguides connecting at the mmi ports	`None`
`width_taper`	`float`	the width at the base of the mmi body	`5.5`
`length_taper`	`float`	the length of the tapers going towards the mmi body	`50.0`
`length_mmi`	`float`	the length of the mmi body	`5.5`
`width_mmi`	`float`	the width of the mmi body	`12.0`
`gap_mmi`	`float`	the gap between the tapers at the mmi body	`0.4`
`cross_section`	`CrossSectionSpec`	a cross section or its name or a function generating a cross section.	`'xs_nc'`

:noindex:

mmi2x2

import cspdk

c = cspdk.sin300.cells.mmi2x2(width_taper=5.5, length_taper=50, length_mmi=5.5, width_mmi=12, gap_mmi=0.4, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

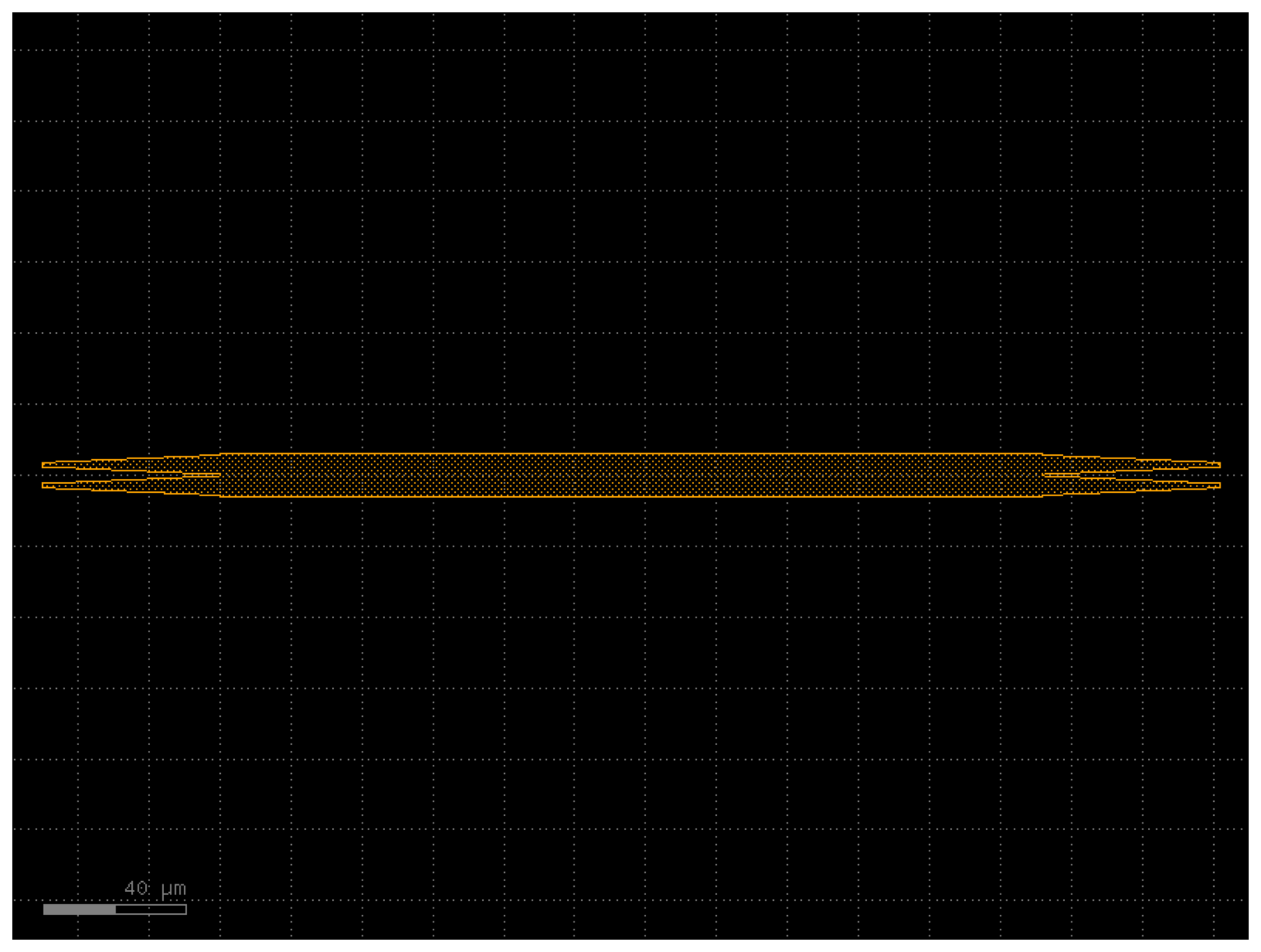

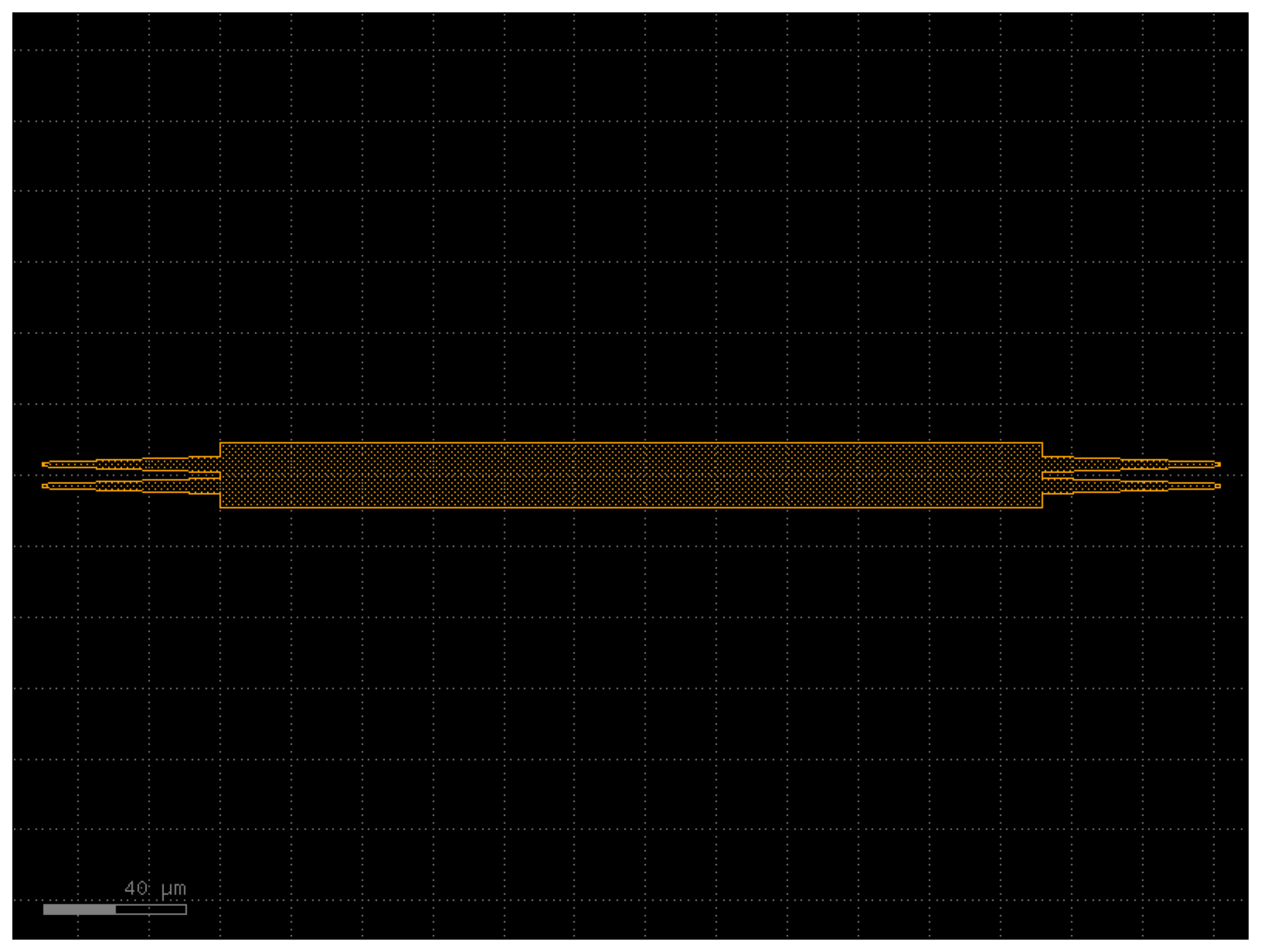

mmi2x2_nc¶

:noindex:

mmi2x2_nc

import cspdk

c = cspdk.sin300.cells.mmi2x2_nc(width_taper=5.5, length_taper=50, length_mmi=232, width_mmi=12, gap_mmi=0.4, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

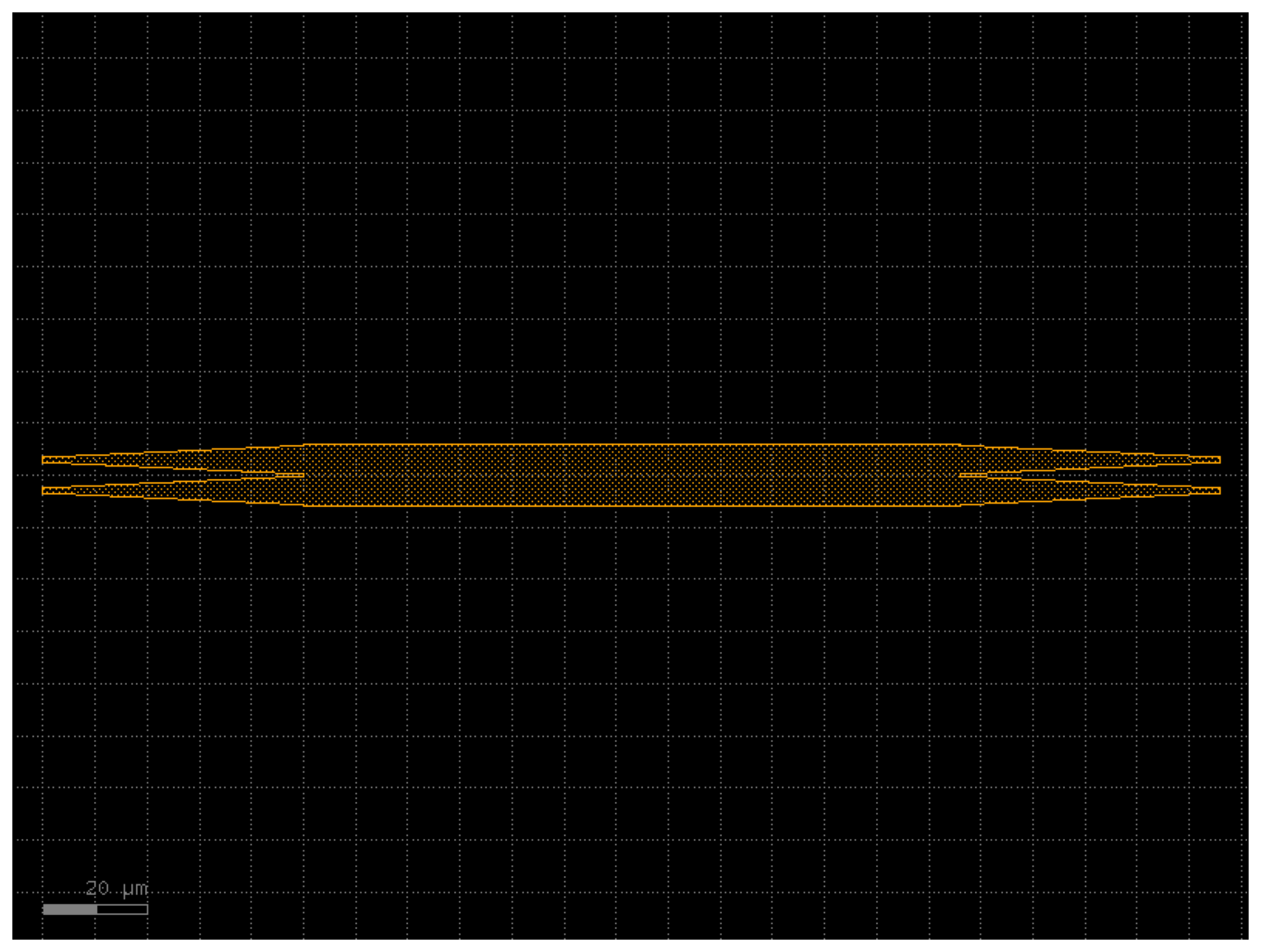

mmi2x2_no¶

:noindex:

mmi2x2_no

import cspdk

c = cspdk.sin300.cells.mmi2x2_no(width_taper=5.5, length_taper=50, length_mmi=126, width_mmi=12, gap_mmi=0.4, cross_section='xs_no').copy()
c.draw_ports()
c.plot()

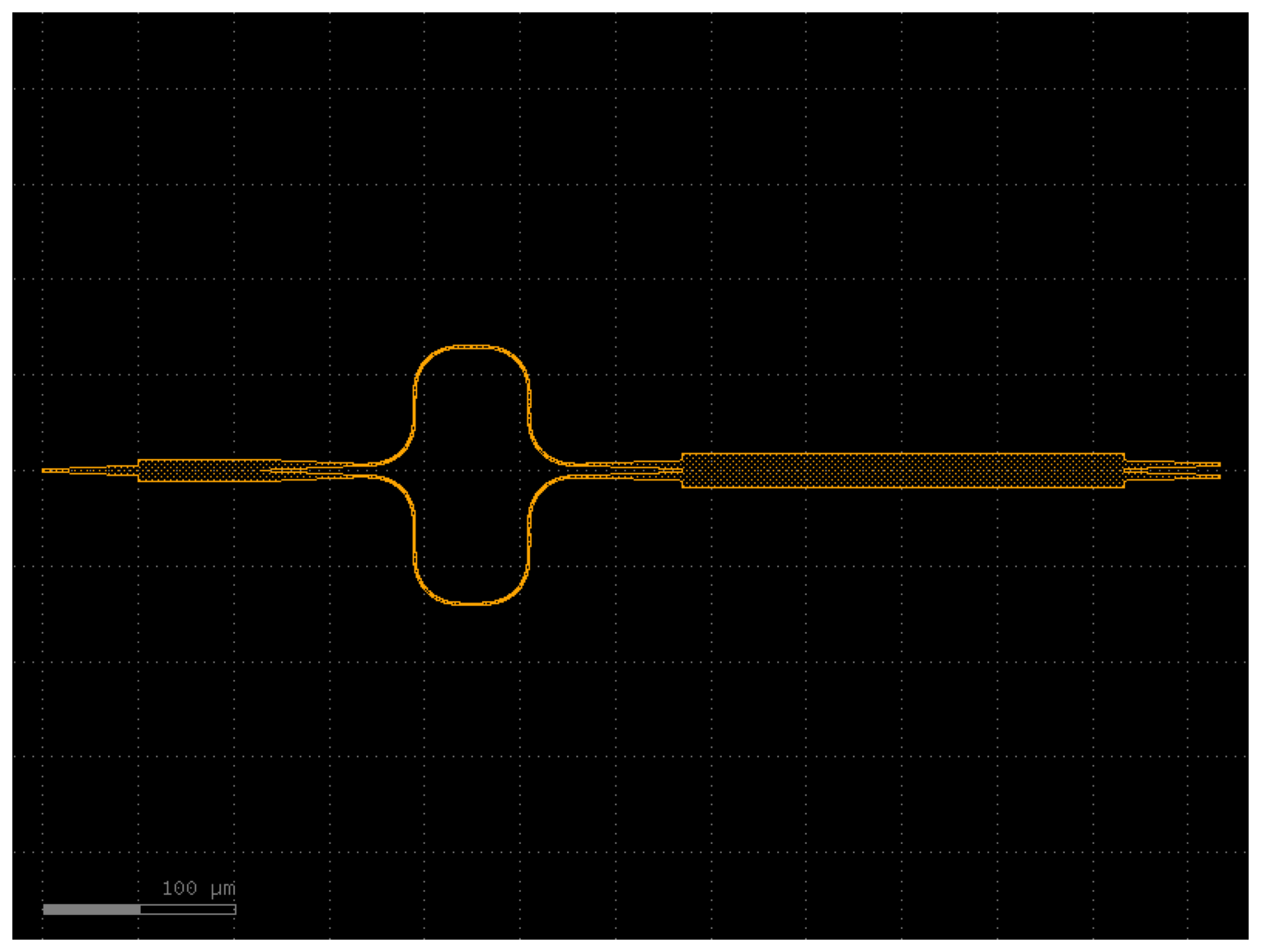

mzi¶

A Mach-Zehnder Interferometer.

Parameters:

Name	Type	Description	Default
`delta_length`	`float`	the difference in length between the upper and lower arms of the mzi	`10.0`
`bend`		the name of the default bend of the mzi	`'bend_euler_nc'`
`straight`		the name of the default straight of the mzi	`'straight_nc'`
`splitter`		the name of the default splitter of the mzi	`'mmi1x2_nc'`
`combiner`		the name of the default combiner of the mzi	`'mmi2x2_nc'`
`cross_section`	`CrossSectionSpec`	a cross section or its name or a function generating a cross section.	`'xs_nc'`

:noindex:

mzi

import cspdk

c = cspdk.sin300.cells.mzi(delta_length=10, bend='bend_euler_nc', straight='straight_nc', splitter='mmi1x2_nc', combiner='mmi2x2_nc', cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

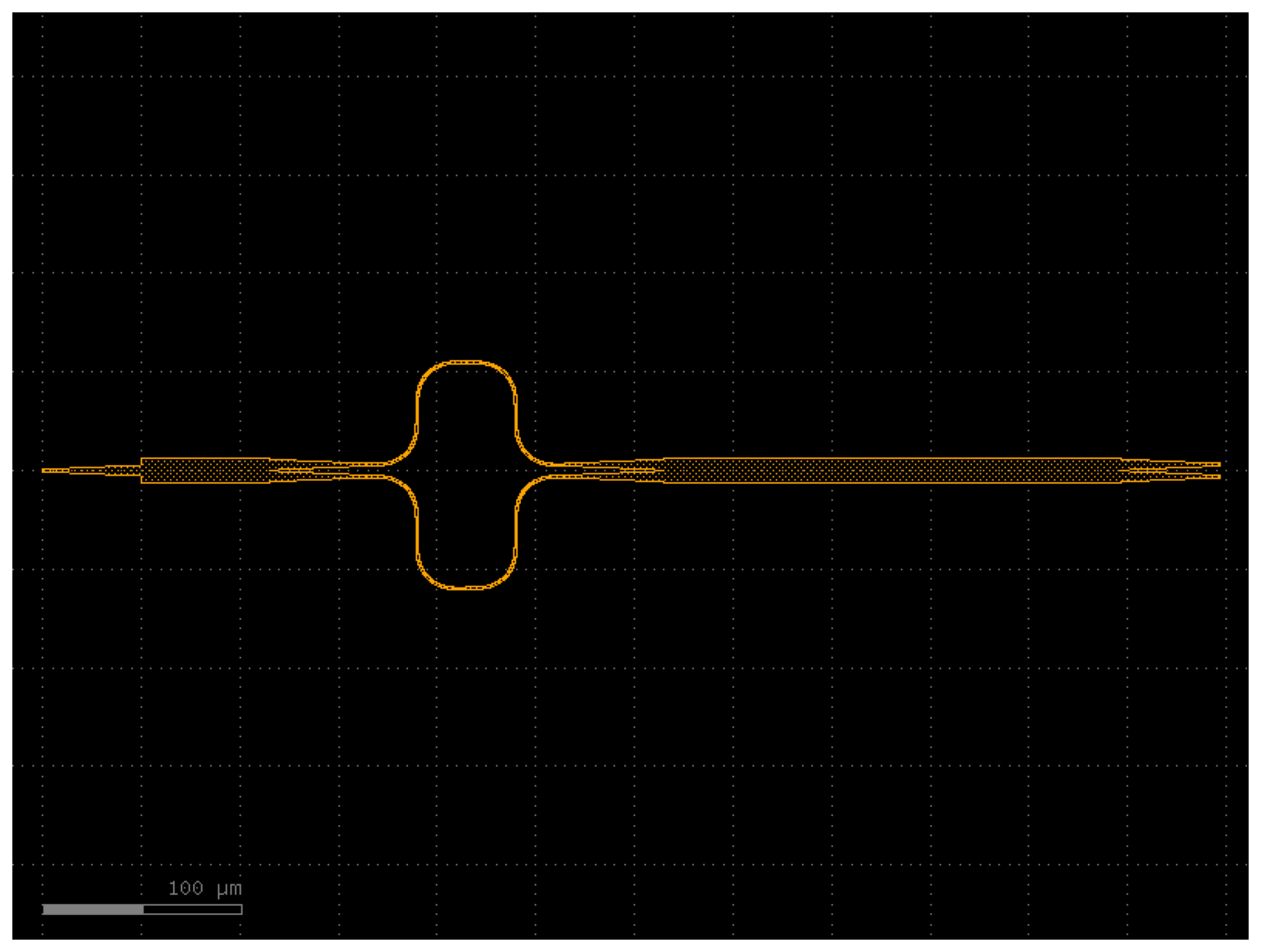

mzi_nc¶

:noindex:

mzi_nc

import cspdk

c = cspdk.sin300.cells.mzi_nc(delta_length=10, bend='bend_euler_nc', straight='straight_nc', splitter='mmi1x2_nc', combiner='mmi2x2_nc', cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

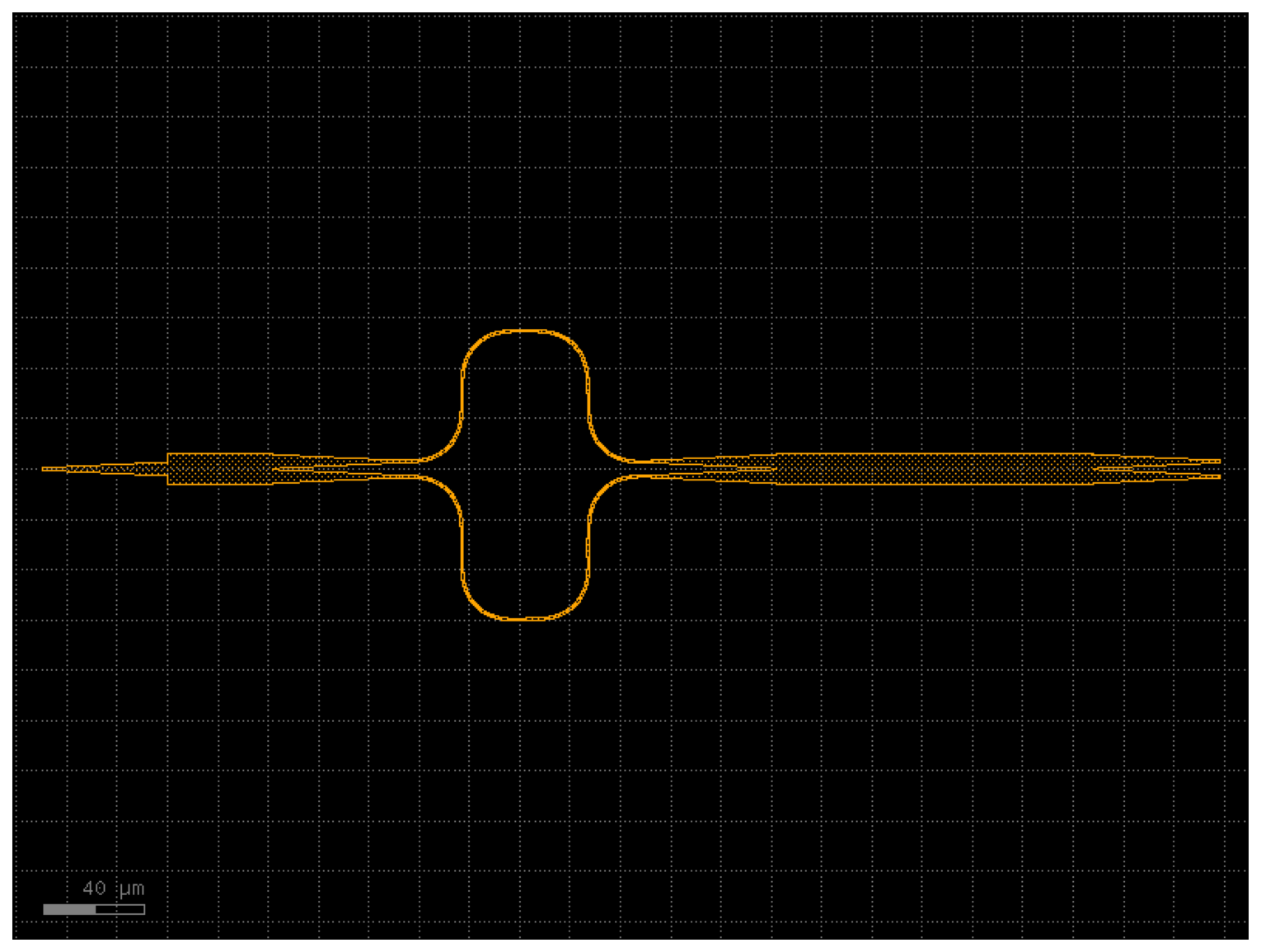

mzi_no¶

:noindex:

mzi_no

import cspdk

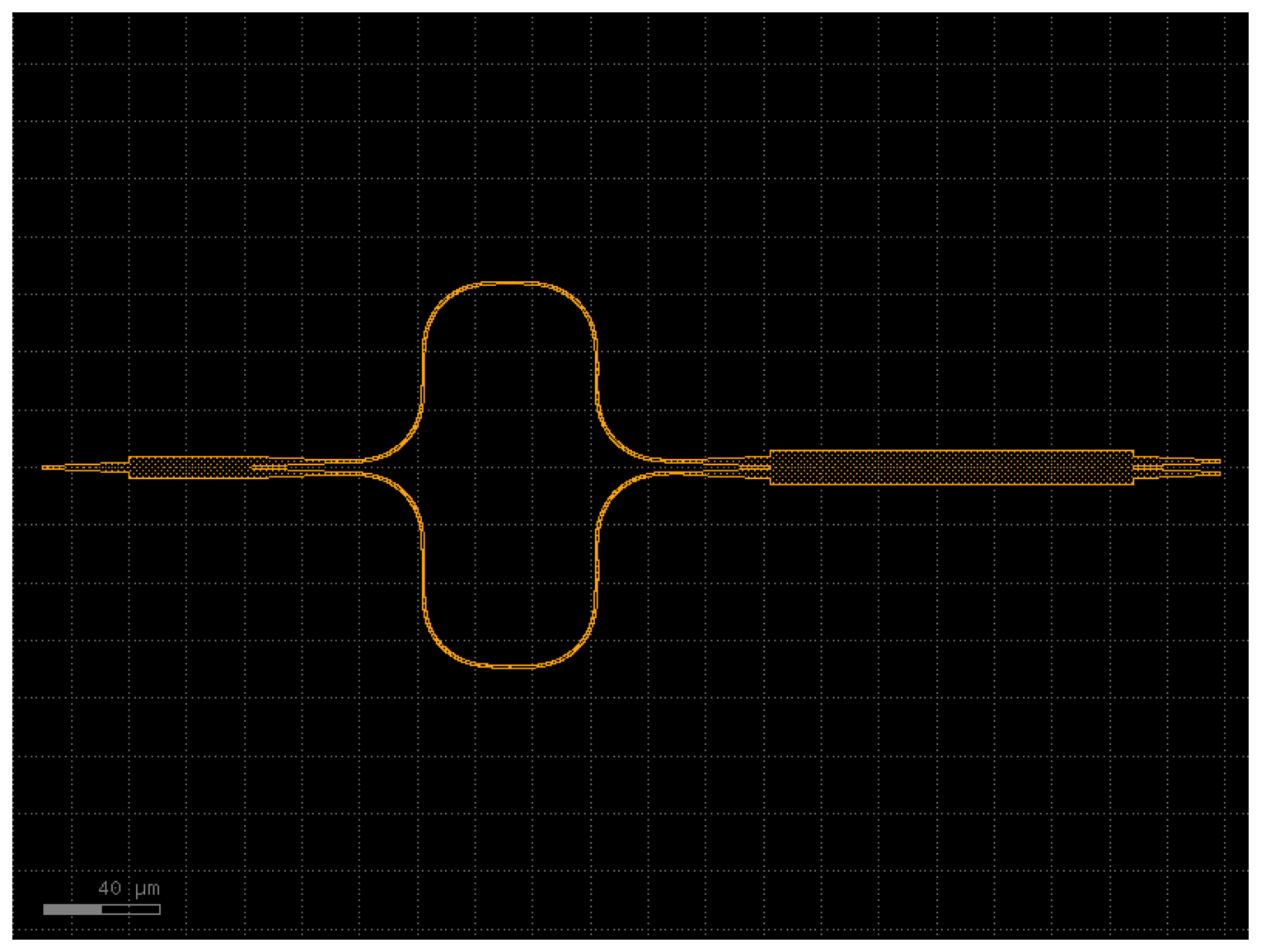

c = cspdk.sin300.cells.mzi_no(delta_length=10, bend='bend_euler_no', straight='straight_no', splitter='mmi1x2_no', combiner='mmi2x2_no', cross_section='xs_no').copy()
c.draw_ports()
c.plot()

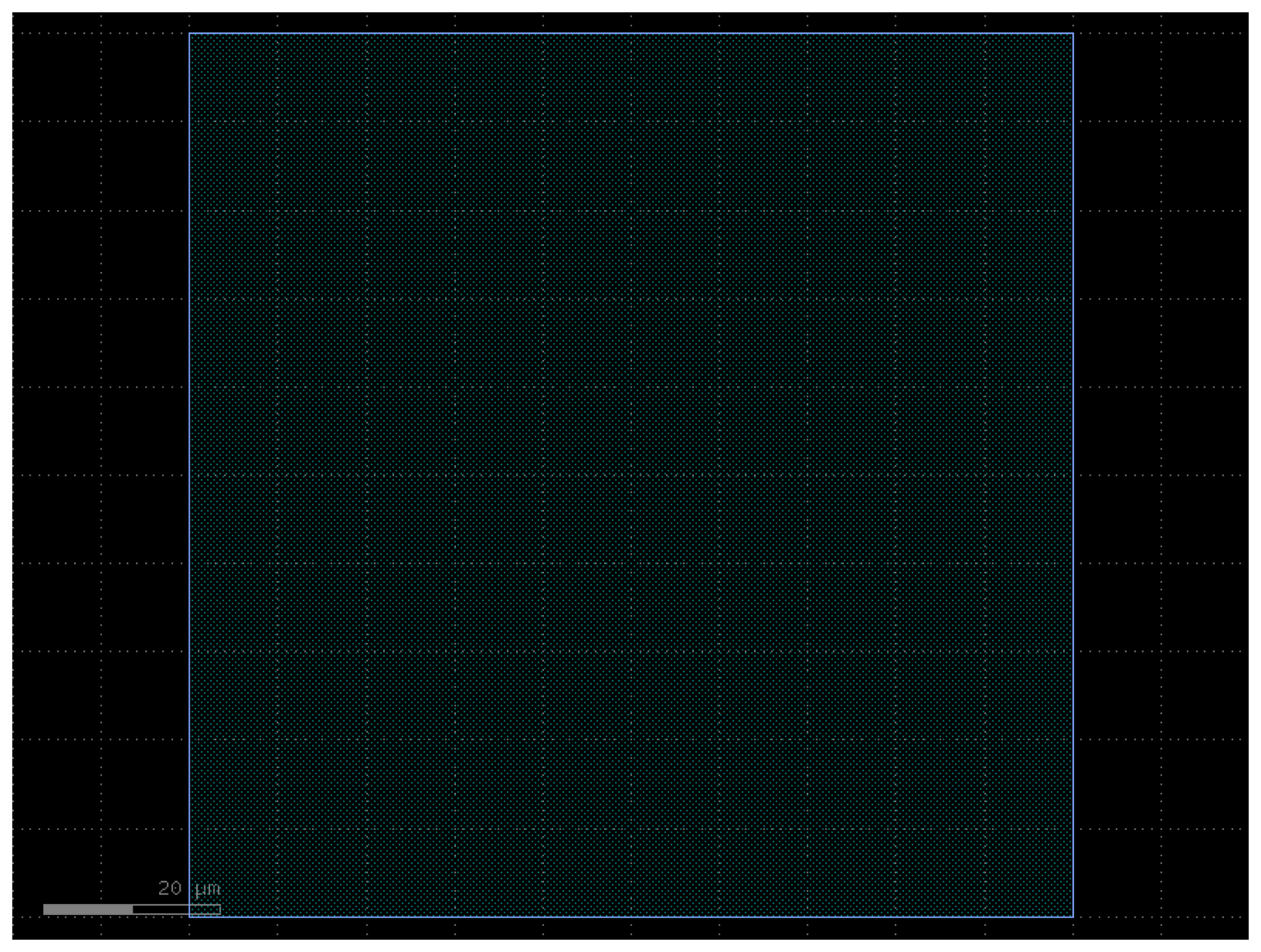

pad¶

An electrical pad.

:noindex:

pad

import cspdk

c = cspdk.sin300.cells.pad().copy()
c.draw_ports()
c.plot()

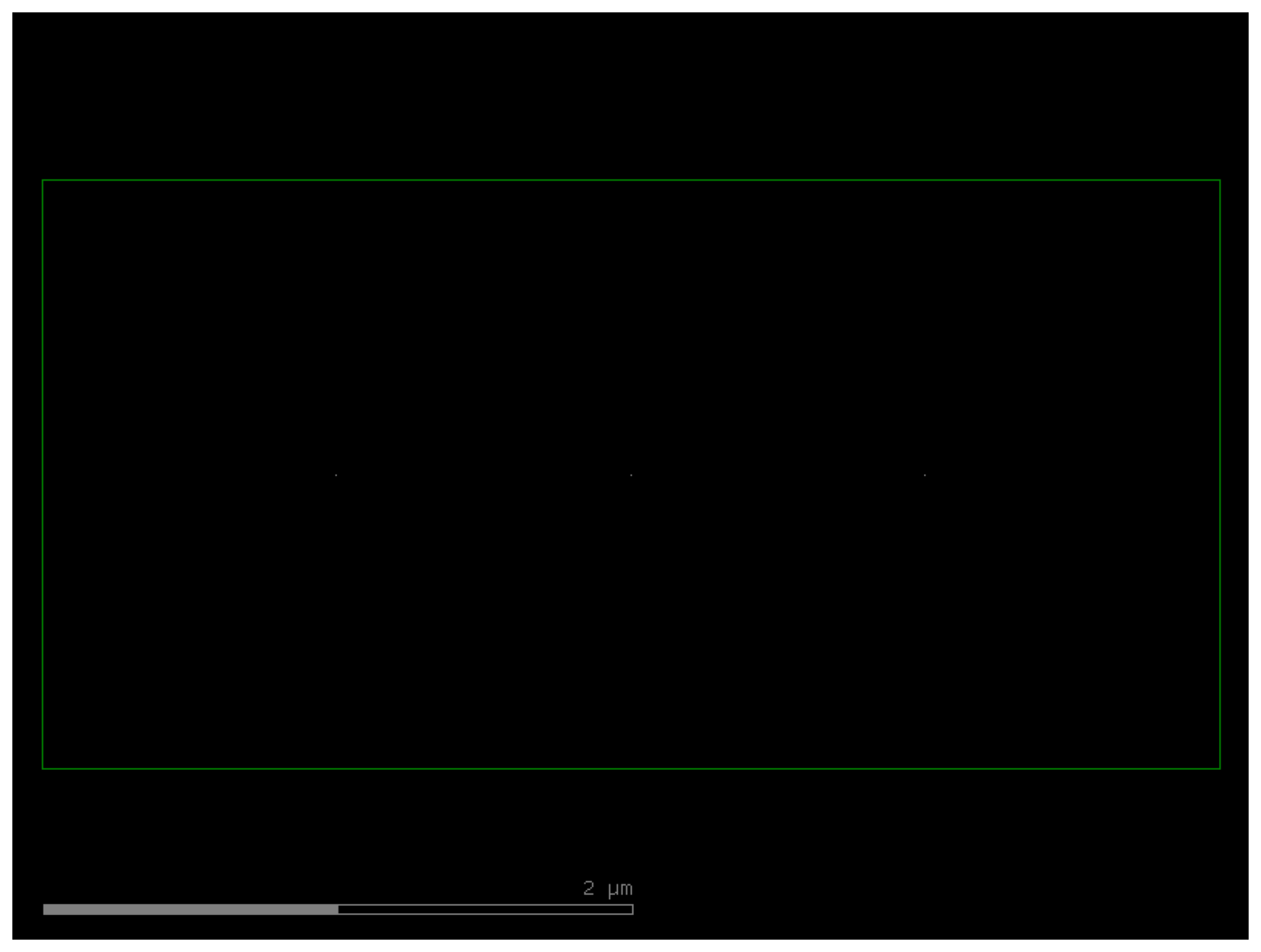

rectangle¶

A rectangle.

Parameters:

Name	Type	Description	Default
`layer`		LAYER.FLOORPLAN.	`FLOORPLAN`
`**kwargs`		additional arguments.	`{}`

:noindex:

rectangle

import cspdk

c = cspdk.sin300.cells.rectangle(layer='FLOORPLAN').copy()
c.draw_ports()
c.plot()

straight¶

A straight waveguide.

Parameters:

Name	Type	Description	Default
`length`	`float`	the length of the waveguide.	`10.0`
`cross_section`	`CrossSectionSpec`	a cross section or its name or a function generating a cross section.	`'xs_nc'`
`kwargs`		additional arguments to pass to the straight function.	`{}`

:noindex:

straight

import cspdk

c = cspdk.sin300.cells.straight(length=10, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

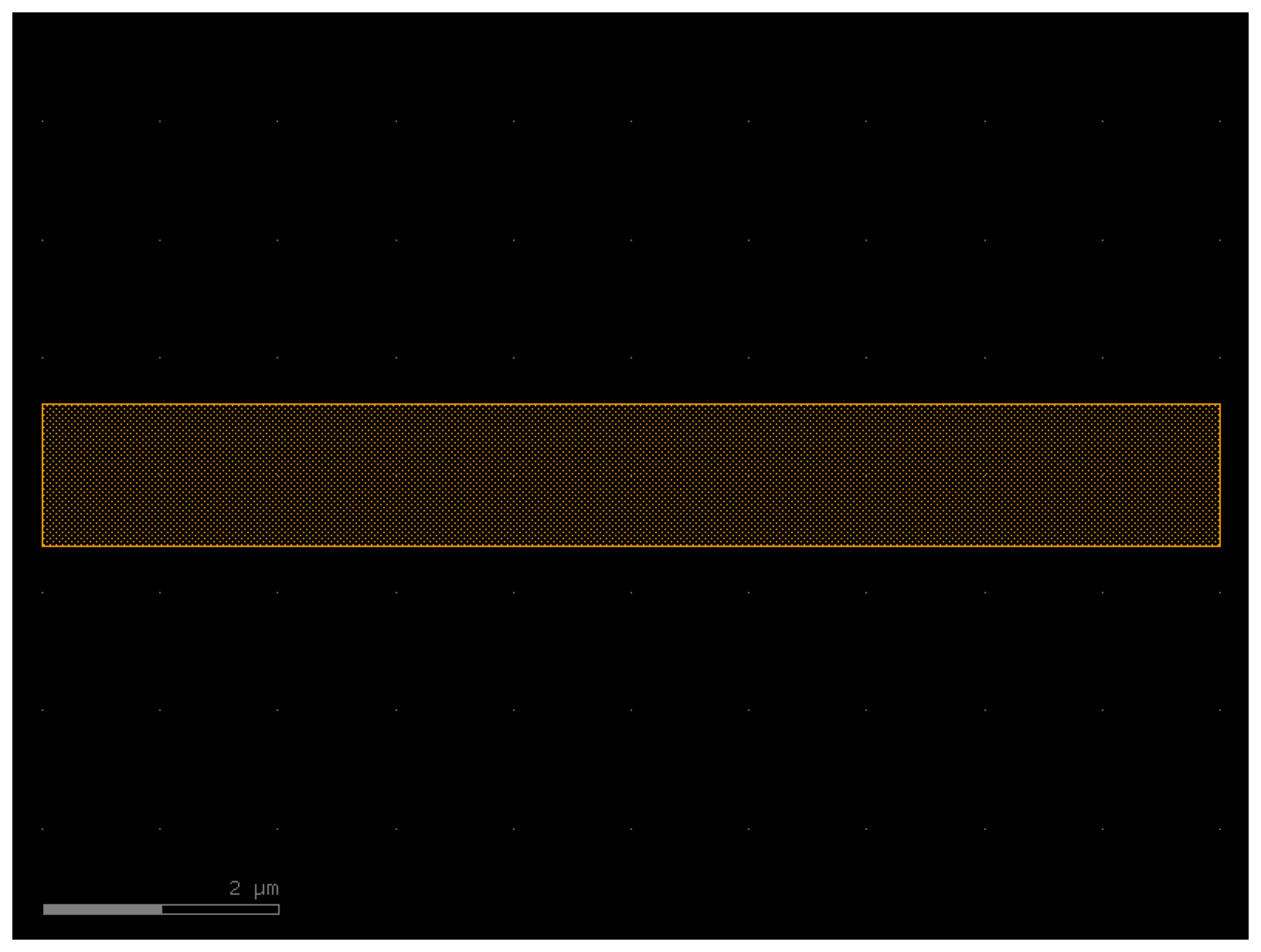

straight_nc¶

:noindex:

straight_nc

import cspdk

c = cspdk.sin300.cells.straight_nc(length=10, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

straight_no¶

:noindex:

straight_no

import cspdk

c = cspdk.sin300.cells.straight_no(length=10, cross_section='xs_no').copy()
c.draw_ports()
c.plot()

taper¶

A taper.

A taper is a transition between two waveguide widths

Parameters:

Name	Type	Description	Default
`length`	`float`	the length of the taper	`10.0`
`width1`	`float`	the input width of the taper	`width_nc`
`width2`	`float \| None`	the output width of the taper (if not given, use port)	`None`
`port`	`Port \| None`	the port (with certain width) to taper towards (if not given, use width2)	`None`
`cross_section`	`CrossSectionSpec`	a cross section or its name or a function generating a cross section.	`'xs_nc'`

:noindex:

taper

import cspdk

c = cspdk.sin300.cells.taper(length=10, width1=1.2, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

taper_nc¶

:noindex:

taper_nc

import cspdk

c = cspdk.sin300.cells.taper_nc(length=10, width1=1.2, cross_section='xs_nc').copy()
c.draw_ports()
c.plot()

taper_no¶

:noindex:

taper_no

import cspdk

c = cspdk.sin300.cells.taper_no(length=10, width1=0.95, cross_section='xs_no').copy()
c.draw_ports()
c.plot()

wire_corner¶

A wire corner.

A wire corner is a bend for electrical routes.

Parameters:

Name	Type	Description	Default
`cross_section`		"metal_routing".	`'metal_routing'`
`**kwargs`		additional arguments.	`{}`

:noindex:

wire_corner

import cspdk

c = cspdk.sin300.cells.wire_corner(cross_section='metal_routing').copy()
c.draw_ports()
c.plot()
