Models SiN300¶

SAX models registered in PDK.models, evaluated at their default parameters. Plots show the transmission between optical ports over +-3 % of each model's centre wavelength.

bend_euler¶

Returns the S-matrix of a bend with an Euler curve.

Parameter	Default
`wl`	`1.55`
`length`	`10.0`
`loss`	`0.03`
`cross_section`	`'xs_nc'`

bend_euler

bend_euler_nc¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.55`
`length`	`10.0`
`loss`	`0.03`
`cross_section`	`'xs_nc'`

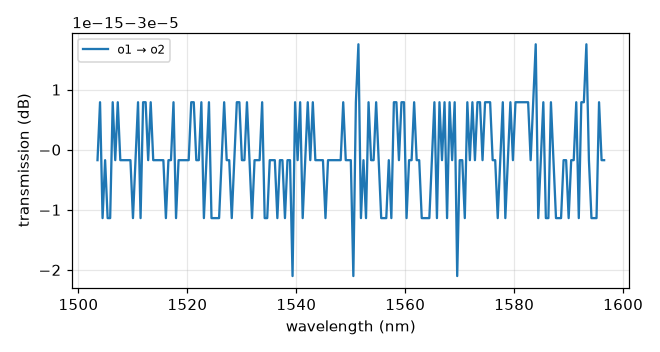

bend_euler_nc

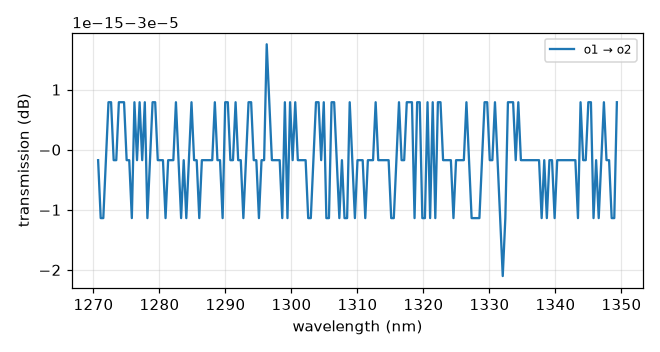

bend_euler_no¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.31`
`length`	`10.0`
`loss`	`0.03`
`cross_section`	`'xs_no'`

bend_euler_no

bend_s¶

Returns the S-matrix of a bend with a spline curve.

Parameter	Default
`wl`	`1.55`
`length`	`10.0`
`loss`	`0.03`
`cross_section`	`'xs_nc'`

bend_s

coupler¶

Returns the S-matrix of a coupler.

Parameter	Default
`wl`	`1.55`
`loss_dB`	`0.3`
`cross_section`	`'xs_nc'`

coupler

coupler_nc¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.55`
`wl0`	`1.55`
`fwhm`	`0.2`
`loss_dB`	`0.3`
`shift`	`0.0`
`loss_dB_cross`	`None`
`loss_dB_thru`	`None`
`splitting_ratio_cross`	`0.5`
`splitting_ratio_thru`	`0.5`

coupler_nc

coupler_no¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.31`
`wl0`	`1.31`
`fwhm`	`0.2`
`loss_dB`	`0.3`
`shift`	`0.0`
`loss_dB_cross`	`None`
`loss_dB_thru`	`None`
`splitting_ratio_cross`	`0.5`
`splitting_ratio_thru`	`0.5`

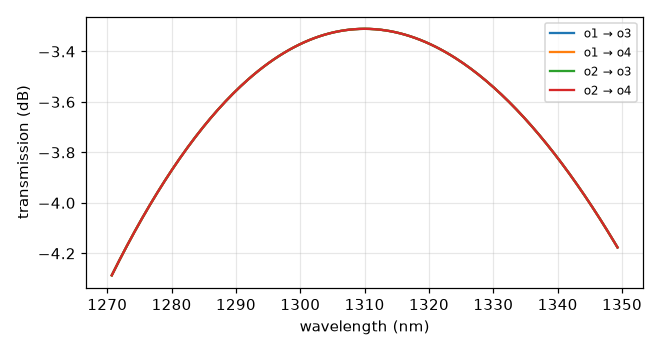

coupler_no

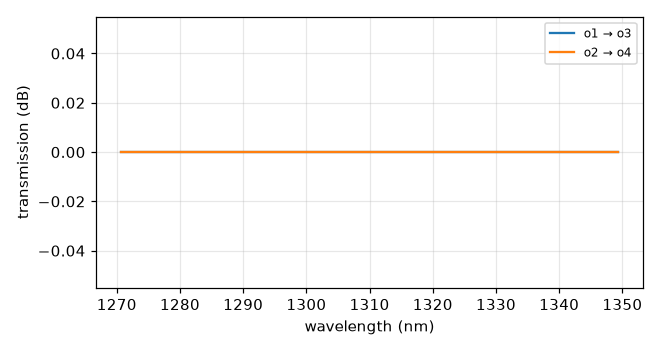

crossing_no¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.31`

crossing_no

grating_coupler_elliptical¶

Returns the S-matrix of an elliptical grating coupler.

Parameter	Default
`wl`	`1.55`
`bandwidth`	`0.035`
`cross_section`	`'xs_nc'`

grating_coupler_elliptical

grating_coupler_elliptical_nc¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.55`
`wl0`	`1.55`
`loss`	`6`
`reflection`	`0.0`
`reflection_fiber`	`0.0`
`bandwidth`	`0.035`

grating_coupler_elliptical_nc

grating_coupler_elliptical_no¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.31`
`wl0`	`1.31`
`loss`	`6`
`reflection`	`0.0`
`reflection_fiber`	`0.0`
`bandwidth`	`0.035`

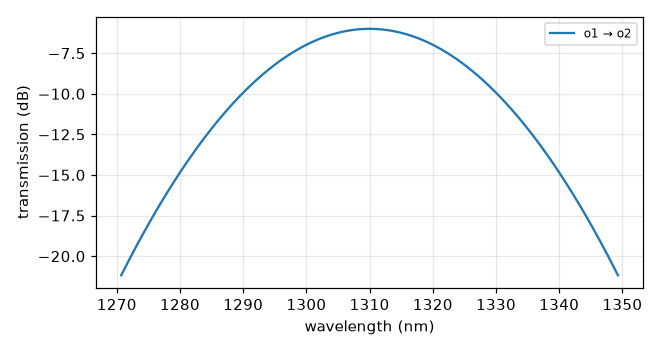

grating_coupler_elliptical_no

grating_coupler_rectangular¶

Returns the S-matrix of a rectangular grating coupler.

Parameter	Default
`wl`	`1.55`
`cross_section`	`'xs_nc'`

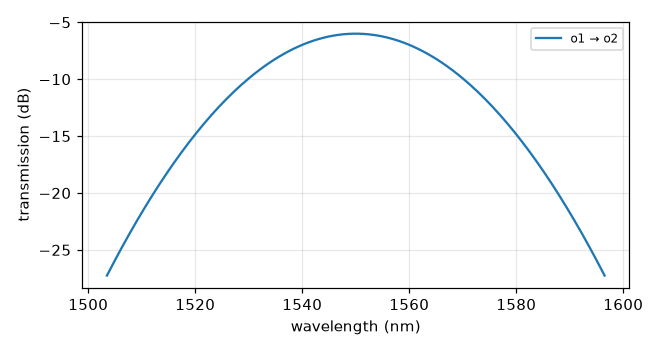

grating_coupler_rectangular

grating_coupler_rectangular_nc¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.55`
`wl0`	`1.55`
`loss`	`6`
`reflection`	`0.0`
`reflection_fiber`	`0.0`
`bandwidth`	`0.035`

grating_coupler_rectangular_nc

grating_coupler_rectangular_no¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.31`
`wl0`	`1.31`
`loss`	`6`
`reflection`	`0.0`
`reflection_fiber`	`0.0`
`bandwidth`	`0.035`

grating_coupler_rectangular_no

mmi1x2¶

Returns the S-matrix of a 1x2 MMI.

Parameter	Default
`wl`	`1.55`
`loss_dB`	`0.3`
`cross_section`	`'xs_nc'`

mmi1x2

mmi1x2_nc¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.55`
`wl0`	`1.55`
`fwhm`	`0.2`
`loss_dB`	`0.3`

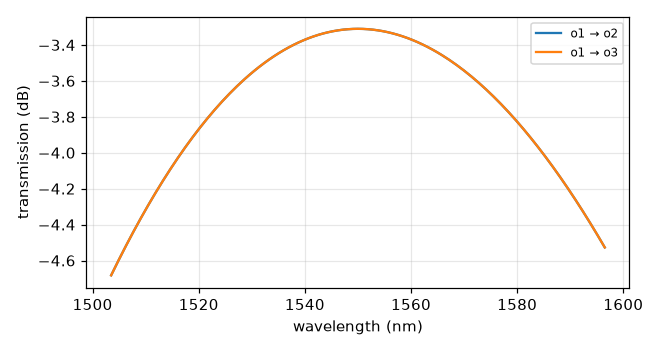

mmi1x2_nc

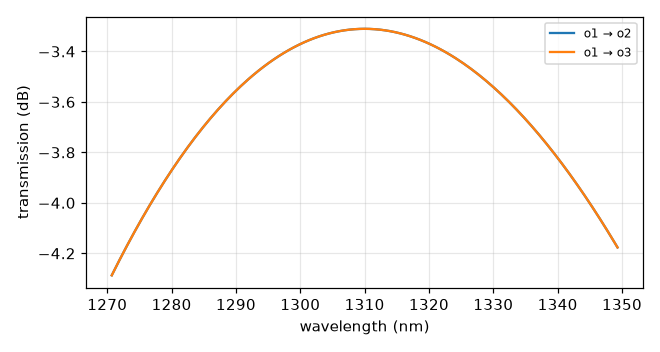

mmi1x2_no¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.31`
`wl0`	`1.31`
`fwhm`	`0.2`
`loss_dB`	`0.3`

mmi1x2_no

mmi2x2¶

Returns the S-matrix of a 2x2 MMI.

Parameter	Default
`wl`	`1.55`
`loss_dB`	`0.3`
`cross_section`	`'xs_nc'`

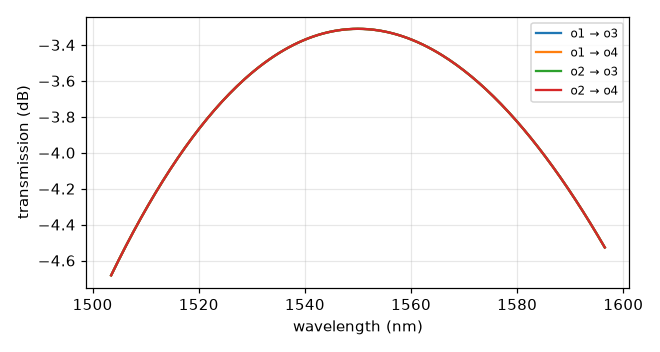

mmi2x2

mmi2x2_nc¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.55`
`wl0`	`1.55`
`fwhm`	`0.2`
`loss_dB`	`0.3`
`shift`	`0.0`
`loss_dB_cross`	`None`
`loss_dB_thru`	`None`
`splitting_ratio_cross`	`0.5`
`splitting_ratio_thru`	`0.5`

mmi2x2_nc

mmi2x2_no¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.31`
`wl0`	`1.31`
`fwhm`	`0.2`
`loss_dB`	`0.3`
`shift`	`0.0`
`loss_dB_cross`	`None`
`loss_dB_thru`	`None`
`splitting_ratio_cross`	`0.5`
`splitting_ratio_thru`	`0.5`

mmi2x2_no

straight¶

Returns the S-matrix of a straight waveguide.

Parameter	Default
`wl`	`1.55`
`length`	`10.0`
`loss`	`0.0`
`cross_section`	`'xs_nc'`

straight

straight_nc¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.55`
`length`	`10.0`
`loss`	`0.0`
`wl0`	`1.55`
`neff`	`1.6`
`ng`	`1.95`

straight_nc

straight_no¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.31`
`length`	`10.0`
`loss`	`0.0`
`wl0`	`1.31`
`neff`	`1.63`
`ng`	`2.0`

straight_no

taper¶

Returns the S-matrix of a taper.

Parameter	Default
`wl`	`1.55`
`length`	`10.0`
`loss`	`0.0`
`cross_section`	`'xs_nc'`

taper

taper_nc¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.55`
`length`	`10.0`
`loss`	`0.0`
`cross_section`	`'xs_nc'`

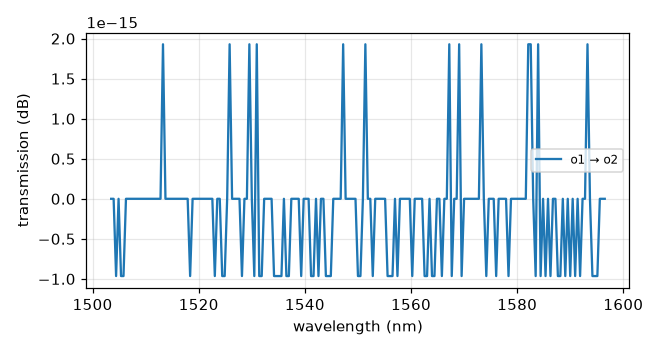

taper_nc

taper_no¶

partial(func, *args, **keywords) - new function with partial application of the given arguments and keywords.

Parameter	Default
`wl`	`1.31`
`length`	`10.0`
`loss`	`0.0`
`cross_section`	`'xs_no'`

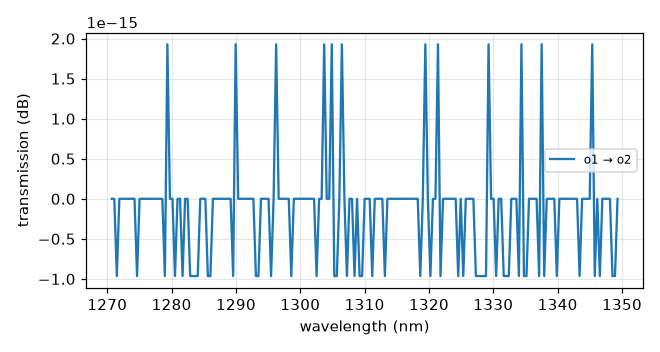

taper_no

wire_corner¶

Returns the S-matrix of a wire corner.

Parameter	Default
`wl`	`1.55`
