Finite-element mode solver

Finite-element mode solver#

You can mesh any component cross-section and solve the PDEs thanks to femwell mode - solver.

Unlike other mode solvers, this actually uses the component geometry instead of a hardcoded geometry.

You can directly compute the modes of a Gdsfactory cross-section (internally, it defines a “uz” mesh perpendicular to a straight component with the provided cross-section).

You can also downsample layers from the LayerStack, and modify both the cross-section and LayerStack prior to simulation to change the geometry. You can also define refractive indices on the active PDK.

try:
  import google.colab
  is_running_on_colab = True
  !pip install gdsfactory gplugins[femwell] > /dev/null
  !apt install python3-gmsh gmsh > /dev/null

except ImportError:
  is_running_on_colab = False

import matplotlib.pyplot as plt
import gdsfactory as gf
from tqdm.auto import tqdm
import numpy as np

from gplugins.femwell.mode_solver import compute_cross_section_modes
from gdsfactory.technology import LayerStack
from gdsfactory.cross_section import rib
from gdsfactory.generic_tech import LAYER_STACK

from skfem.io.meshio import from_meshio

from femwell.maxwell.waveguide import compute_modes
from femwell.mesh import mesh_from_OrderedDict
from femwell.visualization import plot_domains

import sys
import logging
from rich.logging import RichHandler
import gdsfactory as gf
from gdsfactory.generic_tech import get_generic_pdk

gf.config.rich_output()
PDK = get_generic_pdk()
PDK.activate()

logger = logging.getLogger()
logger.removeHandler(sys.stderr)
logging.basicConfig(level="WARNING", datefmt="[%X]", handlers=[RichHandler()])

filtered_layer_stack = LayerStack(
    layers={
        k: LAYER_STACK.layers[k]
        for k in (
            "core",
            "clad",
            "slab90",
            "box",
        )
    }
)

filtered_layer_stack.layers[
    "core"
].thickness = 0.22  # Perturb the layer_stack before simulating

filtered_layer_stack.layers[
    "slab90"
].thickness = 0.09  # Perturb the layer_stack before simulating

resolutions = {
    "core": {"resolution": 0.02, "distance": 2},
    "clad": {"resolution": 0.2, "distance": 1},
    "box": {"resolution": 0.2, "distance": 1},
    "slab90": {"resolution": 0.05, "distance": 1},
}

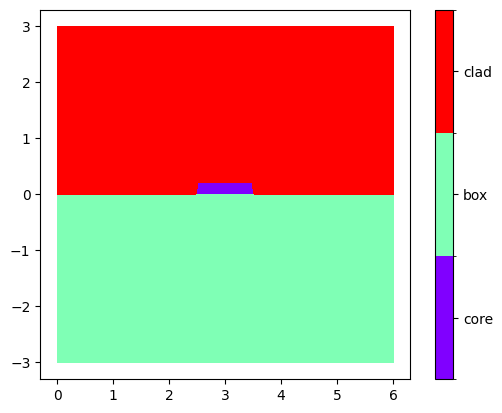

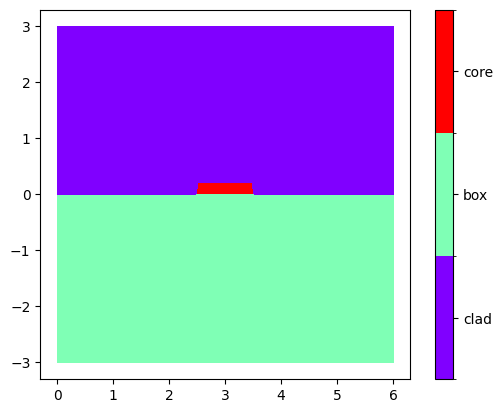

modes = compute_cross_section_modes(
    cross_section=rib(width=0.6),
    layer_stack=filtered_layer_stack,
    wavelength=1.55,
    num_modes=4,
    resolutions=resolutions,
)
