GDS Taper

Create a Taper and Simulate

```python import gdsfactory as gf # pip install gdsfactory import matplotlib.pyplot as plt import numpy as np from gdsfactory.cross_section import cross_section

import meow as mw

gf.gpdk.PDK.activate() ```

Example Taper

Note: meow expects the propagation direction to be the z-axis! This makes the zx-plane parallel with the chip and the y-axis perpendicular to the chip. Somewhat confusingly, the (x, y) GDS coordinate tuple hence maps onto the (z, x) meow coordinate tuple. Whereas the y coordinate from meow denotes the direction perpendicular to the chip. (I will probably change the meow convention in the future.)

```python def example_gds_cross_section( width: float = 0.450, clad_width: float = 2.0, ) -> gf.CrossSection: """a strip waveguide cross section

Args:
    width:  the width of the strip waveguide
    clad_width: the width of the cladding
"""
core_width = width
port_names = ("in0", "out0")
sections = (
    gf.Section(width=core_width, offset=0, layer=(1, 0), name="core"),
    gf.Section(
        width=clad_width,
        offset=0.5 * (core_width + clad_width),
        layer=(2, 0),
        name="upper",
    ),
    gf.Section(
        width=clad_width,
        offset=-0.5 * (core_width + clad_width),
        layer=(2, 0),
        name="lower",
    ),
)
cs = cross_section(
    width=width,
    port_names=port_names,
    sections=sections,
)
return cs

```

```python @gf.cell def example_taper( width_input: float = 0.450, width_output: float = 1.0, length: float = 10.0, ) -> gf.Component: """create a linear taper

Args:
    width_input: input width of the linear taper
    width_output: output width of the linear taper
    length: the length of the linear taper
"""
input_cs = example_gds_cross_section(width_input)
output_cs = example_gds_cross_section(width_output)
transition = gf.path.transition(input_cs, output_cs, width_type="linear")
length = gf.snap.snap_to_grid(length)
path = gf.path.straight(length)
component = gf.path.extrude_transition(p=path, transition=transition)
return component

```

python taper = example_taper(width_input=0.45, width_output=1.0, length=20) taper

Example Structure Map

```python def example_extrusions( t_slab: float = 0.020, t_soi: float = 0.220, t_ox: float = 1.0, ): """create some simple extrusion rules

Args:
    t_slab: the slab thickness
    t_soi: the SOI thickness
    t_ox: the oxide layer thickness
"""
extrusions = {
    (1, 0): [
        mw.GdsExtrusionRule(
            material=mw.silicon,
            h_min=0.0,
            h_max=0.0 + t_soi,
            mesh_order=1,
        ),
        mw.GdsExtrusionRule(
            material=mw.silicon_oxide,
            h_min=-1.0,
            h_max=t_soi + t_ox,
            buffer=t_ox / 2,
            mesh_order=2,
        ),
    ],
    (2, 0): [
        mw.GdsExtrusionRule(
            material=mw.silicon,
            h_min=0.0,
            h_max=0.0 + t_slab,
            mesh_order=1,
        ),
        mw.GdsExtrusionRule(
            material=mw.silicon_oxide,
            h_min=-1.0,
            h_max=t_slab + t_ox,
            mesh_order=2,
        ),
    ],
}
return extrusions

```

Extrude GDS

python extrusion_rules = example_extrusions() structs = mw.extrude_gds(taper, extrusion_rules) mw.visualize(structs, scale=(1, 1, 0.2))

Divide into Cells

```python w_sim = 1.0 h_sim = 1.0 mesh = 100 num_cells = 10 dbu = taper.layout().dbu taper_length = abs(taper.bbox().right - taper.bbox().left) Ls = np.array([taper_length / num_cells for _ in range(num_cells)])

cells = mw.create_cells( structures=structs, mesh=mw.Mesh2D( x=np.linspace(-0.75, 0.75, mesh + 1), y=np.linspace(-0.3, 0.5, mesh + 1), ), Ls=Ls, )

mw.visualize(cells[0], cbar=False) plt.show()

mw.visualize(cells[-1], cbar=False) plt.show() ```

Find Cross Sections

```python env = mw.Environment(wl=1.55, T=25.0) css = [mw.CrossSection.from_cell(cell=cell, env=env) for cell in cells]

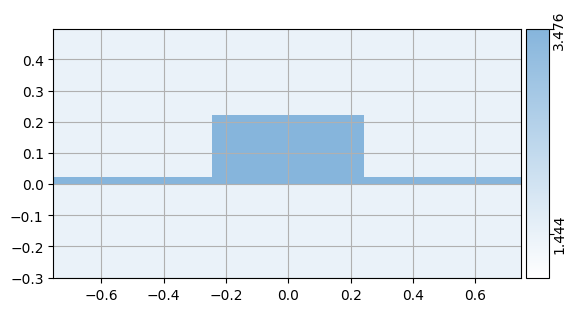

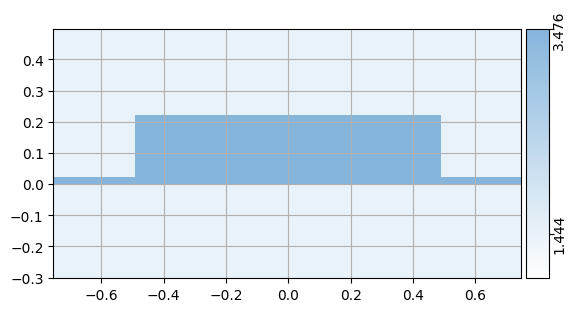

mw.visualize(css[0]) mw.visualize(css[-1]) ```

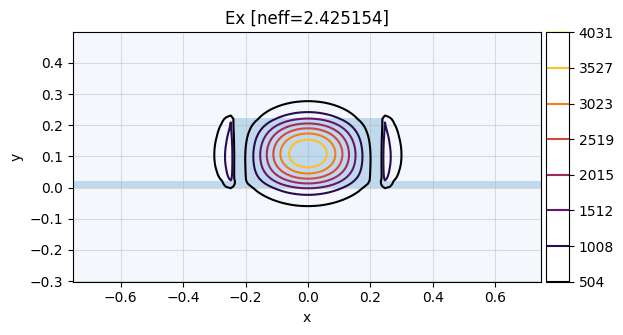

python num_modes = 4 modes = mw.compute_modes(css[0], num_modes=num_modes) mw.visualize(modes[0])

Compute Modes (FDE)

python %%time num_modes = 4 modes = [mw.compute_modes(cs, num_modes=num_modes) for cs in css]

CPU times: user 14.5 s, sys: 139 ms, total: 14.7 s
Wall time: 20 s

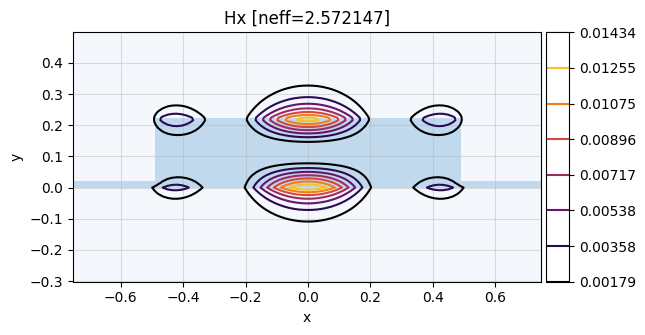

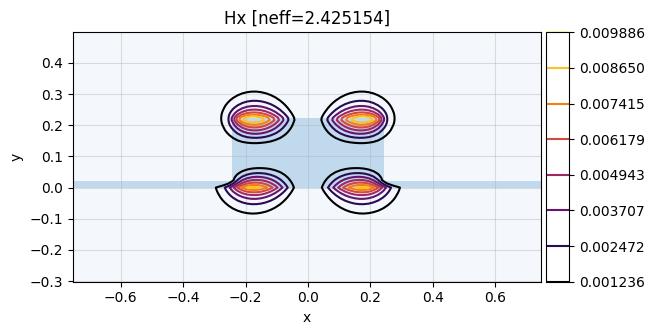

python mw.visualize(modes[0][0], fields=["Hx"]) mw.visualize(modes[-1][1], fields=["Hx"])

Calculate S-matrix (EME)

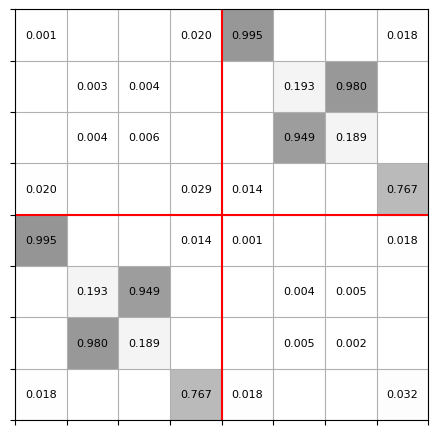

python S, port_map = mw.compute_s_matrix(modes, cells=cells) print(port_map) mw.visualize((abs(S), port_map))

{'left@0': 0, 'left@1': 1, 'left@2': 2, 'left@3': 3, 'right@0': 4, 'right@1': 5, 'right@2': 6, 'right@3': 7}
