Unequal Number of Modes
Find the S-matrix of a structure for which each slice has a different number of modes (contributed by @jan-david-black)
```python import numpy as np
import meow as mw ```
```python def create_structures(): oxide = mw.Structure( material=mw.silicon_oxide, geometry=mw.Prism( poly=np.array([(0, -2.1), (10, -2.1), (10, 2.1), (0, 2.1)]), h_min=-3, h_max=0, axis="y", ), )
poly = np.array([(0, -0.45 / 2), (10, -0.5 / 2), (10, 0.5 / 2), (0, 0.45 / 2)])
core = mw.Structure(
material=mw.silicon,
geometry=mw.Prism(
poly=poly,
h_min=0,
h_max=0.22,
axis="y",
),
)
structures = [oxide, core]
return structures
```
python
mw.visualize(create_structures())
python
def create_cells(length=10.0, num_cells=2):
structures = create_structures()
cells = mw.create_cells(
structures=structures,
mesh=mw.Mesh2D(
x=np.linspace(-2, 2, 101),
y=np.linspace(-2, 2, 101),
# specify possible conformal mesh specifications here:
# bend_radius=2.0,
# bend_axis=1,
),
Ls=np.array([length / num_cells for _ in range(num_cells)]),
)
return cells
python
cells = create_cells(10, 2)
env = mw.Environment(wl=1.55, T=25.0)
css = [mw.CrossSection.from_cell(cell=cell, env=env) for cell in cells]
Equal number of modes
python
modes = [mw.compute_modes(cs, num_modes=4) for cs in css]
python
S, pm = mw.compute_s_matrix(modes, cells=cells)

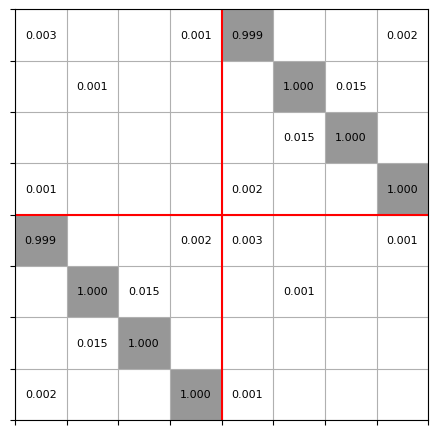

mw.visualize((abs(S), pm))
Unequal number of modes
python
modes[0] = modes[0][:2]
modes[-1] = modes[-1][:3]
python
S, pm = mw.compute_s_matrix(modes, cells=cells)
mw.visualize((abs(S), pm))
