Rib Interface

Find the modes in a rib waveguide

```python import matplotlib.pyplot as plt import numpy as np

import meow as mw ```

Structures

```python wl = 1.0 widths = [0.8, 1.0] t_slab, t_soi, t_ox = 0.2, 1.5, 0.2 n_Si, n_SiO2 = 3.4, 1.4 w_sim, h_sim, y_bot = 3.0, 2.5, -0.5

si = mw.IndexMaterial(n=n_Si, name="Si", meta={"color": "orange"}) sio2 = mw.IndexMaterial(n=n_SiO2, name="SiO2", meta={"color": "steelblue"})

env = mw.Environment(wl=wl, T=25.0) mesh = mw.Mesh2D( x=np.linspace(-w_sim / 2, w_sim / 2, 101), y=np.linspace(y_bot, y_bot + h_sim, 101), # num_pml=(10, 10), subpixel_smoothing=False, )

def make_cross_section(w): structures = [ mw.Structure2D( material=sio2, geometry=mw.Rectangle( x_min=-w_sim / 2, x_max=w_sim / 2, y_min=y_bot, y_max=t_slab + t_ox, ), mesh_order=2, ), mw.Structure2D( material=sio2, geometry=mw.Rectangle( x_min=-w / 2 - t_ox / 2, x_max=w / 2 + t_ox / 2, y_min=t_slab + t_ox, y_max=t_soi + t_ox, ), mesh_order=2, ), mw.Structure2D( material=si, geometry=mw.Rectangle( x_min=-w_sim / 2, x_max=w_sim / 2, y_min=0.0, y_max=t_slab, ), mesh_order=1, ), mw.Structure2D( material=si, geometry=mw.Rectangle( x_min=-w / 2, x_max=w / 2, y_min=t_slab, y_max=t_soi, ), mesh_order=1, ), ] return mw.CrossSection( structures=structures, mesh=mesh, env=env, subpixel_smoothing=True, )

cs_left = make_cross_section(widths[0]) cs_right = make_cross_section(widths[1])

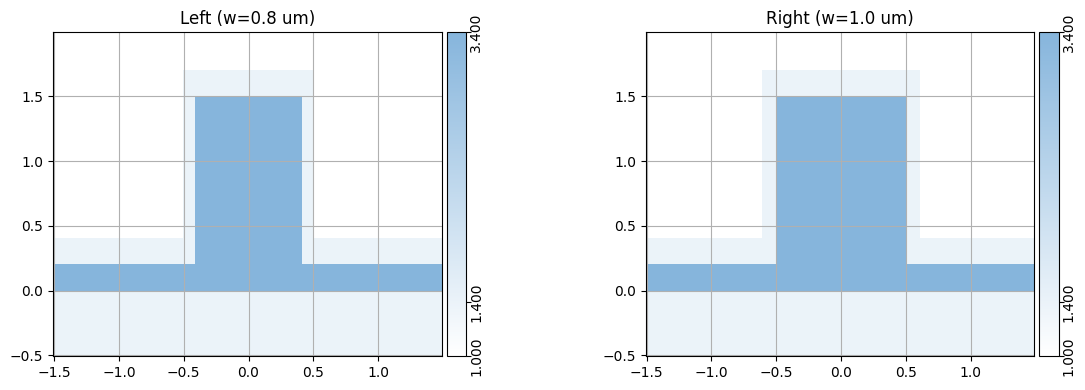

fig, axes = plt.subplots(1, 2, figsize=(12, 4)) cs_left._visualize(ax=axes[0], show=False) axes[0].set_title(f"Left (w={widths[0]} um)") cs_right._visualize(ax=axes[1], show=False) axes[1].set_title(f"Right (w={widths[1]} um)") plt.tight_layout() plt.show() ```

png

Modes

python num_modes = 100 modes_left = mw.compute_modes(cs_left, num_modes=num_modes) modes_right = mw.compute_modes(cs_right, num_modes=num_modes)

```python

Visualize left and right mode sets

print("Left cross-section modes") mw.visualize(modes_left[:2], fields=("Ex", "Hx"))

print("Right cross-section modes") mw.visualize(modes_right[:2], fields=("Ex", "Hx")) ```

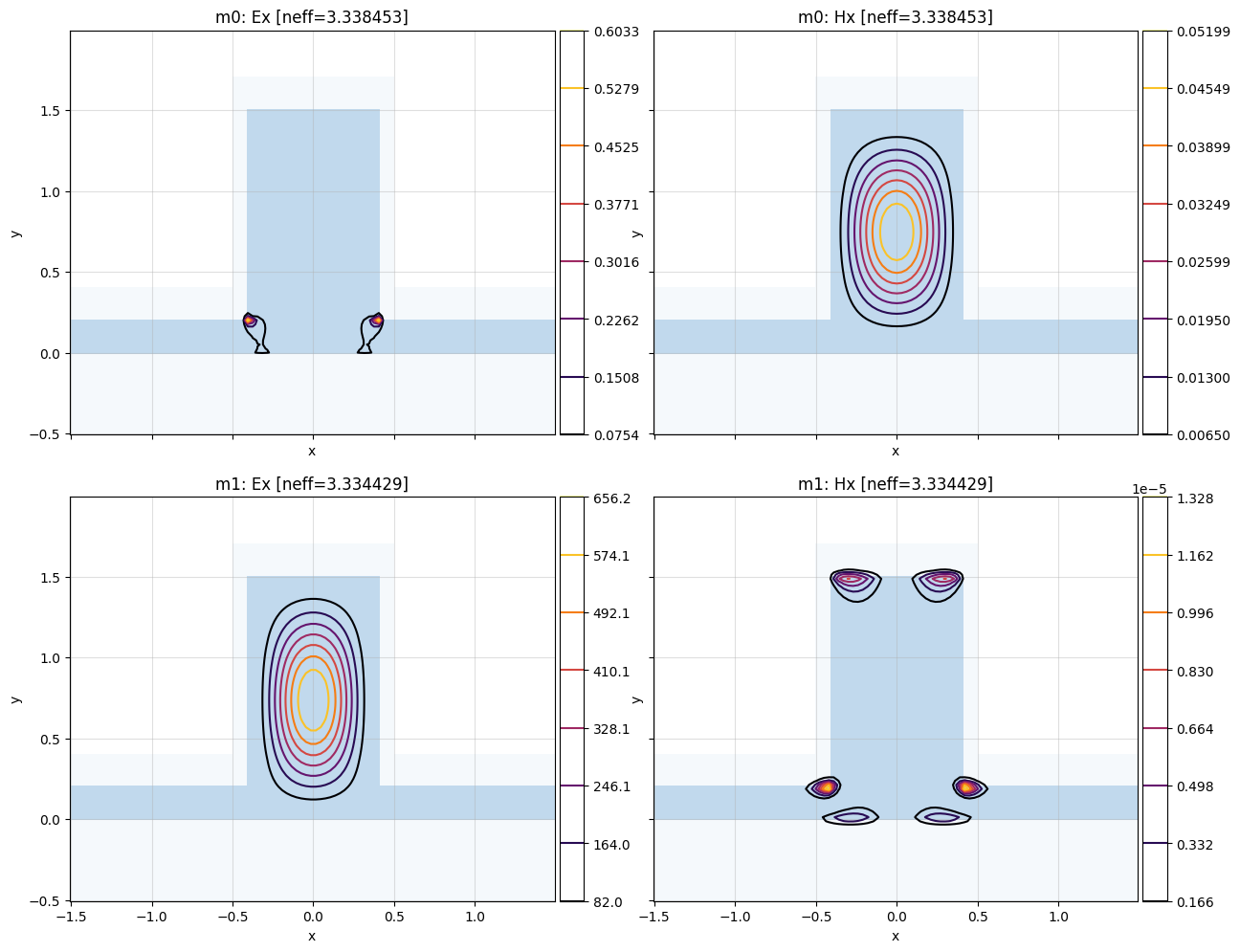

Left cross-section modes

png

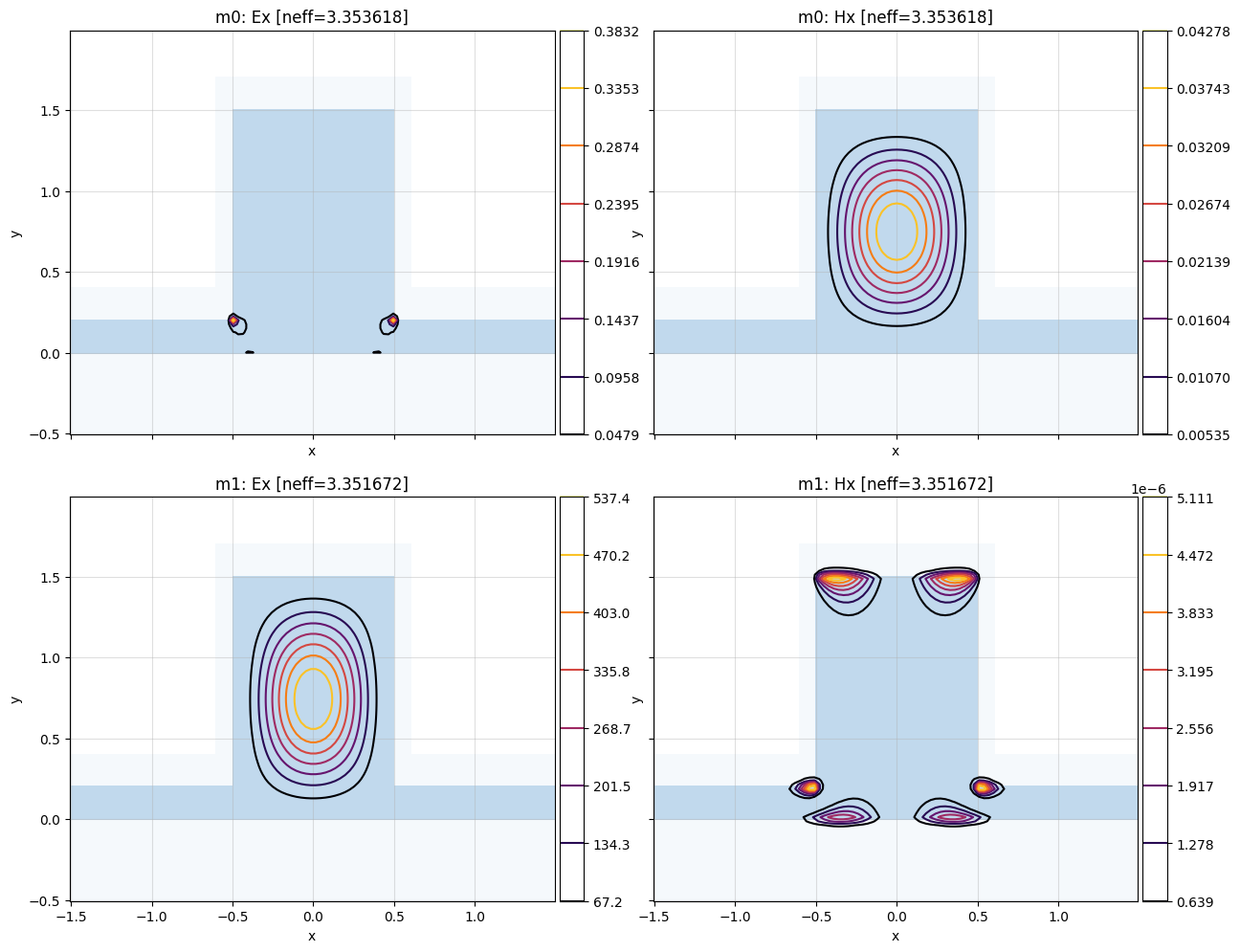

Right cross-section modes

png

Interface

python S, pm = mw.eme.compute_interface_s_matrix( modes_left, modes_right, passivity_method="subtract" ) S_sub = mw.downselect_s((S, pm), ["left@0", "left@1", "right@0", "right@1"])

python mw.visualize(S_sub)

png
