Sweep Taper Length

Find the S-matrix of a taper for different taper lengths

```python import numpy as np from tqdm.notebook import tqdm

import meow as mw ```

Installation

sh pip install meow-sim

Quick Start

1. Structure

```python def create_structures(length=10.0): oxide = mw.Structure( material=mw.silicon_oxide, geometry=mw.Prism( poly=np.array([(0, -2.1), (length, -2.1), (length, 2.1), (0, 2.1)]), h_min=-3, h_max=0, axis="y", ), )

poly = np.array([(0, -0.45 / 2), (length, -1), (length, 1), (0, 0.45 / 2)])

core = mw.Structure(
    material=mw.silicon,
    geometry=mw.Prism(
        poly=poly,
        h_min=0,
        h_max=0.22,
        axis="y",
    ),
)

structures = [oxide, core]
return structures

structures = create_structures() ```

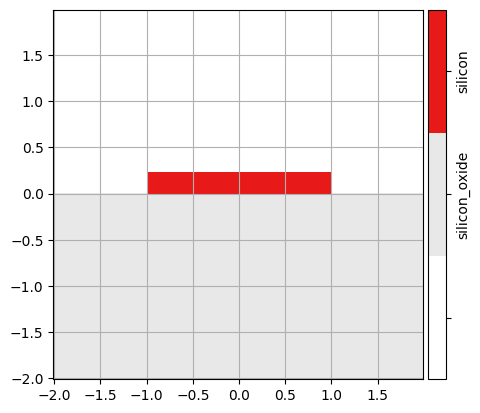

python mw.visualize(structures)

2. Cells

```python num_cells = 20

cells = mw.create_cells( structures=structures, mesh=mw.Mesh2D( x=np.linspace(-2, 2, 101), y=np.linspace(-2, 2, 101), ), Ls=np.array([10.0 / num_cells] * num_cells), ) mw.visualize(cells[-1]) ```

3. Cross Sections

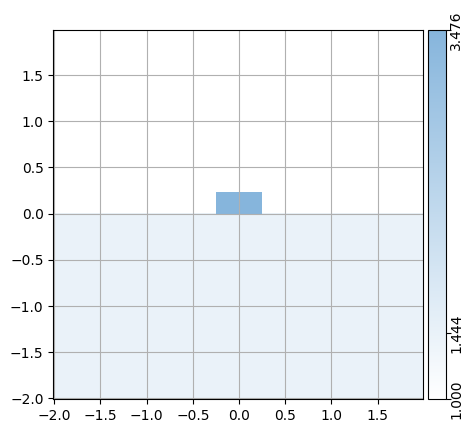

python env = mw.Environment(wl=1.55, T=25.0) css = [mw.CrossSection.from_cell(cell=cell, env=env) for cell in cells] mw.visualize(css[0])

4. Find Modes (FDE)

```python num_modes = 20

modes = [mw.compute_modes(cs, num_modes=num_modes) for cs in tqdm(css)] ```

  0%|          | 0/20 [00:00<?, ?it/s]

5. Calculate S-matrix (EME)

```python taper_lengths = [5.0, 10.0, 15.0, 20.0]

for length in taper_lengths: cell_lengths = [length / num_cells] * num_cells S, pm = mw.compute_s_matrix(modes, cell_lengths=cell_lengths) T_00 = abs(S[0, num_modes]) ** 2 print(f"taper length {length:5.1f} | transmission: {T_00:.6f}") ```

taper length   5.0 | transmission: 0.809057


taper length  10.0 | transmission: 0.939653


taper length  15.0 | transmission: 0.950825


taper length  20.0 | transmission: 0.970548
