Component FDTD simulations

Thanks to the GDSFactory plugin you can directly run simulations in different FDTD solvers.

See tutorial

Tidy3d

You can read about the tidy3d gdsfactory plugin

import gplugins as sim
import gplugins.tidy3d as gt

import ubcpdk.components as pdk
from ubcpdk.config import PATH

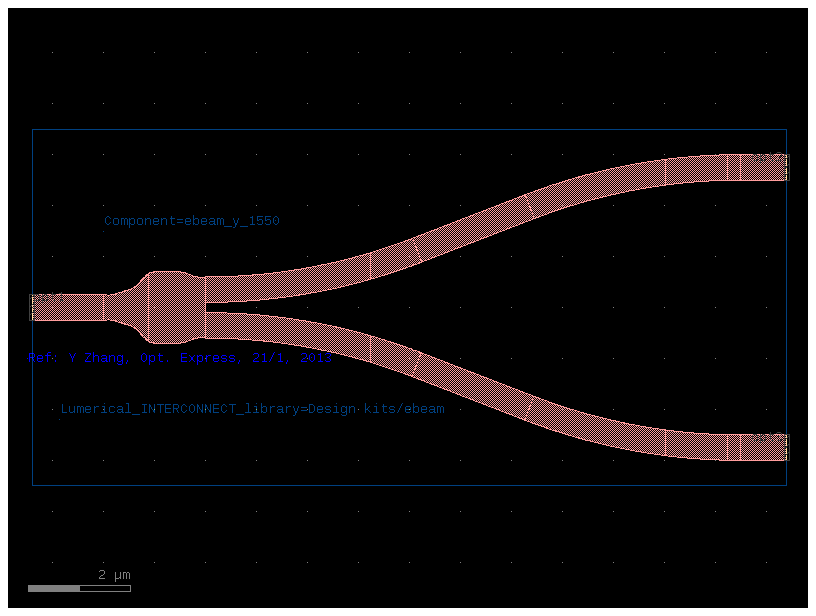

c = pdk.ebeam_y_1550()
c.plot()

2024-04-12 23:30:29.258 | INFO     | gdsfactory.technology.layer_views:to_lyp:1018 - LayerViews written to '/tmp/gdsfactory/ebeam_y_1550.lyp'.

sp = gt.write_sparameters(c, filepath=PATH.sparameters / "ebeam_y_1550_20634f71.npz")

23:30:29 UTC WARNING: 'geometry=PolySlab(type='PolySlab', axis=2,
             sidewall_angle=0.0, reference_plane='middle', slab_bounds=(-13.0,
             -3.0), dilation=0.0, vertices=array([[ 11.901,   7.001],
                    [ 11.901,  -7.001],
                    [-11.901,  -7.001],
                    [-11.901,   7.001],
                    [ 11.901,   7.001]])) name='substrate_0' type='Structure'
             medium=Medium(name='Si', frequency_range=None, allow_gain=False,
             nonlinear_spec=None, modulation_spec=None, heat_spec=None,
             type='Medium', permittivity=12.0409, conductivity=0.0)' (at
             `simulation.structures[0]`) is completely outside of simulation
             domain.

             WARNING: 'geometry=PolySlab(type='PolySlab', axis=2,
             sidewall_angle=0.0, reference_plane='middle', slab_bounds=(-13.0,
             -3.0), dilation=0.0, vertices=array([[ 11.901,   7.001],
                    [ 11.901,  -7.001],
                    [-11.901,  -7.001],
                    [-11.901,   7.001],
                    [ 11.901,   7.001]])) name='substrate_0' type='Structure'
             medium=Medium(name='Si', frequency_range=None, allow_gain=False,
             nonlinear_spec=None, modulation_spec=None, heat_spec=None,
             type='Medium', permittivity=12.0409, conductivity=0.0)' (at
             `simulation.structures[0]`) is completely outside of simulation
             domain.

Simulation loaded from PosixPath('/__w/ubc/ubc/sparameters/ebeam_y_1550_20634f71.npz')

sp.keys()

dict_keys(['o1@0,o1@0', 'o2@0,o1@0', 'o3@0,o1@0', 'o1@0,o2@0', 'o2@0,o2@0', 'o3@0,o2@0', 'o1@0,o3@0', 'o2@0,o3@0', 'o3@0,o3@0', 'wavelengths'])

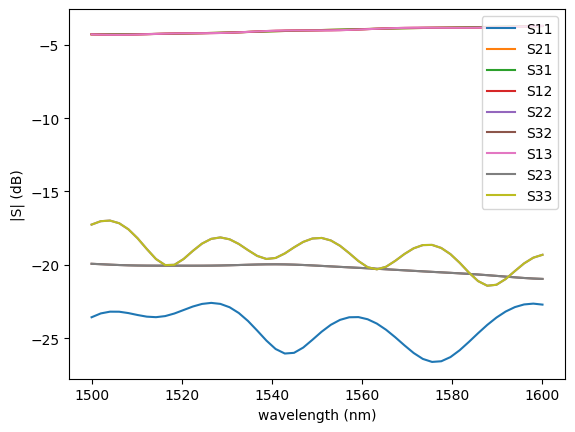

sim.plot.plot_sparameters(sp)

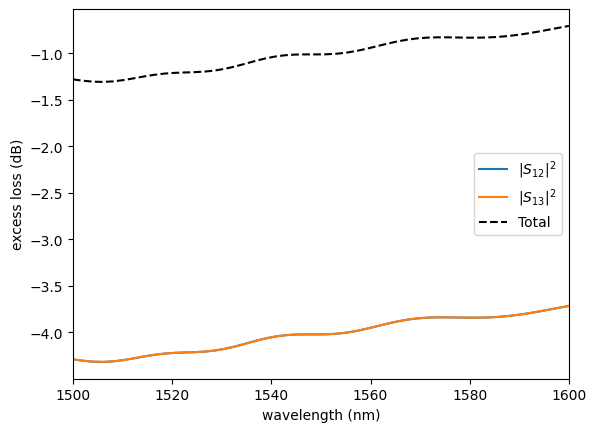

sim.plot.plot_loss1x2(sp)

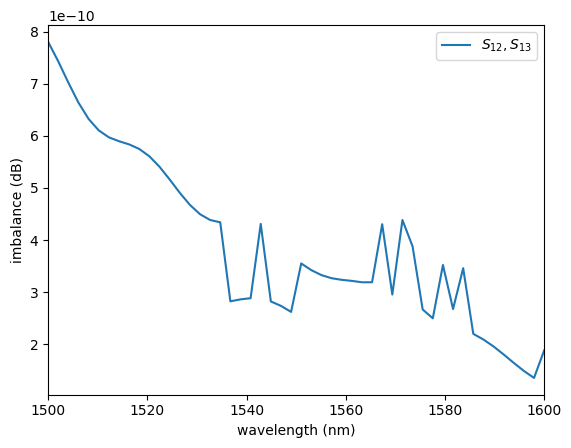

sim.plot.plot_imbalance1x2(sp)

Lumerical FDTD

You can write the Sparameters for all components in the UBC ubcpdk.components PDK using lumerical FDTD plugin in gplugins

To run simulations uncomment the following lines

import gplugins as sim

import ubcpdk.components as pdk

for f in [

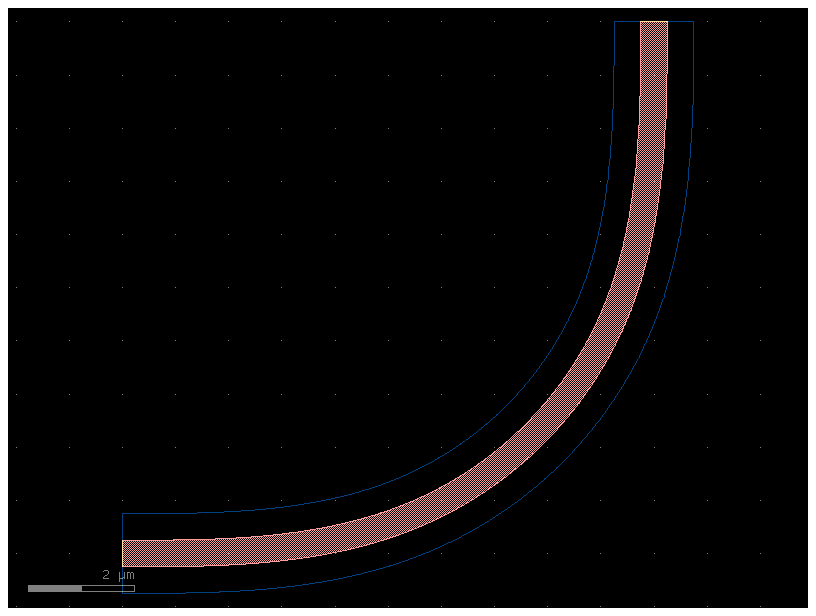

    pdk.bend,

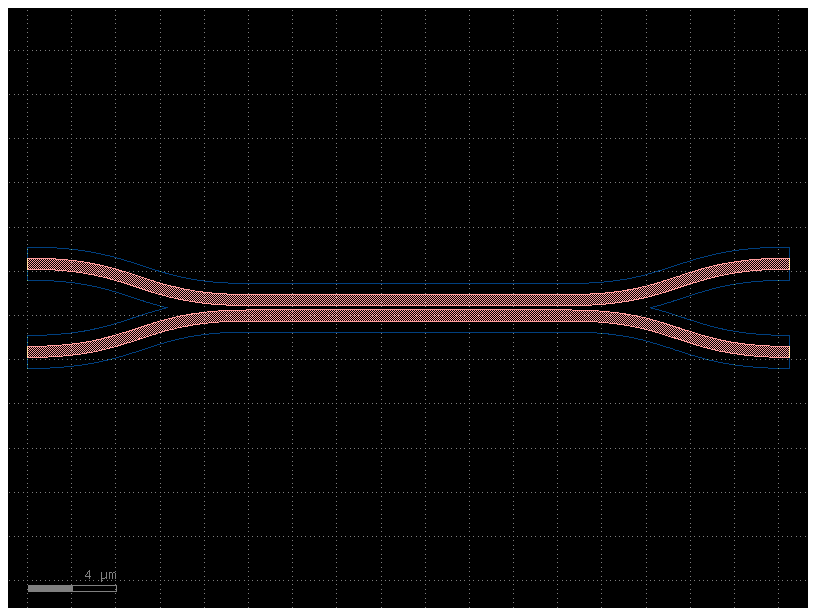

    pdk.coupler,

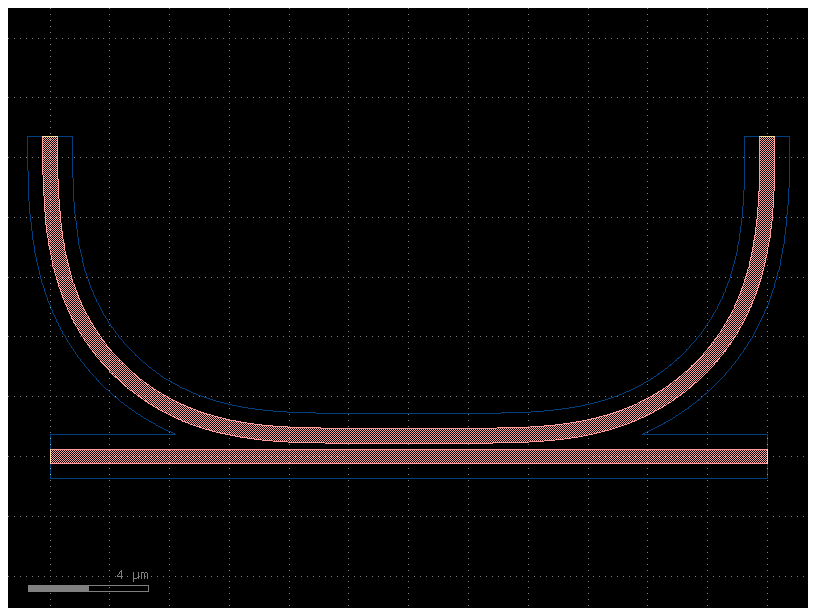

    pdk.coupler_ring,
    pdk.ebeam_y_1550,

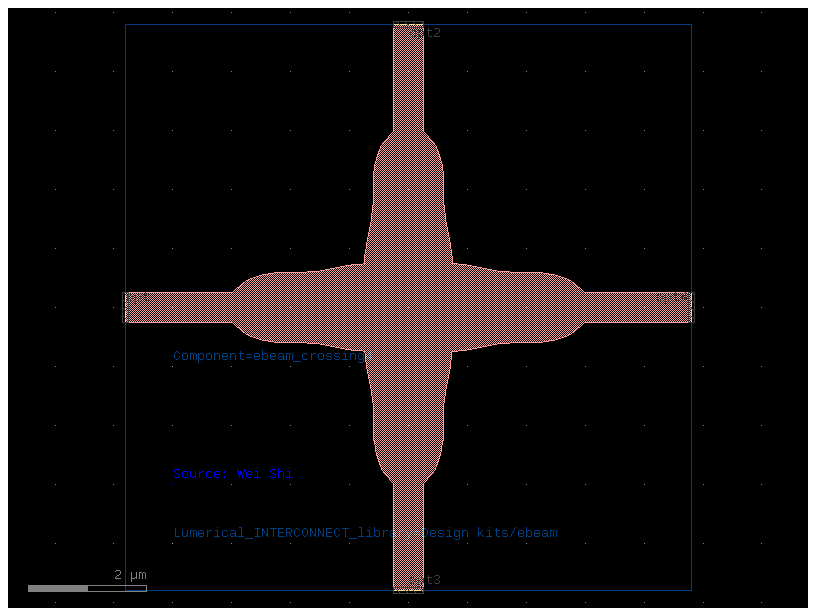

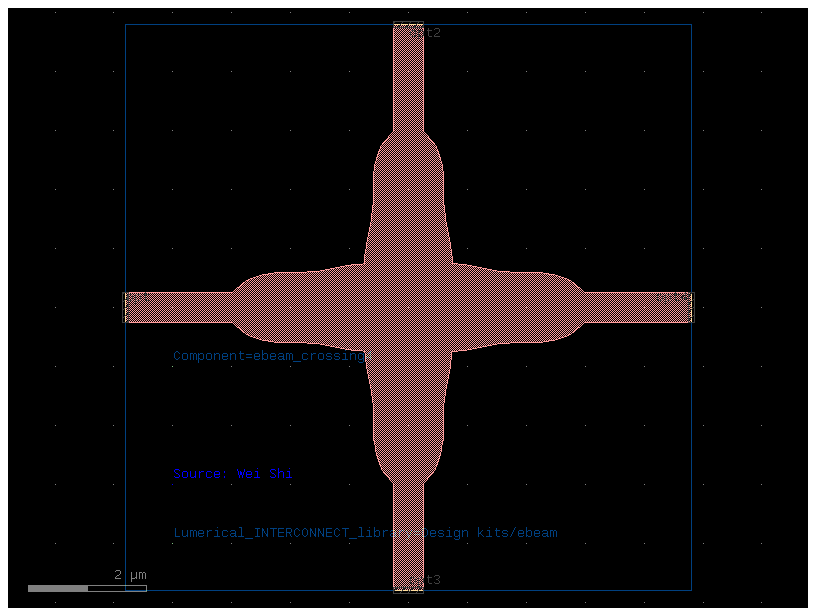

    pdk.ebeam_crossing4,
]:
    component = f()
    component.plot_klayout()
    # ls.write_sparameters_lumerical(component=component)

2024-04-12 23:30:30.331 | INFO     | gdsfactory.technology.layer_views:to_lyp:1018 - LayerViews written to '/tmp/gdsfactory/bend_euler_sc.lyp'.

2024-04-12 23:30:30.394 | INFO     | gdsfactory.technology.layer_views:to_lyp:1018 - LayerViews written to '/tmp/gdsfactory/coupler__ubcpdkpcomponents.lyp'.

2024-04-12 23:30:30.474 | INFO     | gdsfactory.technology.layer_views:to_lyp:1018 - LayerViews written to '/tmp/gdsfactory/coupler_ring__ubcpdkpcomponents.lyp'.

2024-04-12 23:30:30.538 | INFO     | gdsfactory.technology.layer_views:to_lyp:1018 - LayerViews written to '/tmp/gdsfactory/ebeam_y_1550.lyp'.

2024-04-12 23:30:30.605 | INFO     | gdsfactory.technology.layer_views:to_lyp:1018 - LayerViews written to '/tmp/gdsfactory/ebeam_crossing4.lyp'.

# sp = ls.read.read_sparameters_lumerical(component=ubcpdk.components.straight())

# sim.plot_sparameters(sp)
