Optical Routing — Deep Dive

This page covers advanced optical routing features. For a quick intro see Routing Overview.

Topic	API
Waypoints	`route_bundle(..., waypoints=[...])`
Entry / exit stubs	`route_bundle(..., starts=..., ends=...)`
Path-length matching	`route_bundle(..., constraints=[kf.PathLengthMatch(...)], route_name=...)`
Loopback — inside variant	`route_loopback(..., inside=True)`
Direct backbone placement	`place_manhattan(c, p1, p2, pts, ...)`

Setup

All factories and ports must share the same KCLayout instance — here the global kf.kcl.

from functools import partial

import kfactory as kf


class LAYER(kf.LayerInfos):
    WG: kf.kdb.LayerInfo = kf.kdb.LayerInfo(1, 0)
    WGCLAD: kf.kdb.LayerInfo = kf.kdb.LayerInfo(2, 0)
    FLOORPLAN: kf.kdb.LayerInfo = kf.kdb.LayerInfo(10, 0)


L = LAYER()
kf.kcl.infos = L

wg_enc = kf.kcl.get_enclosure(
    kf.LayerEnclosure(name="WGSTD_OPT", sections=[(L.WGCLAD, 0, 2_000)])
)

# Euler bend — width and radius in µm
bend90 = kf.factories.euler.bend_euler_factory(kcl=kf.kcl)(
    width=0.5,
    radius=10,
    layer=L.WG,
    enclosure=wg_enc,
    angle=90,
)

# Straight factory — width and length in DBU
straight_factory = partial(
    kf.factories.straight.straight_dbu_factory(kcl=kf.kcl),
    layer=L.WG,
    enclosure=wg_enc,
)

WG_WIDTH = kf.kcl.to_dbu(0.5)  # 500 DBU

# Effective routing radius of the euler bend (larger than the nominal 10 µm)
bend_radius = kf.routing.optical.get_radius(bend90)

1 · Waypoints — guiding routes through fixed points

A waypoints value forces all routes to converge at a specific position and direction before continuing to their end ports.

Pass a kdb.Trans to specify a single convergence point with a direction.
Pass a list[kdb.Point] to define a backbone corridor (direction inferred from the first two points).

Below, three East–West routes are forced to detour upward through a corridor at y = 80 µm (simulating a gap above an obstacle) before descending to their West-facing end ports.

c_wp = kf.KCell("opt_waypoints")

n = 3
wp_starts = [
    kf.Port(
        name=f"in_{i}",
        # angle=0 → East-facing
        trans=kf.kdb.Trans(0, False, 0, kf.kcl.to_dbu(i * 10)),
        width=WG_WIDTH,
        layer_info=L.WG,
    )
    for i in range(n)
]
wp_ends = [
    kf.Port(
        name=f"out_{i}",
        # angle=2 → West-facing (opposite to East, so routes connect left-to-right)
        trans=kf.kdb.Trans(2, False, kf.kcl.to_dbu(300), kf.kcl.to_dbu(i * 10)),
        width=WG_WIDTH,
        layer_info=L.WG,
    )
    for i in range(n)
]

# Waypoint: at (150 µm, 80 µm) heading East.
# All routes must pass through this corridor before reaching their end ports.
kf.routing.optical.route_bundle(
    c_wp,
    wp_starts,
    wp_ends,
    separation=kf.kcl.to_dbu(5),
    straight_factory=straight_factory,
    bend90_cell=bend90,
    waypoints=kf.kdb.Trans(0, False, kf.kcl.to_dbu(150), kf.kcl.to_dbu(80)),
)
c_wp

2 · Entry and exit stubs — `starts` and `ends`

starts / ends control how far each route must travel straight before the router takes over. Supplying a scalar applies the same stub length to all routes; a list gives per-route control (DBU).

Stubs are useful when you need clearance from a device before bending, or when routing out of a dense array.

c_stubs = kf.KCell("opt_stubs")

stub_starts = [
    kf.Port(
        name=f"in_{i}",
        trans=kf.kdb.Trans(1, False, kf.kcl.to_dbu(i * 15), 0),
        width=WG_WIDTH,
        layer_info=L.WG,
    )
    for i in range(3)
]
stub_ends = [
    kf.Port(
        name=f"out_{i}",
        trans=kf.kdb.Trans(3, False, kf.kcl.to_dbu(i * 15), kf.kcl.to_dbu(200)),
        width=WG_WIDTH,
        layer_info=L.WG,
    )
    for i in range(3)
]

# Each start port extends 20 µm straight before the bend, each end 10 µm.
kf.routing.optical.route_bundle(
    c_stubs,
    stub_starts,
    stub_ends,
    separation=kf.kcl.to_dbu(5),
    straight_factory=straight_factory,
    bend90_cell=bend90,
    starts=kf.kcl.to_dbu(20),  # scalar → all routes get the same start stub
    ends=kf.kcl.to_dbu(10),
)
c_stubs

3 · Path-length matching

When routes travel different distances (e.g. fan-outs from an array where starts are staggered), kf.PathLengthMatch inserts small "squiggle" loops on the shorter routes so that all waveguide lengths become equal. It runs as a constraint on route_bundle: backbones are computed first, then the constraint walks the routers of every bundle whose route_name it matches and rewrites the shorter ones.

PathLengthMatch fields:

Field	Type	Meaning
`route_names`	`list[str]`	`route_name`s of the bundles to equalise
`element`	`int`	Which backbone segment to insert the loop into. `-1` = last segment.
`loop_side`	`int`	`-1` = loop on left, `0` = centered, `1` = loop on right
`loops`	`int`	Number of loop repetitions
`loop_position`	`int`	`-1` = near start of segment, `0` = center, `1` = near end
`length`	`int \\| None`	Target path length in DBU. `None` = match the longest router.
`tolerance`	`int`	Maximum allowed length spread (DBU) after enforcement

Note: All routes must be routed first (the constraint runs after the backbones are generated), so routes need enough room for the inserted loops — increase separation or stagger ports as needed.

c_plm = kf.KCell("opt_path_length_match")

# Stagger start ports so that each route naturally has a different path length.
# Routes need sufficient horizontal separation (≥ 2× bend_radius) so the inserted
# loops don't overlap adjacent waveguides.
plm_starts = [
    kf.Port(
        name=f"in_{i}",
        trans=kf.kdb.Trans(1, False, kf.kcl.to_dbu(i * 150), kf.kcl.to_dbu(-i * 200)),
        width=WG_WIDTH,
        layer_info=L.WG,
    )
    for i in range(3)
]
plm_ends = [
    kf.Port(
        name=f"out_{i}",
        trans=kf.kdb.Trans(3, False, kf.kcl.to_dbu(x), kf.kcl.to_dbu(400)),
        width=WG_WIDTH,
        layer_info=L.WG,
    )
    for i, x in enumerate([170, 300, 380])
]

kf.routing.optical.route_bundle(
    c_plm,
    plm_starts,
    plm_ends,
    separation=kf.kcl.to_dbu(10),
    straight_factory=straight_factory,
    bend90_cell=bend90,
    constraints=[
        kf.PathLengthMatch(
            route_names=["plm_demo"],
            element=-1,  # insert loop in the last backbone segment
            loop_side=-1,  # loops on the left side
            loops=1,
            loop_position=0,  # centered in the segment
        )
    ],
    route_name="plm_demo",
)
c_plm

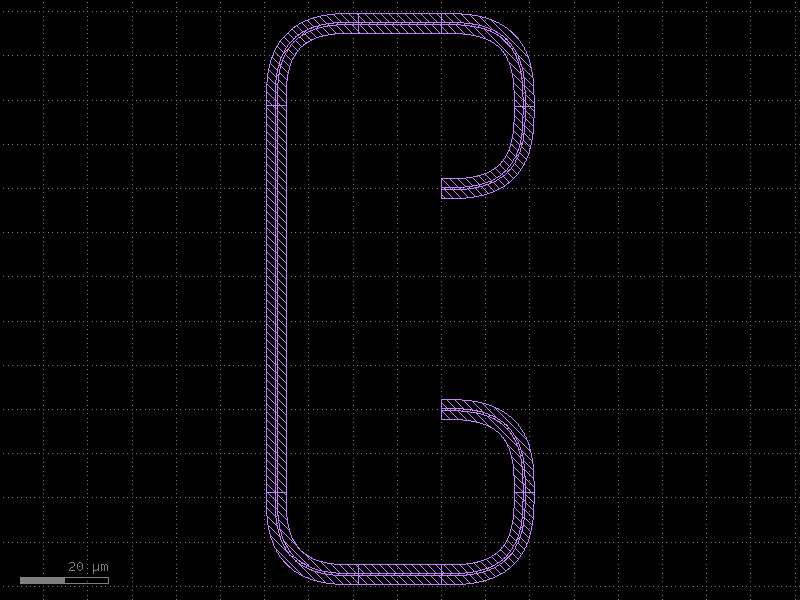

4 · Loopback — inside variant

route_loopback supports two topologies controlled by inside:

inside=False (default)       inside=True
╭----╮  ╭----╮                  ╭---╮  ╭---╮
|    |  |    |                  |   |  |   |
| ----- ----- |              ----- |  | -----
| p1       p2 |              p1   |    |   p2
╰─────────────╯                   ╰────╯

inside=False (default) creates an outer U-turn that travels away from the array. inside=True creates an inner U-turn that folds back between adjacent ports — useful for compact test structures where the loop must fit within the device footprint.

c_lb_inside = kf.KCell("opt_loopback_inside")

lb_p1 = kf.Port(
    name="p1",
    trans=kf.kdb.Trans(0, False, 0, 0),
    width=WG_WIDTH,
    layer_info=L.WG,
)
lb_p2 = kf.Port(
    name="p2",
    trans=kf.kdb.Trans(0, False, 0, kf.kcl.to_dbu(50)),
    width=WG_WIDTH,
    layer_info=L.WG,
)

backbone_inside = kf.routing.optical.route_loopback(
    lb_p1,
    lb_p2,
    bend90_radius=bend_radius,
    d_loop=bend_radius * 2,
    inside=True,
)

kf.routing.optical.place_manhattan(
    c_lb_inside,
    lb_p1,
    lb_p2,
    backbone_inside,
    straight_factory=straight_factory,
    bend90_cell=bend90,
)
c_lb_inside

5 · Direct backbone placement with `place_manhattan`

route_bundle is the high-level router. For full control you can build the backbone yourself (a list of kdb.Point) and call place_manhattan directly to materialise waveguide segments and bend cells along it.

This is the same function that route_bundle calls internally, exposed so that custom routing algorithms can drive the placer.

c_pm = kf.KCell("opt_place_manhattan_direct")

pm_p1 = kf.Port(
    name="o1",
    trans=kf.kdb.Trans(0, False, 0, 0),
    width=WG_WIDTH,
    layer_info=L.WG,
)
pm_p2 = kf.Port(
    name="o2",
    trans=kf.kdb.Trans(2, False, kf.kcl.to_dbu(200), kf.kcl.to_dbu(100)),
    width=WG_WIDTH,
    layer_info=L.WG,
)

# Hand-crafted Manhattan backbone: go East, then North, then West.
# Points are the *corners* of the route including the start and end positions.
custom_backbone = [
    kf.kdb.Point(0, 0),
    kf.kdb.Point(kf.kcl.to_dbu(100), 0),
    kf.kdb.Point(kf.kcl.to_dbu(100), kf.kcl.to_dbu(100)),
    kf.kdb.Point(kf.kcl.to_dbu(200), kf.kcl.to_dbu(100)),
]

kf.routing.optical.place_manhattan(
    c_pm,
    pm_p1,
    pm_p2,
    custom_backbone,
    straight_factory=straight_factory,
    bend90_cell=bend90,
)
c_pm

Summary

Need	Parameter / function
Route through a fixed corridor	`waypoints=[kdb.Point(...), ...]`
Guarantee minimum straight before bend	`starts=dbu_length` (scalar or per-route list)
Equalise optical path lengths	`constraints=[kf.PathLengthMatch(route_names=["b"], element=-1, loop_side=-1, loops=1, loop_position=0)]`, `route_name="b"`
Compact inner U-turn	`route_loopback(..., inside=True)`
Custom routing algorithm output	`place_manhattan(c, p1, p2, pts, straight_factory=..., bend90_cell=...)`

All coordinates passed to KCell-based APIs are in DBU (1 nm = 1 DBU with default dbu=0.001). Convert with kf.kcl.to_dbu(x_µm).
