DRC Fixing Utilities

Design Rule Check (DRC) violations occur when shapes on a layer violate foundry-specified constraints — most commonly:

kfactory provides tiled utilities that detect and automatically repair these violations by merging nearby shapes. All fixers live in kf.utils:

Both work by splitting the cell into rectangular tiles, processing each tile in parallel, and collecting the corrected geometry into a new kdb.Region. This keeps memory usage constant regardless of layout size.

Setup

import kfactory as kf


class LAYER(kf.LayerInfos):
    WG: kf.kdb.LayerInfo = kf.kdb.LayerInfo(1, 0)
    WG_FIXED: kf.kdb.LayerInfo = kf.kdb.LayerInfo(2, 0)
    WG_FIXED_MK: kf.kdb.LayerInfo = kf.kdb.LayerInfo(3, 0)
    FLOORPLAN: kf.kdb.LayerInfo = kf.kdb.LayerInfo(10, 0)


L = LAYER()
kf.kcl.infos = L

1 · Minimum-Space Violations

Creating a layout with violations

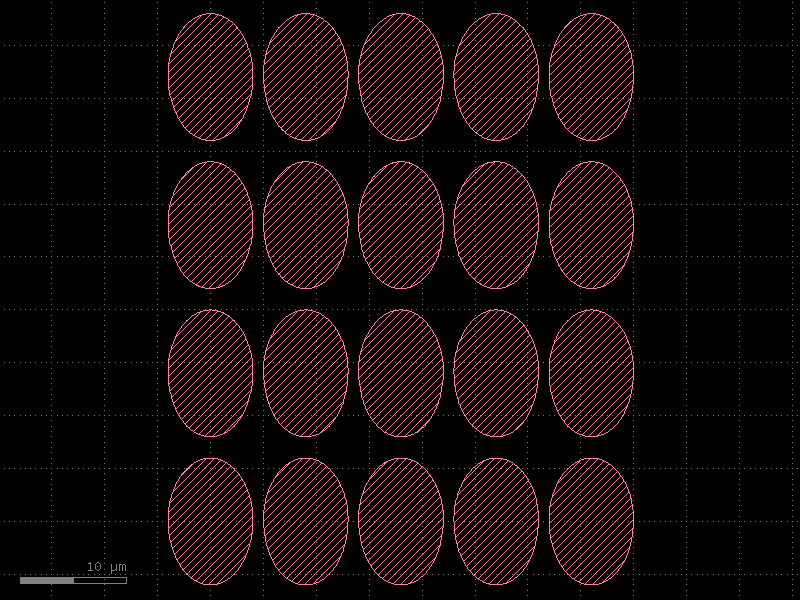

We place a grid of ellipses that are intentionally too close together. In a real PDK the minimum space rule might be 200 nm (200 dbu at 1 nm/dbu). Here we use 1 µm (1000 dbu) as the minimum spacing so the violation is obvious.

MIN_SPACE_DBU = 1000  # 1 µm minimum space rule

c = kf.KCell(name="drc_demo")

# Place ellipses in a grid — adjacent columns are only 200 nm apart (violates 1 µm rule)
for row in range(4):
    for col in range(5):
        ellipse = kf.kdb.Polygon.ellipse(kf.kdb.Box(8000, 12000), 64)
        # Offset each column by 9000 dbu — less than 8000 + 1000 spacing → violation
        c.shapes(c.kcl.layer(L.WG)).insert(
            ellipse.transformed(kf.kdb.Trans(col * 9000, row * 14000))
        )

c

Applying fix_spacing_tiled

fix_spacing_tiled detects pairs of polygons that are closer than min_space and merges them. The function returns a kdb.Region with the corrected geometry.

Key parameters: - min_space — minimum allowed gap in dbu - metrics — Euclidian (default) or Square; controls how distance is measured - n_threads — parallelism; None uses kfactory's default (CPU count) - tile_size — tile dimensions in µm; auto-selected if None

fixed_region = kf.utils.fix_spacing_tiled(
    c,
    MIN_SPACE_DBU,
    L.WG,
    metrics=kf.kdb.Metrics.Euclidian,
)

# Insert corrected geometry onto WG_FIXED layer so we can compare
c.shapes(c.kcl.layer(L.WG_FIXED)).insert(fixed_region)

c

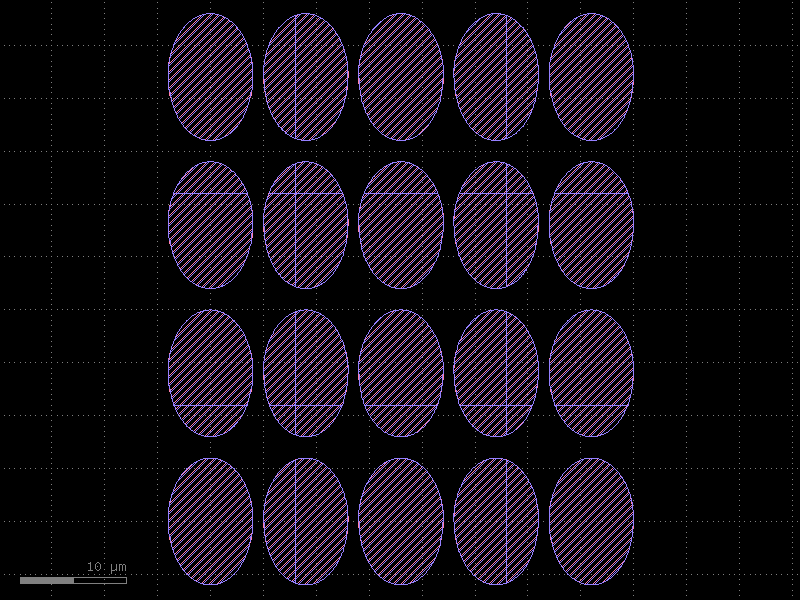

What happened: polygons that were too close were merged into a single polygon. The WG layer (layer 1) still has the original violating shapes; WG_FIXED (layer 2) contains the DRC-clean result.

Applying fix_spacing_minkowski_tiled

The Minkowski-sum approach dilates each polygon by min_space/2, merges overlapping shapes, then erodes by the same amount. This produces smoother, more rounded outlines compared to the space-check approach — useful when device performance is sensitive to sharp corners.

The optional smooth parameter controls how aggressively corners are simplified after the fix (value in dbu).

fixed_mk_region = kf.utils.fix_spacing_minkowski_tiled(
    c,
    MIN_SPACE_DBU,
    L.WG,
    smooth=20,
)

c.shapes(c.kcl.layer(L.WG_FIXED_MK)).insert(fixed_mk_region)

c

2026-05-12 10:04:29.945 | INFO     | kfactory.utils.violations:fix_spacing_minkowski_tiled:272 - Starting minkowski on drc_demo

2 · Choosing the Right Fixer

3 · Workflow Pattern

A typical post-layout DRC fix workflow:

import kfactory as kf
from kfactory.utils.violations import fix_spacing_tiled

# 1. Load or create your cell
kcl = kf.KCLayout("my_pdk")
cell = kcl["TOP"]

# 2. Run the fixer (returns a Region, does not modify in-place)
clean = kf.utils.fix_spacing_tiled(cell, min_space=200, layer=LAYER.WG)

# 3. Replace the original geometry with the fixed version
li = kcl.layer(LAYER.WG)
cell.clear(li)
cell.shapes(li).insert(clean)

# 4. Write out
kcl.write("fixed.gds")

Note: fix_spacing_tiled and fix_spacing_minkowski_tiled return a kdb.Region — they do not modify the input cell in-place. Insert the result where you need it, replacing or supplementing the original layer.

4 · Performance Notes

Both fixers use KLayout's TilingProcessor internally. Tile size is auto-selected as max(25 × min_space_µm, 250 µm) but can be tuned:

# Larger tiles → fewer tiles, more memory per tile
kf.utils.fix_spacing_tiled(c, 200, LAYER.WG, tile_size=(500, 500))

# Smaller tiles → lower peak memory, more parallelism benefit
kf.utils.fix_spacing_tiled(c, 200, LAYER.WG, tile_size=(50, 50))

Thread count defaults to kf.config.n_threads (≈ logical CPU count). Override with n_threads=N when running in a resource-constrained environment.
