sky130.cells.sky130_fd_pr__cap_vpp_04p4x04p6_m1m2m3_shieldl1m5_floatm4_top

sky130.cells.sky130_fd_pr__cap_vpp_04p4x04p6_m1m2m3_shieldl1m5_floatm4_top()

Returns sky130_fd_pr__cap_vpp_04p4x04p6_m1m2m3_shieldl1m5_floatm4_top fixed cell.

import sky130

c = sky130.components.sky130_fd_pr__cap_vpp_04p4x04p6_m1m2m3_shieldl1m5_floatm4_top()

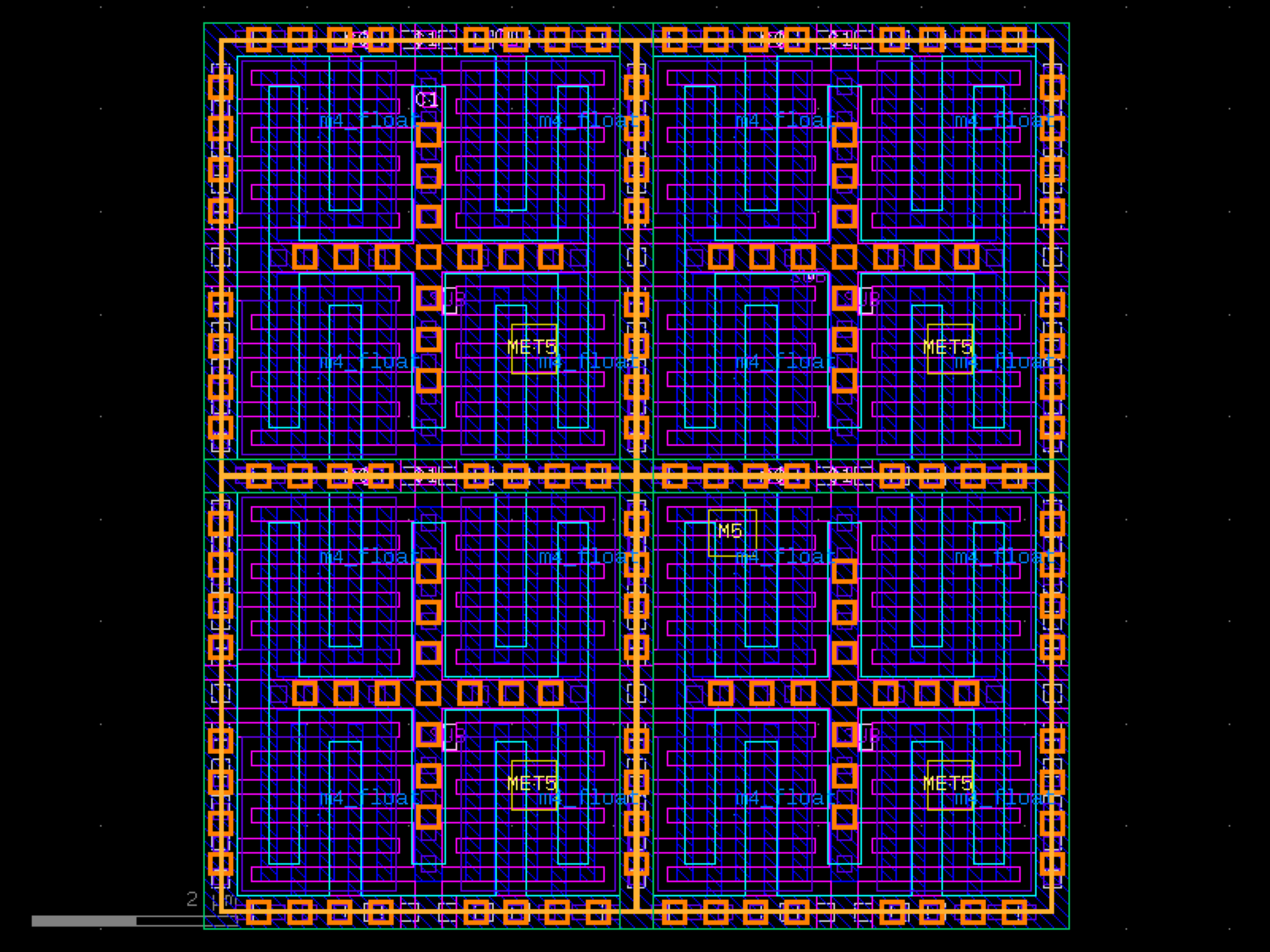

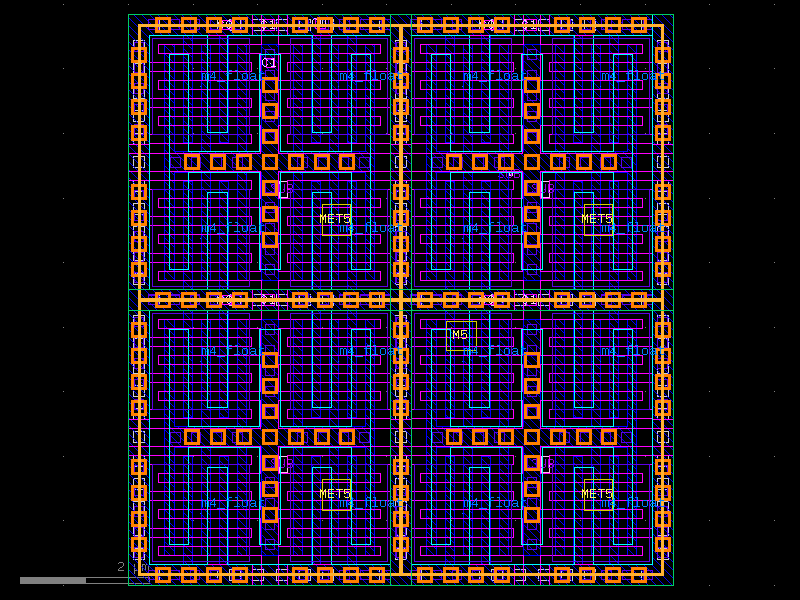

c.plot()

(Source code, png, hires.png, pdf)

Return type:

Component
