sky130.cells.sky130_fd_pr__cap_vpp_11p3x11p8_l1m1m2m3m4_shieldm5_nhvtop

sky130.cells.sky130_fd_pr__cap_vpp_11p3x11p8_l1m1m2m3m4_shieldm5_nhvtop#

sky130.cells.sky130_fd_pr__cap_vpp_11p3x11p8_l1m1m2m3m4_shieldm5_nhvtop()[source]#

Returns sky130_fd_pr__cap_vpp_11p3x11p8_l1m1m2m3m4_shieldm5_nhvtop fixed cell.

import sky130

c = sky130.components.sky130_fd_pr__cap_vpp_11p3x11p8_l1m1m2m3m4_shieldm5_nhvtop()
c.plot()

(Source code, png, hires.png, pdf)

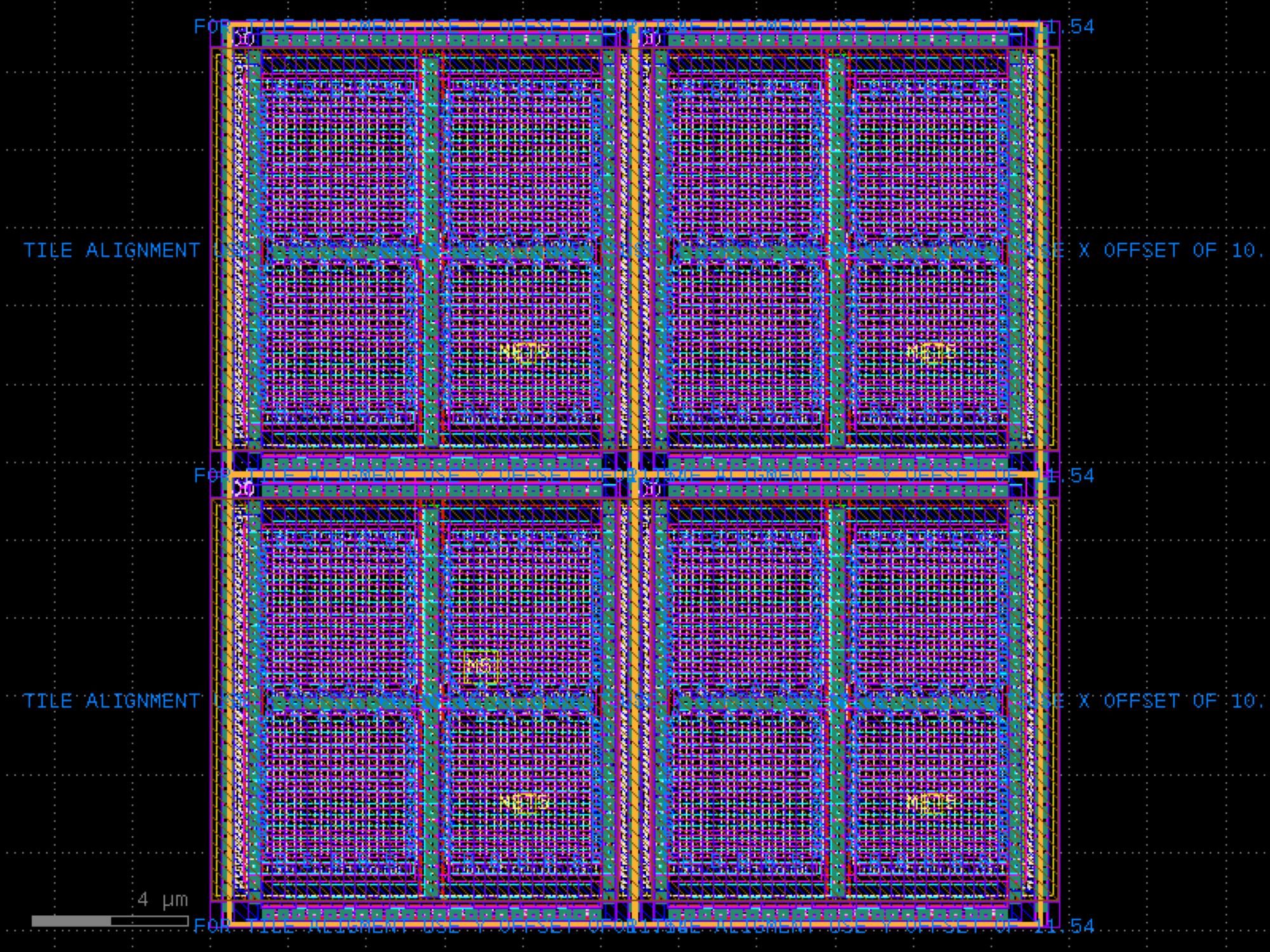

../_images/sky130-cells-sky130_fd_pr__cap_vpp_11p3x11p8_l1m1m2m3m4_shieldm5_nhvtop-1.png
Return type:

Component
