sky130.pcells.sky130_fd_pr__res_generic_nd

sky130.pcells.sky130_fd_pr__res_generic_nd#

sky130.pcells.sky130_fd_pr__res_generic_nd(res_width=0.42, res_length=2.1)[source]#

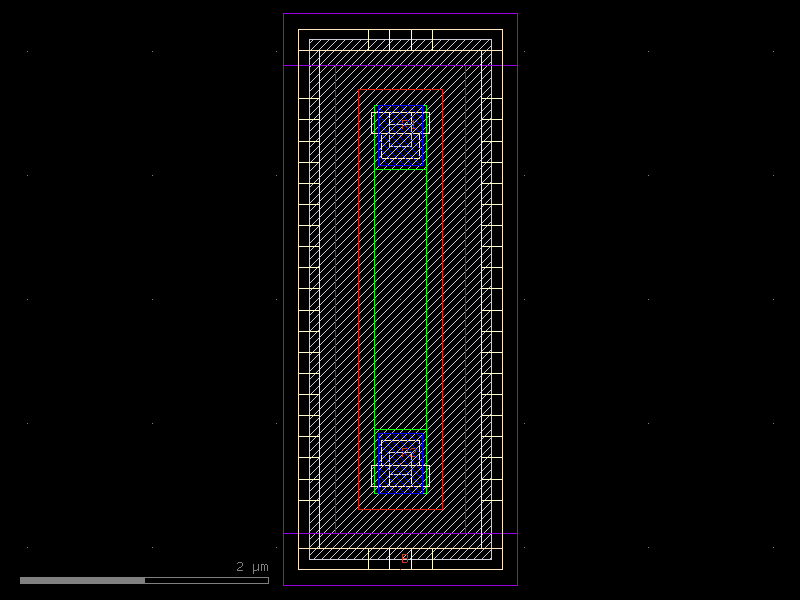

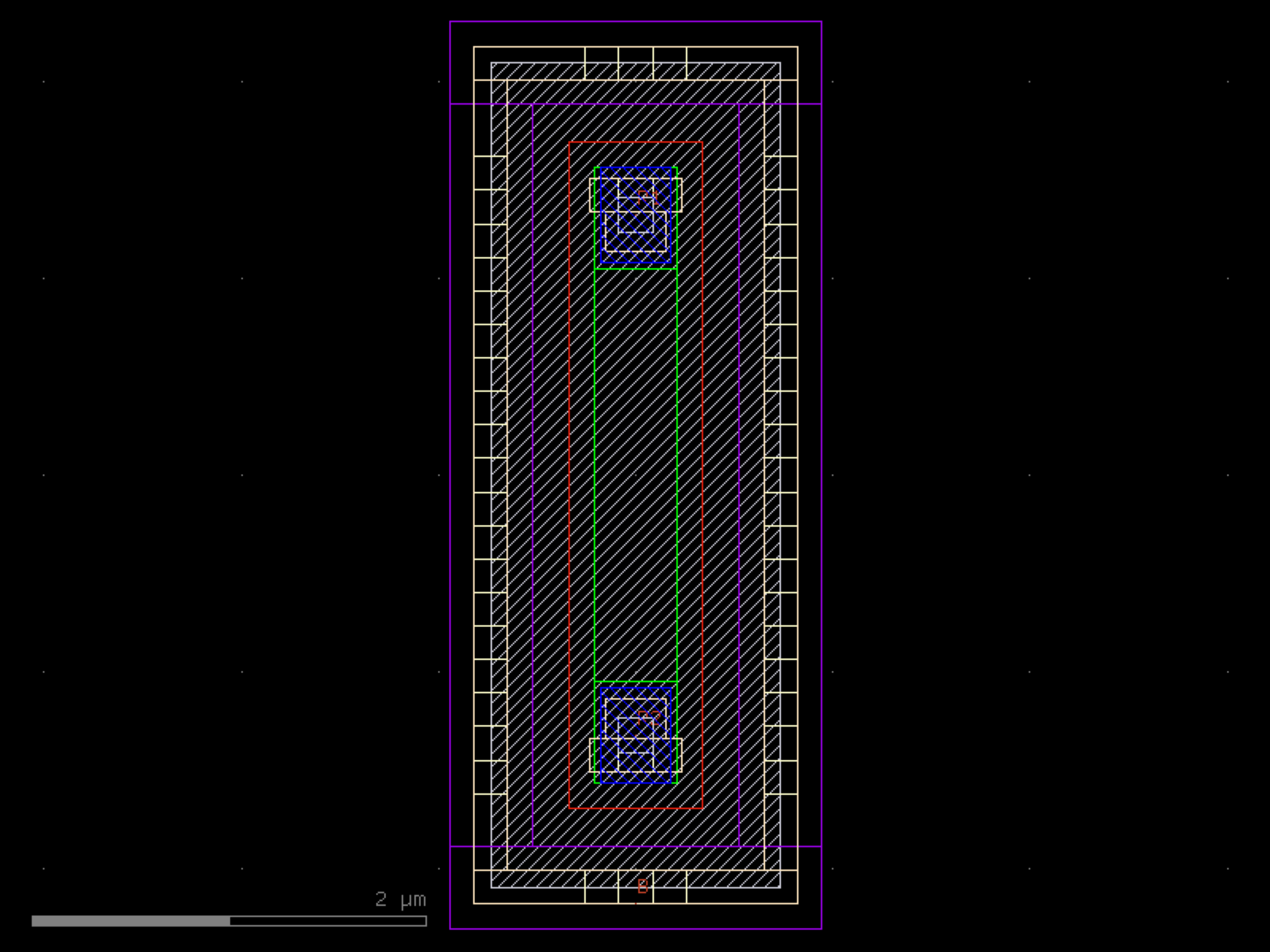

Return an N+ diffusion resistor matching Magic VLSI geometry.

Geometry: diffusion body centred at origin with licon contacts at head/tail, NSDM implant, diffres marker, and pwell guard ring.

Parameters:

  • res_width (float) – width of the resistor body (W) in um.

  • res_length (float) – length of the resistor body (L) in um.

Return type:

Component

import sky130

c = sky130.pcells.sky130_fd_pr__res_generic_nd()
c.plot()

(Source code, png, hires.png, pdf)

../_images/sky130-pcells-sky130_fd_pr__res_generic_nd-1.png
