sky130.cells.sky130_fd_pr__rf_npn_05v5_W1p00L4p00

sky130.cells.sky130_fd_pr__rf_npn_05v5_W1p00L4p00#

sky130.cells.sky130_fd_pr__rf_npn_05v5_W1p00L4p00()[source]#

Returns sky130_fd_pr__rf_npn_05v5_W1p00L4p00 fixed cell.

import sky130

c = sky130.components.sky130_fd_pr__rf_npn_05v5_W1p00L4p00()
c.plot()

(Source code, png, hires.png, pdf)

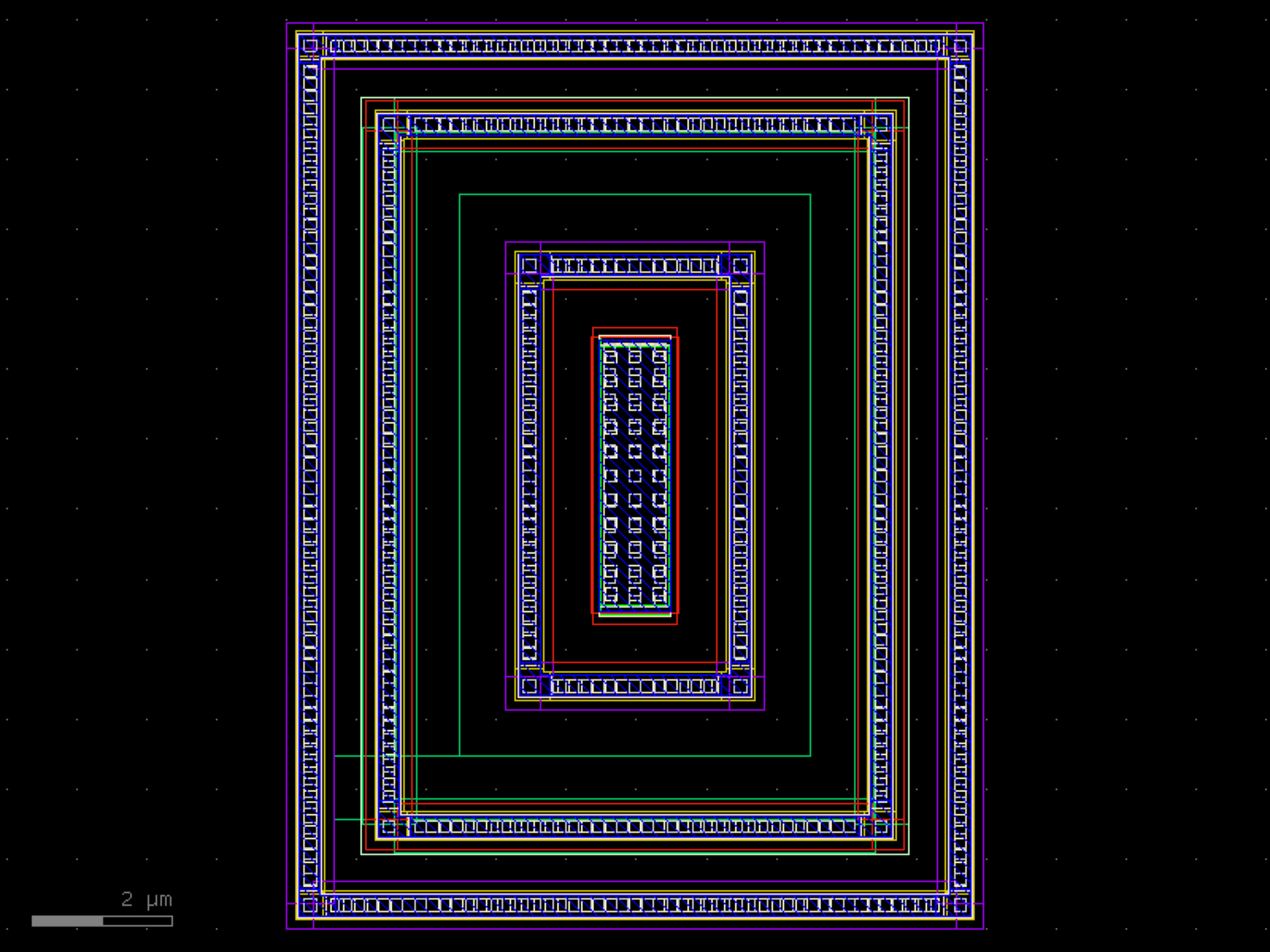

../_images/sky130-cells-sky130_fd_pr__rf_npn_05v5_W1p00L4p00-1.png
Return type:

Component
