sky130.cells.sky130_fd_pr__rf_nfet_01v8_aM02W5p00L0p25

sky130.cells.sky130_fd_pr__rf_nfet_01v8_aM02W5p00L0p25#

sky130.cells.sky130_fd_pr__rf_nfet_01v8_aM02W5p00L0p25()[source]#

Returns sky130_fd_pr__rf_nfet_01v8_aM02W5p00L0p25 fixed cell.

import sky130

c = sky130.components.sky130_fd_pr__rf_nfet_01v8_aM02W5p00L0p25()

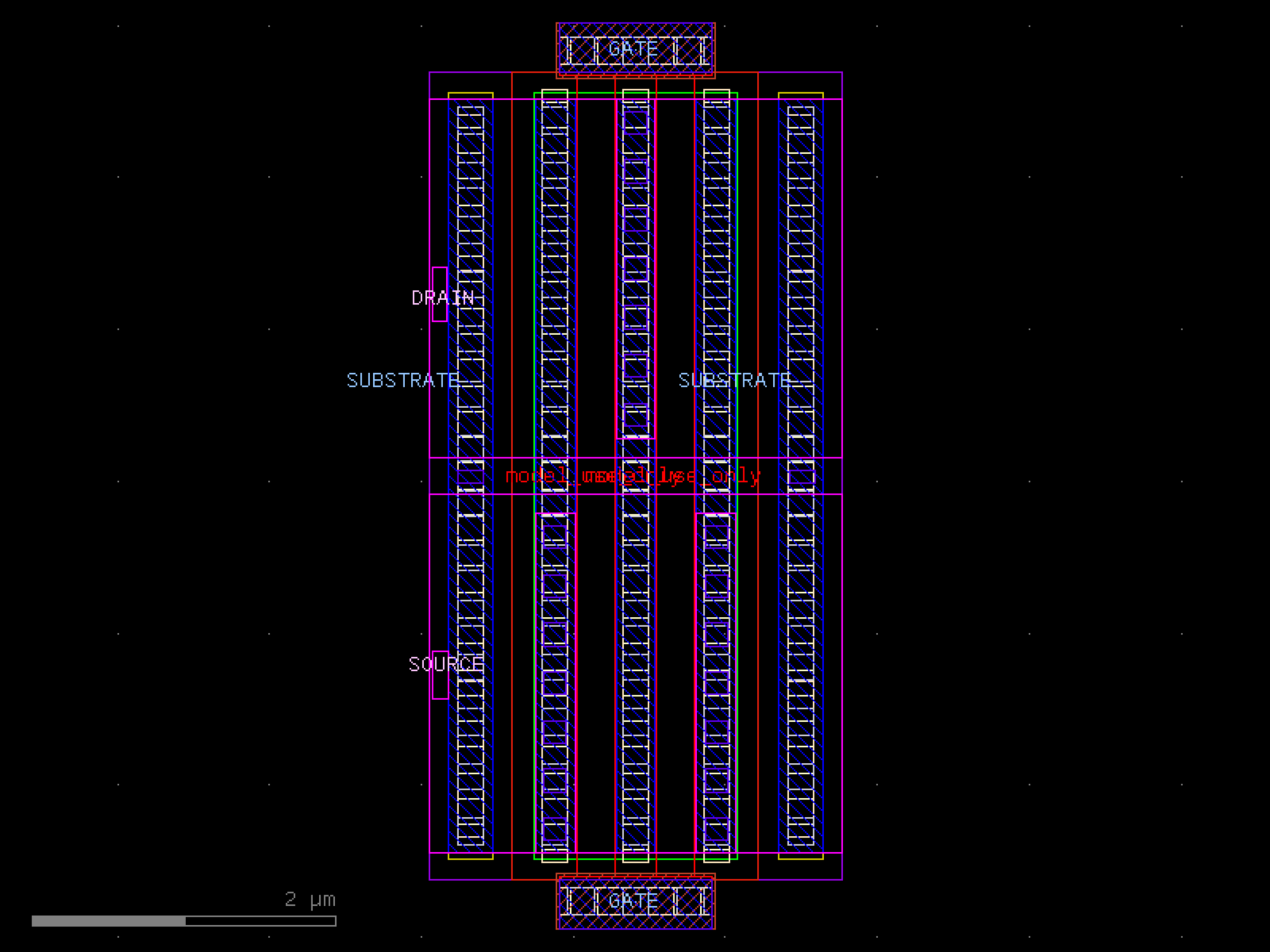

c.plot()

(Source code, png, hires.png, pdf)

../_images/sky130-cells-sky130_fd_pr__rf_nfet_01v8_aM02W5p00L0p25-1.png
Return type:

Component
