sky130.cells.sky130_fd_pr__cap_vpp_11p5x11p7_l1m1m2m3m4_shieldpom5_x

sky130.cells.sky130_fd_pr__cap_vpp_11p5x11p7_l1m1m2m3m4_shieldpom5_x#

sky130.cells.sky130_fd_pr__cap_vpp_11p5x11p7_l1m1m2m3m4_shieldpom5_x()[source]#

Returns sky130_fd_pr__cap_vpp_11p5x11p7_l1m1m2m3m4_shieldpom5_x fixed cell.

import sky130

c = sky130.components.sky130_fd_pr__cap_vpp_11p5x11p7_l1m1m2m3m4_shieldpom5_x()

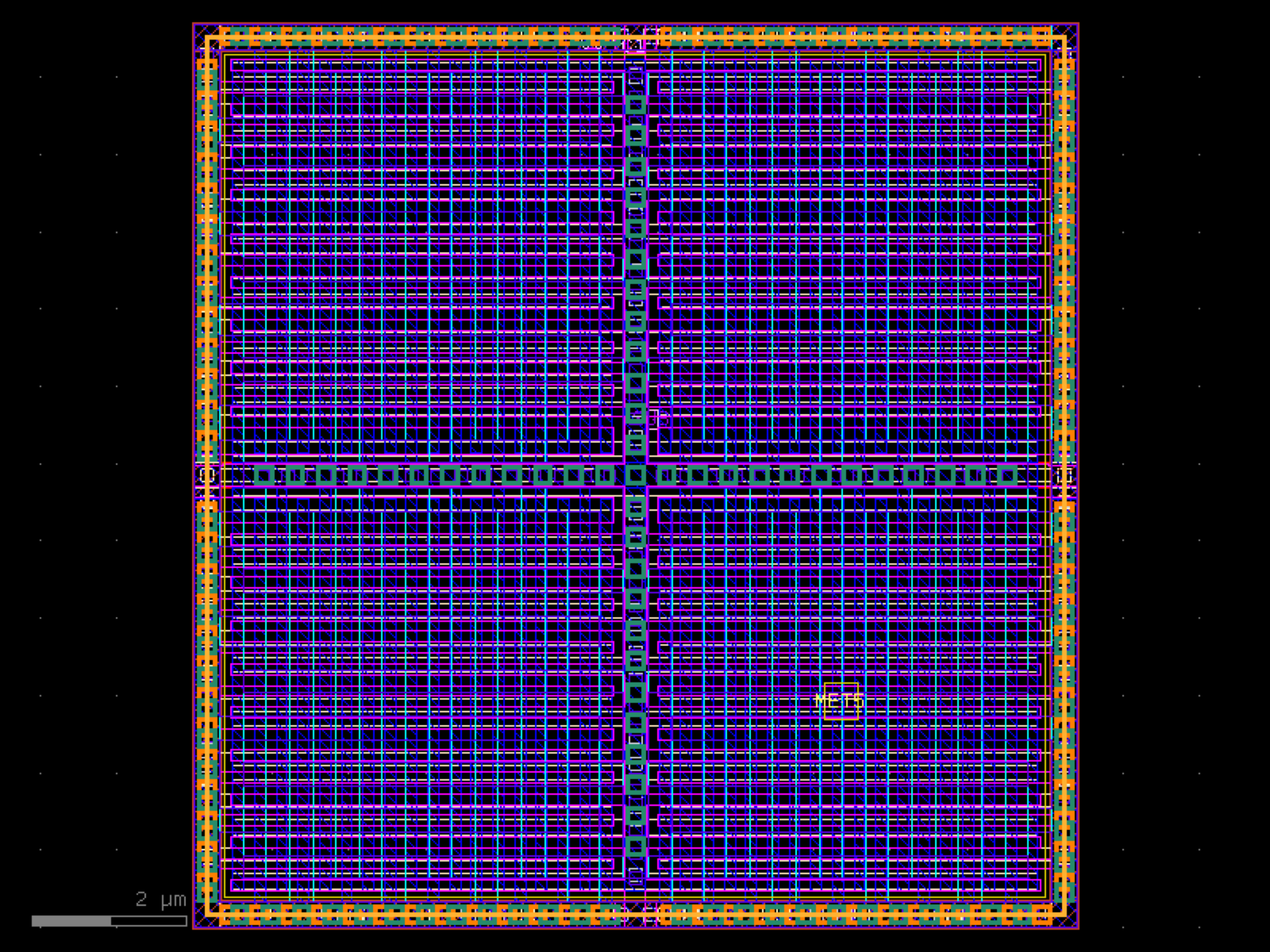

c.plot()

(Source code, png, hires.png, pdf)

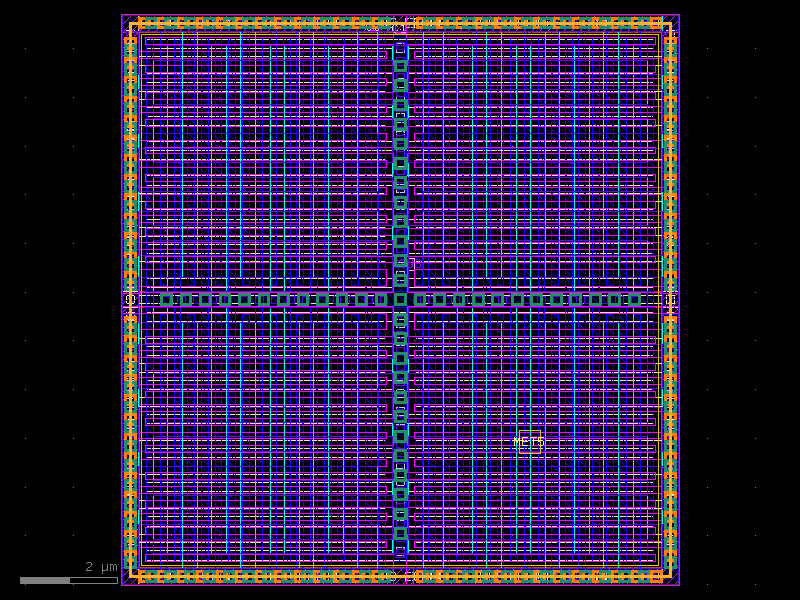

../_images/sky130-cells-sky130_fd_pr__cap_vpp_11p5x11p7_l1m1m2m3m4_shieldpom5_x-1.png
Return type:

Component
