sky130.cells.sky130_fd_pr__cap_vpp_55p8x11p7_pol1m1m2m3m4m5_noshield

sky130.cells.sky130_fd_pr__cap_vpp_55p8x11p7_pol1m1m2m3m4m5_noshield#

sky130.cells.sky130_fd_pr__cap_vpp_55p8x11p7_pol1m1m2m3m4m5_noshield()[source]#

Returns sky130_fd_pr__cap_vpp_55p8x11p7_pol1m1m2m3m4m5_noshield fixed cell.

import sky130

c = sky130.components.sky130_fd_pr__cap_vpp_55p8x11p7_pol1m1m2m3m4m5_noshield()

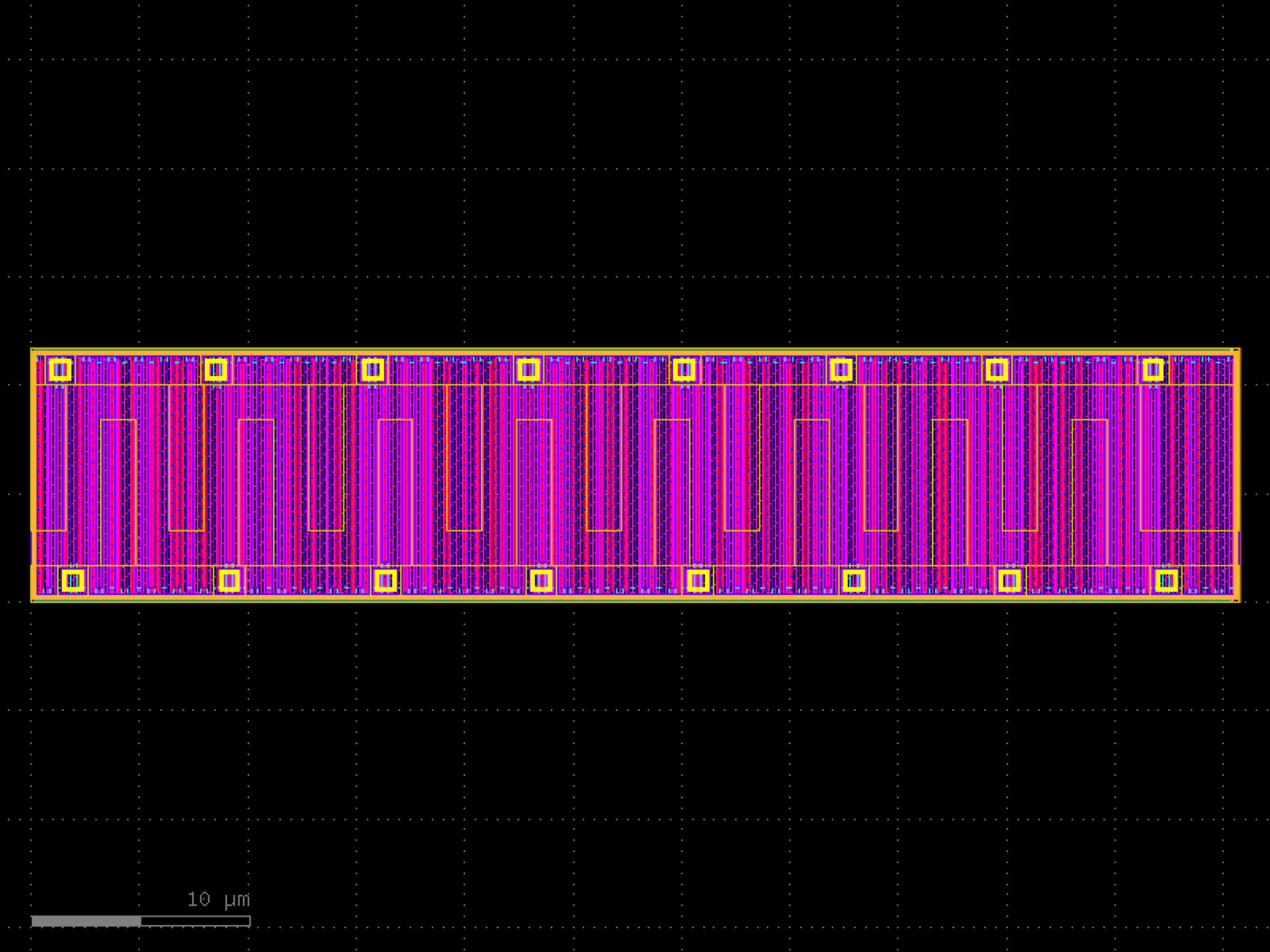

c.plot()

(Source code, png, hires.png, pdf)

../_images/sky130-cells-sky130_fd_pr__cap_vpp_55p8x11p7_pol1m1m2m3m4m5_noshield-1.png
Return type:

Component
