sky130.cells.sky130_fd_pr__rf_nfet_01v8_aM02W3p00L0p18

sky130.cells.sky130_fd_pr__rf_nfet_01v8_aM02W3p00L0p18#

sky130.cells.sky130_fd_pr__rf_nfet_01v8_aM02W3p00L0p18()[source]#

Returns sky130_fd_pr__rf_nfet_01v8_aM02W3p00L0p18 fixed cell.

import sky130

c = sky130.components.sky130_fd_pr__rf_nfet_01v8_aM02W3p00L0p18()

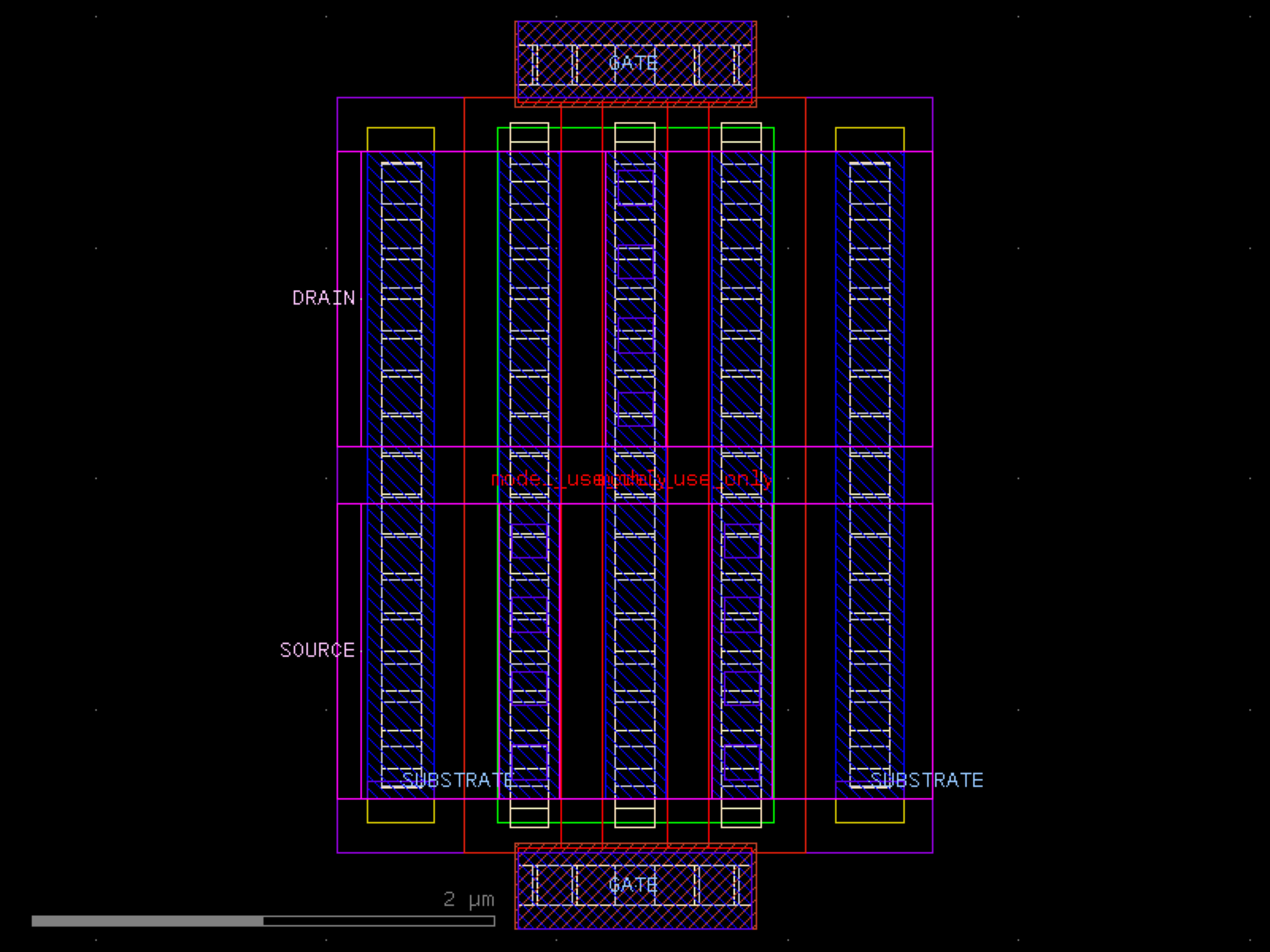

c.plot()

(Source code, png, hires.png, pdf)

../_images/sky130-cells-sky130_fd_pr__rf_nfet_01v8_aM02W3p00L0p18-1.png
Return type:

Component
