sky130.cells.sky130_fd_pr__rf_nfet_g5v0d10v5_aM04W7p00L0p50

sky130.cells.sky130_fd_pr__rf_nfet_g5v0d10v5_aM04W7p00L0p50#

sky130.cells.sky130_fd_pr__rf_nfet_g5v0d10v5_aM04W7p00L0p50()[source]#

Returns sky130_fd_pr__rf_nfet_g5v0d10v5_aM04W7p00L0p50 fixed cell.

import sky130

c = sky130.components.sky130_fd_pr__rf_nfet_g5v0d10v5_aM04W7p00L0p50()

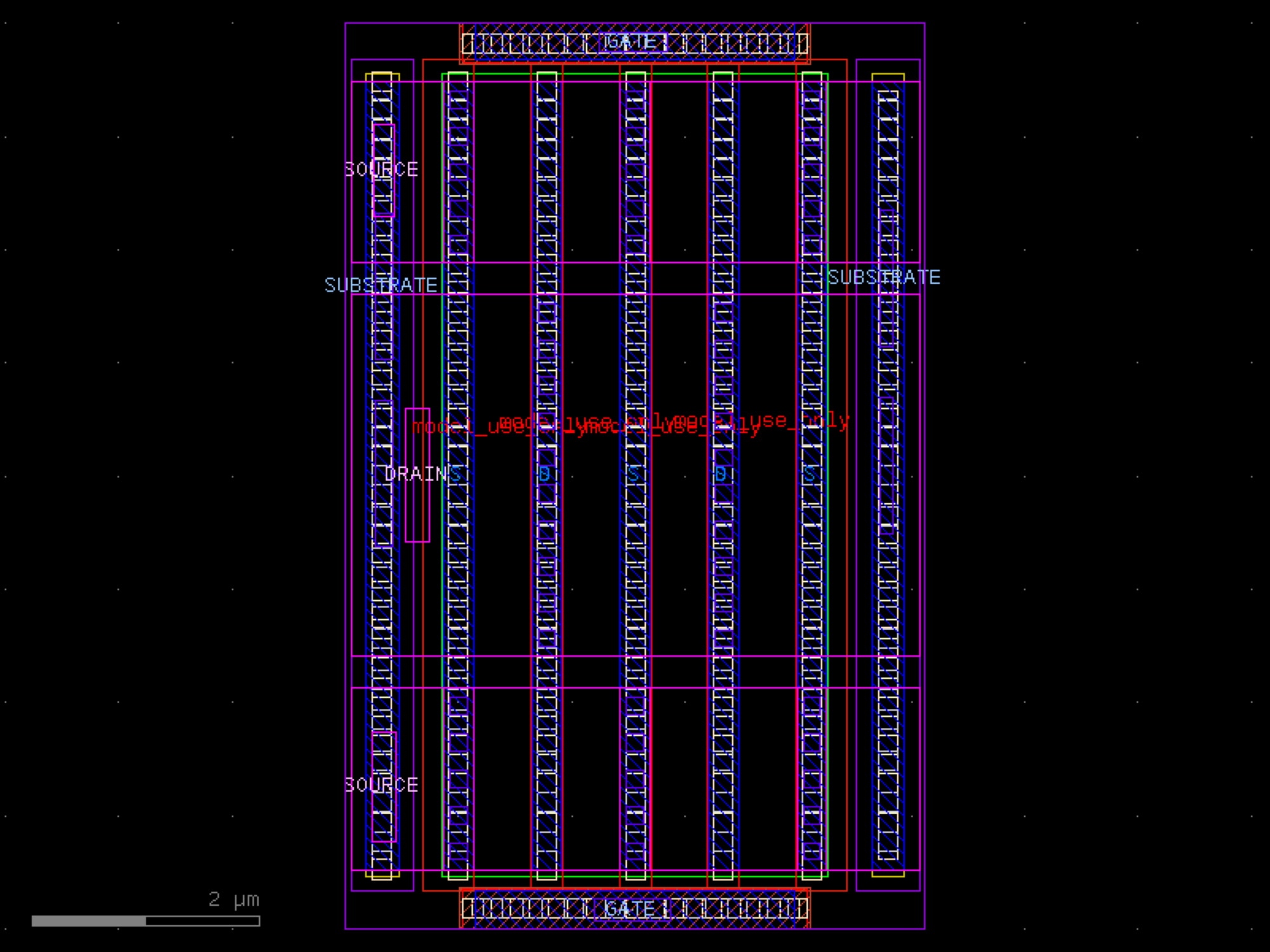

c.plot()

(Source code, png, hires.png, pdf)

../_images/sky130-cells-sky130_fd_pr__rf_nfet_g5v0d10v5_aM04W7p00L0p50-1.png
Return type:

Component
