sky130.pcells.sky130_fd_pr__res_high_po

sky130.pcells.sky130_fd_pr__res_high_po#

sky130.pcells.sky130_fd_pr__res_high_po(res_width=0.35, res_length=0.5)#

Return a high-resistance poly resistor matching Magic VLSI geometry.

Different from generic_po: uses rpmdrawing (86,20), single NPC covering entire poly, solid PSDM, continuous licon contact strips, and different contact region dimensions.

Parameters:

  • res_width (float) – width of the resistor body (W) in um.

  • res_length (float) – length of the resistor body (L) in um.

Return type:

Component

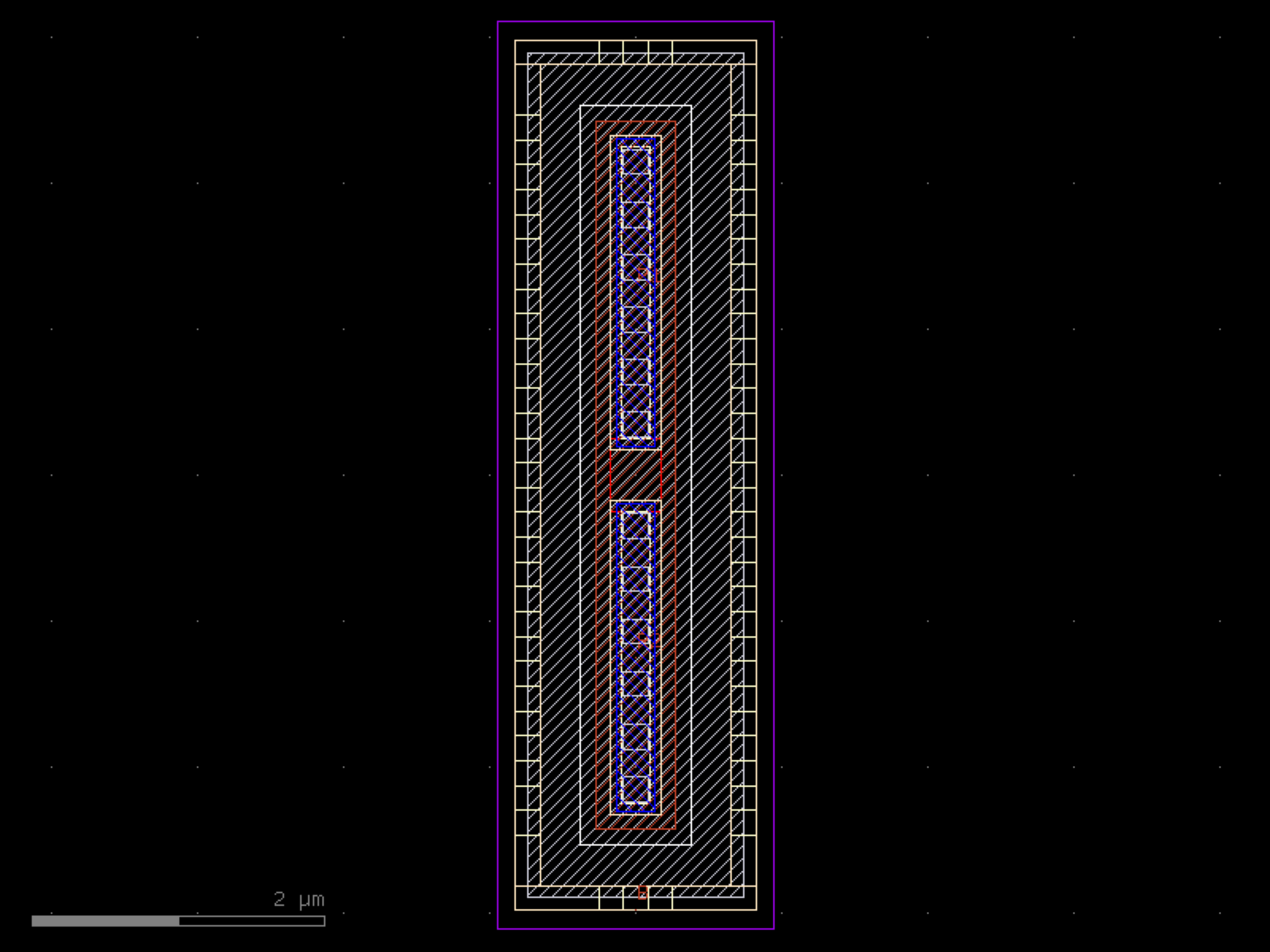

import sky130

c = sky130.pcells.sky130_fd_pr__res_high_po_0p35()
c.plot()

(Source code, png, hires.png, pdf)

../_images/sky130-pcells-sky130_fd_pr__res_high_po-1.png
