sky130.cells.sky130_fd_pr__cap_vpp_08p6x07p8_m1m2m3_shieldl1m5_floatm4

sky130.cells.sky130_fd_pr__cap_vpp_08p6x07p8_m1m2m3_shieldl1m5_floatm4#

sky130.cells.sky130_fd_pr__cap_vpp_08p6x07p8_m1m2m3_shieldl1m5_floatm4()[source]#

Returns sky130_fd_pr__cap_vpp_08p6x07p8_m1m2m3_shieldl1m5_floatm4 fixed cell.

import sky130

c = sky130.components.sky130_fd_pr__cap_vpp_08p6x07p8_m1m2m3_shieldl1m5_floatm4()

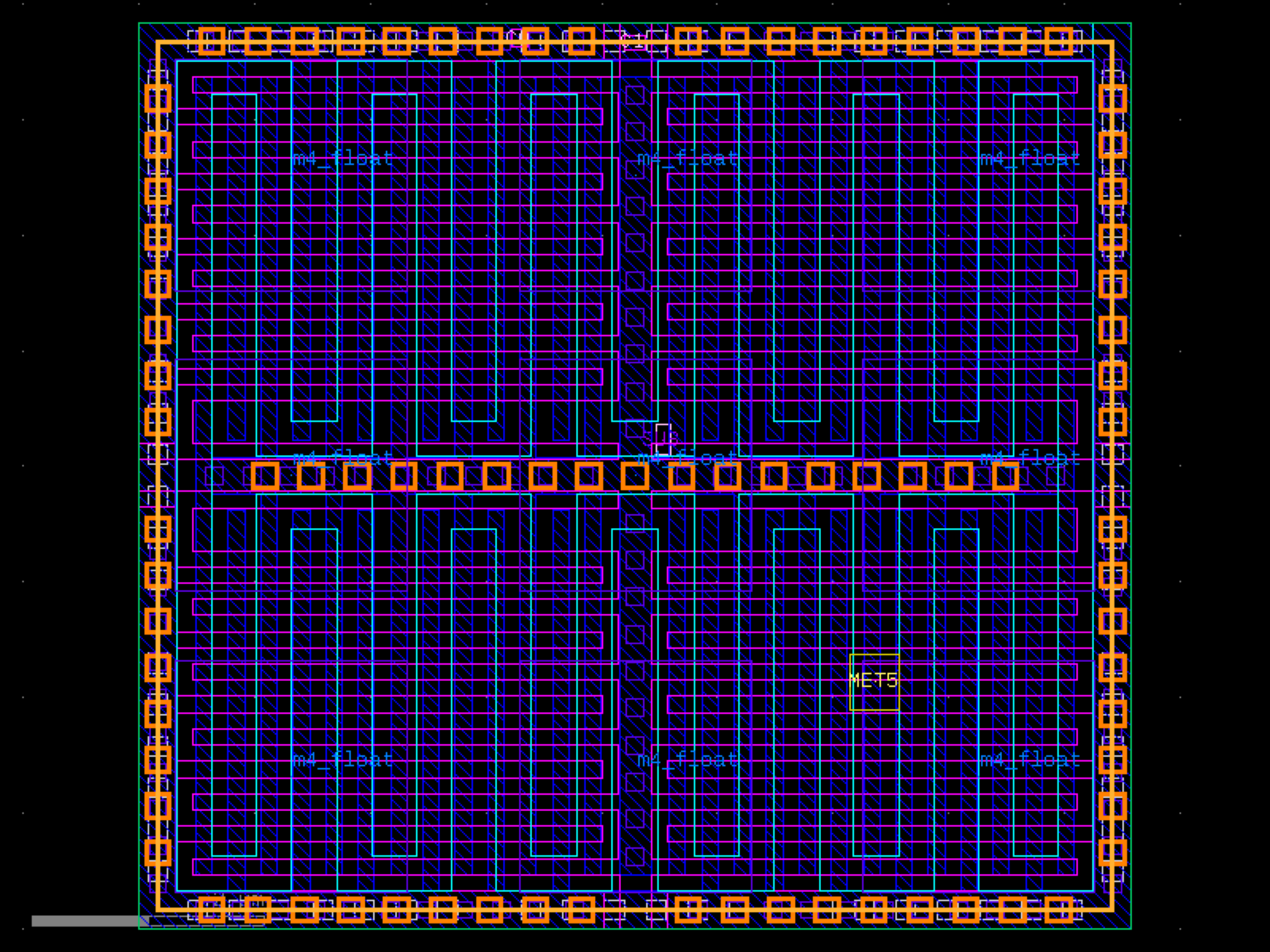

c.plot()

(Source code, png, hires.png, pdf)

../_images/sky130-cells-sky130_fd_pr__cap_vpp_08p6x07p8_m1m2m3_shieldl1m5_floatm4-1.png
Return type:

Component
