sky130.pcells.sky130_fd_pr__cap_mim_m3_2

sky130.pcells.sky130_fd_pr__cap_mim_m3_2#

sky130.pcells.sky130_fd_pr__cap_mim_m3_2(cap_width=2.0, cap_length=2.0)[source]#

MIM capacitor between Metal 4 (bottom plate) and Metal 5 (top plate).

Same asymmetric layout as cap_mim_m3_1 but one metal layer up: cap2m dielectric on the left, bottom-plate pickup on the right.

All geometry is centered at the origin to match Magic’s output.

Parameters:

  • cap_width (float) – X-dimension of the MIM dielectric (cap2m) in um.

  • cap_length (float) – Y-dimension of the MIM dielectric (cap2m) in um.

Return type:

Component

import sky130

c = sky130.pcells.sky130_fd_pr__cap_mim_m3_2()
c.plot()

(Source code, png, hires.png, pdf)

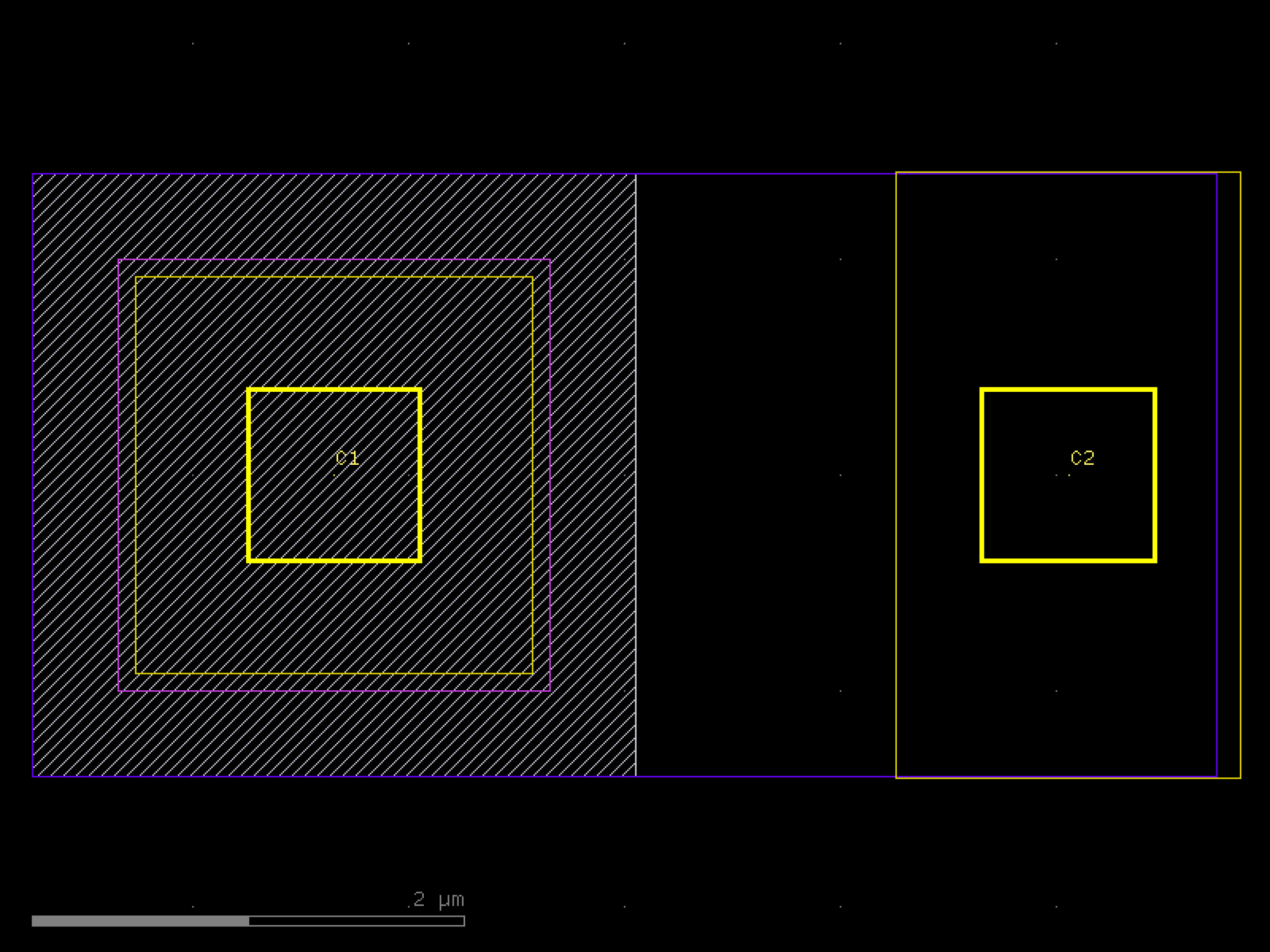

../_images/sky130-pcells-sky130_fd_pr__cap_mim_m3_2-1.png
