Broadband Directional Coupler with GDSFactory FDTD¶

Evaluate a phase-controlled directional coupler designed for a flat 50/50 split over a broad wavelength range.

Requirements: GDSFactory+ cloud simulation access.

You will: build the component, configure the solver, preview the 3D setup, run one cached cloud simulation, and inspect its wavelength response.

1. Build the component¶

import gdsfactory as gf

from gsim import fdtd

gf.gpdk.PDK.activate()
component = gf.components.coupler_broadband(
    radius=5.0,
    bend="bend_circular",
)
component

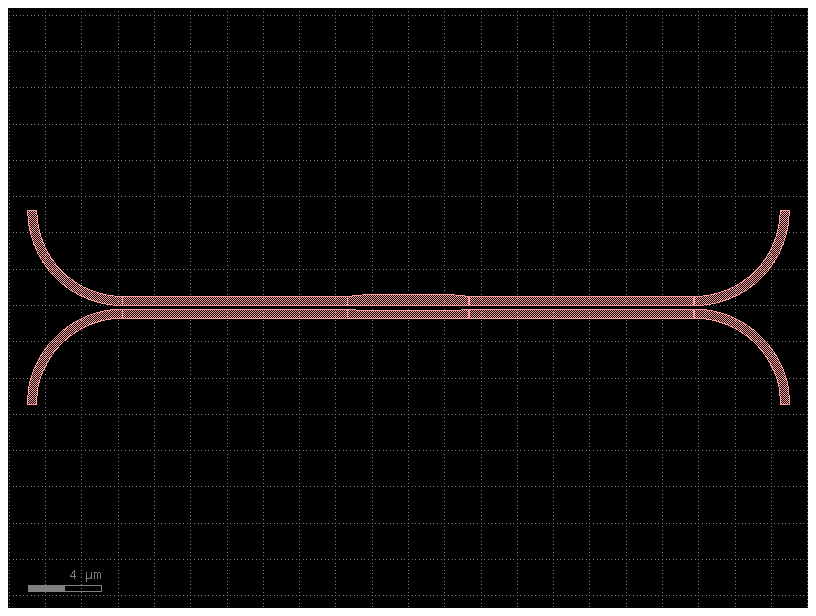

png

2. Configure the simulation¶

simulation = fdtd.Simulation()
simulation.materials(background="SiO2", overrides={"si": 3.4757})
simulation.geometry(component)
simulation.source(
    port="o1",
    wavelength_um=1.55,
    wavelength_span_um=0.1,
    num_wavelengths=101,
)
simulation.domain(padding=1)
simulation.solver(cell_size_nm=60, energy_decay_fraction=1e-5)

Solver(cell_size_nm=60.0, max_timesteps=None, energy_decay_fraction=1e-05, max_wall_seconds=3600.0)

Preview the resolved layer stack, ports, and simulation domain before submitting the job.

simulation.plot_3d()

3488129338.py:1: UserWarning: Material dispersion is not sent to GDSFactory FDTD; these materials use their index at the source wavelength across the 1500 to 1600 nm band: SiO2 (0.1 % permittivity change). materials(dispersion=True) sends dispersive models instead.
  simulation.plot_3d()

3. Run and inspect the result¶

result = simulation.run(check_cache=True)

  fdtd-7525ebc9  [####################] 100%  complete  elapsed 0m 00s


Extracting results.tar.gz...
Downloaded 2 files to sim-data-fdtd-7525ebc9

result.s_parameters.plot_plotly()
