Waveguide Crossing with GDSFactory FDTD

Measure insertion loss and crosstalk for a four-port waveguide crossing.

Requirements: GDSFactory+ cloud simulation access.

You will: build the component, configure the solver, preview the 3D setup, run one cached cloud simulation, and inspect its wavelength response.

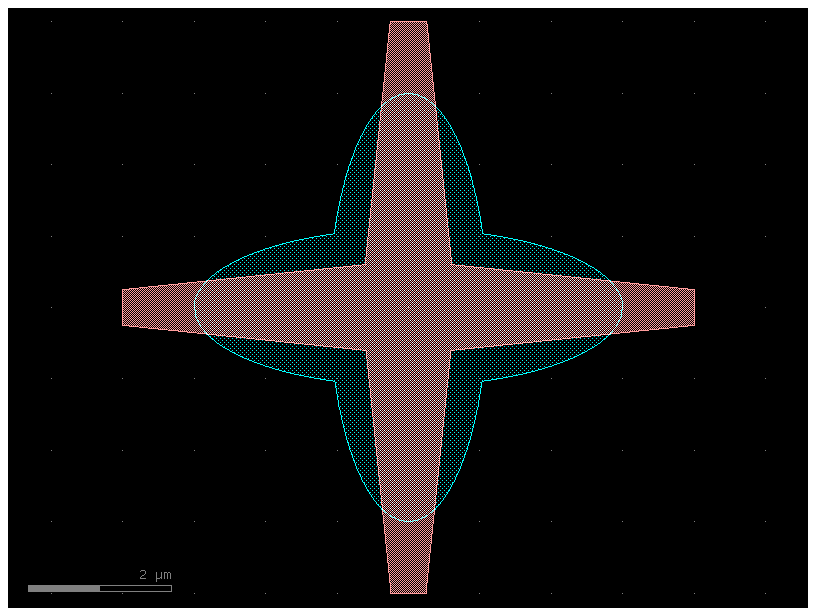

1. Build the component

import gdsfactory as gf

from gsim import fdtd

gf.gpdk.PDK.activate()
component = gf.get_component("crossing")
component

svg

2. Configure the simulation

simulation = fdtd.Simulation()
simulation.materials(background="SiO2", overrides={"si": 3.4757})
simulation.geometry(component)
simulation.source(
    port="o1",
    wavelength_um=1.55,
    wavelength_span_um=0.1,
    num_wavelengths=101,
)
simulation.domain(padding=1)
simulation.solver(cell_size_nm=50, energy_decay_fraction=1e-5)
Solver(cell_size_nm=50.0, max_timesteps=None, energy_decay_fraction=1e-05, max_wall_seconds=3600.0)

Preview the resolved layer stack, ports, and simulation domain before submitting the job.

simulation.plot_3d()
3488129338.py:1: UserWarning: Material dispersion is not sent to GDSFactory FDTD; these materials use their index at the source wavelength across the 1500 to 1600 nm band: SiO2 (0.1 % permittivity change). materials(dispersion=True) sends dispersive models instead.
  simulation.plot_3d()

Inspect the 2D cross-section

View the XY plane at the middle of the 220 nm silicon core. Colors show the real refractive index at the source wavelength; hatched regions mark the PML.

simulation.plot_2d_static(axis="z", position_um=0.11, legend=False);

svg

3. Run and inspect the result

result = simulation.run(check_cache=True)
  fdtd-a09dddcc  [####################]  Job completed  elapsed 0m 00s


Extracting results.tar.gz...
Downloaded 2 files to sim-data-fdtd-a09dddcc
result.s_parameters.plot_plotly()
