Waveguide-to-fiber grating coupler

Launch a guided mode and calculate coupling into a 10° Gaussian fiber mode from saved complex fields.

from math import radians, sin

import gdsfactory as gf
import matplotlib.pyplot as plt
import numpy as np
from matplotlib.colors import SymLogNorm

from gsim import fdtd

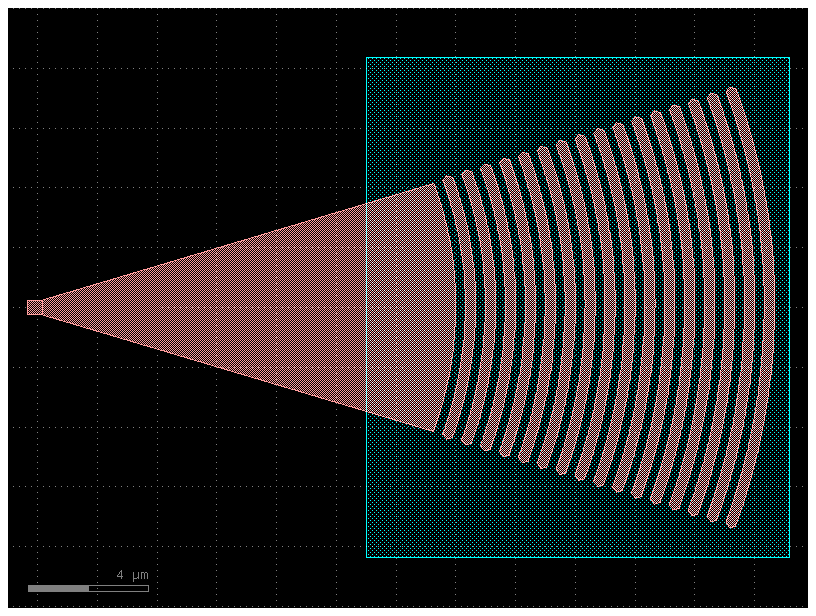

Build the apodized grating

pdk = gf.gpdk.PDK
layer_stack = pdk.layer_stack.model_copy(deep=True)
layer_stack.layers["substrate"].background = True
pdk = pdk.model_copy(update={"name": "generic_soi_grating", "layer_stack": layer_stack})
pdk.activate()
# Apodize the fill fraction and chirp the period across 24 teeth.
position = np.linspace(0.0, 1.0, 24)
fill_fraction = 0.55 + (0.91 - 0.55) * (1 - position) ** 1.8
index_model = 2.732 + 0.35 * (fill_fraction - 0.343 / 0.667)
in_plane_index = 1.443 * sin(radians(10.0))
periods_um = 0.6255 * (2.732 - in_plane_index) / (index_model - in_plane_index)
periods_um *= 1 - 0.01 * (position - 0.5)
widths_um = np.round(periods_um * fill_fraction, 3)
gaps_um = np.round(periods_um - widths_um, 3)

component = gf.Component()
grating = component.add_ref(
    gf.components.grating_coupler_elliptical_arbitrary(
        gaps=tuple(gaps_um),
        widths=tuple(widths_um),
        fiber_angle=10.0,
        taper_length=14.0,
        taper_angle=40.0,
        wavelength=1.554,
        layer_slab="SLAB150",
        taper_to_slab_offset=-3.0,
    )
)
straight = component.add_ref(gf.components.straight(length=3.0))
straight.connect("o2", grating.ports["o1"])
component.add_port("o1", port=straight.ports["o1"])
silicon_layer = pdk.layer_stack.layers["core"]
silicon_middle_um = silicon_layer.zmin + silicon_layer.thickness / 2
silicon_top_um = silicon_layer.zmin + silicon_layer.thickness

Record the fields

Capture tangential E/H above the grating for fiber overlap, guided input power, and Ey along the vertical grating centerline.

fiber_center_x_um, fiber_y_um = 20.5, 0.0
fiber_size_um = (26.0, 26.0, 0.0)
half_aperture_um = 26.0 / 2
simulation = fdtd.Simulation(pdk=pdk)
simulation.materials(background="sio2", overrides={"si": 3.47, "sio2": 1.443})
simulation.geometry(component, mesh_size_nm=500, geometry_tolerance_nm=20.0)
simulation.source(
    port="o1", wavelength_um=1.554, wavelength_span_um=0.1, num_wavelengths=101
)
simulation.monitors.add_plane(
    name="radiation",
    center_um=(fiber_center_x_um, fiber_y_um, 1.05),
    size_um=fiber_size_um,
    normal="+z",
    flux=True,
    fields=fdtd.Fields(components=["ex", "ey", "hx", "hy"]),
)
simulation.monitors.add_plane(
    name="input_power",
    center_um=(
        component.xmin + 1.5,
        float(component.ports["o1"].center[1]),
        silicon_middle_um,
    ),
    size_um=(
        0.0,
        float(component.ports["o1"].width) + 2 * 0.5,
        silicon_layer.thickness + 2 * 0.5,
    ),
    normal="+x",
    flux=True,
)
grating_x_bounds = (component.xmin, component.xmax + 0.5)
side_z_bounds = (-4.0, 1.55)
simulation.monitors.add_plane(
    name="grating_side",
    center_um=(
        sum(grating_x_bounds) / 2,
        fiber_y_um,
        sum(side_z_bounds) / 2,
    ),
    size_um=(
        grating_x_bounds[1] - grating_x_bounds[0],
        0.0,
        side_z_bounds[1] - side_z_bounds[0],
    ),
    normal="+y",
    flux=False,
    fields=fdtd.Fields(components=["ey"], wavelengths_um=[1.55]),
)
simulation.domain(
    padding=0.5,
    x_bounds=(
        component.xmin,
        max(component.xmax, fiber_center_x_um + half_aperture_um) + 0.5,
    ),
    y_bounds=(
        min(component.ymin, fiber_y_um - half_aperture_um) - 0.5,
        max(component.ymax, fiber_y_um + half_aperture_um) + 0.5,
    ),
    z_bounds=side_z_bounds,
    pml_cells=16,
    clip_geometry=True,
)
simulation.solver(cell_size_nm=50, energy_decay_fraction=0.0004);
api.py:88: GeometryClippingWarning: Explicit domain bounds trim or omit material geometry on layers: core (x). Enlarge the bounds to retain this material.
  return self._resolver() if self._resolver is not None else self
3409209938.py:48: DeprecationWarning: clip_geometry is deprecated. Its default remains False in 0.10.0: explicit bounds must contain the geometry unless clip_geometry=True. Automatic clipping and removal target 0.12.0 or later, and only after two feature releases and at least 12 months since the first released warning in 0.10.0. Keep the switch wherever clipping is required until then.
  simulation.domain(
simulation.plot_3d()
workflow.py:471: GeometryClippingWarning: Explicit domain bounds trim or omit material geometry on layers: substrate (z), core (x). Enlarge the bounds to retain this material.
  resolved = self._resolve_geometry()

Check the cross-section

Check source and monitor placement; the Z scale is stretched to resolve the thin silicon, and hatched regions mark PML.

simulation.plot_2d_static(axis="y", position_um=fiber_y_um, legend=False, aspect="auto")
<Axes: title={'center': 'FDTD · y = 0 µm'}, xlabel='x (µm)', ylabel='z (µm)'>

svg

Run and calculate fiber coupling

The model retains the 3 µm buried oxide and silicon substrate; check mesh and domain convergence before relying on efficiency values.

For the uniform, lossless single-mode input lead, P_incident = P_net / (1 - |S11|²). The small helper below projects the +Z radiation plane onto a Y-polarized Gaussian, including diffraction and phase curvature. Its complex amplitude retains the simulation phase reference; CE is |amplitude|² / P_incident.

result = simulation.run(check_cache=True)
assert result.convergence["converged"], "Increase run duration to reach convergence."
  fdtd-83e0f852  [####################]  Job completed  elapsed 0m 00s


Extracting results.tar.gz...


Downloaded 812 files to sim-data-fdtd-83e0f852
def fiber_coupling(
    plane,
    wavelength_um,
    incident_power,
    focus_um,
    tilt_deg=10.0,
    waist_um=5.0,
    refractive_index=1.443,
):
    """Complex overlap and CE for a Y-polarized Gaussian on the +Z XY plane."""
    ey = plane.field("ey", wavelength_um=wavelength_um)
    hx = plane.field("hx", wavelength_um=wavelength_um)
    if not all(
        np.isclose(f.wavelength_um, wavelength_um, rtol=1e-10, atol=0) for f in (ey, hx)
    ):
        raise ValueError("Requested wavelength was not captured")
    coordinates = ey.coordinates
    x, y = np.meshgrid(coordinates.u_um - focus_um[0], coordinates.v_um - focus_um[1])
    z = coordinates.normal_position_um - focus_um[2]
    angle = np.deg2rad(tilt_deg)
    axial = np.sin(angle) * x + np.cos(angle) * z
    radius_squared = np.maximum(x * x + y * y + z * z - axial * axial, 0)
    k = 2 * np.pi * refractive_index / wavelength_um
    rayleigh = k * waist_um**2 / 2
    # The complex beam factor includes diffraction, curvature and Gouy phase.
    q = 1 - 1j * axial / rayleigh
    gaussian = np.exp(-1j * k * axial - radius_squared / (waist_um**2 * q)) / q
    density = gaussian.conj() * (
        refractive_index * np.cos(angle) * ey.load() - hx.load()
    )
    length_um = ey.metadata["solver_time_unit_seconds"] * 299792458.0 * 1e6
    integral = np.trapezoid(
        np.trapezoid(density, x=coordinates.u_um / length_um, axis=1),
        x=coordinates.v_um / length_um,
    )
    mode_power = np.pi * refractive_index * (waist_um / length_um) ** 2 / 4
    amplitude = integral / (4 * np.sqrt(mode_power))
    return amplitude, abs(amplitude) ** 2 / incident_power
source_port = result.excited_port
reflection = result.s_parameters[(source_port, source_port)].values
incident_power = np.full_like(result.wavelength_um, np.nan)
incident_power[result.valid] = result.monitors["input_power"].flux[result.valid] / (
    1 - np.abs(reflection[result.valid]) ** 2
)
assert np.all(
    np.isfinite(incident_power[result.valid]) & (incident_power[result.valid] > 0)
)
fiber_focus_um = (
    fiber_center_x_um - 0.8,
    fiber_y_um,
    silicon_top_um,
)
fiber_amplitude = np.full_like(result.wavelength_um, np.nan, dtype=complex)
efficiency = np.full_like(result.wavelength_um, np.nan)
for index in np.flatnonzero(result.valid):
    fiber_amplitude[index], efficiency[index] = fiber_coupling(
        result.monitors["radiation"],
        result.wavelength_um[index],
        incident_power[index],
        fiber_focus_um,
    )
coupling = fdtd.CouplingEfficiencyResult(
    label="Fiber",
    wavelength_um=result.wavelength_um,
    efficiency=efficiency,
    valid=result.valid,
)
coupling.plot_plotly(db=False)

Grating fields

View Re(Ey) at 1.550 µm along the grating centerline at y = 0.00 µm. The symmetric logarithmic color scale shows the signed field, with material boundaries drawn over it.

plane = result.monitors["grating_side"]
sample = plane.field("ey", wavelength_um=1.55)
if not np.isclose(sample.wavelength_um, 1.55, rtol=1e-10, atol=0):
    raise ValueError("Ey was not captured at 1.550 µm")
coordinates = sample.coordinates
# Put physical X horizontally and Z vertically using the recorded axis labels.
electric = sample.load()
x, z = coordinates.u_um, coordinates.v_um
if plane.u_axis.lower() == "z":
    electric = electric.T
    x, z = z, x
peak_field = np.max(np.abs(electric))
field_values = electric.real / peak_field
field_norm = SymLogNorm(linthresh=0.03, vmin=-1, vmax=1)
figure, axis = plt.subplots(figsize=(8, 3), layout="constrained")
image = axis.pcolormesh(
    x, z, field_values, shading="auto", cmap="RdBu_r", norm=field_norm, rasterized=True
)
axis.set(
    title=f"Re(Ey) at λ = {sample.wavelength_um:.3f} µm",
    xlabel="X (µm)",
    ylabel="Z (µm)",
    xlim=(x[0], x[-1]),
    ylim=(z[0], z[-1]),
)
colorbar = figure.colorbar(image, ax=axis, label="Normalized Re(Ey)", shrink=0.8)
colorbar.set_ticks(
    [
        tick
        for tick in colorbar.get_ticks()
        if tick == 0 or field_norm.linthresh <= abs(tick) <= 1
    ]
)
simulation.plot_2d_static(
    axis="y", position_um=coordinates.normal_position_um, ax=axis, outline_only=True
)
plt.show()

svg

Fiber alignment tolerance

Sweep position and tilt around the receiver used for the coupling spectrum; each curve varies one parameter at 1.550 µm. Dotted lines mark that receiver setting.

reference_index = int(np.argmin(abs(result.wavelength_um - 1.55)))


def alignment_ce_percent(x_shift_um=0.0, y_shift_um=0.0, tilt_deg=10.0):
    """Vary one receiver setting at the operating wavelength."""
    focus = (
        fiber_focus_um[0] + x_shift_um,
        fiber_focus_um[1] + y_shift_um,
        fiber_focus_um[2],
    )
    _, ce = fiber_coupling(
        result.monitors["radiation"],
        1.55,
        incident_power[reference_index],
        focus,
        tilt_deg=tilt_deg,
    )
    return 100 * ce


displacements_um = np.linspace(-5.0, 5.0, 41)
tilt_offsets_deg = np.linspace(-5.0, 5.0, 81)
tilt_angles_deg = 10.0 + tilt_offsets_deg
x_ce_percent = [alignment_ce_percent(x_shift_um=shift) for shift in displacements_um]
y_ce_percent = [alignment_ce_percent(y_shift_um=shift) for shift in displacements_um]
tilt_ce_percent = [alignment_ce_percent(tilt_deg=angle) for angle in tilt_angles_deg]
figure, axes = plt.subplots(1, 3, sharey=True, layout="constrained", figsize=(8, 3))
for axis, values, efficiency, label, nominal in zip(
    axes,
    (displacements_um, displacements_um, tilt_offsets_deg),
    (x_ce_percent, y_ce_percent, tilt_ce_percent),
    ("X displacement (µm)", "Y displacement (µm)", "Fiber tilt offset (°)"),
    (0.0, 0.0, 0.0),
    strict=True,
):
    axis.plot(values, efficiency)
    axis.axvline(nominal, color="0.5", linestyle=":", linewidth=1)
    axis.set(xlabel=label, xlim=(values[0], values[-1]))
    axis.set_xticks(np.linspace(values[0], values[-1], 5))
    axis.grid(alpha=0.2)
axes[0].set_ylim(0, 1.05 * max([*x_ce_percent, *y_ce_percent, *tilt_ce_percent]))
axes[0].set_ylabel("Coupling efficiency (%)")
figure.suptitle("Fiber alignment at λ = 1.550 µm")
plt.show()

svg
