Finite-element mode solver#
You can mesh any component cross-section and solve the PDEs thanks to femwell mode - solver.
Unlike other mode solvers, this actually uses the component geometry instead of a hardcoded geometry.
You can directly compute the modes of a Gdsfactory cross-section (internally, it defines a “uz” mesh perpendicular to a straight component with the provided cross-section).
You can also downsample layers from the LayerStack, and modify both the cross-section and LayerStack prior to simulation to change the geometry. You can also define refractive indices on the active PDK.
import logging
import sys
import gdsfactory as gf
import matplotlib.pyplot as plt
import numpy as np
from gdsfactory.cross_section import rib
from gdsfactory.generic_tech import LAYER_STACK, get_generic_pdk
from gdsfactory.technology import LayerStack
from rich.logging import RichHandler
from tqdm.auto import tqdm
from gplugins.femwell.mode_solver import compute_cross_section_modes
gf.config.rich_output()
PDK = get_generic_pdk()
PDK.activate()
logger = logging.getLogger()
logger.removeHandler(sys.stderr)
logging.basicConfig(level="WARNING", datefmt="[%X]", handlers=[RichHandler()])
filtered_layer_stack = LayerStack(
layers={
k: LAYER_STACK.layers[k]
for k in (
"core",
"clad",
"slab90",
"box",
# "substrate",
)
}
)
filtered_layer_stack.layers["core"].thickness = (
0.22 # Perturb the layer_stack before simulating
)
filtered_layer_stack.layers["slab90"].thickness = (
0.09 # Perturb the layer_stack before simulating
)
resolutions = {
"core": {"resolution": 0.02, "distance": 1, "SizeMax": 0.2},
# "clad": {"resolution": 0.2, "distance": 1},
# "box": {"resolution": 0.2, "distance": 1},
# "slab90": {"resolution": 0.05, "distance": 1},
}
modes = compute_cross_section_modes(
cross_section=rib(width=0.6),
layer_stack=filtered_layer_stack,
wavelength=1.55,
num_modes=1,
resolutions=resolutions,
n_guess=2.630929889650573,
)
Info : [ 0%] Difference
Info : [ 10%] Difference
Info : [ 20%] Difference - Performing Vertex-Face intersection
Info : [ 30%] Difference
Info : [ 40%] Difference
Info : [ 50%] Difference
Info : [ 60%] Difference
Info : [ 70%] Difference - Filling splits of edges
Info : [ 80%] Difference - Making faces
Info : [ 90%] Difference
Info : [ 0%] Fragments
Info : [ 10%] Fragments
Info : [ 20%] Fragments
Info : [ 30%] Fragments
Info : [ 40%] Fragments
Info : [ 50%] Fragments
Info : [ 60%] Fragments
Info : [ 70%] Fragments - Filling splits of edges
Info : [ 80%] Fragments - Splitting faces
Info : [ 0%] Difference
Info : [ 10%] Difference
Info : [ 20%] Difference
Info : [ 30%] Difference
Info : [ 40%] Difference
Info : [ 50%] Difference
Info : [ 60%] Difference
Info : [ 70%] Difference - Filling splits of edges
Info : [ 80%] Difference - Splitting faces
Info : [ 0%] Fragments
Info : [ 10%] Fragments
Info : [ 20%] Fragments
Info : [ 30%] Fragments
Info : [ 40%] Fragments
Info : [ 50%] Fragments
Info : [ 60%] Fragments
Info : [ 70%] Fragments
Info : [ 80%] Fragments - Splitting faces
Info : [ 0%] Difference
Info : [ 10%] Difference
Info : [ 20%] Difference
Info : [ 30%] Difference
Info : [ 40%] Difference - Repeat intersection
Info : [ 50%] Difference
Info : [ 60%] Difference
Info : [ 70%] Difference - Filling splits of edges
Info : [ 80%] Difference - Making faces
Info : [ 90%] Difference
Info : [ 0%] Fragments
Info : [ 10%] Fragments
Info : [ 20%] Fragments
Info : [ 30%] Fragments
Info : [ 40%] Fragments
Info : [ 50%] Fragments
Info : [ 60%] Fragments
Info : [ 70%] Fragments
Info : [ 80%] Fragments - Splitting faces
Info : Meshing 1D...
Info : [ 0%] Meshing curve 7 (Line)
Info : [ 0%] Meshing curve 9 (Line)
Info : [ 0%] Meshing curve 8 (Line)
Info : [ 0%] Meshing curve 11 (Line)
Info : [ 0%] Meshing curve 10 (Line)
Info : [ 10%] Meshing curve 12 (Line)
Info : [ 20%] Meshing curve 13 (Line)
Info : [ 20%] Meshing curve 14 (Line)
Info : [ 20%] Meshing curve 15 (Line)
Info : [ 20%] Meshing curve 16 (Line)
Info : [ 20%] Meshing curve 17 (Line)
Info : [ 20%] Meshing curve 18 (Line)
Info : [ 20%] Meshing curve 19 (Line)
Info : [ 20%] Meshing curve 20 (Line)
Info : [ 20%] Meshing curve 21 (Line)
Info : [ 20%] Meshing curve 22 (Line)
Info : [ 20%] Meshing curve 23 (Line)
Info : [ 20%] Meshing curve 24 (Line)
Info : [ 20%] Meshing curve 25 (Line)
Info : [ 20%] Meshing curve 26 (Line)
Info : [ 20%] Meshing curve 27 (Line)
Info : [ 20%] Meshing curve 28 (Line)
Info : Done meshing 1D (Wall 0.0199215s, CPU 0.059347s)
Info : Meshing 2D...
Info : [ 0%] Meshing surface 3 (Plane, Frontal-Delaunay)
Info : [ 0%] Meshing surface 2 (Plane, Frontal-Delaunay)
Info : [ 0%] Meshing surface 4 (Plane, Frontal-Delaunay)
Info : [ 0%] Meshing surface 1 (Plane, Frontal-Delaunay)
Info : [ 0%] Meshing surface 5 (Plane, Frontal-Delaunay)
Info : Done meshing 2D (Wall 0.0248362s, CPU 0.081214s)
Info : 1832 nodes 3850 elements
Info : Writing 'mesh.msh'...
Info : Done writing 'mesh.msh'
Info : Writing '/tmp/tmpx8zt23s6/mesh.msh'...
Info : Done writing '/tmp/tmpx8zt23s6/mesh.msh'
2024-05-10 10:17:01.077 | WARNING | gdsfactory.pdk:get_material_index:576 - UserWarning: get_material_index is deprecated
The solver returns the list of modes
mode = modes[0]

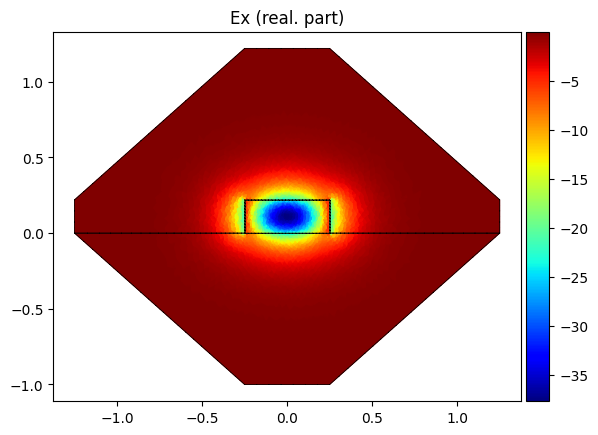

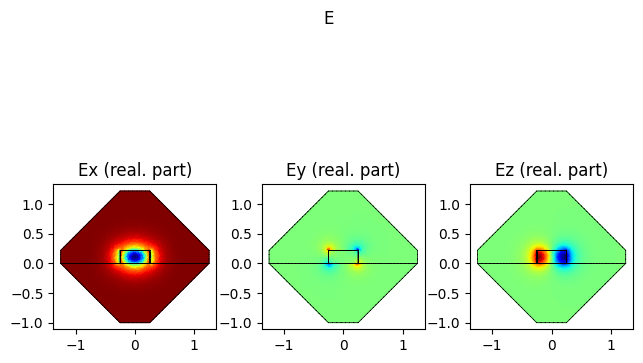

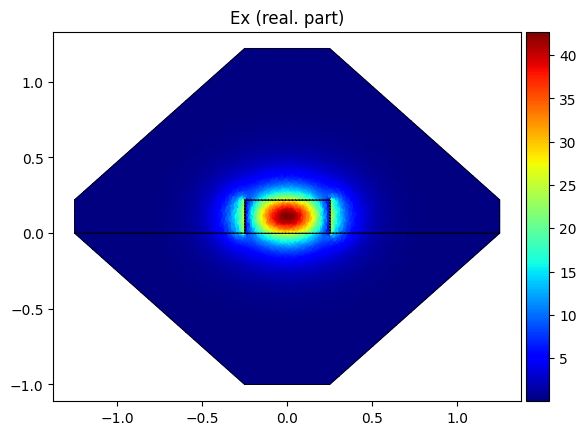

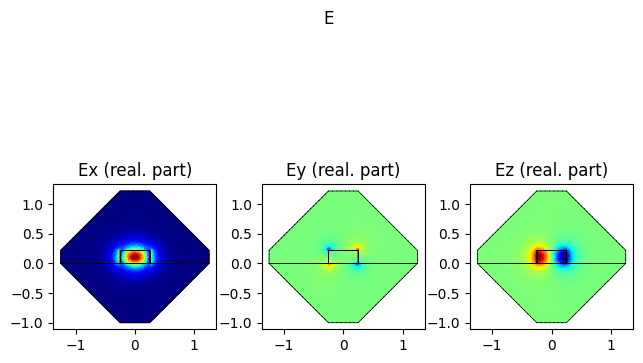

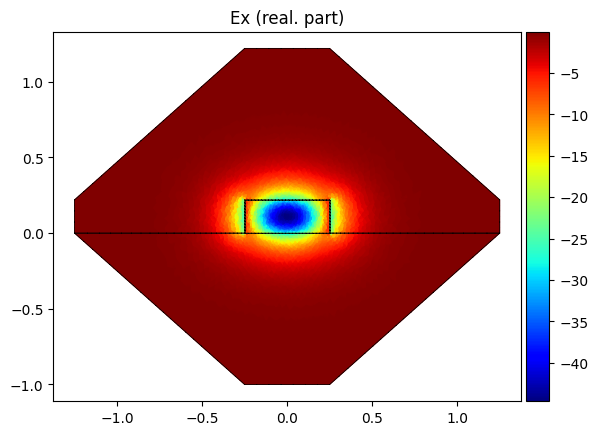

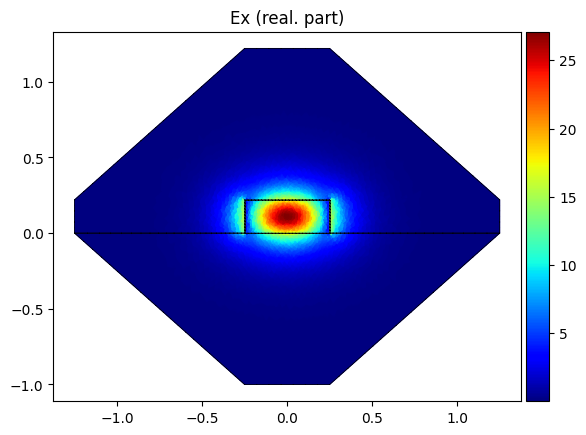

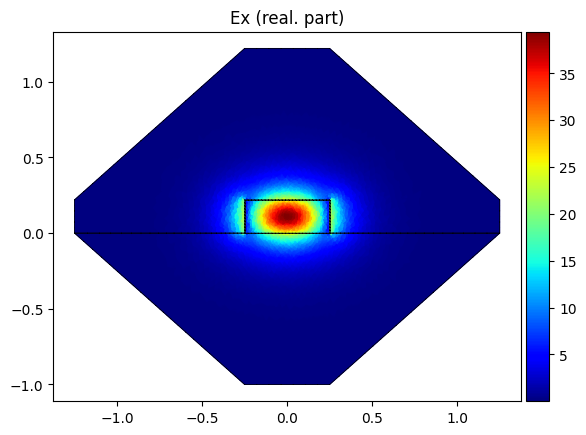

mode.show(mode.E.real, colorbar=True, direction="x")
2024-05-10 10:17:01.567 | WARNING | __main__:<module>:2 - DeprecationWarning: The behavior of passing an array directly to `show` is deprecated and will be removed in the future. Use `plot` instead.
You can use them as inputs to other femwell mode solver functions to inspect or analyze the modes:
print(modes[0].te_fraction)
0.9899657967247257
print(modes[0].n_eff)
(2.630968147813325-4.04220516129551e-20j)

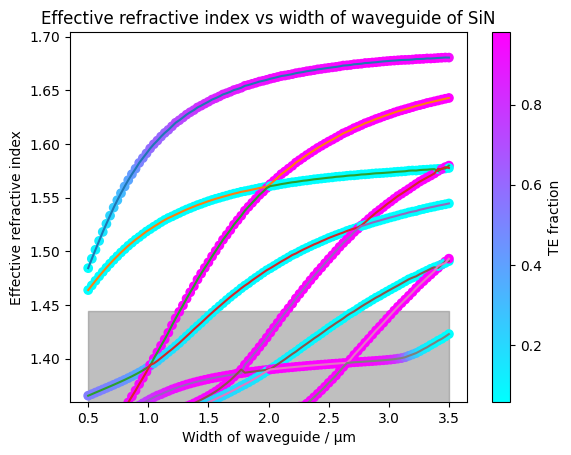

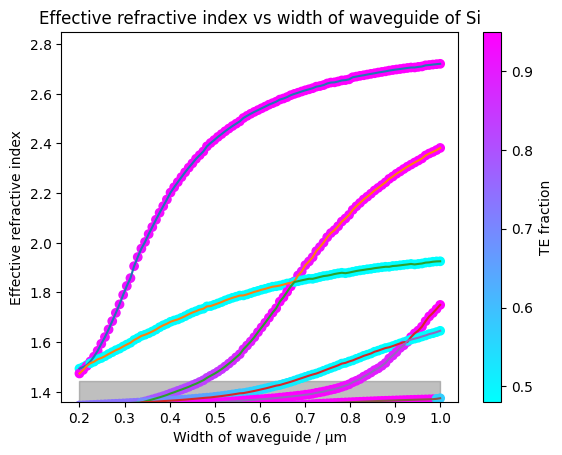

Sweep waveguide width#
widths = np.linspace(0.2, 2, 10)
num_modes = 4
all_neffs = np.zeros((widths.shape[0], num_modes))
all_te_fracs = np.zeros((widths.shape[0], num_modes))
for i, width in enumerate(tqdm(widths)):
modes = compute_cross_section_modes(
cross_section=gf.cross_section.strip(width=width),
layer_stack=filtered_layer_stack,
wavelength=1.55,
num_modes=num_modes,
resolutions=resolutions,
wafer_padding=2,
solver="scipy",
)
all_neffs[i] = np.real([mode.n_eff for mode in modes])
all_te_fracs[i, :] = [mode.te_fraction for mode in modes]
