2D meshing: xy cross-section

2D meshing: xy cross-section#

You can supply the argument type="xy" and a z-value, to mesh arbitrary Component planar cross-sections.

import gdsfactory as gf
import meshio
from gdsfactory.generic_tech import get_generic_pdk
from gdsfactory.pdk import get_layer_stack
from gdsfactory.technology import LayerStack
from skfem.io import from_meshio

from gplugins.gmsh.get_mesh import create_physical_mesh, get_mesh

gf.config.rich_output()
PDK = get_generic_pdk()
PDK.activate()

waveguide = gf.components.straight_pin(length=10, taper=None)
waveguide.plot()

../_images/d9e8391957e447318bedd30f32d4c9c15c5257dcbfb1ef695f71a558add312ae.png
filtered_layer_stack = LayerStack(
    layers={
        k: get_layer_stack().layers[k]
        for k in (
            "slab90",
            "core",
            "via_contact",
        )
    }
)
filename = "mesh"


def mesh_with_physicals(mesh, filename):
    mesh_from_file = meshio.read(f"{filename}.msh")
    return create_physical_mesh(mesh_from_file, "triangle")

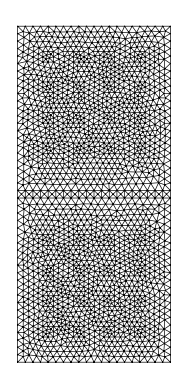

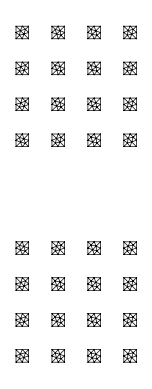

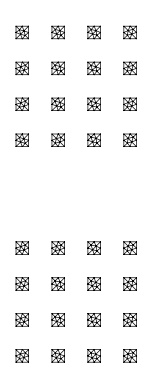

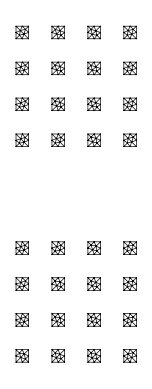

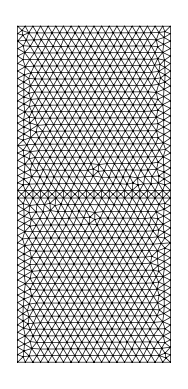

At z=0.09 um, according to the layer stack above we should see polygons from all three layers:

filename = "mesh"
mesh = get_mesh(
    component=waveguide,
    type="xy",
    z=0.09,
    layer_stack=filtered_layer_stack,
    filename=f"{filename}.msh",
)
mesh = mesh_with_physicals(mesh, filename)
mesh = from_meshio(mesh)
mesh.draw().plot()
Info    : [  0%] Union
Info    : [ 10%] Union - Performing intersection of shapes
Info    : [ 80%] Union - Building splits of containers

Info    : [  0%] Difference
Info    : [ 10%] Difference
Info    : [ 20%] Difference
Info    : [ 30%] Difference
Info    : [ 40%] Difference
Info    : [ 50%] Difference
Info    : [ 60%] Difference
Info    : [ 70%] Difference - Filling splits of edges
Info    : [ 80%] Difference - Making faces
Info    : [ 90%] Difference - Adding holes

Info    : [  0%] Fragments
Info    : [ 10%] Fragments
Info    : [ 20%] Fragments
Info    : [ 30%] Fragments
Info    : [ 40%] Fragments
Info    : [ 50%] Fragments
Info    : [ 60%] Fragments
Info    : [ 70%] Fragments - Building splits of containers
Info    : [ 80%] Fragments - Splitting faces
Info    : [  0%] Difference
Info    : [ 10%] Difference
Info    : [ 20%] Difference
Info    : [ 30%] Difference
Info    : [ 40%] Difference
Info    : [ 50%] Difference
Info    : [ 60%] Difference
Info    : [ 70%] Difference - Filling splits of edges
Info    : [ 80%] Difference - Making faces
Info    : [ 90%] Difference - Adding holes
Info    : [  0%] Fragments
Info    : [ 10%] Fragments
Info    : [ 20%] Fragments
Info    : [ 30%] Fragments
Info    : [ 40%] Fragments
Info    : [ 50%] Fragments
Info    : [ 60%] Fragments
Info    : [ 70%] Fragments - Building splits of containers
Info    : [ 80%] Fragments - Splitting faces
Info    : Meshing 1D...
Info    : [  0%] Meshing curve 3 (Line)
Info    : [  0%] Meshing curve 2 (Line)
Info    : [  0%] Meshing curve 4 (Line)
Info    : [ 10%] Meshing curve 5 (Line)
Info    : [ 10%] Meshing curve 6 (Line)
Info    : [ 10%] Meshing curve 7 (Line)
Info    : [ 10%] Meshing curve 8 (Line)
Info    : [ 10%] Meshing curve 9 (Line)
Info    : [ 10%] Meshing curve 10 (Line)
Info    : [ 10%] Meshing curve 11 (Line)
Info    : [ 10%] Meshing curve 12 (Line)
Info    : [ 10%] Meshing curve 13 (Line)
Info    : [ 10%] Meshing curve 14 (Line)
Info    : [ 10%] Meshing curve 15 (Line)
Info    : [ 10%] Meshing curve 16 (Line)
Info    : [ 10%] Meshing curve 17 (Line)
Info    : [ 10%] Meshing curve 18 (Line)
Info    : [ 10%] Meshing curve 19 (Line)
Info    : [  0%] Meshing curve 1 (Line)
Info    : [ 20%] Meshing curve 20 (Line)
Info    : [ 20%] Meshing curve 21 (Line)
Info    : [ 20%] Meshing curve 22 (Line)
Info    : [ 20%] Meshing curve 23 (Line)
Info    : [ 20%] Meshing curve 24 (Line)
Info    : [ 20%] Meshing curve 25 (Line)
Info    : [ 20%] Meshing curve 26 (Line)
Info    : [ 20%] Meshing curve 27 (Line)
Info    : [ 20%] Meshing curve 28 (Line)
Info    : [ 20%] Meshing curve 29 (Line)
Info    : [ 20%] Meshing curve 30 (Line)
Info    : [ 30%] Meshing curve 31 (Line)
Info    : [ 30%] Meshing curve 32 (Line)
Info    : [ 30%] Meshing curve 33 (Line)
Info    : [ 30%] Meshing curve 34 (Line)
Info    : [ 30%] Meshing curve 35 (Line)
Info    : [ 30%] Meshing curve 36 (Line)
Info    : [ 30%] Meshing curve 37 (Line)
Info    : [ 30%] Meshing curve 38 (Line)
Info    : [ 30%] Meshing curve 39 (Line)
Info    : [ 30%] Meshing curve 40 (Line)
Info    : [ 30%] Meshing curve 41 (Line)
Info    : [ 30%] Meshing curve 42 (Line)
Info    : [ 30%] Meshing curve 43 (Line)
Info    : [ 30%] Meshing curve 44 (Line)
Info    : [ 30%] Meshing curve 45 (Line)
Info    : [ 30%] Meshing curve 46 (Line)
Info    : [ 30%] Meshing curve 47 (Line)
Info    : [ 40%] Meshing curve 48 (Line)
Info    : [ 40%] Meshing curve 49 (Line)
Info    : [ 40%] Meshing curve 50 (Line)
Info    : [ 40%] Meshing curve 51 (Line)
Info    : [ 40%] Meshing curve 52 (Line)
Info    : [ 40%] Meshing curve 53 (Line)
Info    : [ 40%] Meshing curve 54 (Line)
Info    : [ 40%] Meshing curve 55 (Line)
Info    : [ 40%] Meshing curve 56 (Line)
Info    : [ 40%] Meshing curve 57 (Line)
Info    : [ 40%] Meshing curve 58 (Line)
Info    : [ 40%] Meshing curve 59 (Line)
Info    : [ 50%] Meshing curve 60 (Line)
Info    : [ 50%] Meshing curve 61 (Line)
Info    : [ 50%] Meshing curve 62 (Line)
Info    : [ 50%] Meshing curve 63 (Line)
Info    : [ 50%] Meshing curve 64 (Line)
Info    : [ 50%] Meshing curve 65 (Line)
Info    : [ 50%] Meshing curve 66 (Line)
Info    : [ 50%] Meshing curve 67 (Line)
Info    : [ 50%] Meshing curve 68 (Line)
Info    : [ 50%] Meshing curve 69 (Line)
Info    : [ 50%] Meshing curve 70 (Line)
Info    : [ 50%] Meshing curve 71 (Line)
Info    : [ 60%] Meshing curve 72 (Line)
Info    : [ 60%] Meshing curve 73 (Line)
Info    : [ 60%] Meshing curve 74 (Line)
Info    : [ 60%] Meshing curve 75 (Line)
Info    : [ 60%] Meshing curve 76 (Line)
Info    : [ 60%] Meshing curve 77 (Line)
Info    : [ 60%] Meshing curve 78 (Line)
Info    : [ 60%] Meshing curve 79 (Line)
Info    : [ 60%] Meshing curve 80 (Line)
Info    : [ 60%] Meshing curve 81 (Line)
Info    : [ 60%] Meshing curve 82 (Line)
Info    : [ 60%] Meshing curve 83 (Line)
Info    : [ 60%] Meshing curve 85 (Line)
Info    : [ 60%] Meshing curve 86 (Line)
Info    : [ 70%] Meshing curve 87 (Line)
Info    : [ 70%] Meshing curve 88 (Line)
Info    : [ 70%] Meshing curve 89 (Line)
Info    : [ 70%] Meshing curve 90 (Line)
Info    : [ 70%] Meshing curve 91 (Line)
Info    : [ 70%] Meshing curve 92 (Line)
Info    : [ 70%] Meshing curve 93 (Line)
Info    : [ 70%] Meshing curve 94 (Line)
Info    : [ 70%] Meshing curve 95 (Line)
Info    : [ 70%] Meshing curve 96 (Line)
Info    : [ 70%] Meshing curve 97 (Line)
Info    : [ 70%] Meshing curve 98 (Line)
Info    : [ 70%] Meshing curve 99 (Line)
Info    : [ 80%] Meshing curve 100 (Line)
Info    : [ 60%] Meshing curve 84 (Line)
Info    : [ 80%] Meshing curve 101 (Line)
Info    : [ 80%] Meshing curve 102 (Line)
Info    : [ 80%] Meshing curve 104 (Line)
Info    : [ 80%] Meshing curve 105 (Line)
Info    : [ 80%] Meshing curve 106 (Line)
Info    : [ 80%] Meshing curve 107 (Line)
Info    : [ 80%] Meshing curve 103 (Line)
Info    : [ 80%] Meshing curve 108 (Line)
Info    : [ 80%] Meshing curve 109 (Line)
Info    : [ 80%] Meshing curve 110 (Line)
Info    : [ 90%] Meshing curve 113 (Line)
Info    : [ 90%] Meshing curve 114 (Line)
Info    : [ 90%] Meshing curve 115 (Line)
Info    : [ 90%] Meshing curve 116 (Line)
Info    : [ 90%] Meshing curve 117 (Line)
Info    : [ 90%] Meshing curve 118 (Line)
Info    : [ 90%] Meshing curve 119 (Line)
Info    : [ 90%] Meshing curve 120 (Line)
Info    : [ 90%] Meshing curve 121 (Line)
Info    : [ 90%] Meshing curve 122 (Line)
Info    : [ 90%] Meshing curve 123 (Line)
Info    : [ 90%] Meshing curve 124 (Line)
Info    : [ 90%] Meshing curve 125 (Line)
Info    : [ 90%] Meshing curve 112 (Line)
Info    : [ 90%] Meshing curve 126 (Line)
Info    : [ 90%] Meshing curve 127 (Line)
Info    : [100%] Meshing curve 128 (Line)
Info    : [100%] Meshing curve 129 (Line)
Info    : [100%] Meshing curve 130 (Line)
Info    : [100%] Meshing curve 131 (Line)
Info    : [100%] Meshing curve 132 (Line)
Info    : [ 80%] Meshing curve 111 (Line)
Info    : Done meshing 1D (Wall 0.00771503s, CPU 0.022245s)
Info    : Meshing 2D...
Info    : [  0%] Meshing surface 1 (Plane, Frontal-Delaunay)
Info    : [  0%] Meshing surface 3 (Plane, Frontal-Delaunay)
Info    : [  0%] Meshing surface 2 (Plane, Frontal-Delaunay)
Info    : [  0%] Meshing surface 4 (Plane, Frontal-Delaunay)
Info    : [  0%] Meshing surface 5 (Plane, Frontal-Delaunay)
Info    : [ 10%] Meshing surface 6 (Plane, Frontal-Delaunay)
Info    : [ 10%] Meshing surface 8 (Plane, Frontal-Delaunay)
Info    : [ 20%] Meshing surface 9 (Plane, Frontal-Delaunay)
Info    : [ 10%] Meshing surface 7 (Plane, Frontal-Delaunay)
Info    : [ 20%] Meshing surface 10 (Plane, Frontal-Delaunay)
Info    : [ 20%] Meshing surface 11 (Plane, Frontal-Delaunay)
Info    : [ 20%] Meshing surface 12 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 14 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 15 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 16 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 17 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 18 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 19 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 20 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 21 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 22 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 23 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 24 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 25 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 26 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 27 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 28 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 29 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 30 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 31 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 32 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 33 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 13 (Plane, Frontal-Delaunay)
Info    : Done meshing 2D (Wall 0.0546974s, CPU 0.086932s)
Info    : 2069 nodes 4524 elements
Info    : Writing 'mesh.msh'...
Info    : Done writing 'mesh.msh'
Info    : Writing '/tmp/tmp6n_v6yfm/mesh.msh'...
Info    : Done writing '/tmp/tmp6n_v6yfm/mesh.msh'

[]

../_images/5490f87899119be311130d6c8fb9c46fe14ef4c63ba8c98f44e7468ce7e7397a.png

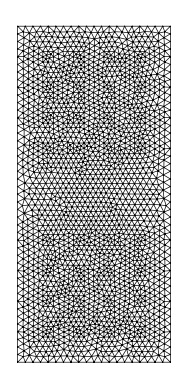

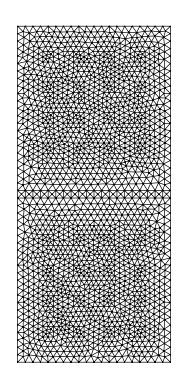

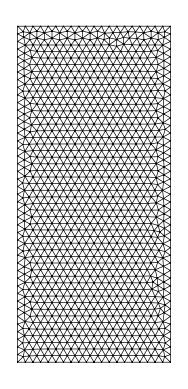

At z=0, you can see only the core and slab:

mesh = get_mesh(
    component=waveguide,
    type="xy",
    z=0.0,
    layer_stack=filtered_layer_stack,
    filename=f"{filename}.msh",
)
mesh = mesh_with_physicals(mesh, filename)
mesh = from_meshio(mesh)
mesh.draw().plot()
Info    : [  0%] Difference
Info    : [ 10%] Difference
Info    : [ 20%] Difference - Performing Vertex-Face intersection
Info    : [ 30%] Difference
Info    : [ 40%] Difference
Info    : [ 50%] Difference
Info    : [ 60%] Difference
Info    : [ 70%] Difference - Filling splits of edges
Info    : [ 80%] Difference - Making faces
Info    : [ 90%] Difference

Info    : [  0%] Fragments
Info    : [ 10%] Fragments - Performing intersection of shapes

Info    : Meshing 1D...
Info    : [  0%] Meshing curve 1 (Line)
Info    : [  0%] Meshing curve 2 (Line)
Info    : [ 30%] Meshing curve 3 (Line)
Info    : [ 30%] Meshing curve 4 (Line)
Info    : Done meshing 1D (Wall 0.000437377s, CPU 0.000624s)
Info    : Meshing 2D...
Info    : Meshing surface 1 (Plane, Frontal-Delaunay)
Info    : Done meshing 2D (Wall 0.0296284s, CPU 0.054318s)
Info    : 1102 nodes 2206 elements
Info    : Writing 'mesh.msh'...
Info    : Done writing 'mesh.msh'
Info    : Writing '/tmp/tmpr4to5_jg/mesh.msh'...
Info    : Done writing '/tmp/tmpr4to5_jg/mesh.msh'
Warning : Boolean fragments skipped - too few arguments

[]

../_images/9a56a62a1f11707937aefe7c8ed9605ab81d550011d5e05be2c2944dbae64d03.png

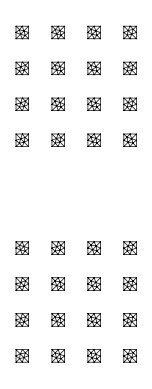

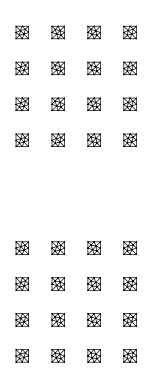

At z=1.0, you can only see the vias appear:

mesh = get_mesh(
    component=waveguide,
    type="xy",
    z=1.0,
    layer_stack=filtered_layer_stack,
    filename=f"{filename}.msh",
)
mesh = mesh_with_physicals(mesh, filename)
mesh = from_meshio(mesh)
mesh.draw().plot()
Info    : [  0%] Union
Info    : [ 10%] Union - Performing intersection of shapes
Info    : [ 80%] Union - Building splits of containers

Info    : Meshing 1D...
Info    : [  0%] Meshing curve 1 (Line)
Info    : [  0%] Meshing curve 2 (Line)
Info    : [  0%] Meshing curve 3 (Line)
Info    : [ 10%] Meshing curve 4 (Line)
Info    : [ 10%] Meshing curve 5 (Line)
Info    : [ 10%] Meshing curve 6 (Line)
Info    : [ 10%] Meshing curve 7 (Line)
Info    : [ 10%] Meshing curve 8 (Line)
Info    : [ 10%] Meshing curve 9 (Line)
Info    : [ 10%] Meshing curve 10 (Line)
Info    : [ 10%] Meshing curve 11 (Line)
Info    : [ 10%] Meshing curve 12 (Line)
Info    : [ 10%] Meshing curve 13 (Line)
Info    : [ 10%] Meshing curve 14 (Line)
Info    : [ 10%] Meshing curve 15 (Line)
Info    : [ 10%] Meshing curve 16 (Line)
Info    : [ 20%] Meshing curve 17 (Line)
Info    : [ 20%] Meshing curve 18 (Line)
Info    : [ 20%] Meshing curve 19 (Line)
Info    : [ 20%] Meshing curve 20 (Line)
Info    : [ 20%] Meshing curve 21 (Line)
Info    : [ 20%] Meshing curve 22 (Line)
Info    : [ 20%] Meshing curve 23 (Line)
Info    : [ 20%] Meshing curve 24 (Line)
Info    : [ 20%] Meshing curve 25 (Line)
Info    : [ 20%] Meshing curve 26 (Line)
Info    : [ 20%] Meshing curve 27 (Line)
Info    : [ 20%] Meshing curve 28 (Line)
Info    : [ 30%] Meshing curve 29 (Line)
Info    : [ 30%] Meshing curve 30 (Line)
Info    : [ 30%] Meshing curve 31 (Line)
Info    : [ 30%] Meshing curve 32 (Line)
Info    : [ 30%] Meshing curve 33 (Line)
Info    : [ 30%] Meshing curve 34 (Line)
Info    : [ 30%] Meshing curve 35 (Line)
Info    : [ 30%] Meshing curve 36 (Line)
Info    : [ 30%] Meshing curve 37 (Line)
Info    : [ 30%] Meshing curve 38 (Line)
Info    : [ 30%] Meshing curve 39 (Line)
Info    : [ 30%] Meshing curve 40 (Line)
Info    : [ 30%] Meshing curve 41 (Line)
Info    : [ 30%] Meshing curve 42 (Line)
Info    : [ 40%] Meshing curve 43 (Line)
Info    : [ 40%] Meshing curve 44 (Line)
Info    : [ 40%] Meshing curve 45 (Line)
Info    : [ 40%] Meshing curve 46 (Line)
Info    : [ 40%] Meshing curve 47 (Line)
Info    : [ 40%] Meshing curve 48 (Line)
Info    : [ 40%] Meshing curve 49 (Line)
Info    : [ 40%] Meshing curve 50 (Line)
Info    : [ 40%] Meshing curve 51 (Line)
Info    : [ 40%] Meshing curve 53 (Line)
Info    : [ 40%] Meshing curve 54 (Line)
Info    : [ 40%] Meshing curve 55 (Line)
Info    : [ 40%] Meshing curve 56 (Line)
Info    : [ 40%] Meshing curve 57 (Line)
Info    : [ 40%] Meshing curve 58 (Line)
Info    : [ 40%] Meshing curve 60 (Line)
Info    : [ 40%] Meshing curve 61 (Line)
Info    : [ 40%] Meshing curve 62 (Line)
Info    : [ 40%] Meshing curve 63 (Line)
Info    : [ 40%] Meshing curve 64 (Line)
Info    : [ 40%] Meshing curve 65 (Line)
Info    : [ 40%] Meshing curve 66 (Line)
Info    : [ 40%] Meshing curve 67 (Line)
Info    : [ 40%] Meshing curve 68 (Line)
Info    : [ 40%] Meshing curve 69 (Line)
Info    : [ 40%] Meshing curve 70 (Line)
Info    : [ 40%] Meshing curve 71 (Line)
Info    : [ 40%] Meshing curve 72 (Line)
Info    : [ 40%] Meshing curve 73 (Line)
Info    : [ 40%] Meshing curve 74 (Line)
Info    : [ 40%] Meshing curve 75 (Line)
Info    : [ 40%] Meshing curve 76 (Line)
Info    : [ 40%] Meshing curve 77 (Line)
Info    : [ 40%] Meshing curve 78 (Line)
Info    : [ 40%] Meshing curve 79 (Line)
Info    : [ 40%] Meshing curve 80 (Line)
Info    : [ 40%] Meshing curve 81 (Line)
Info    : [ 40%] Meshing curve 82 (Line)
Info    : [ 40%] Meshing curve 83 (Line)
Info    : [ 40%] Meshing curve 84 (Line)
Info    : [ 40%] Meshing curve 85 (Line)
Info    : [ 40%] Meshing curve 86 (Line)
Info    : [ 40%] Meshing curve 87 (Line)
Info    : [ 40%] Meshing curve 88 (Line)
Info    : [ 40%] Meshing curve 89 (Line)
Info    : [ 40%] Meshing curve 90 (Line)
Info    : [ 40%] Meshing curve 91 (Line)
Info    : [ 40%] Meshing curve 52 (Line)
Info    : [ 40%] Meshing curve 93 (Line)
Info    : [ 80%] Meshing curve 94 (Line)
Info    : [ 80%] Meshing curve 95 (Line)
Info    : [ 80%] Meshing curve 96 (Line)
Info    : [ 80%] Meshing curve 97 (Line)
Info    : [ 40%] Meshing curve 92 (Line)
Info    : [ 80%] Meshing curve 99 (Line)
Info    : [ 80%] Meshing curve 100 (Line)
Info    : [ 80%] Meshing curve 98 (Line)
Info    : [ 80%] Meshing curve 101 (Line)
Info    : [ 80%] Meshing curve 104 (Line)
Info    : [ 80%] Meshing curve 102 (Line)
Info    : [ 80%] Meshing curve 103 (Line)
Info    : [ 80%] Meshing curve 105 (Line)
Info    : [ 80%] Meshing curve 106 (Line)
Info    : [ 80%] Meshing curve 107 (Line)
Info    : [ 90%] Meshing curve 108 (Line)
Info    : [ 90%] Meshing curve 109 (Line)
Info    : [ 90%] Meshing curve 111 (Line)
Info    : [ 90%] Meshing curve 110 (Line)
Info    : [ 90%] Meshing curve 113 (Line)
Info    : [ 90%] Meshing curve 114 (Line)
Info    : [ 90%] Meshing curve 115 (Line)
Info    : [ 90%] Meshing curve 116 (Line)
Info    : [ 90%] Meshing curve 117 (Line)
Info    : [ 90%] Meshing curve 112 (Line)
Info    : [ 90%] Meshing curve 119 (Line)
Info    : [ 90%] Meshing curve 118 (Line)
Info    : [ 90%] Meshing curve 120 (Line)
Info    : [ 90%] Meshing curve 121 (Line)
Info    : [100%] Meshing curve 123 (Line)
Info    : [100%] Meshing curve 124 (Line)
Info    : [100%] Meshing curve 125 (Line)
Info    : [100%] Meshing curve 126 (Line)
Info    : [100%] Meshing curve 127 (Line)
Info    : [100%] Meshing curve 122 (Line)
Info    : [ 40%] Meshing curve 59 (Line)
Info    : [100%] Meshing curve 128 (Line)
Info    : Done meshing 1D (Wall 0.0068652s, CPU 0.018021s)
Info    : Meshing 2D...
Info    : [  0%] Meshing surface 3 (Plane, Frontal-Delaunay)
Info    : [  0%] Meshing surface 4 (Plane, Frontal-Delaunay)
Info    : [  0%] Meshing surface 1 (Plane, Frontal-Delaunay)
Info    : [  0%] Meshing surface 2 (Plane, Frontal-Delaunay)
Info    : [  0%] Meshing surface 5 (Plane, Frontal-Delaunay)
Info    : [ 10%] Meshing surface 6 (Plane, Frontal-Delaunay)
Info    : [ 10%] Meshing surface 7 (Plane, Frontal-Delaunay)
Info    : [ 10%] Meshing surface 8 (Plane, Frontal-Delaunay)
Info    : [ 10%] Meshing surface 9 (Plane, Frontal-Delaunay)
Info    : [ 20%] Meshing surface 10 (Plane, Frontal-Delaunay)
Info    : [ 20%] Meshing surface 11 (Plane, Frontal-Delaunay)
Info    : [ 20%] Meshing surface 12 (Plane, Frontal-Delaunay)
Info    : [ 20%] Meshing surface 13 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 14 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 15 (Plane, Frontal-Delaunay)
Info    : [ 30%] Meshing surface 16 (Plane, Frontal-Delaunay)
Info    : [ 50%] Meshing surface 17 (Plane, Frontal-Delaunay)
Info    : [ 50%] Meshing surface 18 (Plane, Frontal-Delaunay)
Info    : [ 50%] Meshing surface 19 (Plane, Frontal-Delaunay)
Info    : [ 50%] Meshing surface 20 (Plane, Frontal-Delaunay)
Info    : [ 60%] Meshing surface 21 (Plane, Frontal-Delaunay)
Info    : [ 60%] Meshing surface 22 (Plane, Frontal-Delaunay)
Info    : [ 60%] Meshing surface 23 (Plane, Frontal-Delaunay)
Info    : [ 70%] Meshing surface 24 (Plane, Frontal-Delaunay)
Info    : [ 70%] Meshing surface 25 (Plane, Frontal-Delaunay)
Info    : [ 70%] Meshing surface 26 (Plane, Frontal-Delaunay)
Info    : [ 80%] Meshing surface 27 (Plane, Frontal-Delaunay)
Info    : [ 80%] Meshing surface 28 (Plane, Frontal-Delaunay)
Info    : [ 80%] Meshing surface 29 (Plane, Frontal-Delaunay)
Info    : [ 90%] Meshing surface 30 (Plane, Frontal-Delaunay)
Info    : [ 90%] Meshing surface 31 (Plane, Frontal-Delaunay)
Info    : [ 90%] Meshing surface 32 (Plane, Frontal-Delaunay)
Info    : Done meshing 2D (Wall 0.0118565s, CPU 0.040346s)
Info    : 384 nodes 832 elements
Info    : Writing 'mesh.msh'...
Info    : Done writing 'mesh.msh'
Info    : Writing '/tmp/tmp_19t6sxj/mesh.msh'...
Info    : Done writing '/tmp/tmp_19t6sxj/mesh.msh'

[]

../_images/10b2571eb5b3d3d36778727dc53046f250012a5126e5106508b5270d06cccaff.png

Controlling meshing domain#

You can use functions that return other components to modify the simulation domain, for instance gdsfactory.geometry.trim:

waveguide = gf.components.straight_pin(length=11, taper=None).dup()
waveguide.trim(left=3, right=5, bottom=-4, top=4)
waveguide

../_images/fdfec7ee7a20d4ae0d46545fea5e878d1b4390d508511557bd0add2296b2ad02.png

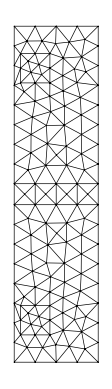

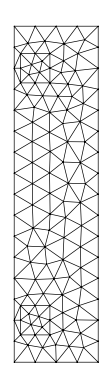

mesh = get_mesh(
    component=waveguide,
    type="xy",
    z=0.09,
    layer_stack=filtered_layer_stack,
    filename=f"{filename}.msh",
)
mesh = mesh_with_physicals(mesh, filename)
mesh = from_meshio(mesh)
mesh.draw().plot()
Info    : [  0%] Union
Info    : [ 10%] Union - Performing intersection of shapes
Info    : [ 80%] Union - Building splits of containers

Info    : [  0%] Difference
Info    : [ 10%] Difference
Info    : [ 20%] Difference
Info    : [ 30%] Difference
Info    : [ 40%] Difference
Info    : [ 50%] Difference
Info    : [ 60%] Difference
Info    : [ 70%] Difference
Info    : [ 80%] Difference - Making faces
Info    : [ 90%] Difference - Adding holes
Info    : [  0%] Fragments
Info    : [ 10%] Fragments
Info    : [ 40%] Fragments
Info    : [ 70%] Fragments
Info    : [ 80%] Fragments - Splitting faces

Info    : [  0%] Difference
Info    : [ 10%] Difference
Info    : [ 20%] Difference
Info    : [ 30%] Difference
Info    : [ 40%] Difference
Info    : [ 50%] Difference
Info    : [ 60%] Difference
Info    : [ 70%] Difference
Info    : [ 80%] Difference - Making faces
Info    : [ 90%] Difference - Adding holes
Info    : [  0%] Fragments
Info    : [ 10%] Fragments
Info    : [ 40%] Fragments
Info    : [ 70%] Fragments
Info    : [ 80%] Fragments - Splitting faces

Info    : Meshing 1D...
Info    : [  0%] Meshing curve 1 (Line)
Info    : [  0%] Meshing curve 2 (Line)
Info    : [  0%] Meshing curve 3 (Line)
Info    : [ 10%] Meshing curve 4 (Line)
Info    : [ 10%] Meshing curve 5 (Line)
Info    : [ 30%] Meshing curve 6 (Line)
Info    : [ 30%] Meshing curve 7 (Line)
Info    : [ 30%] Meshing curve 8 (Line)
Info    : [ 60%] Meshing curve 9 (Line)
Info    : [ 60%] Meshing curve 10 (Line)
Info    : [ 60%] Meshing curve 11 (Line)
Info    : [ 80%] Meshing curve 12 (Line)
Info    : Done meshing 1D (Wall 0.00115951s, CPU 0.003187s)
Info    : Meshing 2D...
Info    : [  0%] Meshing surface 3 (Plane, Frontal-Delaunay)
Info    : [  0%] Meshing surface 2 (Plane, Frontal-Delaunay)
Info    : [  0%] Meshing surface 1 (Plane, Frontal-Delaunay)
Info    : Done meshing 2D (Wall 0.00342882s, CPU 0.010876s)
Info    : 131 nodes 288 elements
Info    : Writing 'mesh.msh'...
Info    : Done writing 'mesh.msh'
Info    : Writing '/tmp/tmpslg24mkr/mesh.msh'...
Info    : Done writing '/tmp/tmpslg24mkr/mesh.msh'

[]

../_images/80e1713539283a174fd7f57d095ef71ce8edcede662d94482c2dd1c9f5ce2797.png
