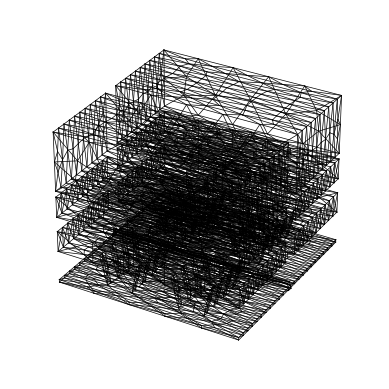

3D meshing and net entities#
The same API can be used to mesh a component in 3D. Furthermore, there are simple ways to tag elements attached to ports to define simulation boundary conditions.
This time, let’s use the LayerStack’s box and clad layerlevels (associated with layer.WAFER) to define the background:
import gdsfactory as gf
import meshio
from gdsfactory.generic_tech import get_generic_pdk
from gdsfactory.pdk import get_layer_stack
from gdsfactory.technology import LayerStack
from skfem.io import from_meshio
from gplugins.gmsh.get_mesh import create_physical_mesh, get_mesh
PDK = get_generic_pdk()
PDK.activate()
gf.config.rich_output()
waveguide = gf.components.straight_pin(length=5, taper=None)
waveguide.plot()
filtered_layer_stack = LayerStack(
layers={
k: get_layer_stack().layers[k]
for k in (
"slab90",
"core",
"via_contact",
"metal1",
"via1",
"metal2",
"via2",
"metal3",
)
}
)
filename = "mesh"
def mesh_with_physicals(mesh, filename):
mesh_from_file = meshio.read(f"{filename}.msh")
return create_physical_mesh(mesh_from_file, "tetra")
mesh = get_mesh(
component=waveguide,
type="3D",
layer_stack=filtered_layer_stack,
filename=f"{filename}.msh",
default_characteristic_length=1,
verbosity=5,
)
