8 to 9

Due to the recent release of KFactory v1.0.0, we have had to make some small changes to the API of the following classes:

• Component

• Port

• ComponentReference

• ComponentReferences

GDSFactory v9 is not a big change but it makes ports and instance units consistent with each other.

Main changes

Note the migration changes:

• port.dangle has been renamed to port.orientation

  • port.angle represents the angle 90 degrees multiples.

  • port.orientation represents the angle in degrees.

• CHECK_INSTANCES has been renamed to CheckInstances

  • Most often used in the @cell decorator.

• Port(..., layer: tuple[int, int]) has been replaced with Port(..., layer: int)

  • layer now represents the layer index in the KLayout layer stack.

  • To update your code you can do Port(..., layer=gf.kcl.layout.layer(*layer))

  • We also recommend just using Component.add_port, with which you can specify the layer as tuple.

• Most of the d prefix attributes and functions can now be used without the d prefix.

• ComponentReference.parent has been removed, you should use ComponentReference.cell instead.

• ComponentReference.info has been removed, you should use ComponentReference.cell.info instead.

gdsfactory.typings

Some of the type aliases have been removed, you can now use the following:

Moved from gdsfactory.typings to gdsfactory.cross_section:

• MultiCrossSectionAngleSpec

• CrossSectionFactory

• CrossSectionSpec

Moved from gdsfactory.typings to gdsfactory.component:

• AnyComponent

• AnyComponentT

• AnyComponentFactory

• AnyComponentPostProcess

• ComponentFactory

• ComponentAllAngleFactory

• ComponentFactoryDict

• ComponentFactories

• ComponentSpecOrList

• CellSpec

Removed from gdsfactory.typings:

• NameToFunctionDict

• ComponentBaseFactory

import gdsfactory as gf

c = gf.components.straight(length=10)
c.pprint_ports()

┏━━━━━━┳━━━━━━━┳━━━━━━━━━━━━━┳━━━━━━━━━━┳━━━━━━━━━━━━━┳━━━━━━━━━━━┓
┃ name ┃ width ┃ orientation ┃ layer    ┃ center      ┃ port_type ┃
┡━━━━━━╇━━━━━━━╇━━━━━━━━━━━━━╇━━━━━━━━━━╇━━━━━━━━━━━━━╇━━━━━━━━━━━┩
│ o1   │ 0.5   │ 180.0       │ WG (1/0) │ (0.0, 0.0)  │ optical   │
│ o2   │ 0.5   │ 0.0         │ WG (1/0) │ (10.0, 0.0) │ optical   │
└──────┴───────┴─────────────┴──────────┴─────────────┴───────────┘

print('port orientation in degrees', c.ports['o2'].orientation)
print('port x in um', c.ports['o2'].x)
print('port dx in um (decimal)', c.ports['o2'].dx)
print('port ix in integer (database units)', c.ports['o2'].ix)

port orientation in degrees 0.0
port x in um 10.0
port dx in um (decimal) 10.0
port ix in integer (database units) 10000

c = gf.Component()
ref = c << gf.c.straight()

ref.xmin = 10

print('reference x in um', ref.x)
print('reference dx in um (decimal)', ref.dx)
print('reference ix in integer (database units)', ref.ix)

reference x in um 15.0
reference dx in um (decimal) 15.0
reference ix in integer (database units) 15000

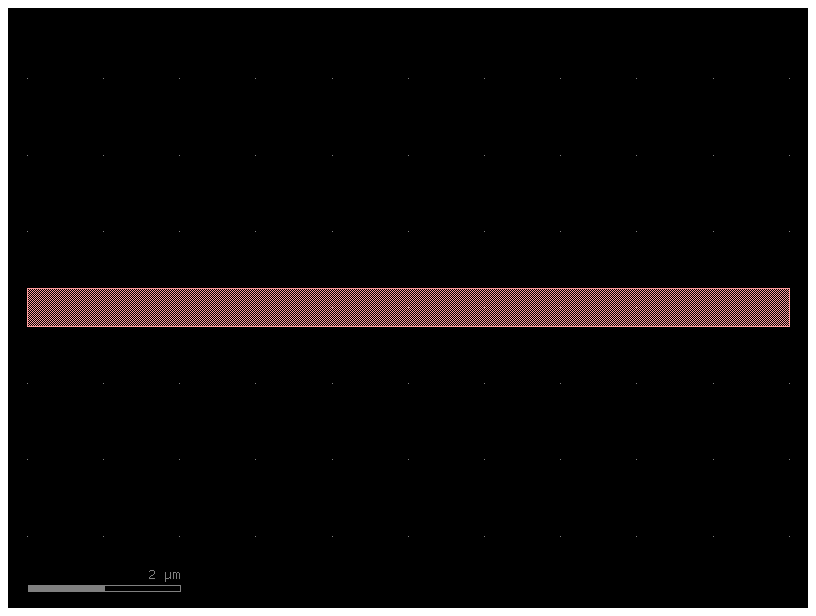

c
